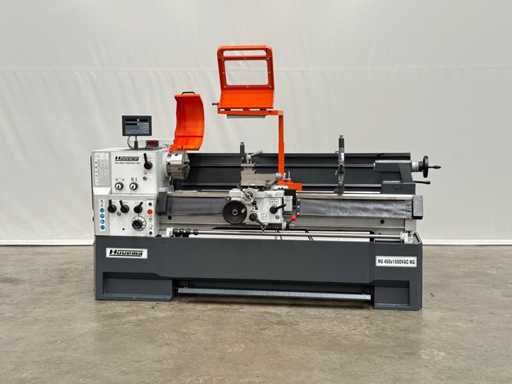

Huvema - HU 460x1500VAC NG - Centre lathe - 2023
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Huvema
- Type
- HU 460x1500VAC NG
- Year of build
- 2023
- Turning length
- 1500mm
- Turning Ø
- 460mm
- Spindle boring Ø
- 58mm
- Speed from n=
- 30rpm
- Speed till n=
- 2000rpm
- Machine weight
- 2020kg
- Dimension l
- 2800mm
- Dimension w
- 1100mm
- Dimension h
- 1600mm
- Terms of delivery
- Loaded on truck
Description
Brand Huvema
Type HU 460x1500VAC NG
Year of make 2023
Distance between centers 1.500 mm
Center height 230 mm
Turning diameter above the bed 460 mm ø
Turning diameter above the support 260 mm ø
Turning diameter in the bag 660 mm ø
Passage 58 mm ø

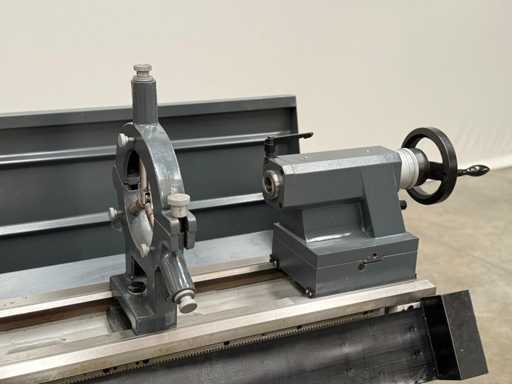

Pedestrian glasses
Fixed glasses

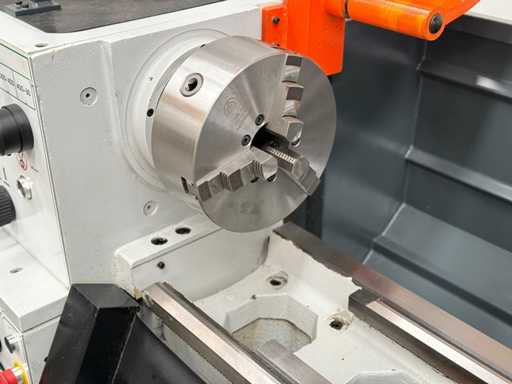

3-Jaw Chuck 250 mm ø

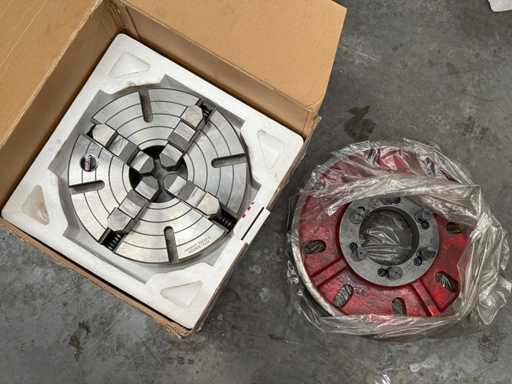

4-Jaw Chuck 300 mm ø

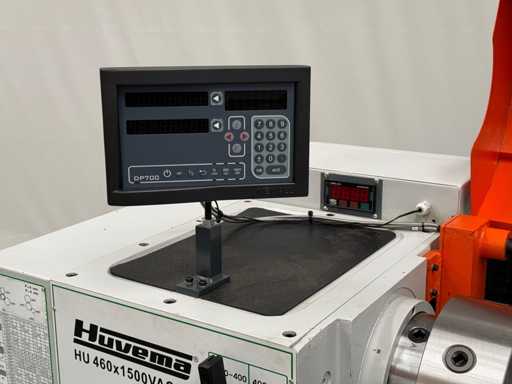

Digital readout Newall DP700
Speed 30 - 2,000 RPM
Variably adjustable speed
Safety screens
Various accessories
Machine size (lxwxh) 2.800 x 1.100 x 1.600 mm
Machine weight 2.020 kg
Remarks
Machine will be sold AS-IS.

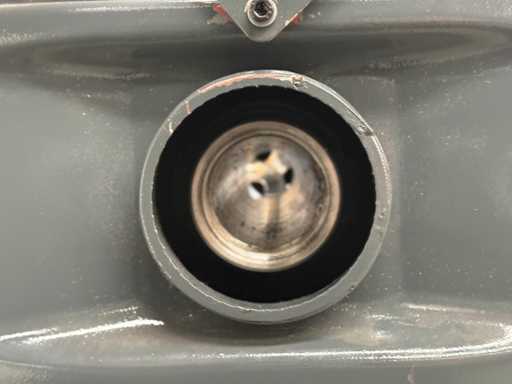

There is a tap in the gear box.
Additional details
There is no right of withdrawal.
The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The lots are loaded by the seller on the transport you organize.
