IDEAL BS1 Electric Welding Machine – Welding Machine for Band Saw Blades
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- IDEAL
- Machine weight
- 1kg
- Dimension l
- 1mm
- Dimension w
- 1mm
- Dimension h
- 1mm
- Terms of delivery
- Ex foundation-unpackaged
Description

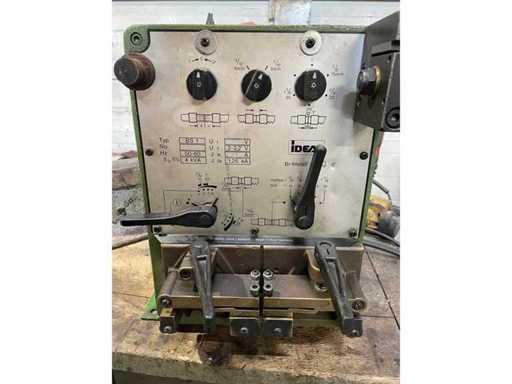

IDEAL BS1 Electric Welding Machine – Welding Machine for Band Saw Blades
Description
The IDEAL BS1 electric welding machine is used for butt welding band saw blades. It operates on the resistance welding principle, ensuring a fast and durable connection. Robust industrial construction, suitable for workshop use in woodworking and metalworking.
Technical Data
• Manufacturer: IDEAL
• Model: BS1
• Machine Type: Bandsaw Blade Welding Machine
• Welding Principle: Resistance Butt Welding

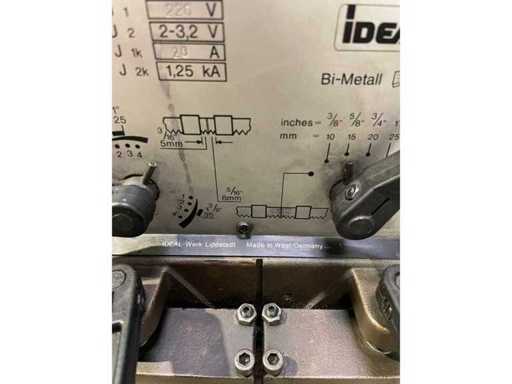

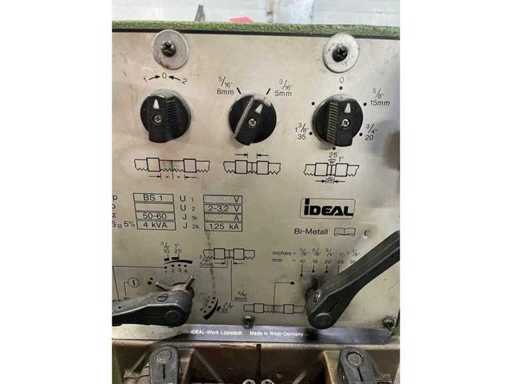

Electrical Data:
• Primary Voltage (U1): 220 V
• Secondary Voltage (U2): 2 – 3.2 V
• Primary Current (J1): 20 A
• Secondary Current (J2): 1.25 kA
• Frequency: 50 – 60 Hz
• Power: 4 kVA
• Duty Cycle (ED / Sb): 5%
Features
• Mechanical Operation (Lever System)
• Adjustable Clamping Jaws
• Welding and Annealing Function
• Compact and Robust Design
Advantages
• Fast and Cost-Effective Saw Blade Repair
• Strong and Durable Weld
• Easy Operation
• Long Service Life
Remarks
unchecked
Additional details
The items are at different locations (see item description).
Viewing by appointment only!

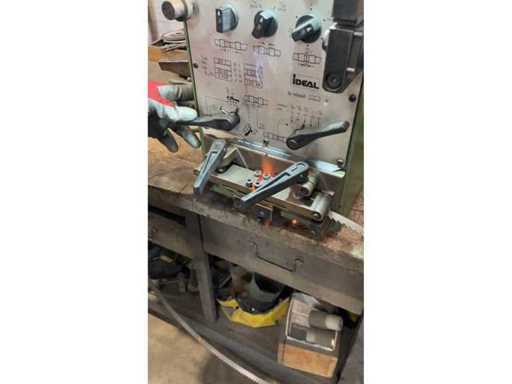

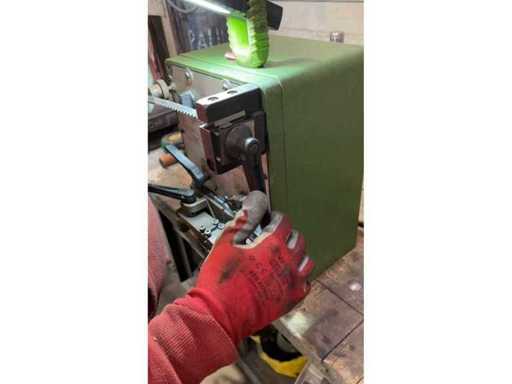

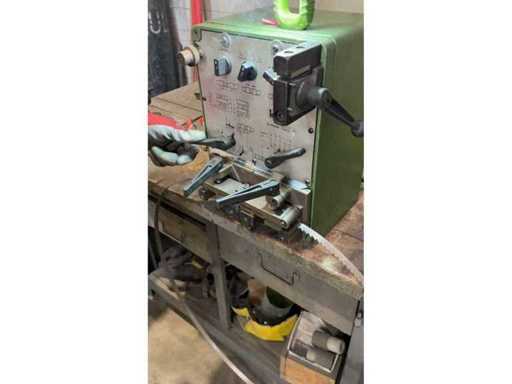

Video
See the details and take a closer look at the item in this video.
