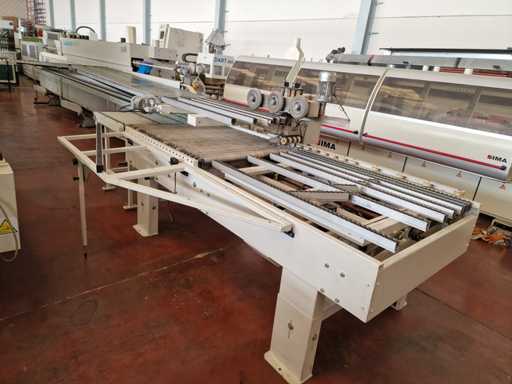

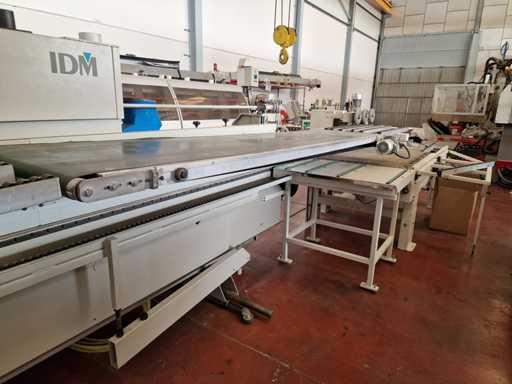

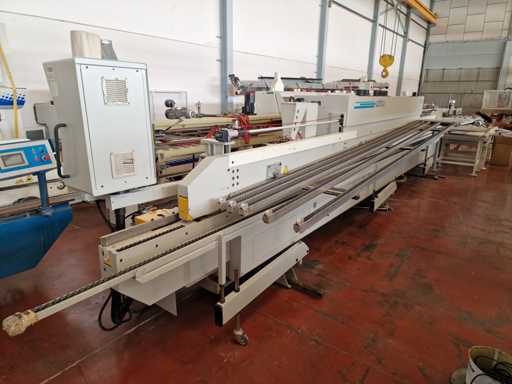

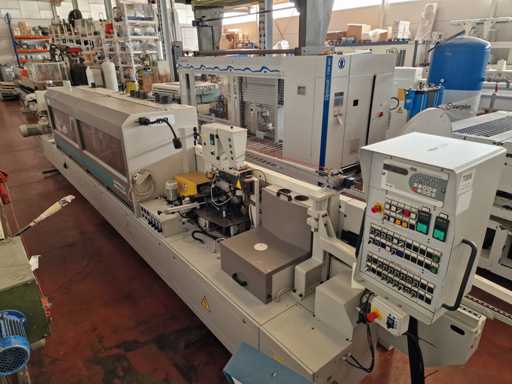

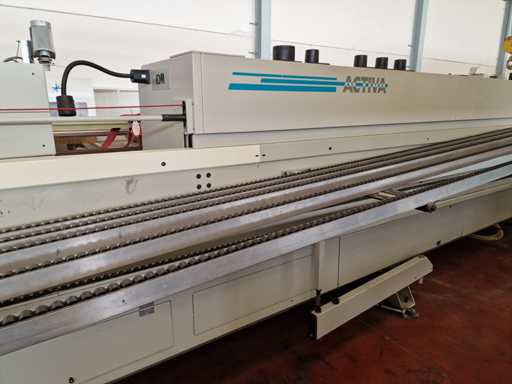

IDM ACTIVA 1/78 Edging Machine with Return System - 1999
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- IDM
- Type
- ACTIVA 1/78
- Year of build
- 1999
- Serial number

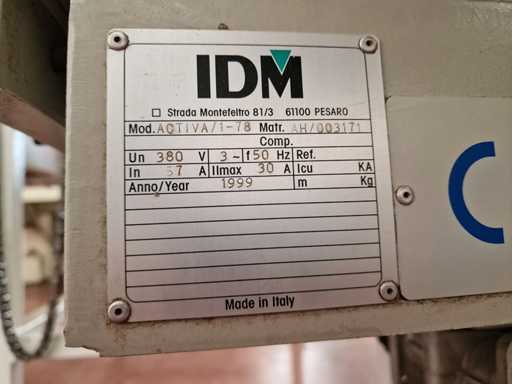

- AH/003171

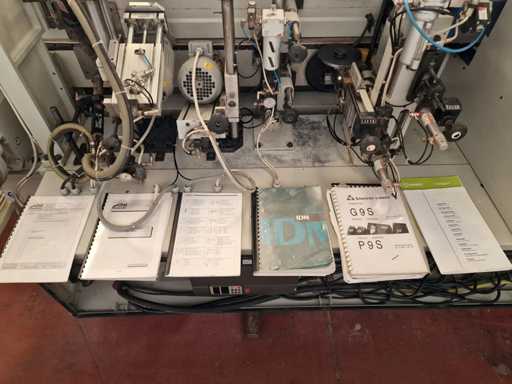

- Manual present
- Yes
- Machine weight
- 5000kg
- Dimension l
- 12500mm
- Dimension w
- 2800mm
- Dimension h
- 1900mm
- Terms of delivery
- Loaded on truck
Description
- Total installed power approx. 20 KW.
- Thickness of the edge in strips from 0.60 mm to 25 mm.
- Thickness of the edge in roll from 0.30 mm to 3 mm.
- Thickness of the workpiece from 10 mm to 60 mm.
- Minimum width of the piece 65 mm.
- Adjustable feed speed from 8 m/min to 30 m/min.
- 5.50 KW advance motor.

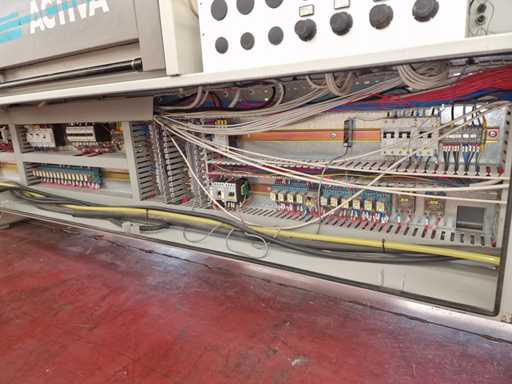

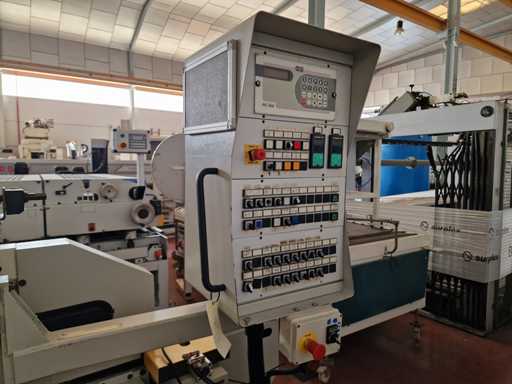

- CNI PIC 200 control.
- Input spindle moulder group, 2 x motors.

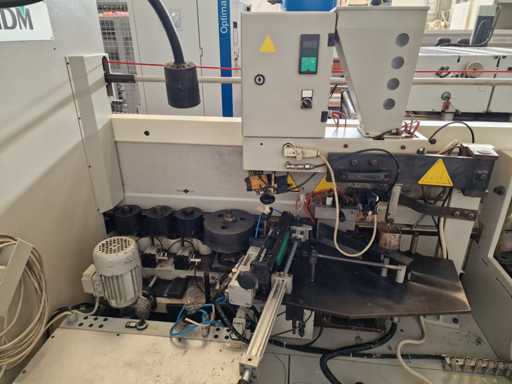

- Edge loader for slats and roll, edge tray for one roll.
- VC34 QMS gluing unit with tank for granulated hot melt adhesive, with prefuser.

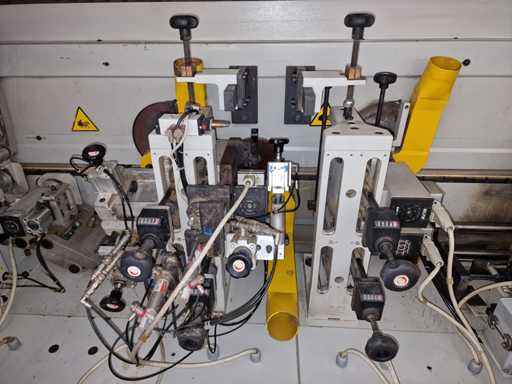

- Pressure group with (1+3) rollers.

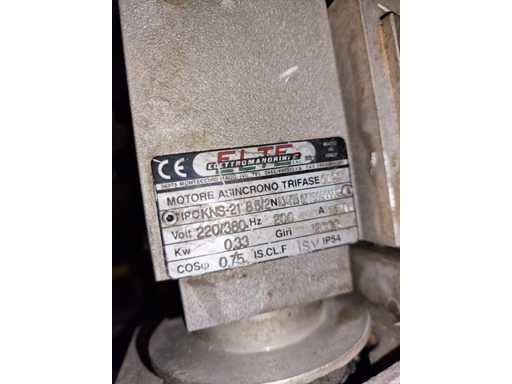

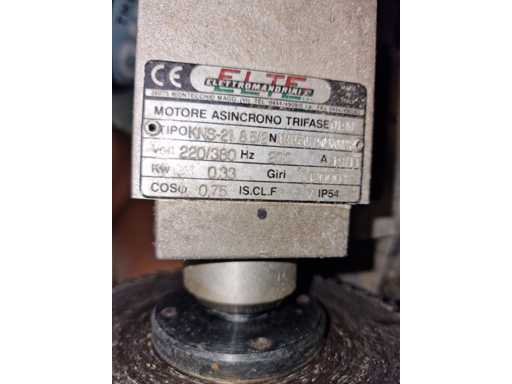

- Cross-cutting group, 2 x 0.33 KW-12000 rpm motor.

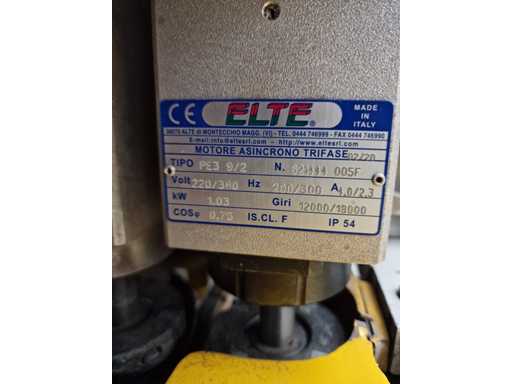

- Straight roughing group, 2 x 1.03 KW-12000 rpm motor.
- Spoke profiling unit, 2 x motor, tilting.
- Shape group, 4 x 0.33 KW-12000 rpm motor.

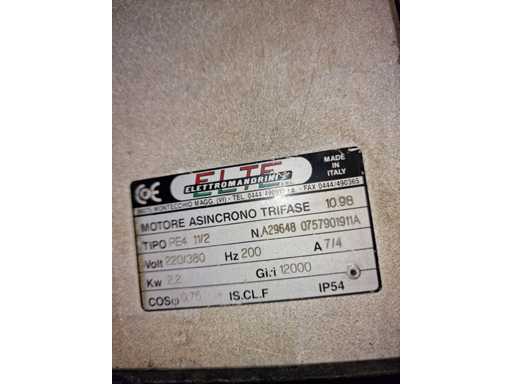

- Milling unit tiltable from 0° to 90°, motor from 2.20 KW-12000 rpm.
- Radius scraper group.
- Tail scraper group.
- Cleaning brush group, 2 x motor.
- Hot air blower group.

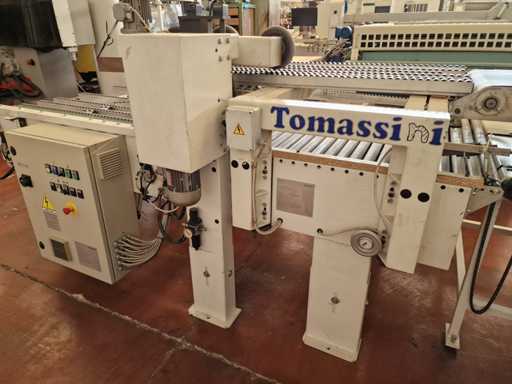

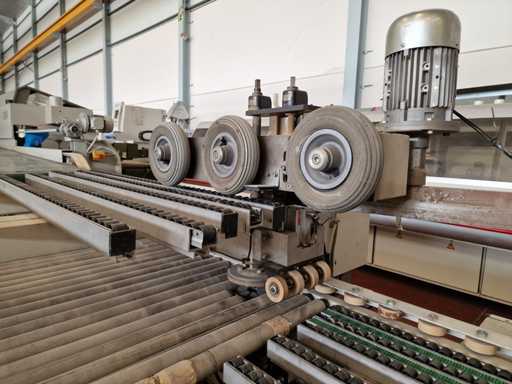

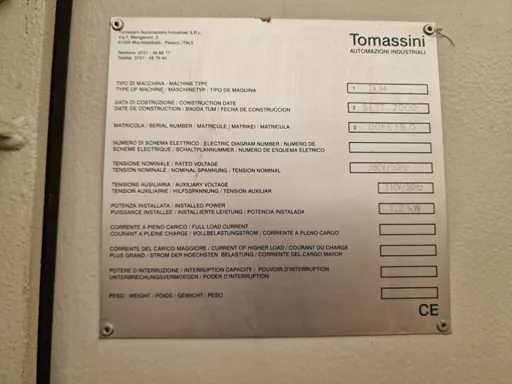

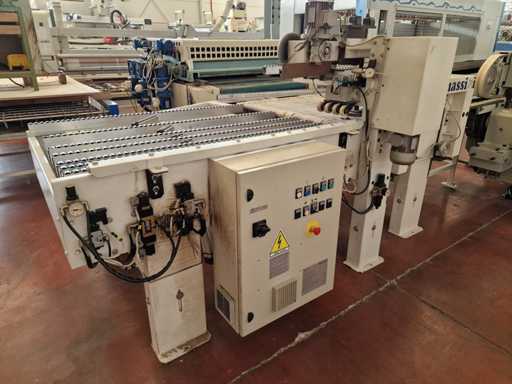

- TOMASSINI TA 94 boomerang return system: serial number 00FE18.0, year of manufacture 2000.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
- Thickness of the edge in strips from 0.60 mm to 25 mm.
- Thickness of the edge in roll from 0.30 mm to 3 mm.
- Thickness of the workpiece from 10 mm to 60 mm.
- Minimum width of the piece 65 mm.
- Adjustable feed speed from 8 m/min to 30 m/min.
- 5.50 KW advance motor.
- CNI PIC 200 control.
- Input spindle moulder group, 2 x motors.
- Edge loader for slats and roll, edge tray for one roll.
- VC34 QMS gluing unit with tank for granulated hot melt adhesive, with prefuser.
- Pressure group with (1+3) rollers.
- Cross-cutting group, 2 x 0.33 KW-12000 rpm motor.
- Straight roughing group, 2 x 1.03 KW-12000 rpm motor.
- Spoke profiling unit, 2 x motor, tilting.
- Shape group, 4 x 0.33 KW-12000 rpm motor.
- Milling unit tiltable from 0° to 90°, motor from 2.20 KW-12000 rpm.
- Radius scraper group.
- Tail scraper group.
- Cleaning brush group, 2 x motor.
- Hot air blower group.
- TOMASSINI TA 94 boomerang return system: serial number 00FE18.0, year of manufacture 2000.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
Additional details
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Emilio Sobrado
Email: e.sobrado@tbauctions.com
Pick-up is only possible on the following dates and by appointment: from 20.10.2025 to 24.10.2025 from 9:00 a.m. to 1:00 p.m. and from 3:30 p.m. to 6:00 p.m.
