Industrial Spray Booth with Integrated Drying Function – Complete System
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
Description

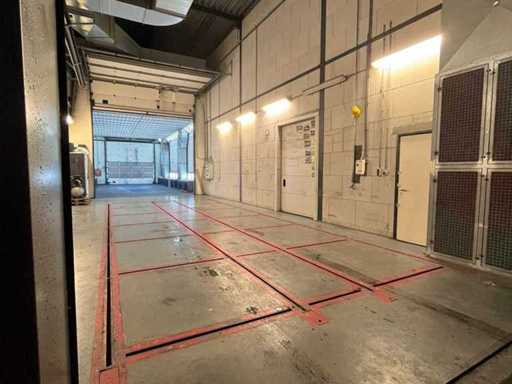

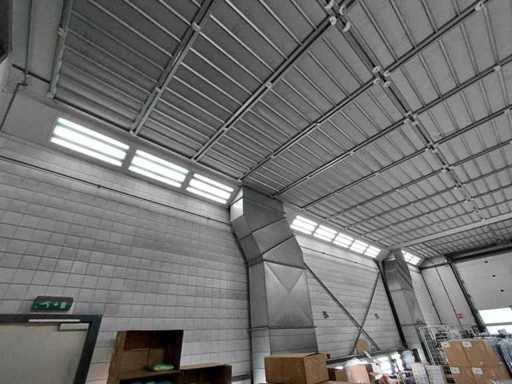

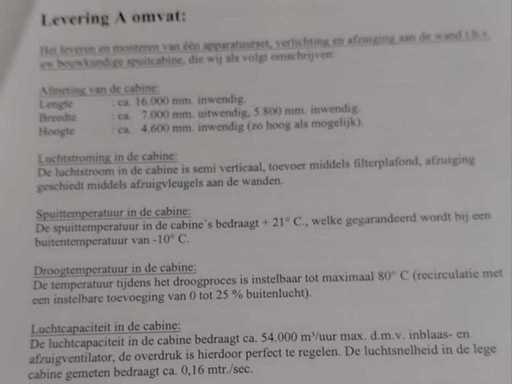

Type of installation: Spray booth with integrated drying function
Version: Semi-vertical airflow (ceiling inlet and wall extraction)
Application: Industrial Painting and Drying Processes

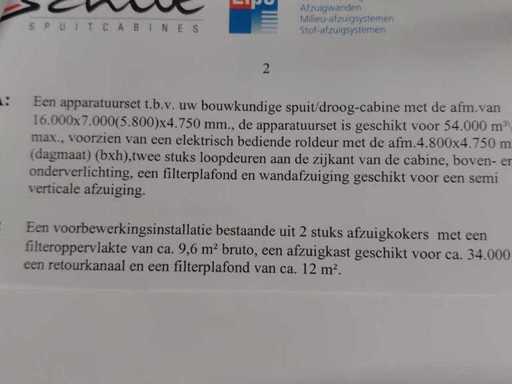

Dimensions
Length (internal): approx. 16,000 mm
Width: approx. 5,800 mm (internal) / 7,000 mm (external)
Height: approx. 4,600 mm
Air technology
Air capacity: approx. 54,000 m³/h
Cab air speed: approx. 0.16 m/s
Overpressure control: adjustable (approx. +0.5 to 1.5 mm WK)
Temperature control
Spray mode: approx. +21°C
Dry period: adjustable up to max. 80°C

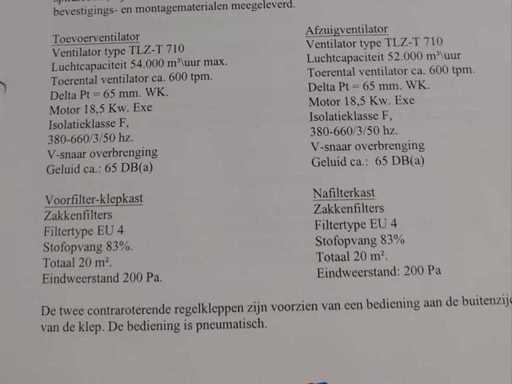

Ventilation & Filtering
Supply and exhaust fans: type TLZ-T 710
Fan capacity: approx. 52,000 – 54,000 m³/hour
Motor power: 18.5 kW per fan
Filter system: pre- and post-filter boxes with bag filters (EU4)
Filter area: approx. 20 m² per section
Dust capture: approx. 83%

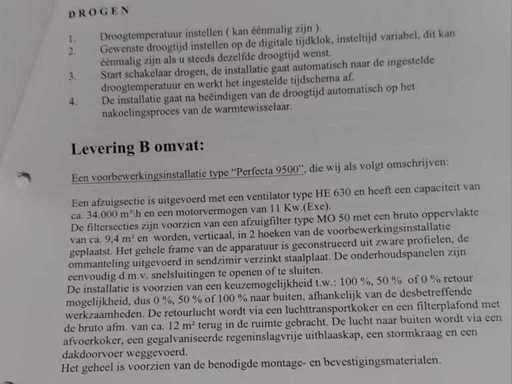

Pre-processing plant
Type: Perfecta 9500
Capacity: approx. 34,000 m³/hour
Version: including filter sections and return air control (0–100%)
Heating & Technology
Heating unit: gas-fired (Weishaupt G3/1-E-ZMA)
Power: approx. 545 kW
Max. gas consumption: approx. 57 m³/hour

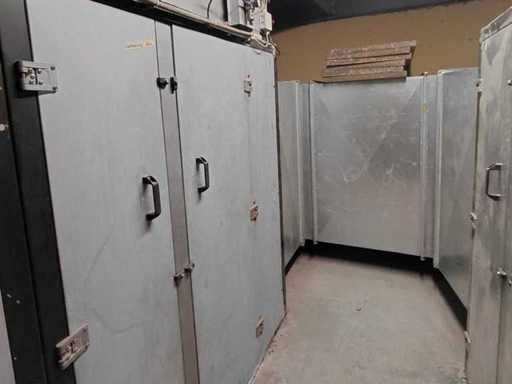

Construction: Heavy duty frame, double-walled galvanized steel panels, internally insulated

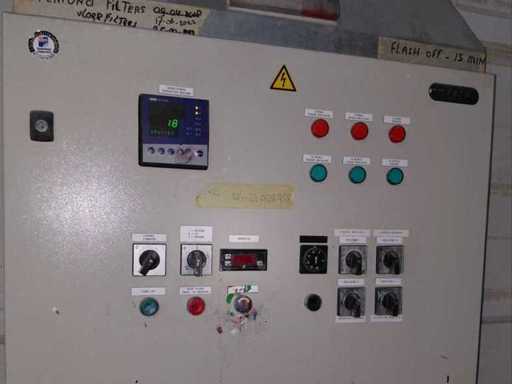

Control: control cabinet with overpressure control and signalling
Additional Features

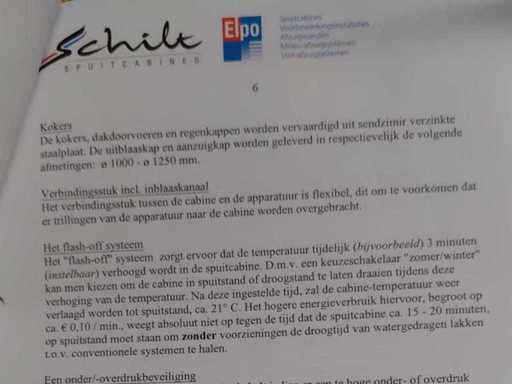

Flash-off system (accelerated drying process)
Automatic aftercooling
Under/overpressure protection
Condition & Setup
Installation is assembled and can be viewed operationally (by appointment)

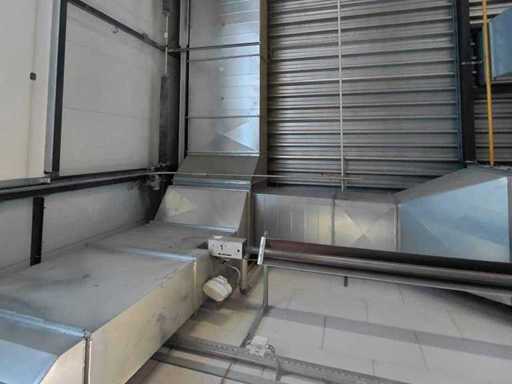

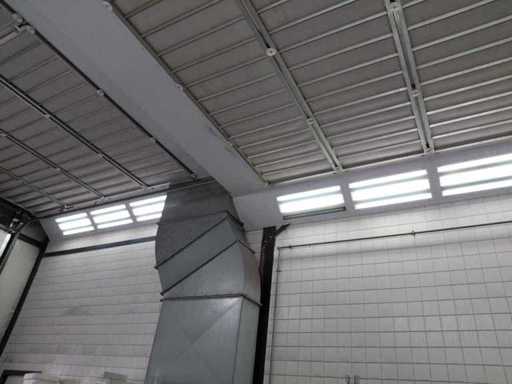

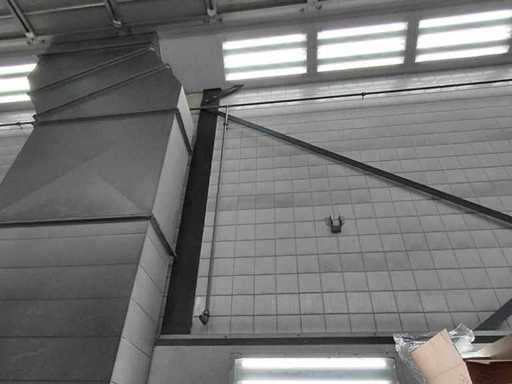

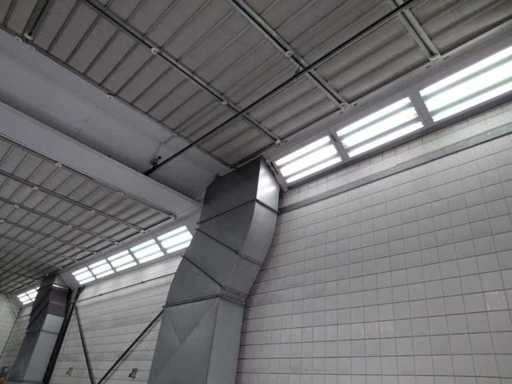

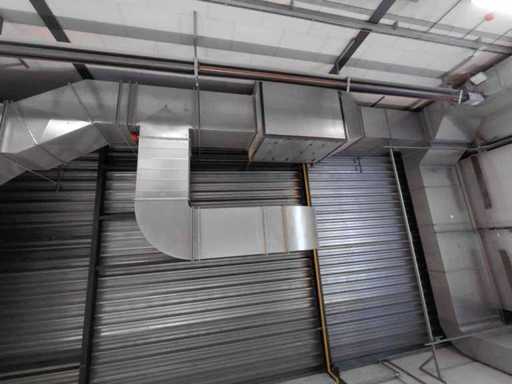

Delivery includes: cabin, air ducts, filter ceiling, extractor walls and technical units
Dismantling requires specialist knowledge (not plug-and-play movable)
Condition: normal industrial signs of use, no visible heavy damage
Version: Semi-vertical airflow (ceiling inlet and wall extraction)
Application: Industrial Painting and Drying Processes
Dimensions
Length (internal): approx. 16,000 mm
Width: approx. 5,800 mm (internal) / 7,000 mm (external)
Height: approx. 4,600 mm
Air technology
Air capacity: approx. 54,000 m³/h
Cab air speed: approx. 0.16 m/s
Overpressure control: adjustable (approx. +0.5 to 1.5 mm WK)
Temperature control
Spray mode: approx. +21°C
Dry period: adjustable up to max. 80°C
Ventilation & Filtering
Supply and exhaust fans: type TLZ-T 710
Fan capacity: approx. 52,000 – 54,000 m³/hour
Motor power: 18.5 kW per fan
Filter system: pre- and post-filter boxes with bag filters (EU4)
Filter area: approx. 20 m² per section
Dust capture: approx. 83%
Pre-processing plant
Type: Perfecta 9500
Capacity: approx. 34,000 m³/hour
Version: including filter sections and return air control (0–100%)
Heating & Technology
Heating unit: gas-fired (Weishaupt G3/1-E-ZMA)
Power: approx. 545 kW
Max. gas consumption: approx. 57 m³/hour
Construction: Heavy duty frame, double-walled galvanized steel panels, internally insulated
Control: control cabinet with overpressure control and signalling
Additional Features
Flash-off system (accelerated drying process)
Automatic aftercooling
Under/overpressure protection
Condition & Setup
Installation is assembled and can be viewed operationally (by appointment)
Delivery includes: cabin, air ducts, filter ceiling, extractor walls and technical units
Dismantling requires specialist knowledge (not plug-and-play movable)
Condition: normal industrial signs of use, no visible heavy damage
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.
