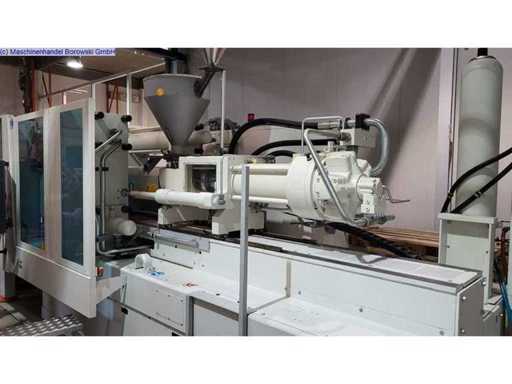

Injection Molding Machine - KRAUSS MAFFEI - KM 250-1400 CX - 2010
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRAUSS MAFFEI
- Type
- KM 250-1400 CX
- Year of build
- 2010
- Screw diameter
- 55mm
- Injection volume
- 570cm³
- Injection pressure
- 2387bar
- Closing force
- 2500kN
- Hours on display
- 54872
- Machine weight
- 15000kg
- Total dimension L
- 6500mm
- Total dimension W
- 2200mm
- Total dimension Height
- 2300mm
- Terms of delivery
- Free on truck
Description
Technical data closing page
Clamping force: 2500 kN
Wooden dimensions h x v: 630 x 630 mm
Panel size h x v: 995 x 1050 mm
Min. installation height: 330 mm
Plate spacing max.: 1150 mm
Opening travel: 820 mm
Ejector stroke: 200 mm
Ejector force: 58 kN
Centering of movable plate D: 160 mm
Centering fixed plate D: 160 mm
Tool weight: 3430 kg
Technical Data Spray Side
Screw diameter: 55 mm
Displacement: 570 cc
Spray pressure: 2387 bar
Screw length: 22 l/d
Screw speed: 260 min
Plasticizing current: 49 g/s PS
Number of heating zones: 6
Dimensions & Weight
Machine dimensions LxWxH: 6.5m x 2.2m x 2.3m
Total Weight: 15000KG
Equipment
2x temperature control point for hot runner
Screen text German
CEE socket 16A
Pressure accumulator for increased injection capacity + ejector or core pull in parallel
Core pull hydraulic 1x
Air valve 4x
Machine with material hopper
Machine with water battery
Machine without handling
Levelling elements
Interface EUROMAP 12
Interface EUROMAP 67
Interface USB
Schuko socket 10A
Low-wear plasticizing unit
Remarks
Machine comes from ongoing production.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

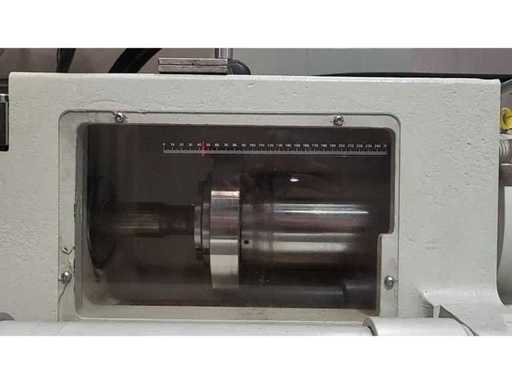

Video
See the details and take a closer look at the item in this video.
