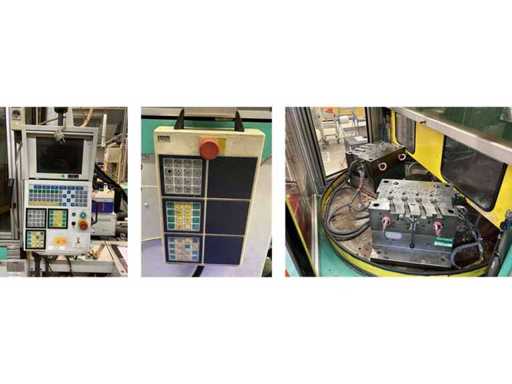

Injection moulding machine - ARBURG - Allrounder 1200 TS 400-150 - 1998
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ARBURG
- Type
- Allrounder 1200 TS 400-150
- Year of build
- 1998
- Screw diameter
- 25mm
- Injection volume
- 54cm³
- Injection pressure
- 2500bar
- Closing force
- 400kN
- Machine weight
- 8000kg
- Total dimension L
- 4100mm
- Total dimension W
- 1750mm
- Total dimension Height
- 2600mm
- HS Code
- 84771000
- Terms of delivery
- Free on truck
Description
Technical data closing page
Clamping force: 400 kNMin. installation height: 250 mm
Plate spacing max.: 550 mm
Opening travel: 300 mm
Size rotary table D: 1200 mm
Ejector stroke: 150 mm
Ejector force: 46 kN
Centering of movable plate D: 90 mm
Centering of fixed plate D: 125 mm
Technical Data Spray Side
Screw diameter: 25 mmDisplacement: 54 cc
Spray pressure: 2500 bar
Screw length: 24 l/d
Screw stroke: 110 mm
Screw speed: 52 1/min
Worm torque: 300 N
Outdoor injection flow: 80 g/s hp
Number of heating zones: 4
Nozzle travel: 300 mm
Equipment
On-screen text: GermanCEE socket 16 A
Turntable
Levelling elements
Schuko socket 10 A
3-Station Rotary Table
Remarks
Used, untested
From ongoing production!
Viewing desired
From ongoing production!
Viewing desired
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
