Injection moulding machine - ARBURG - Allrounder 375 V 500-170 - 2013
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ARBURG
- Type
- Allrounder 375 V 500-170
- Year of build
- 2013
- Screw diameter
- 25mm
- Injection volume
- 59cm³
- Injection pressure
- 2500bar
- Closing force
- 500kN
- Mould opening stroke
- 225mm

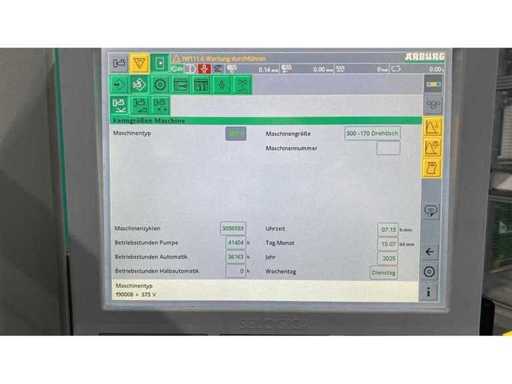

- Hours on display
- 36163
- Machine weight
- 3540kg
- Total dimension L
- 3000mm
- Total dimension W
- 1600mm
- Total dimension Height
- 3480mm
- Terms of delivery
- Free on truck
Description
Technical data closing page
Clamping force: 500 kNMin. installation height: 200 mm
Max. installation height: 550 mm
Plate spacing max.: 302 mm
Opening travel: 225 mm

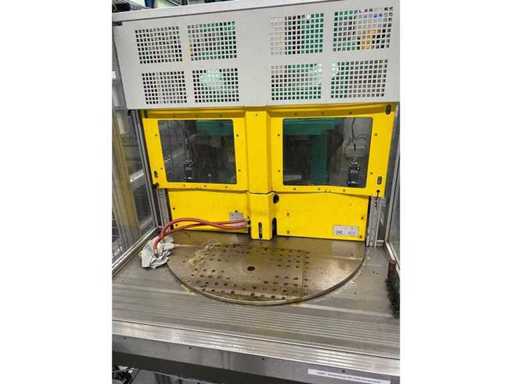

Size rotary table D: 900 mm
Ejector force: 70 kN
Centering of movable plate D: 125 mm
Tool weight: 230 kg
Technical Data Spray Side
Screw diameter: 25 mmDisplacement: 59 cc
Spray pressure: 2500 bar
Screw length: 24 l/d
Screw speed: 35 1/min
Worm torque: 210 N
Number of heating zones: 5
Equipment
On-screen text: GermanTurntable
Core pull hydraulic 1×
Machine with water battery
Machine without material hopper
Levelling elements
EUROMAP 67 Handling
Interface Interface EUROMAP 73
Interface for ejector plate securing
Remarks
Used, tested
From ongoing production!
Viewing desired
From ongoing production!
Viewing desired
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

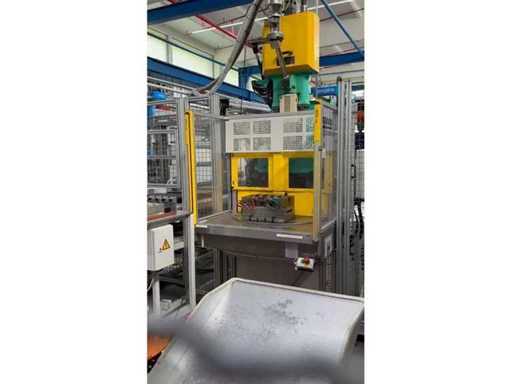

Video
See the details and take a closer look at the item in this video.
