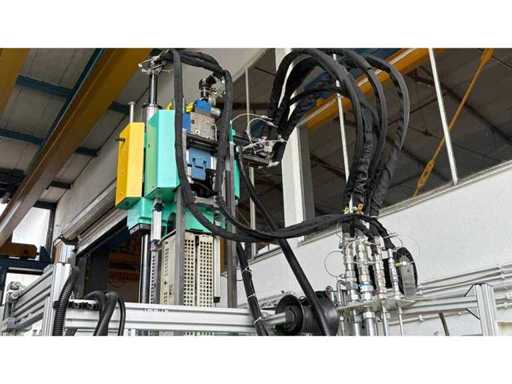

Injection moulding machine - ARBURG - Allrounder 900 T 800-150 - 2010
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ARBURG
- Type
- Allrounder 900 T 800-150
- Year of build
- 2010
- Screw diameter
- 25mm
- Injection volume
- 54cm³
- Injection pressure
- 2500bar
- Closing force
- 800kN
- Hours on display
- 72154
- Machine weight
- 5000kg
- Total dimension L
- 3800mm
- Total dimension W
- 1850mm
- Total dimension Height
- 2150mm
- Terms of delivery
- Free on truck
Description
Technical data Closing side
Clamping force: 800 kN
Lifting dimension h x v: 900 x 900 mm
Installation height min.: 250 mm
Plate spacing max.: 550 mm
Opening distance: 300 mm
Size rotary table D: 900 mm
Ejector stroke: 150 mm
Ejector force: 46 kN
Centering movable plate D: 90 mm
Centering fixed plate D: 90 mm
Technical data Injection side
Screw diameter: 25 mm
Displacement: 54 ccm
Spray pressure: 2500 bar
Screw length: 24 l/d
Screw torque: 210 N
Plasticizing current: 49 g/s hp
Outdoor injection flow: 80 g/s hp
Dimensions & Weight
Machine Dimensions LxWxH: 3.8m x 1.85m x 2.15m
Total Weight: 5000KG
Equipment

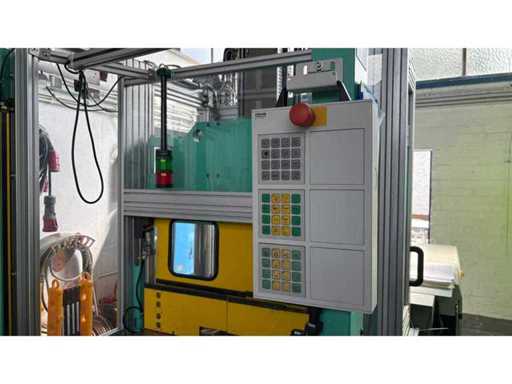

On-screen text German
Air valve 1x

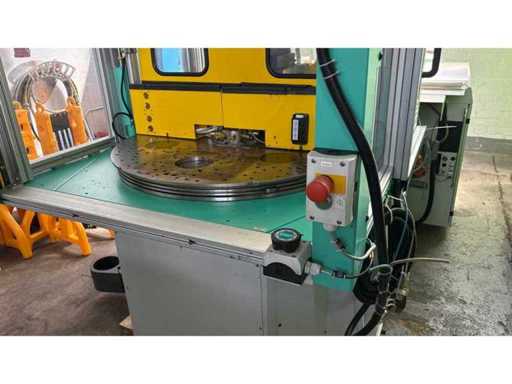

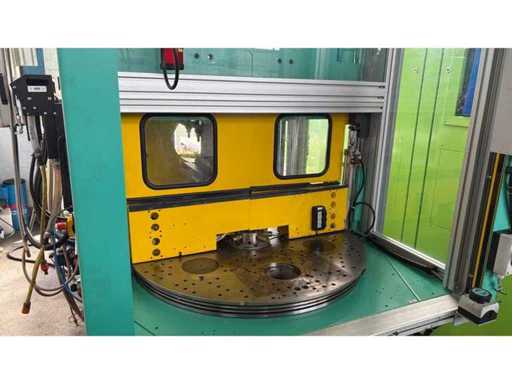

Machine with rotary table
Machine with water battery
Leveling elements
Interface BDE
Remarks
Function-tested injection moulding machine!
Viewing with test run possible!
Viewing with test run possible!
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.
Video
See the details and take a closer look at the item in this video.
