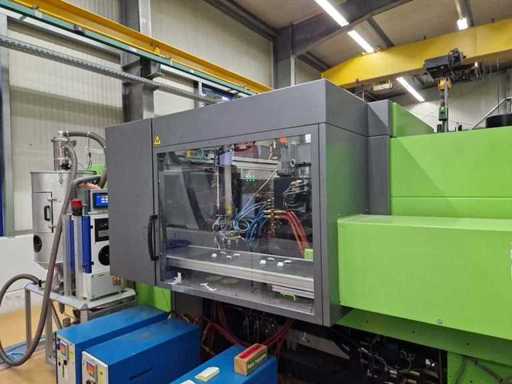

Injection moulding machine - ENGEL - Victory 330-120 Tech - 2007
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ENGEL
- Type
- Victory 330-120 Tech
- Year of build
- 2007
- Screw diameter
- 35mm
- Injection volume
- 154cm³
- Injection pressure
- 1600bar
- Closing force
- 1200kN
- Hours on display
- 68651
- Machine weight
- 7300kg
- Total dimension L
- 4500mm
- Total dimension W
- 2100mm
- Total dimension Height
- 2100mm
- Terms of delivery
- Free on truck
Description
Technical data closing page
Clamping force: 1200 kNPanel size h x v: 740 x 680 mm
Min. installation height: 300 mm
Plate spacing max.: 800 mm
Opening travel: 500 mm
Ejector stroke: 130 mm
Ejector force: 40 kN
Centering of movable plate D: 125 mm
Centering of fixed plate D: 125 mm
Tool weight: 825 kg
Technical Data Spray Side
Screw diameter: 35 mmDisplacement: 154 cc
Spray pressure: 1600 bar
Screw length: 20 l/d
Screw stroke: 160 mm
Screw speed: 400 min
Outdoor injection flow: 151 g/s hp
Number of heating zones: 4
Nozzle travel: 250 mm
Dimensions & Weight
Machine dimensions LxWxH: 4.5m x 2.1m x 2.1mTotal Weight: 7300KG
Equipment
Screen text GermanCEE socket 16A
Core pull hydraulic 2x
Machine including conveyor belt
Machine including protective housing
Machine without material hopper
Levelling elements
Ejector plate fuse
interface Schuko socket 10A
Technical Data Handling
Machine Type: LinearMake: ENGEL
Control: ER-HLI41VC
Year of Make: 2007
Remarks
Machine comes from ongoing production.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.
