Injection moulding machine - KRAUSS MAFFEI - KM 250-2000 CX - 2008
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRAUSS MAFFEI
- Type
- KM 250-2000 CX
- Year of build
- 2008
- Screw diameter
- 55mm
- Injection volume
- 570cm³
- Injection pressure
- 2387bar
- Closing force
- 2500kN
- Hours on display
- 17745
- Machine weight
- 14500kg
- Total dimension L
- 6700mm
- Total dimension W
- 2200mm
- Total dimension Height
- 2300mm
- Terms of delivery
- Free on truck
Description
The scope of delivery also includes the KRAUSS MAFFEI LR 150 handling system, the conveyor belt and the protective housing!
Wooden dimensions h x v: 630 x 630 mm
Panel size h x v: 995 x 1050 mm
Min. installation height: 330 mm
Plate spacing max.: 1170 mm
Opening travel: 820 mm
Ejector stroke: 200 mm
Ejector force: 58 kN
Centering of movable plate D: 160 mm
Centering fixed plate D: 160 mm
Displacement: 570 cc
Spray pressure: 2387 bar
Screw length: 22 l/d
Screw speed: 260 min
Plasticizing current: 49 g/s PS
Injection flow to the outside: 261 g/s hp
Total Weight: 14500KG
CEE socket 16A
Core pull hydraulic 2x
Machine including conveyor belt
Machine including handling
Machine including protective housing
Machine with water battery
Machine without material hopper
Machine without suction conveyor
Levelling elements
Interface EUROMAP 67
Schuko socket 10A
Make: Krauss Maffei
Control: LR 150 - 1577
X-axis: 900 mm
Y-axis: 1400 mm
Z-axis: 2000 mm
Total weight: 395 kg
Technical data closing page
Clamping force: 2500 kNWooden dimensions h x v: 630 x 630 mm
Panel size h x v: 995 x 1050 mm
Min. installation height: 330 mm
Plate spacing max.: 1170 mm
Opening travel: 820 mm
Ejector stroke: 200 mm
Ejector force: 58 kN
Centering of movable plate D: 160 mm
Centering fixed plate D: 160 mm
Technical Data Spray Side
Screw diameter: 55 mmDisplacement: 570 cc
Spray pressure: 2387 bar
Screw length: 22 l/d
Screw speed: 260 min
Plasticizing current: 49 g/s PS
Injection flow to the outside: 261 g/s hp
Dimensions & Weight
Machine dimensions LxWxH: 6.7m x 2.2m x 2.3mTotal Weight: 14500KG
Equipment
Screen text GermanCEE socket 16A
Core pull hydraulic 2x
Machine including conveyor belt
Machine including handling
Machine including protective housing
Machine with water battery
Machine without material hopper
Machine without suction conveyor
Levelling elements
Interface EUROMAP 67
Schuko socket 10A
Technical Data Handling

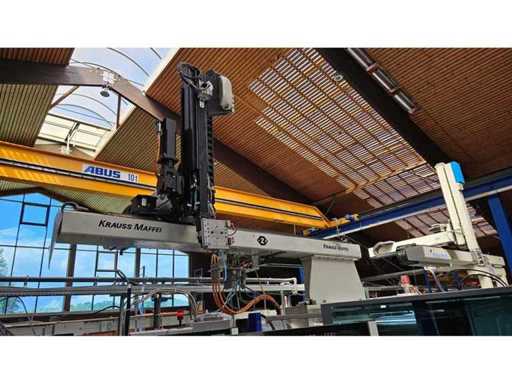

Machine Type: LinearMake: Krauss Maffei
Control: LR 150 - 1577
X-axis: 900 mm
Y-axis: 1400 mm
Z-axis: 2000 mm
Total weight: 395 kg
Remarks
Machine comes from ongoing production.
Scope of delivery incl. handling KRAUSS MAFFEI LR 150, conveyor belt and protective housing!
Scope of delivery incl. handling KRAUSS MAFFEI LR 150, conveyor belt and protective housing!
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.
