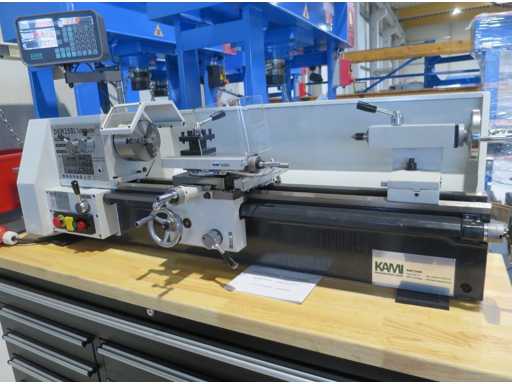

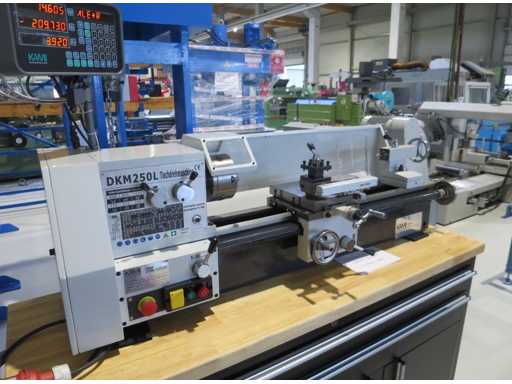

KAMI DKM 250L Bench Lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KAMI
- Type
- DKM 250L
- Machine weight
- 150kg
- Dimension l
- 1410mm
- Dimension w
- 610mm
- Dimension h
- 410mm
- Terms of delivery
- Loaded on truck
Description
Equipped with
- 27 mm spindle passage
- adjustable guideways
- Powerful motor with 0.75 kW
- High resolution of the axis spindles for exact positioning

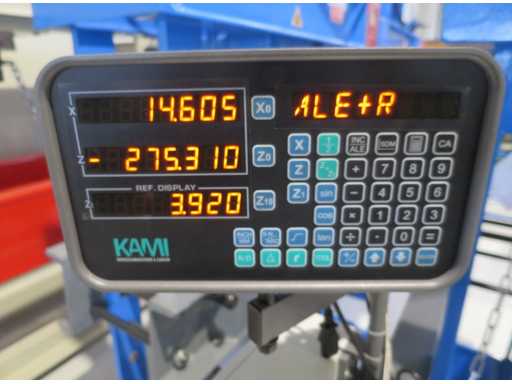

- Attention!! without digital display
Scope of delivery:

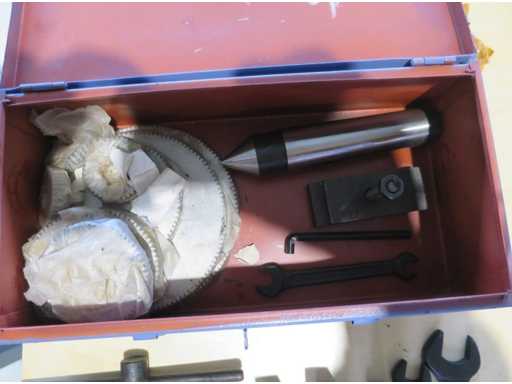

3-jaw chuck 100 mm, interchangeable wheel set, splash guard.
Turning diameter over bed 250 mm
Turning diameter over support 130 mm
Turning length 700 mm
Speed 115 - 1620 rpm
Tip height 125 mm
Spindle bore 27 mm
Tailstock quill holder MK 2
Tailstock quill stroke 40 mm
Metric threads 0.2 - 3.5 mm
Thread - inch 8 - 56 inch.
Thread module 0.2 - 12.5 mm
Swivel range +/- upper slide 45 °
Connection voltage 400 V
Total power requirement 0.75 kW
Machine weight approx. 0.15 t
Space requirement approx. 1.41 x 0.61 x 0.41 m
Condition: never used / new (5)
- 27 mm spindle passage
- adjustable guideways
- Powerful motor with 0.75 kW
- High resolution of the axis spindles for exact positioning
- Attention!! without digital display
Scope of delivery:
3-jaw chuck 100 mm, interchangeable wheel set, splash guard.
Turning diameter over bed 250 mm
Turning diameter over support 130 mm
Turning length 700 mm
Speed 115 - 1620 rpm
Tip height 125 mm
Spindle bore 27 mm
Tailstock quill holder MK 2
Tailstock quill stroke 40 mm
Metric threads 0.2 - 3.5 mm
Thread - inch 8 - 56 inch.
Thread module 0.2 - 12.5 mm
Swivel range +/- upper slide 45 °
Connection voltage 400 V
Total power requirement 0.75 kW
Machine weight approx. 0.15 t
Space requirement approx. 1.41 x 0.61 x 0.41 m
Condition: never used / new (5)
Remarks
Item condition: used and unchecked
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 11.02.2026 to Thursday, 19.02.2026
Loading times:
from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
Please note: Pick-up is not possible on public holidays and weekends.
The descriptions of the individual positions were given to the best of our knowledge and belief.
No liability is assumed for their correctness.
Accessories and tools in the pictures are only part of the object of purchase if expressly named.
For warranty services and returns: Freight costs are generally at the expense of the buyer.
