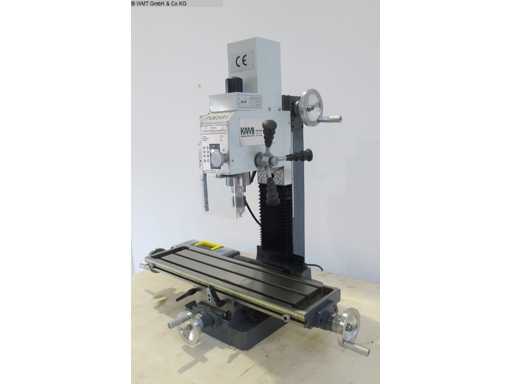

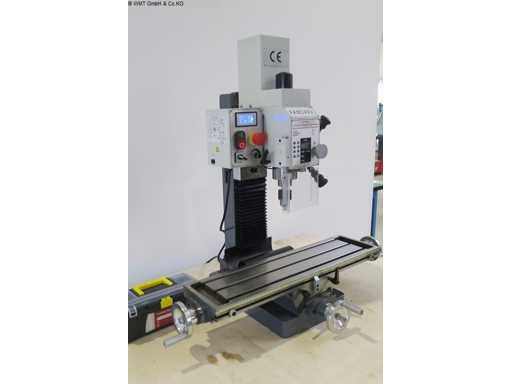

KAMI FKM 349 V Drilling and Milling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KAMI
- Type
- FKM 349 V
- Machine weight
- 160kg
- Dimension l
- 750mmm
- Dimension w
- 800mm
- Dimension h
- 900mm
- Terms of delivery
- Loaded on truck
Description
Facilities
Two-stage gearbox via flat belt!! (no longer plastic gears)
Infinitely variable speed range
Quill fine feed via switchable handwheel

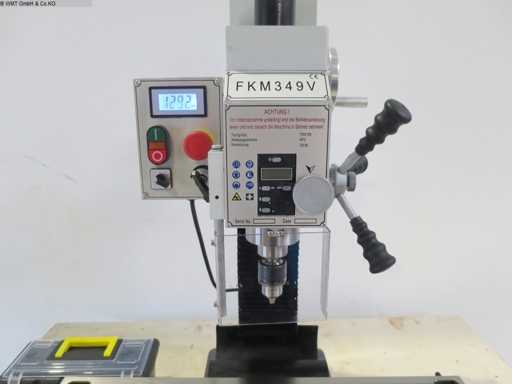

Digital quill depth display
Right-left rotation
Robust dovetail guides with adjustable wedge strips
Bellows covers for the guideways

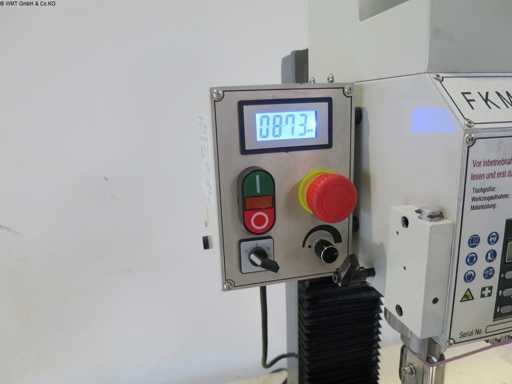

Adjustable control panel
Chip protection with safety circuit
Machine base optional.
Drilling capacity in steel 25 mm
Projection 185 mm
Drilling stroke 50 mm
Spindle mount MK 3

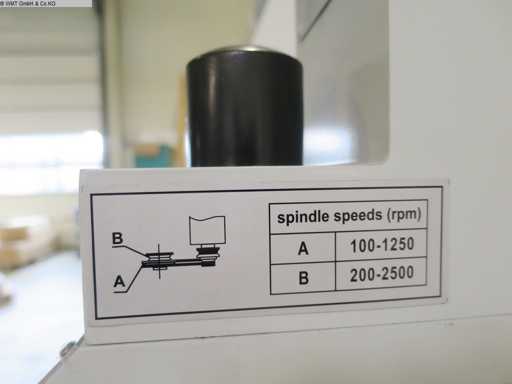

Spindle speeds: 50 - 2500 rpm
Table adjustment transverse 178 mm
Table adjustment longitudinal 480 mm

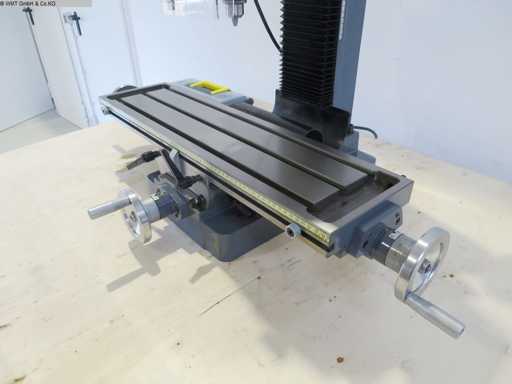

Table clamping area 700 x 180 mm
Connection voltage 230 V
Total power requirement 0.75 kW
Machine weight approx. 160 kg
Space requirement approx. 0.75 x 0.8 x 0.9 m
Condition: never used / new (5)
Remarks
Item condition: unchecked and used
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 11.02.2026 to Thursday, 19.02.2026
Loading times:
from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
Please note: Pick-up is not possible on public holidays and weekends.
The descriptions of the individual positions were given to the best of our knowledge and belief.
No liability is assumed for their correctness.

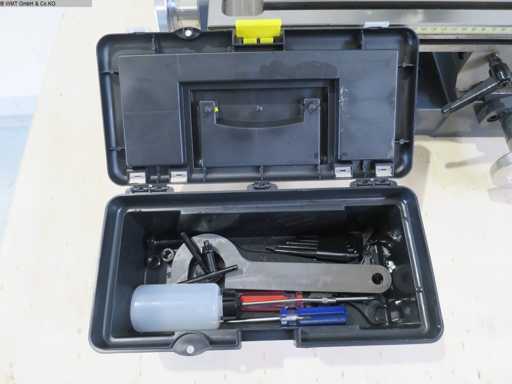

Accessories and tools in the pictures are only part of the object of purchase if expressly named.
For warranty services and returns: Freight costs are generally at the expense of the buyer.
