KARSTEN K11-650 Conventional Cylindrical Grinding Machine - Year 1981 - Retrofit
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Karstens
- Type
- K1-650
- Year of build
- 1981
- Serial number
- 01306111
- Working width
- 650mm
- Feed rate
- 0.1m/min
- Electric connection
- 380V
- Manual present
- Yes
- Machine weight
- 3600kg
- Dimension l
- 2245mm
- Dimension w
- 1700mm
- Dimension h
- 1800mm
- Terms of delivery
- Free on truck
Description

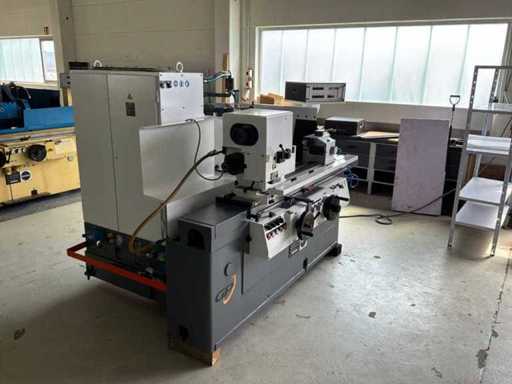

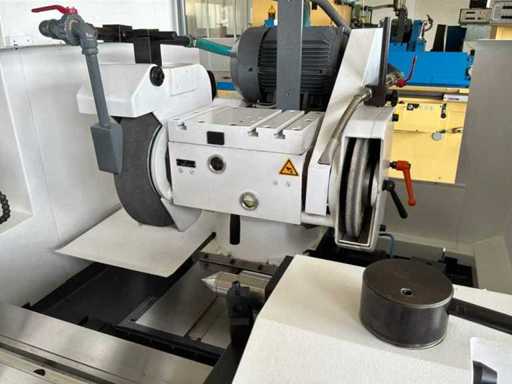

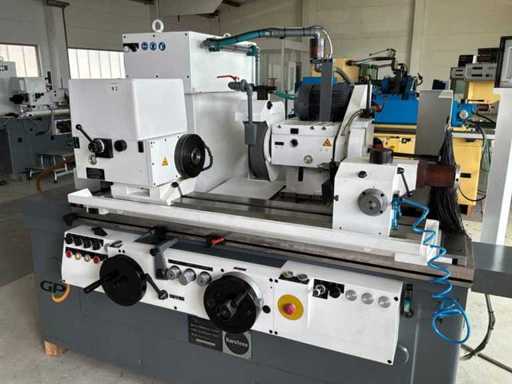

Conventional Cylindrical Grinding Machine Karstens K11-650 - Refurbished
Machine equipment:
* 2 conventional axles
* 2 manual axes
* Mechanically adjustable B-axis 360 degrees

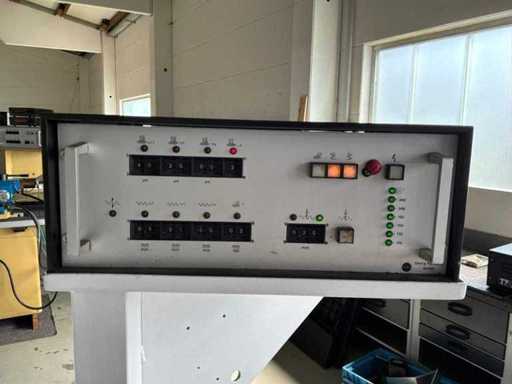

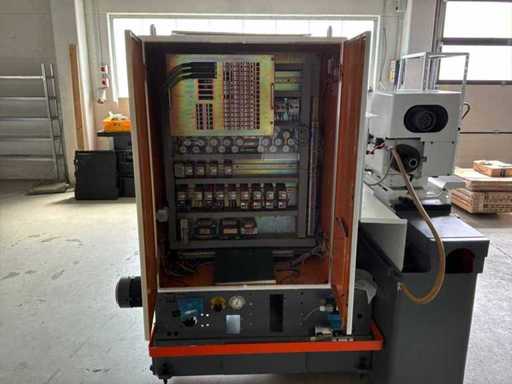

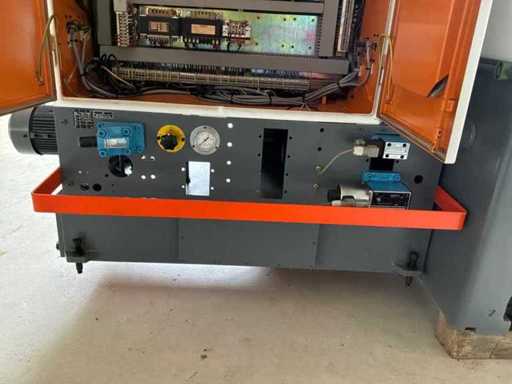

* Control cabinet make Karstens
* Feed-in: 380 V
* Control voltage via transformer: 220 V
* Drive voltage: 24 V
-Completely mechanically overhauled, new paintwork, function-tested and geometry remeasured, adjusted and ground
in -Z-axis table newly sanded, repainted, cables and hoses in the wet area have been
renewed -Assemblies have been overhauled (grinding spindle, workpiece spindle and tailstock)

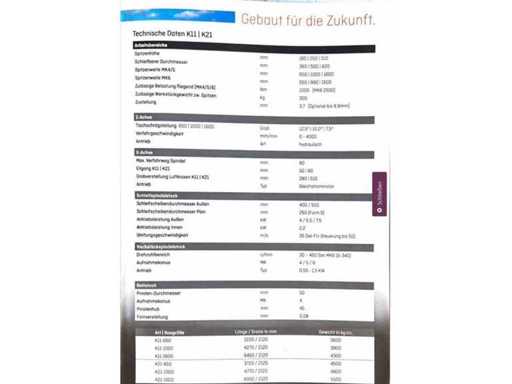

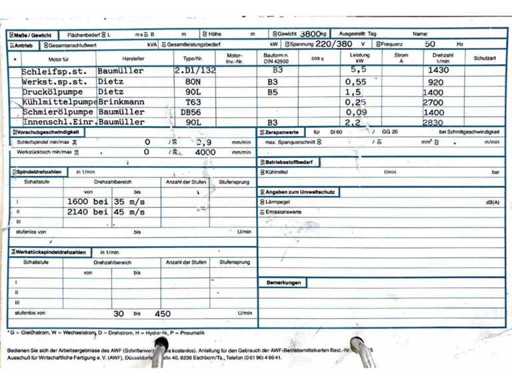

Technical data:
-Center width 650 mm
-Center height 180 mm, grinding diameter 360 mm
-Grinding spindle motor 4 KW
-Workpiece spindle motor 0.55 KW
-Hydraulic motor 1.5 KW
-Lubrication motor 0.1 KW
-Hydraulic tank 80 liters
-Delivery drive via DC motor
-Air cushion-supported quick adjustment of the grinding headstock for quick and safe approach to the grinding position

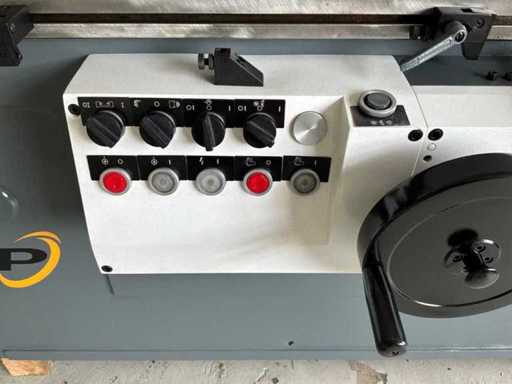

-Fully automatic workflow, infeed movement via wind rose switches: express forward, express return, grinding operation, infeed stop, μm infeed
-Automatic longitudinal grinding cycle
-Central coolant supply for all grinding points
-Workpiece headstock with infinitely variable drive with moving and lockable spindle

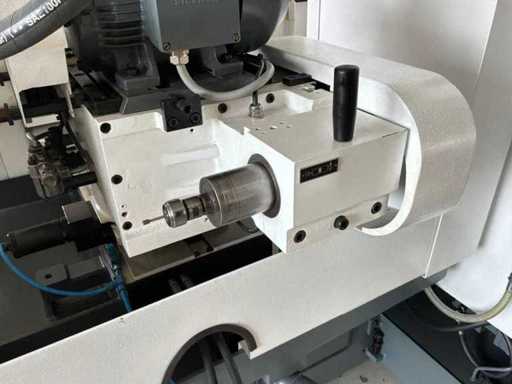

-Internal grinding device
-Surface grinding device
-Including cylindrical grinding wheel and face grinding wheel & machine feet
Machine equipment:
* 2 conventional axles
* 2 manual axes
* Mechanically adjustable B-axis 360 degrees
* Control cabinet make Karstens
* Feed-in: 380 V
* Control voltage via transformer: 220 V
* Drive voltage: 24 V
-Completely mechanically overhauled, new paintwork, function-tested and geometry remeasured, adjusted and ground
in -Z-axis table newly sanded, repainted, cables and hoses in the wet area have been
renewed -Assemblies have been overhauled (grinding spindle, workpiece spindle and tailstock)
Technical data:
-Center width 650 mm
-Center height 180 mm, grinding diameter 360 mm
-Grinding spindle motor 4 KW
-Workpiece spindle motor 0.55 KW
-Hydraulic motor 1.5 KW
-Lubrication motor 0.1 KW
-Hydraulic tank 80 liters
-Delivery drive via DC motor
-Air cushion-supported quick adjustment of the grinding headstock for quick and safe approach to the grinding position
-Fully automatic workflow, infeed movement via wind rose switches: express forward, express return, grinding operation, infeed stop, μm infeed
-Automatic longitudinal grinding cycle
-Central coolant supply for all grinding points
-Workpiece headstock with infinitely variable drive with moving and lockable spindle
-Internal grinding device
-Surface grinding device
-Including cylindrical grinding wheel and face grinding wheel & machine feet
Remarks
An inspection as well as an independent inspection on site are desired by prior appointment.
Additional details
The auctions are public and voluntary.
All items are sold in the condition in which they lie and stand. It is expressly pointed out that no complete inventory and verification of the functionality of the auction objects will be carried out.
Bidders are strongly advised to make use of the opportunity granted to them to inspect/examine the purchased items before submitting bids.
No warranty.
VAT DEPOSIT: Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Germany on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

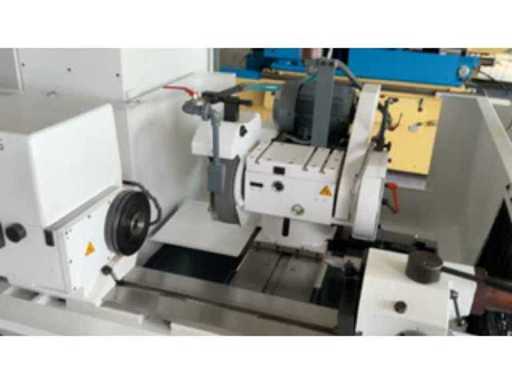

Video
