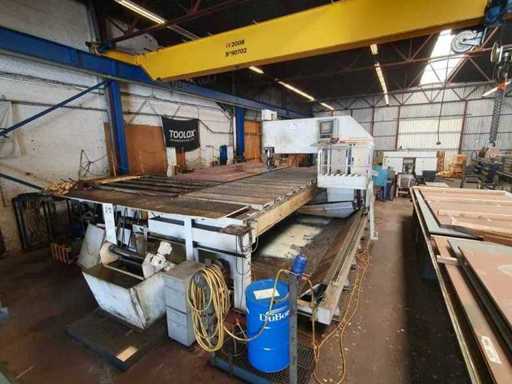

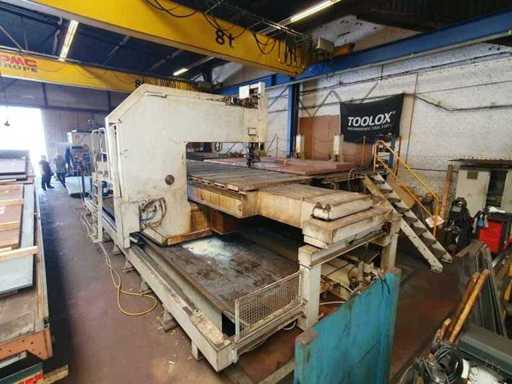

KASTO - 2008 - BBS A3x20 - Vertical band saw
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No

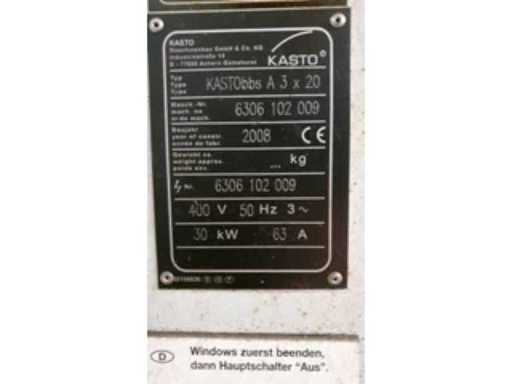

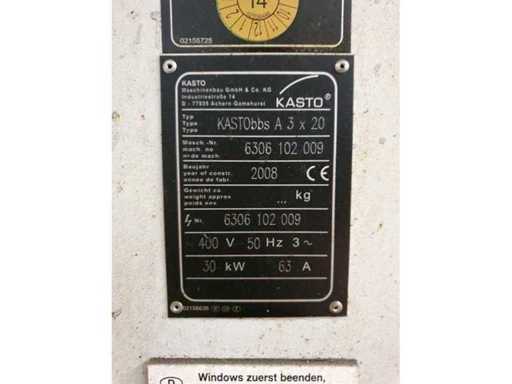

- Brand
- KASTO
- Type
- BBS A3x20
- Year of build
- 2008
- Serial number
- 6306 102 009
- Electric connection
- 400V
- Machine weight
- 25000kg
- Dimension l
- 11500mm
- Dimension w
- 8800mm
- Dimension h
- 4080mm
Description

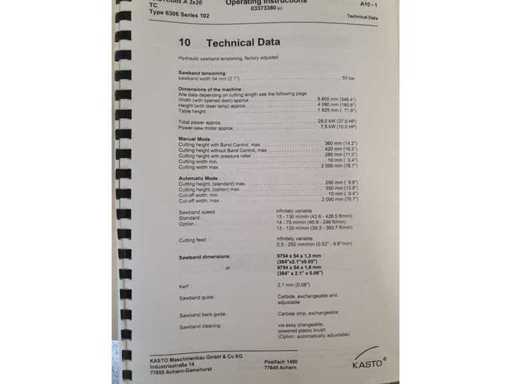

Manual mode:
Cutting height with belt control, max. ............................. 360 mm
Cutting height without belt check, max. ....................... 420 mm
Cutting width min. ................................................................. 10 mm
Cutting width max. ................................................................. 2,000 mm
Saw length max. …………………………………………………………….. 7,000 mm
Auto Mode:
Cutting height (standard) max. ............................................ 250 mm
Cutting height (option) max. ..................................................... 350 mm
Crosscut width min. ................................................................. 10 mm
Crosscut width max. ................................................................. 2,000 mm
Saw length max. …………………………………………………………….. 7,000 mm
Saw band speed:
Infinitely adjustable
Saw feeding:
Infinitely adjustable
0.5 – 250 mm/min
Saw band dimensions:
9,754 x 54 x 1.3mm
9,754 x 54 x 1.6mm
Saw cut (notch):
2.1 mm
Saw band guide:
Carbide interchangeable and adjustable
Machine has been completely dismantled due to lack of space due to change of work.
Viewing possible by appointment, but little to see because the machine is in storage.
Loading by crane (i.e. from above), of course by appointment.
Please note.!!!
Required means of transport 2 x Trailer of 13.5 meters and 1 x Euro low-loader due to height of the saw frame (approx. 3.5 meters)
Pick-up location will be announced after the auction closes.
Cutting height with belt control, max. ............................. 360 mm
Cutting height without belt check, max. ....................... 420 mm
Cutting width min. ................................................................. 10 mm
Cutting width max. ................................................................. 2,000 mm
Saw length max. …………………………………………………………….. 7,000 mm
Auto Mode:
Cutting height (standard) max. ............................................ 250 mm
Cutting height (option) max. ..................................................... 350 mm
Crosscut width min. ................................................................. 10 mm
Crosscut width max. ................................................................. 2,000 mm
Saw length max. …………………………………………………………….. 7,000 mm
Saw band speed:
Infinitely adjustable
Saw feeding:
Infinitely adjustable
0.5 – 250 mm/min
Saw band dimensions:
9,754 x 54 x 1.3mm
9,754 x 54 x 1.6mm
Saw cut (notch):
2.1 mm
Saw band guide:
Carbide interchangeable and adjustable
Machine has been completely dismantled due to lack of space due to change of work.
Viewing possible by appointment, but little to see because the machine is in storage.
Loading by crane (i.e. from above), of course by appointment.
Please note.!!!
Required means of transport 2 x Trailer of 13.5 meters and 1 x Euro low-loader due to height of the saw frame (approx. 3.5 meters)
Pick-up location will be announced after the auction closes.
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.

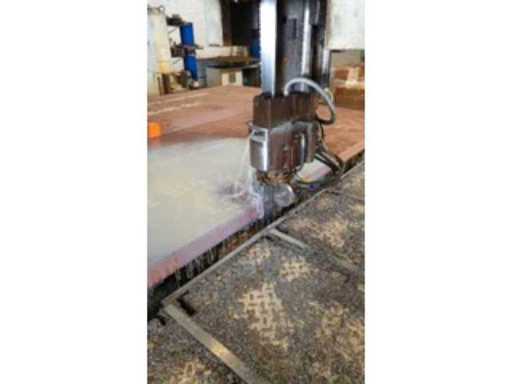

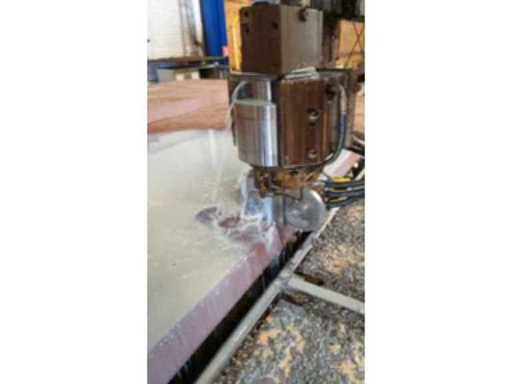

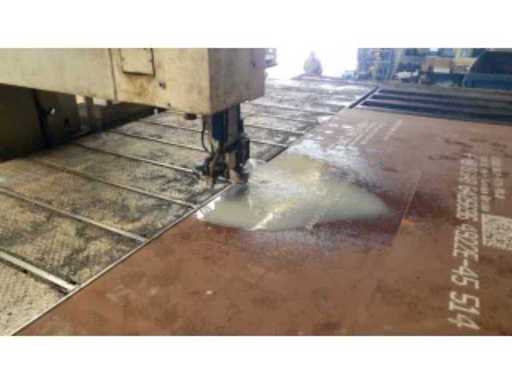

Video
