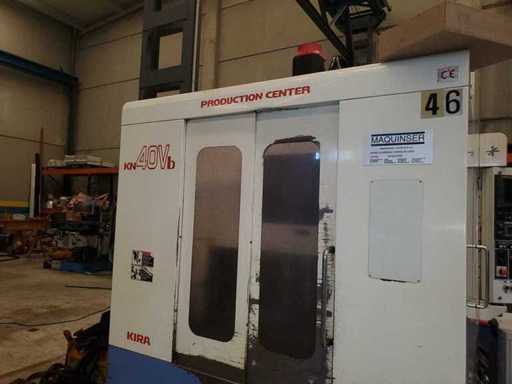

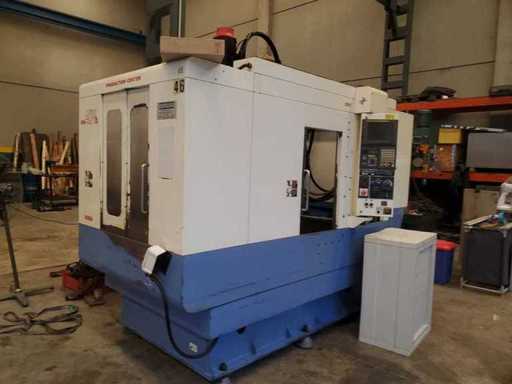

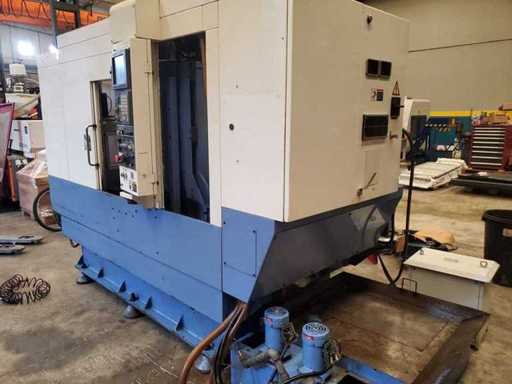

KIRA KN-40VB - KN-40VB - CNC Vertical Machining Center - 2000
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KIRA KN-40VB
- Type
- KN-40VB
- Year of build
- 2000

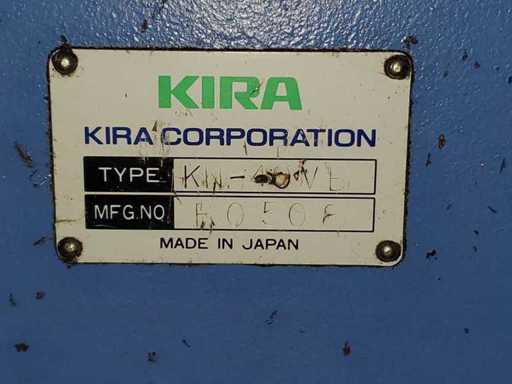

- Serial number
- K0508
- Taper iso
- BT40
- Travel x-axis
- 350mm
- Travel y-axis
- 400mm
- Travel z-axis
- 400mm
- Number of speeds
- 2
- Speed from n=
- 72rpm
- Speed till n=
- 10000rpm
- CNC control, brand, type
- FANUC 21i-MA
- Coolant pump
- Yes
- Workpiece weight max.
- 100kg
- T-slot fixture table size W
- 600mm
- T-slot fixture table size L
- 500mm
- -axis
- 3
- Engine power (kW)
- 5.5kW
- Machine weight
- 4000kg
- Terms of delivery
- Loaded on truck

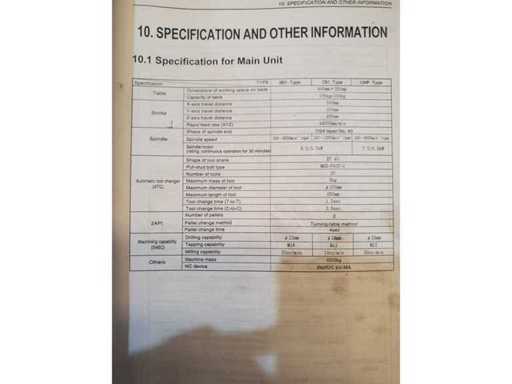

Description

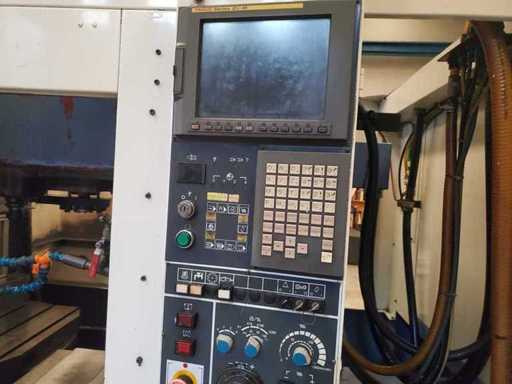

Fanuc 21i-M control, enclosed VMC

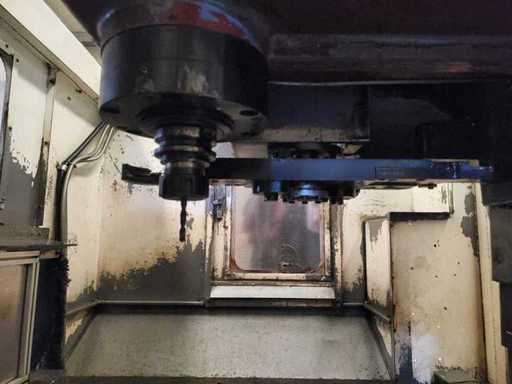

Spindle taper: BT40
Spindle speed range: 72–10000 rpm
Spindle motor power: 5.5/3.7 kW
Pull stud bolt type: MAS-P40T-1
Number of tools: 20
Maximum tool weight: 5 kg
Maximum tool diameter: 100 mm
Maximum tool length: 250 mm
Tool change time (T-T): 1.2 sec
Tool change time (T-C): 2.8 sec

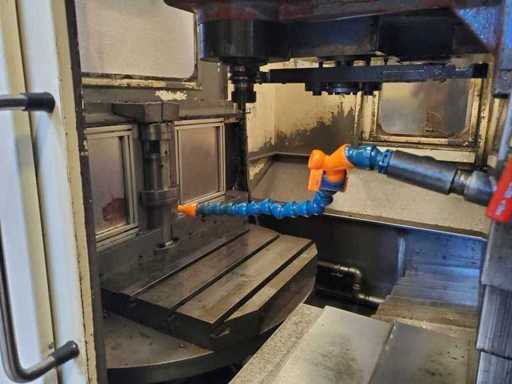

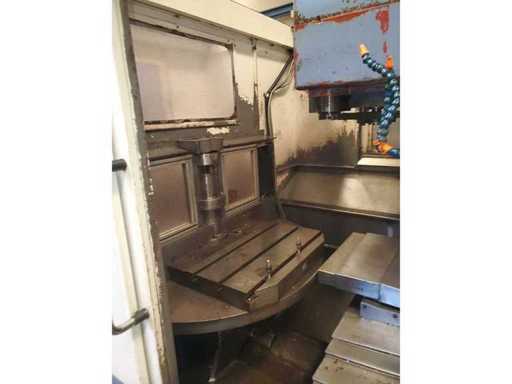

Pallet change method: Turning-table method
Pallet change time: 4 sec
Drilling capability: Ø22 mm
Tapping capability: M18
Milling capability: 20 cc/min
Machine weight: 4000 kg
NC device: FANUC 21i-MA
Spindle speed range: 72–10000 rpm
Spindle motor power: 5.5/3.7 kW
Pull stud bolt type: MAS-P40T-1
Number of tools: 20
Maximum tool weight: 5 kg
Maximum tool diameter: 100 mm
Maximum tool length: 250 mm
Tool change time (T-T): 1.2 sec
Tool change time (T-C): 2.8 sec
Pallet change method: Turning-table method
Pallet change time: 4 sec
Drilling capability: Ø22 mm
Tapping capability: M18
Milling capability: 20 cc/min
Machine weight: 4000 kg
NC device: FANUC 21i-MA
Additional details
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Elisabeth De Prada
Email: elisabeth.deprada@surplex.com

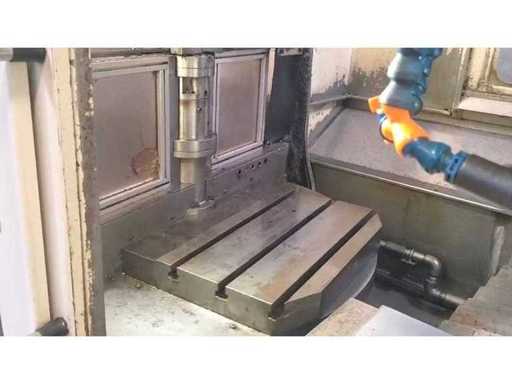

Video
