KRAUSS MAFFEI - KM 100-380 CX MC5 - 2007 - Injection Molding Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRAUSS MAFFEI
- Type
- KM 100-380 CX MC5
- Year of build
- 2007
- Screw diameter
- 40mm
- Injection volume
- 201cm³
- Injection pressure
- 1860bar
- Hours on display
- 30056
- Machine weight
- 7800kg
- Total dimension L
- 4700mm
- Total dimension W
- 1700mm
- Total dimension Height
- 2250mm
- Terms of delivery
- Free on truck
Description

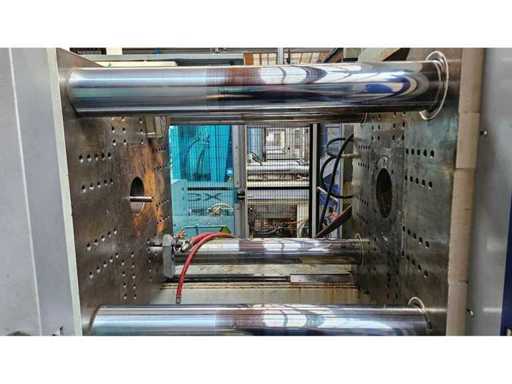

Technical data closing page
Clamping force: 1000 kNWooden dimensions h x v: 470 x 470 mm
Plate size h x v: 745 x 770 mm
Min. installation height: 300 mm
Plate spacing max.: 900 mm
Opening travel: 600 mm
Ejector stroke: 150 mm
Ejector force: 22 kN
Centering of movable plate D: 125 mm
Centering fixed plate D: 160 mm
Technical Data Spray Side
Screw diameter: 40 mmDisplacement: 201 cc
Spray pressure: 1860 bar
Screw length: 23 l/d
Screw speed: 490 min
Plasticizing current: 29 g/s PS
Outdoor injection flow: 151 g/s hp
Number of heating zones: 5
Dimensions & Weight
Machine dimensions LxWxH: 4.7m x 1.7m x 2.25mTotal Weight: 7800KG
Equipment

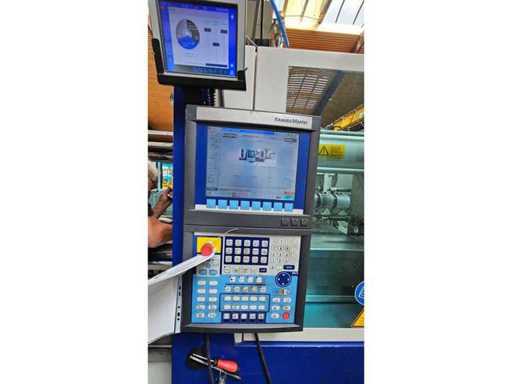

Screen text GermanScreentext English
CEE socket 16A
Core pull hydraulic 2x
Air valve 1x
Machine with material hopper
Machine with water battery
Machine without handling
Levelling elements
EUROMAP 67 Handling
Interface Schuko socket 10A
Remarks
Machine comes from ongoing production.
The scope of delivery is without handling, without protective fence and without conveyor belt.
The scope of delivery is without handling, without protective fence and without conveyor belt.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.
