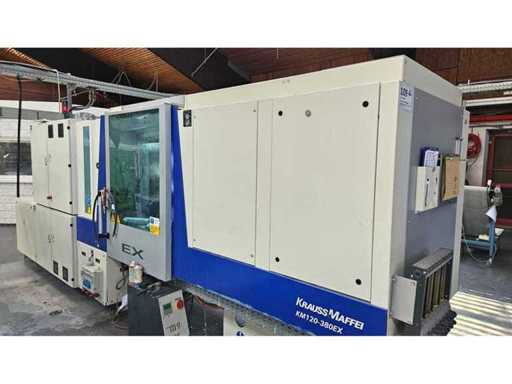

KRAUSS MAFFEI - KM 120-380 EX - 2008 - Injection moulding machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRAUSS MAFFEI
- Type
- KM 120-380 EX
- Year of build
- 2008
- Screw diameter
- 35mm
- Injection volume
- 156cm³
- Injection pressure
- 2429bar
- Closing force
- 1200kN
- Machine weight
- 9700kg
- Total dimension L
- 6000mm
- Total dimension W
- 1700mm
- Total dimension Height
- 2190mm
- Terms of delivery
- Free on truck
Description
Technical data closing page
Clamping force: 1200 kNTie bar dimensions h x v: 470 x 470 mm
Plate size h x v: 780 x 735 mm
Min. installation height: 200 mm
Max. installation height: 450 mm
Plate spacing max.: 850 mm
Opening travel: 400 mm
Ejector stroke: 150 mm
Ejector force: 22 kN
Centering of movable plate D: 160 mm
Centering of fixed plate D: 125 mm
Tool weight: 1485 kg
Technical Data Spray Side
Screw diameter: 35 mmDisplacement: 156 cc
Spray pressure: 2429 bar
Screw length: 23 l/d
Screw speed: 289 min
Plasticizing current: 27 g/s PS
Outdoor injection flow: 477 g/s hp
Number of heating zones: 5
Dimensions & Weight
Machine dimensions LxWxH: 6m x 1.7m x 2.19mTotal Weight: 9700KG
Equipment
Screen text GermanScreentext English
CEE socket 16A
Core pull hydraulic 2x
Machine with water battery
Machine without material hopper
Levelling elements
Interface EUROMAP 12
Schuko socket 10A
Remarks
Machine comes from ongoing production.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
