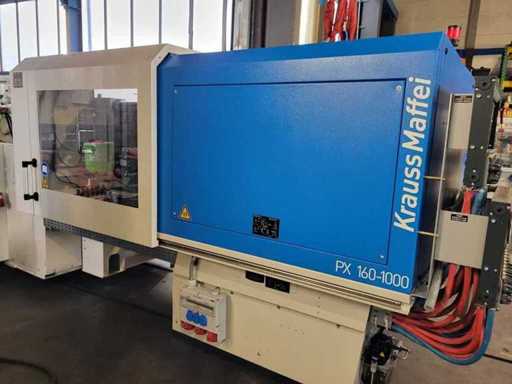

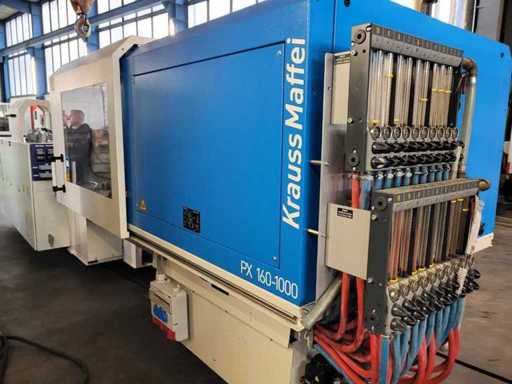

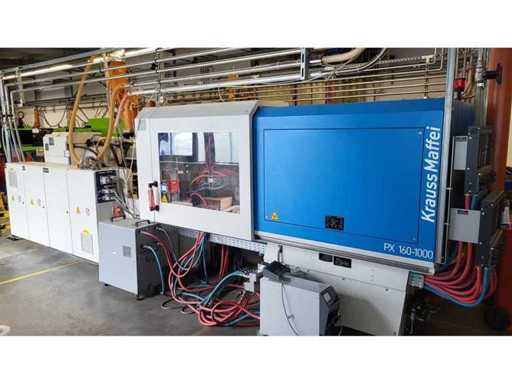

KRAUSS MAFFEI - KM 160-1000 PX MC6 - 2018 - Injection moulding machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRAUSS MAFFEI
- Type
- KM 160-1000 PX MC6
- Year of build
- 2018
- Screw diameter
- 55mm
- Injection volume
- 523cm³
- Injection pressure
- 1904bar
- Closing force
- 1600kN
- Hours on display
- 9585
- Machine weight
- 10900kg
- Total dimension L
- 6700mm
- Total dimension W
- 1600mm
- Total dimension Height
- 2300mm
- Terms of delivery
- Free on truck
Description
Only 9585 operating hours!
Wooden dimensions h x v: 520 x 470 mm
Panel size h x v: 710 x 660 mm
Min. installation height: 200 mm
Max. installation height: 600 mm
Opening travel: 1050 mm
Ejector stroke: 150 mm
Ejector force: 33 kN
Centering of movable plate D: 120 mm
Centering fixed plate D: 160 mm
Displacement: 523 cc
Spray pressure: 1904 bar
Screw length: 20 l/d
Screw speed: 243 min
Worm torque: 827 N
Plasticizing current: 43 g/s PS
Injection flow to the outside: 297 g/s hp
Number of heating zones: 6
Total Weight: 10900KG

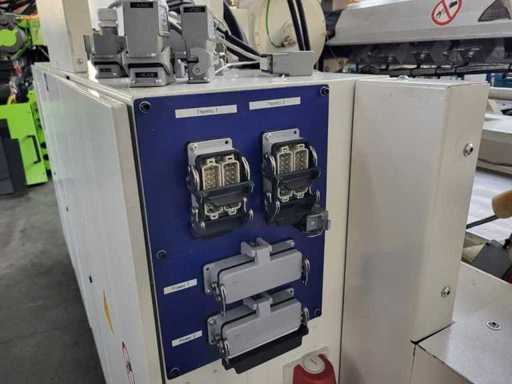

CEE socket 16A
CEE socket 32A
Pressure accumulator for increased injection capacity
3 freely programmable inputs and outputs
each Kernzug pneum. 2 x
Machine with water battery
Machine without material hopper

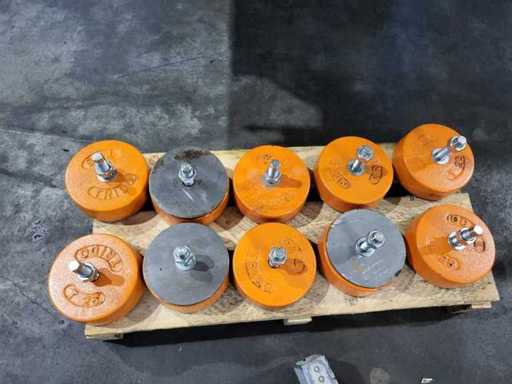

Levelling elements
Interface for coloring device
Interface for temperature control unit
Interface USB
Schuko socket 10A
Low-wear plasticizing unit
Tool heater 24x

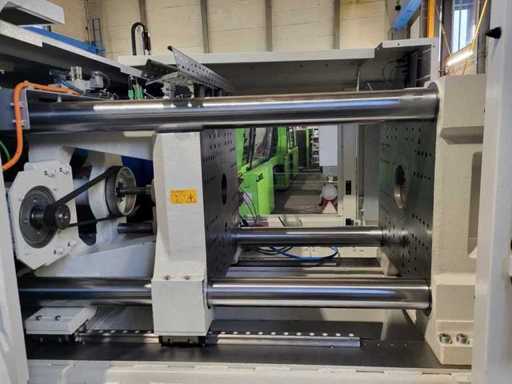

Technical data closing page
Clamping force: 1600 kNWooden dimensions h x v: 520 x 470 mm
Panel size h x v: 710 x 660 mm
Min. installation height: 200 mm
Max. installation height: 600 mm
Opening travel: 1050 mm
Ejector stroke: 150 mm
Ejector force: 33 kN
Centering of movable plate D: 120 mm
Centering fixed plate D: 160 mm

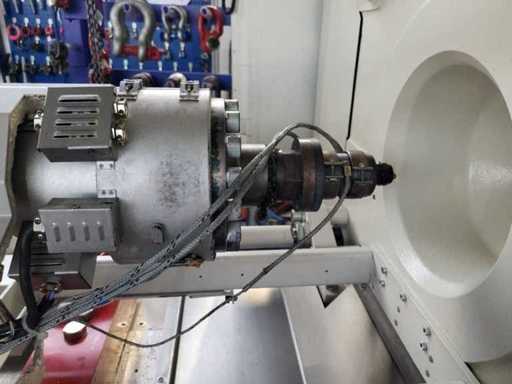

Technical Data Spray Side
Screw diameter: 55 mmDisplacement: 523 cc
Spray pressure: 1904 bar
Screw length: 20 l/d
Screw speed: 243 min
Worm torque: 827 N
Plasticizing current: 43 g/s PS
Injection flow to the outside: 297 g/s hp
Number of heating zones: 6
Dimensions & Weight
Machine dimensions LxWxH: 6.7m x 1.6m x 2.3mTotal Weight: 10900KG
Equipment

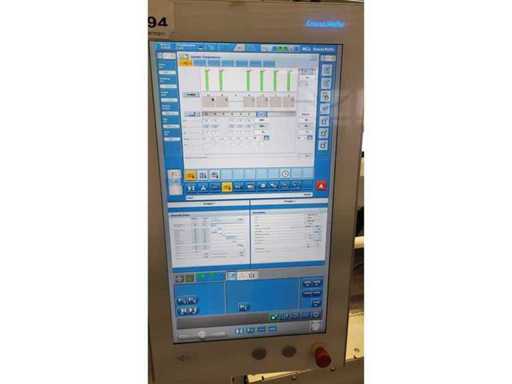

Screen text GermanCEE socket 16A
CEE socket 32A
Pressure accumulator for increased injection capacity
3 freely programmable inputs and outputs
each Kernzug pneum. 2 x
Machine with water battery
Machine without material hopper
Levelling elements
Interface for coloring device
Interface for temperature control unit
Interface USB
Schuko socket 10A
Low-wear plasticizing unit
Tool heater 24x
Remarks
Function-tested injection moulding machine – technically flawless and in very good condition!
Viewing and test run possible by appointment.
Viewing and test run possible by appointment.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.
