KRAUSS MAFFEI - KM 300-1400 CX - Injection Moulding Machine - 2011
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRAUSS MAFFEI
- Type
- KM 300-1400 CX
- Year of build
- 2011
- Screw diameter
- 60mm
- Injection volume
- 678cm³
- Injection pressure
- 2007bar
- Closing force
- 3000kN
- Hours on display
- 78454
- Machine weight
- 15000kg
- Total dimension L
- 6500mm
- Total dimension W
- 2200mm
- Total dimension Height
- 2300mm
- Terms of delivery
- Free on truck
Description

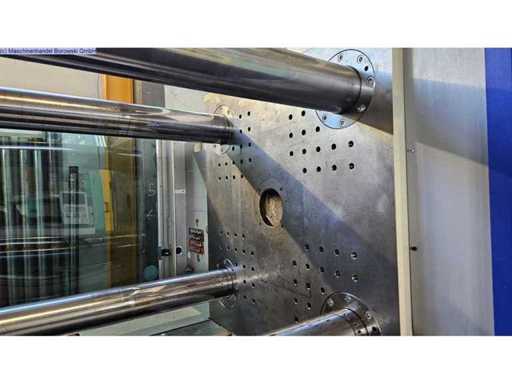

Technical data closing page
Clamping force: 3000 kNWooden dimensions h x v: 630 x 630 mm
Panel size h x v: 995 x 1050 mm

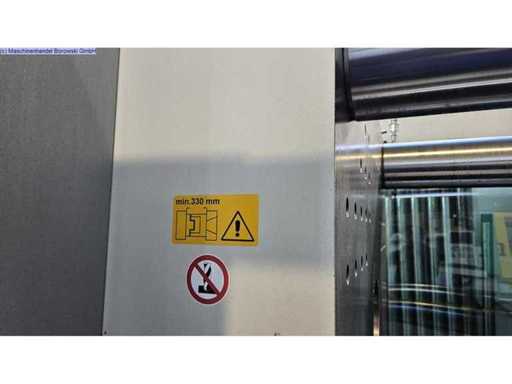

Min. installation height: 330 mm
Plate spacing max.: 1150 mm
Opening travel: 820 mm
Ejector stroke: 200 mm
Ejector force: 58 kN
Centering of movable plate D: 160 mm
Centering fixed plate D: 160 mm
Tool weight: 3430 kg

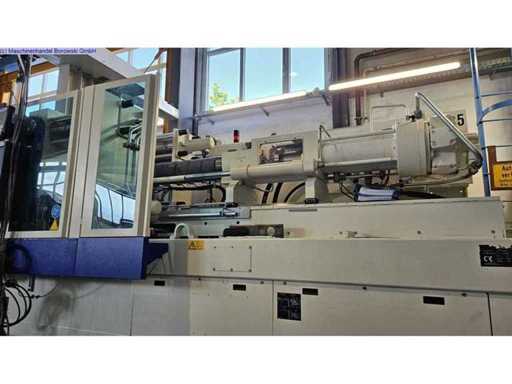

Technical Data Spray Side
Screw diameter: 60 mmDisplacement: 678 cc
Spray pressure: 2007 bar
Screw length: 20 l/d
Screw speed: 260 min
Worm torque: 84 N
Injection flow to the outside: 311 g/s hp
Number of heating zones: 6
Dimensions & Weight
Machine dimensions LxWxH: 6.5m x 2.2m x 2.3mTotal Weight: 15000KG
Equipment

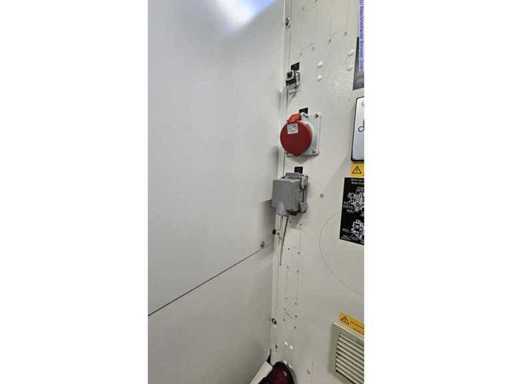

Screen text GermanCEE socket 16A

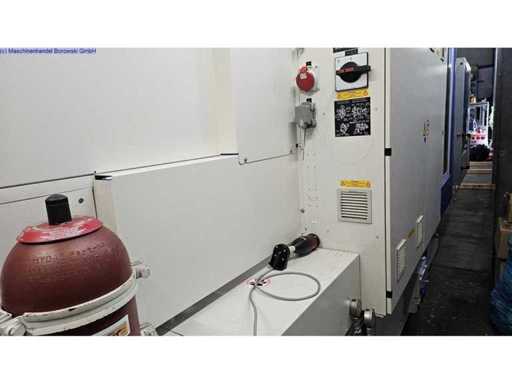

Pressure accumulator for increased injection capacity
Handling without protective enclosure

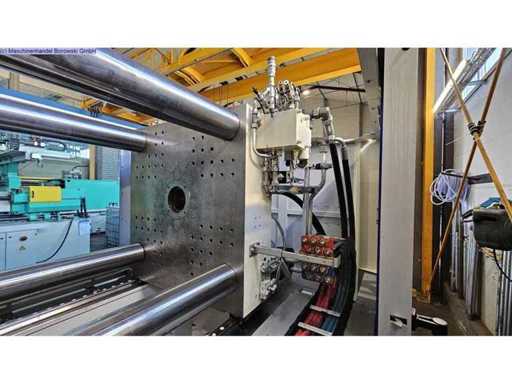

Core pull hydraulic 2x
Machine including handling
Machine without material hopper
Levelling elements

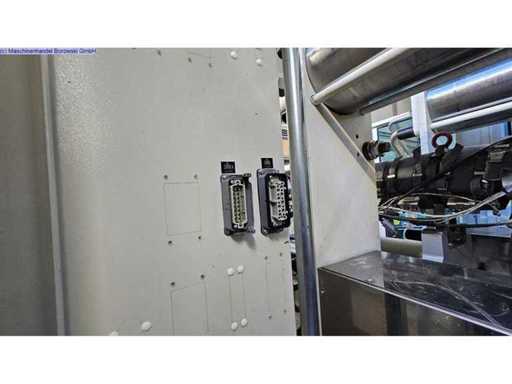

Interface EUROMAP 67
Interface for handling

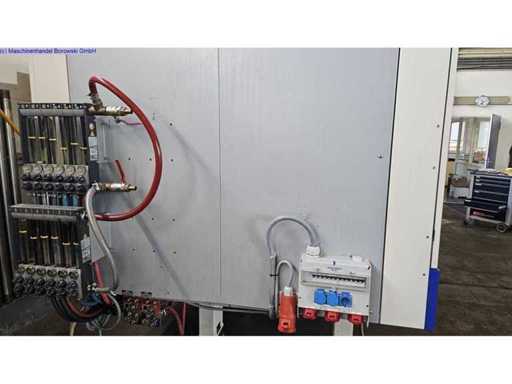

Schuko socket 10A
Technical Data Handling
Machine Type: LinearMake: Wittmann
Steering: W 833
Year of Make: 2011
Handling weight: 10 kg
X-axis: 900 mm
Y-axis: 1800 mm
Z-axis: 3000 mm
B-axis rotation: 180°
Rotation Axis C: 90°
On-screen text: German
Total weight: 560 kg
Remarks
Function tested - see video of the test run
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

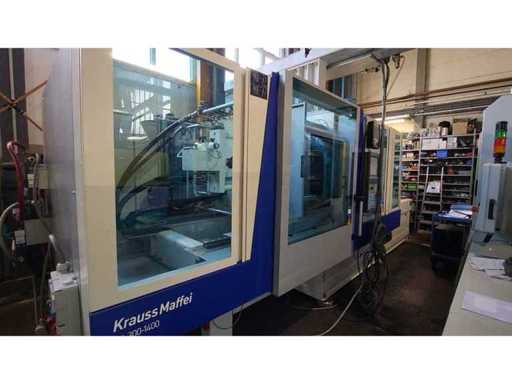

Video
See the details and take a closer look at the item in this video.
