KRAUSS MAFFEI - KM 420-1900/55 CZ Multinject - 2004 - Injection moulding machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRAUSS MAFFEI
- Type
- KM 420-1900/55 CZ Multinject
- Year of build
- 2004
- Screw diameter
- 70-22mm
- Injection volume
- 1047-30cm³
- Injection pressure
- 1778-1674bar
- Hours on display
- 76000
- Machine weight
- 23090kg
- Total dimension L
- 9830mm
- Total dimension W
- 2330mm
- Total dimension Height
- 2480mm
- Terms of delivery
- Free on truck
Description
Technical data closing page
Clamping force: 4200 kN
Wooden dimension h x v: 800 x 800 mm
Panel size h x v: 1270 x 1200 mm
Min. installation height: 380 mm
Plate spacing max.: 1400 mm
Opening travel: 1020 mm
Ejector stroke: 250 mm
Ejector force: 95 kN
Centering of movable plate D: 200 mm
Centering of fixed plate D: 200 mm
Tool weight: 6700 kg
Technical Data Spray Side
Screw diameter: 70 mm
Capacity: 1047 cc
Spray pressure: 1778 bar
Screw length: 20 l/d
Screw speed: 527 min
Plasticizing current: 95 g/s PS
Injection flow to the outside: 953 g/s hp
Number of heating zones: 6
Dimensions & Weight
Machine dimensions LxWxH: 9.83m x 2.33m x 2.48m
Total Weight: 23090KG
Equipment

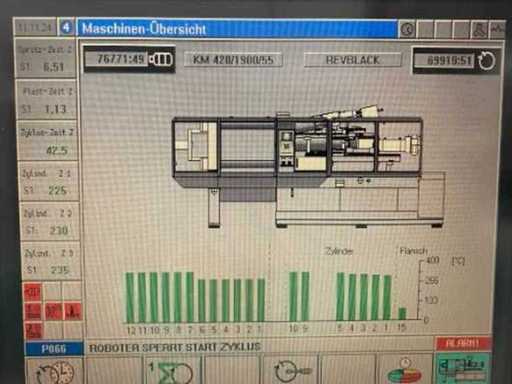

Screen text German
Core pull hydraulic 6x
Machine without handling
Machine without material hopper
Levelling elements
Tool heater 16x
Two-Component Injection Molding Machine
Viewing is desired!
Clamping force: 4200 kN
Wooden dimension h x v: 800 x 800 mm
Panel size h x v: 1270 x 1200 mm
Min. installation height: 380 mm
Plate spacing max.: 1400 mm
Opening travel: 1020 mm
Ejector stroke: 250 mm
Ejector force: 95 kN
Centering of movable plate D: 200 mm
Centering of fixed plate D: 200 mm
Tool weight: 6700 kg
Technical Data Spray Side
Screw diameter: 70 mm
Capacity: 1047 cc
Spray pressure: 1778 bar
Screw length: 20 l/d
Screw speed: 527 min
Plasticizing current: 95 g/s PS
Injection flow to the outside: 953 g/s hp
Number of heating zones: 6
Dimensions & Weight
Machine dimensions LxWxH: 9.83m x 2.33m x 2.48m
Total Weight: 23090KG
Equipment
Screen text German
Core pull hydraulic 6x
Machine without handling
Machine without material hopper
Levelling elements
Tool heater 16x
Two-Component Injection Molding Machine
Viewing is desired!
Remarks
The machine comes from ongoing production.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.
