Lamella Cutting System – 2 x 3m Table Configuration

General Description

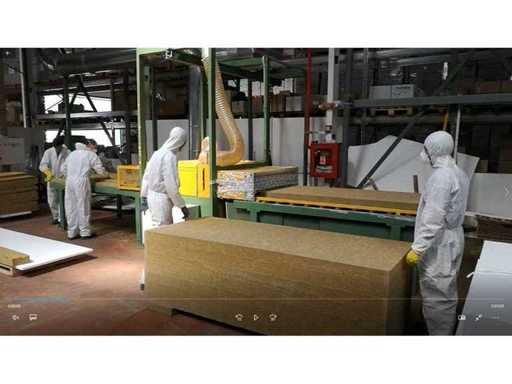

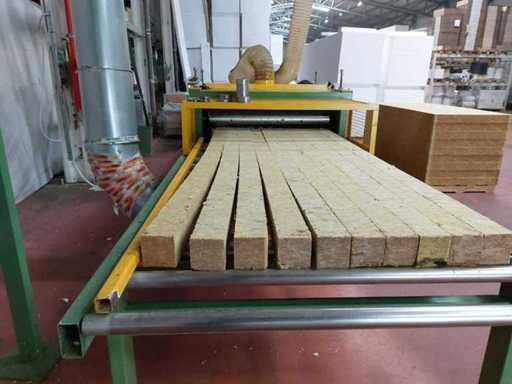

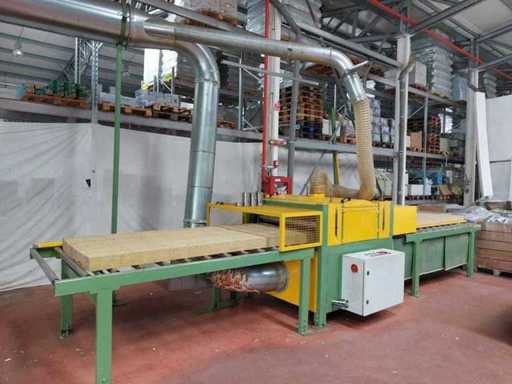

Complete lamella cutting system designed for high-capacity timber processing. System includes lamella saw, gravity conveyors, motorised pinch rolls, dust extraction connections, lifting frame, and full set of spacers and top boards. Designed for precision lamella production in multiple thickness configurations.

Main Components

• Lamella saw with 2 x 3 m tables

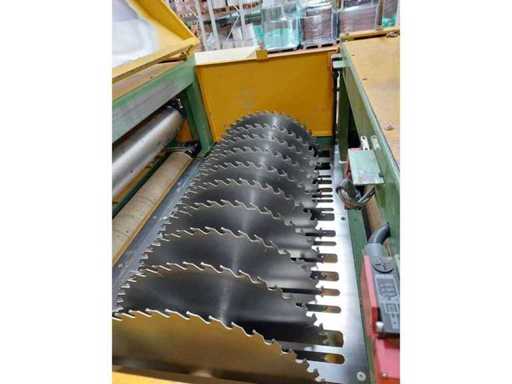

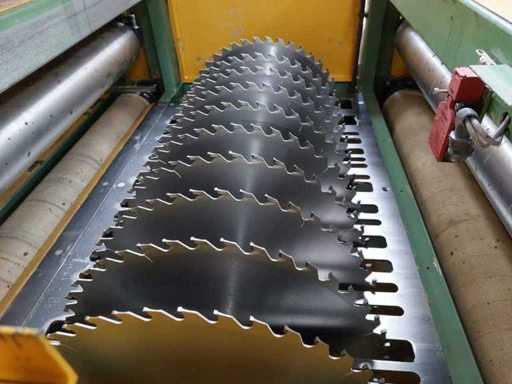

• 35 saw blades Ø 550 mm (15 new in original packaging)
• Extra main shaft (2 shafts total)
• Full spacer set
• Lifting frame

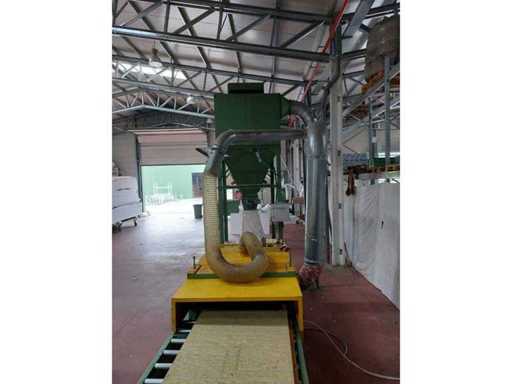

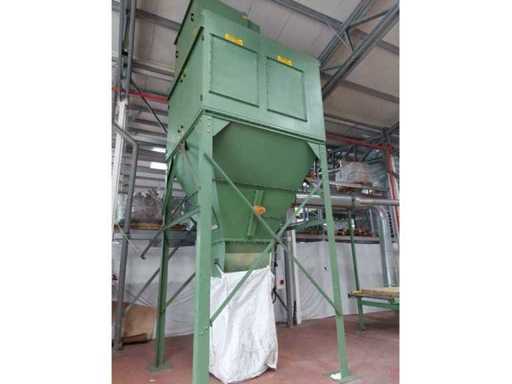

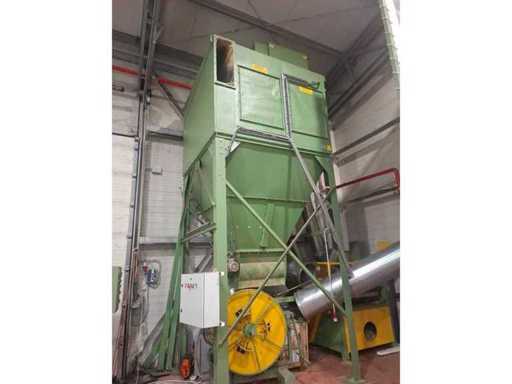

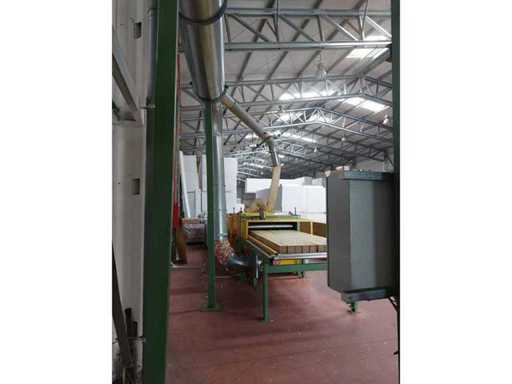

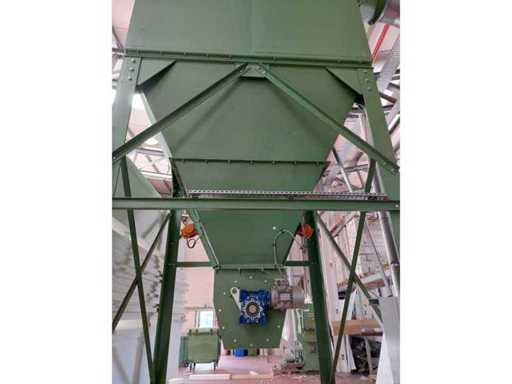

• Complete ducting system for dust extraction (min. 2.3 m clearance height)

Conveyors & Feeding

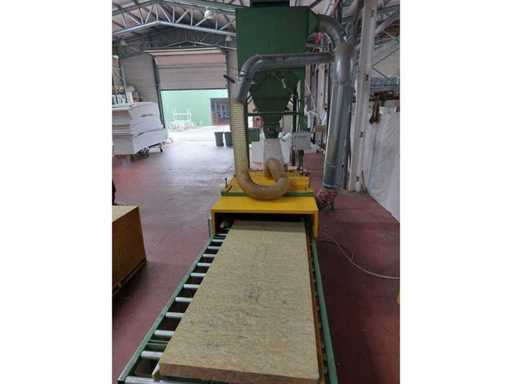

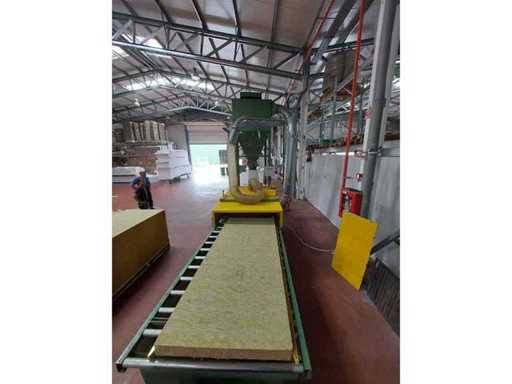

• 1 x 3000 mm gravity in-feed conveyor (1400 mm wide, adjustable feet)
• 1 x 3000 mm gravity run-out conveyor (1400 mm wide, adjustable feet)
• 2 x motorised pinch rolls (bottom roll driven)

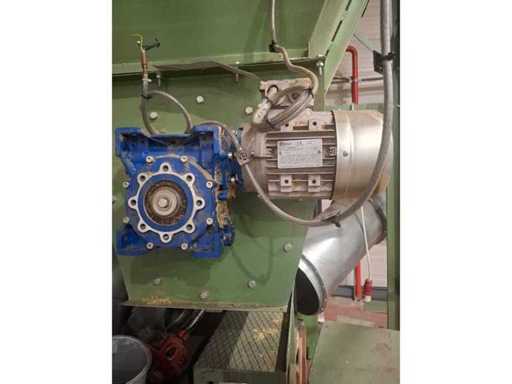

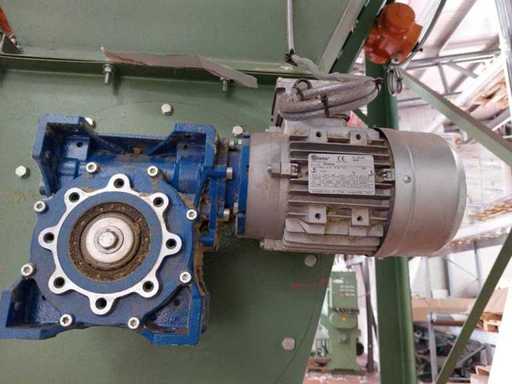

• 0.375 kW variable speed drive (max throughput 10 m/min)
