MACO - K 375 M - CNC Tube Cutting Line - 2005
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MACO
- Type
- K 375 M
- Year of build
- 2005
- Serial number
- 0402175
- Saw blade Ø
- 370mm
- Sawing range
- 8-100mm
- Cutting angle max.
- 60°
- Speed from n=
- 10rpm
- Speed till n=
- 120rpm
- Engine power (kW)
- 5.5kW
- Total dimension L
- 1300mm
- Total dimension W
- 2000mm
- Total dimension Height
- 2100mm
- Terms of delivery
- Ex foundation-unpackaged
Description

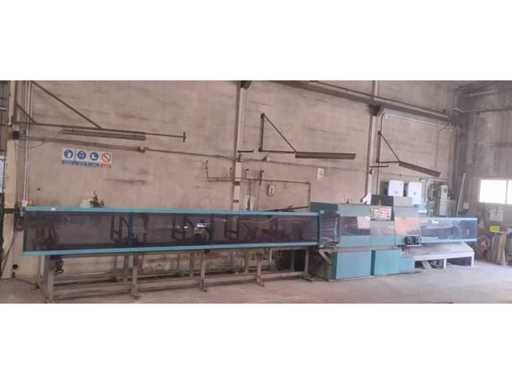

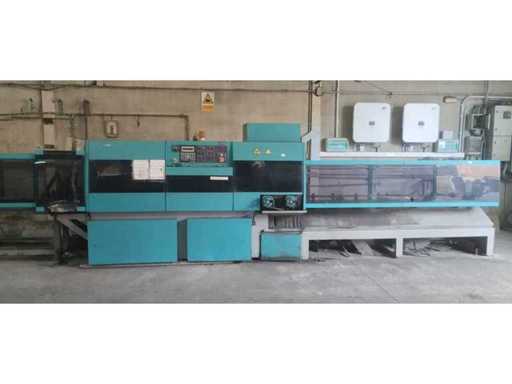

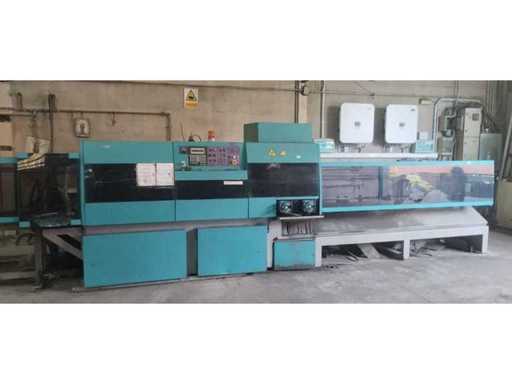

CNC TUBE CUTTING LINE.
Brand: Maco.
Model: K370R.
Year: 2005.
Description: MACO pipe cutting line with feed ramp, grade cutting, negative and positive CNC.
Approximate width of about 13,000 mm x 2,000 mm deep.
Measurements for shipment: 1 package of 1,300 x 7,000 x 2,100 mm and 1 package of 6,500 x 1,500 x 2,100 mm.
Technical Specifications:
• Cutting range: from 0° to 60°.

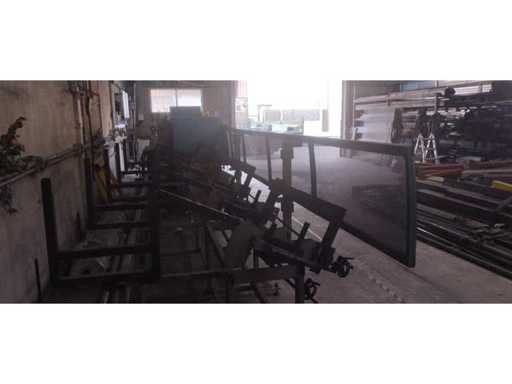

• Includes a 6 meter bar loader and a 6 meter ramp/exit belt.
• Cutting capacity: Ø 8–100 mm.
• Disc diameter: 250–370 mm.
• Magazine capacity: 4,000 kg / 6,000 mm.
• Minimum cutting length: 5 mm.
• Disc rotation speed: 50–100 rpm (variable: 10–120 rpm).
• Disc motor power: 3.5 kW (5.5 kW).
• Maximum jaw opening: 140 mm.
Features:
• The machine performs loading and unloading automatically.
• Programming is carried out from the control panel located on the machine itself.
• Allows for straight cuts and miter (angled) cuts.
Status:
• Hoses may need to be checked before the machine is put into operation.
Brand: Maco.
Model: K370R.
Year: 2005.
Description: MACO pipe cutting line with feed ramp, grade cutting, negative and positive CNC.
Approximate width of about 13,000 mm x 2,000 mm deep.
Measurements for shipment: 1 package of 1,300 x 7,000 x 2,100 mm and 1 package of 6,500 x 1,500 x 2,100 mm.
Technical Specifications:
• Cutting range: from 0° to 60°.
• Includes a 6 meter bar loader and a 6 meter ramp/exit belt.
• Cutting capacity: Ø 8–100 mm.
• Disc diameter: 250–370 mm.
• Magazine capacity: 4,000 kg / 6,000 mm.
• Minimum cutting length: 5 mm.
• Disc rotation speed: 50–100 rpm (variable: 10–120 rpm).
• Disc motor power: 3.5 kW (5.5 kW).
• Maximum jaw opening: 140 mm.
Features:
• The machine performs loading and unloading automatically.
• Programming is carried out from the control panel located on the machine itself.
• Allows for straight cuts and miter (angled) cuts.
Status:
• Hoses may need to be checked before the machine is put into operation.
Remarks
EN "All the items awarded in this auction destined for countries located outside the European Union will be sold under the Incoterm® 2020 Ex Works (EXW), with the buyer being responsible for the management and assumption of the procedures, costs and risks associated with the transport, export and import of the goods."
Additional details
EN "All the items awarded in this auction destined for countries located outside the European Union will be sold under the Incoterm® 2020 Ex Works (EXW), with the buyer being responsible for the management and assumption of the procedures, costs and risks associated with the transport, export and import of the goods."
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
