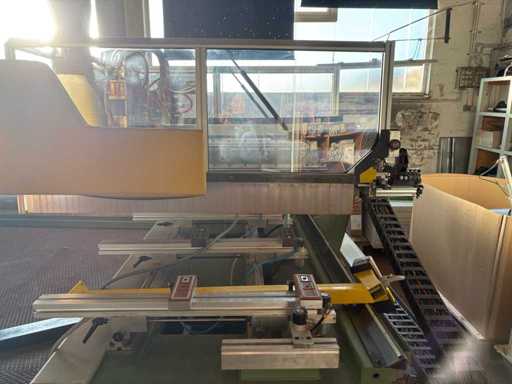

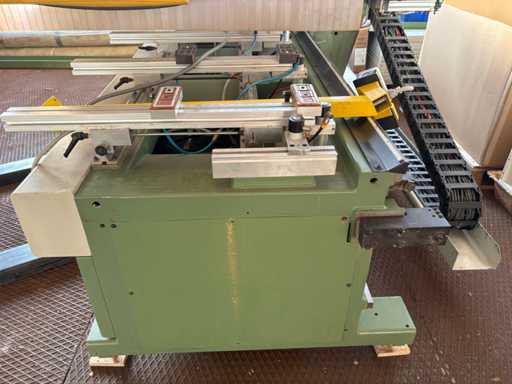

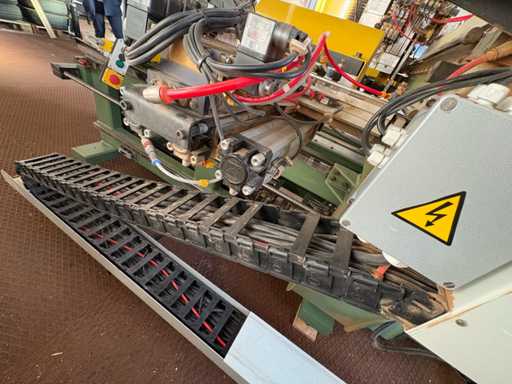

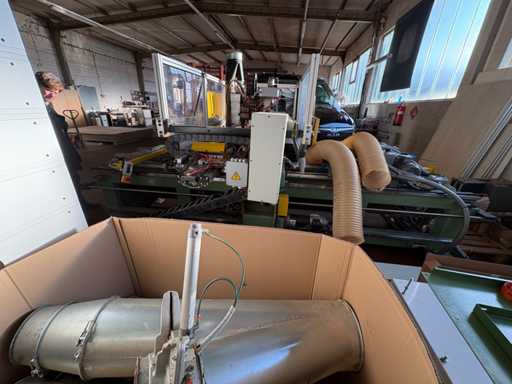

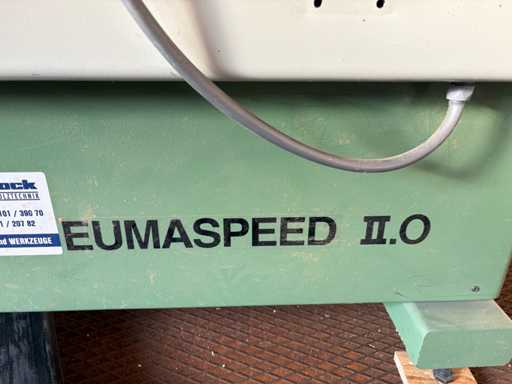

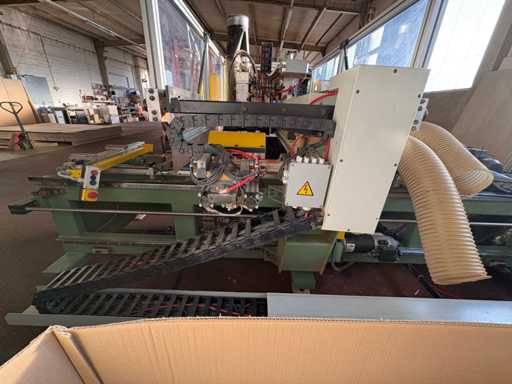

MASTERWOOD EUMASPEED 316 - CNC Machining Center Wood
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Masterwood
- Type
- EUMASPEED 316 /
- Year of build
- 1999

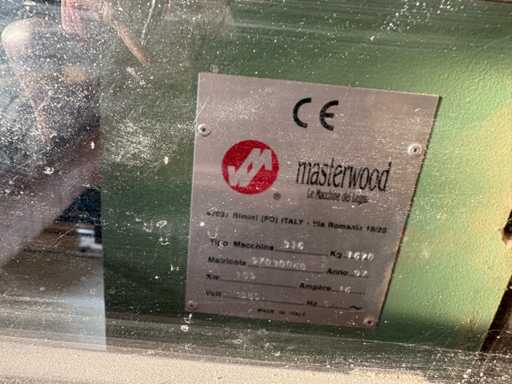

- Serial number
- 970030060
- Taper
- ISO 25
- Speed from n=
- 18000rpm
- Table size l
- 2600mm
- Table size w
- 900mm
- Workpiece weight max.
- 1670kg
- CNC control, brand, type
- Schukow Vaco Vent 40
- Hours on display
- 480
- Electric connection
- 400V
- Manual present
- Yes
- Terms of delivery
- Ex foundation-unpackaged
Description

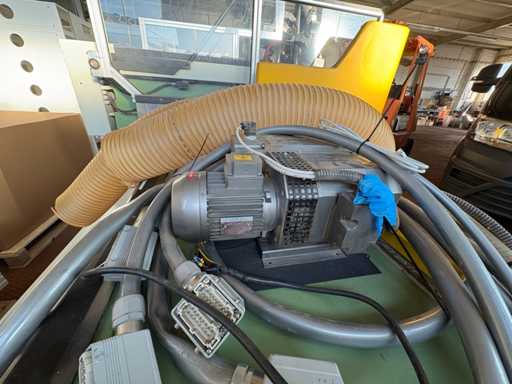

Compressor Type: Ingersoll Rand T30 2475 DFT
Connected load: 4.1 kW
Areas of application: Drilling, grooving, milling

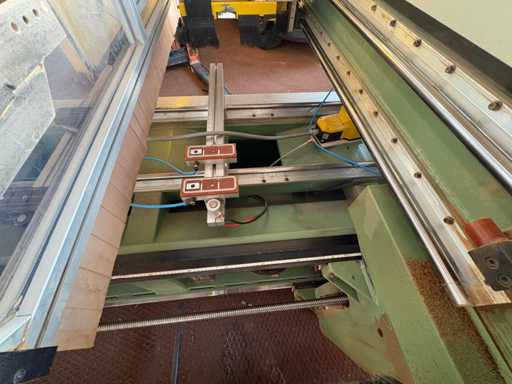

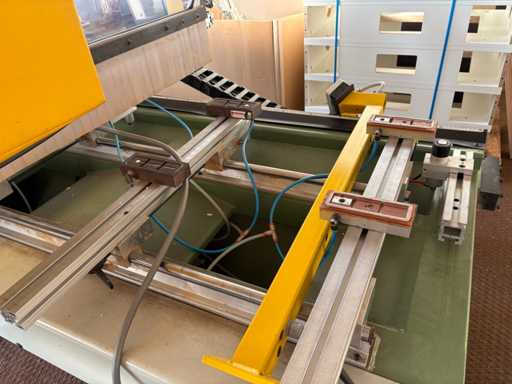

Work table:
- 6 quick-adjustable workpiece supports
- 9 individually retrievable vertical drilling spindles
- 4 spindles with 32 mm pitch for hole row drilling

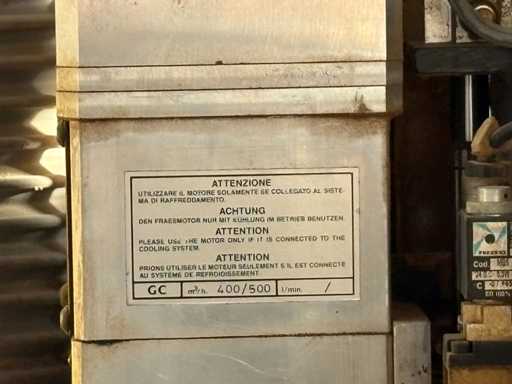

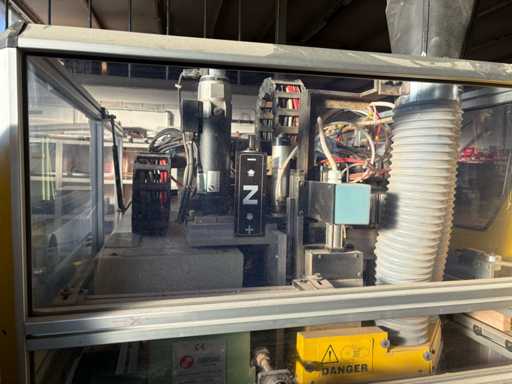

Milling unit:
- Power: 5.5 kW
- Stepless speed control: 6,000 – 18,000 rpm

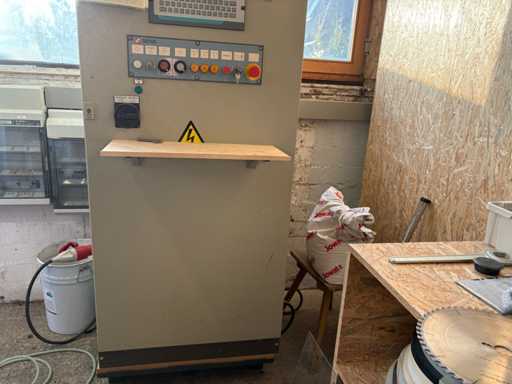

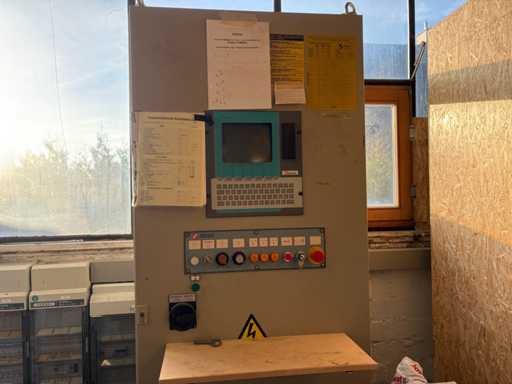

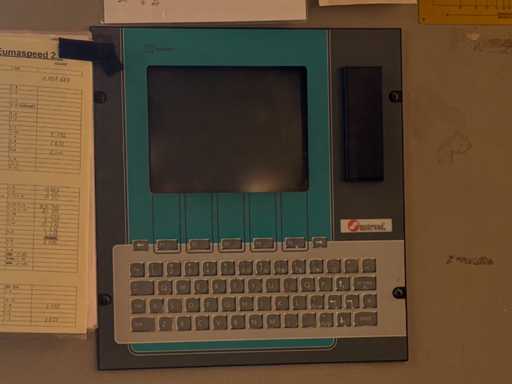

Control:
- Microprocessor Motorola 68020 / 32-bit
- Memory: 2 MB
- Screen: 10 inches
- Floppy disk drive
- Comprehensive diagnostics with immediate indication of operating, programming and system errors
Axis speeds:
- X-axis: 35 m/min
- Y-axis: 40 m/min
- Z-axis: 15 m/min
Space requirements:

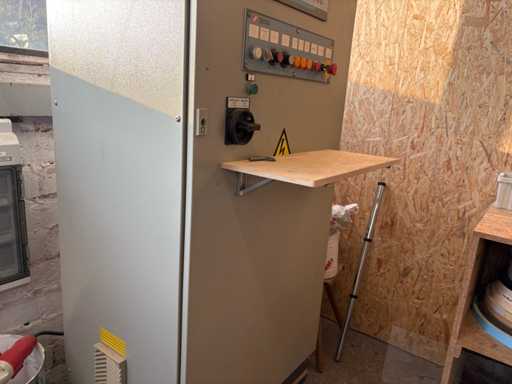

- Control cabinet: 900 × 900 × 2,100 mm
- Machine: 4,770 × 2,460 × 2,900 mm incl. protective cladding
- Approval: BG wood dust tested
Connected load: 4.1 kW
Areas of application: Drilling, grooving, milling
Work table:
- 6 quick-adjustable workpiece supports
- 9 individually retrievable vertical drilling spindles
- 4 spindles with 32 mm pitch for hole row drilling
Milling unit:
- Power: 5.5 kW
- Stepless speed control: 6,000 – 18,000 rpm
Control:
- Microprocessor Motorola 68020 / 32-bit
- Memory: 2 MB
- Screen: 10 inches
- Floppy disk drive
- Comprehensive diagnostics with immediate indication of operating, programming and system errors
Axis speeds:
- X-axis: 35 m/min
- Y-axis: 40 m/min
- Z-axis: 15 m/min
Space requirements:
- Control cabinet: 900 × 900 × 2,100 mm
- Machine: 4,770 × 2,460 × 2,900 mm incl. protective cladding
- Approval: BG wood dust tested
Remarks

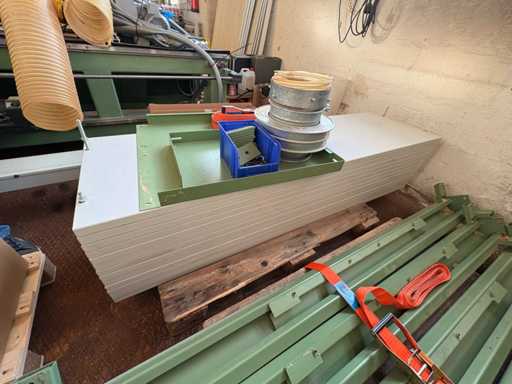

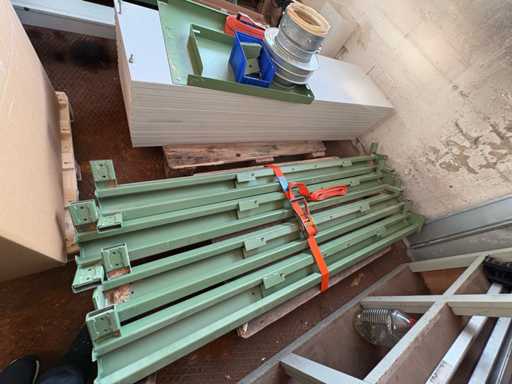

Good condition, machine is dismantled
