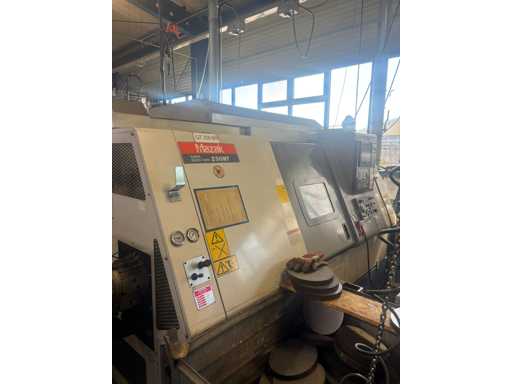

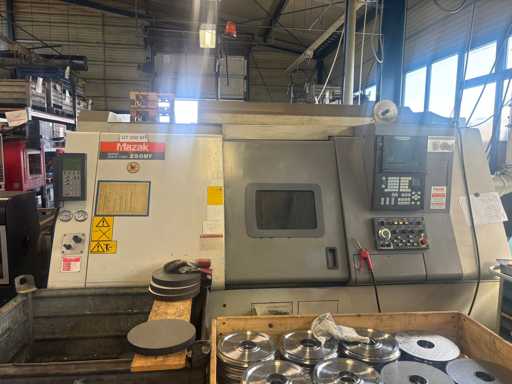

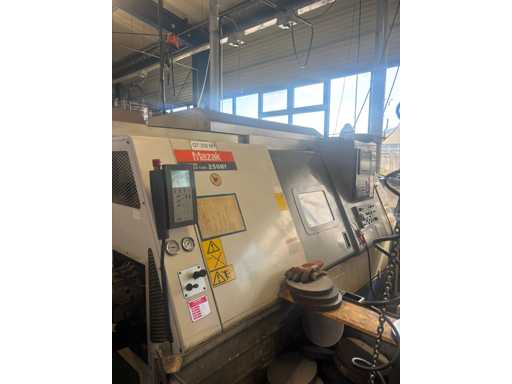

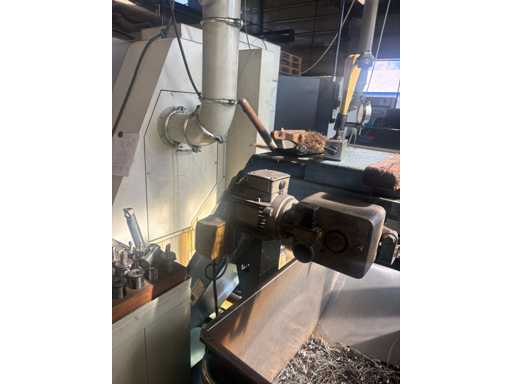

Mazak QT 250 MY Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Mazak
- Type
- QT 250 MY
- Machine weight
- 6000kg
- Dimension l
- 3200mm
- Dimension w
- 1800mm
- Dimension h
- 2000mm
- Terms of delivery
- Loaded on truck
Description
Working space:
Max. swing diameter: 525 mm
Max. turning diameter: 300 mm
Max. turning length: 497 mm
Bar work up to a diameter of max. 65 mm
Main spindle:
Speed range: 35 – 4,000 rpm
Main drive power: 18.5 KW
Constant torque: 350 Nm
Spindle nose: A2 – 8 inches
Spindle bore: 76 mm
Spindle positioning c – axis: 0° - 360°/0.001°

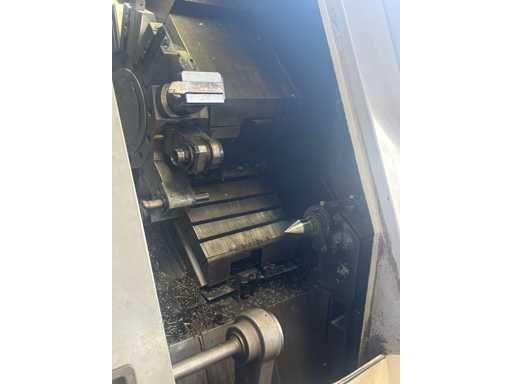

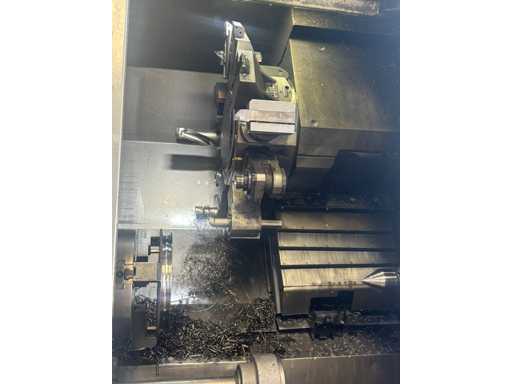

Tool turret:
Number of tool positions: 12
(can be equipped with fixed and driven tools as required)
Turret switching time: - 1st station: approx. 0.2 s
Powered tools:
Drive power: 3.7 KW
Max. torque: 35 Nm
Speed range: 25 – 4,500 rpm
Travels:
Turret travel:
x – Axle: 180 mm
z – axis: 575 mm
y – axis: 100 mm (+- 50 mm)
Travel speed:
Rapid traverse:
x – axis: 30 m/min
z – axis: 12 m/min
c – axis: 400 rpm
Feed range:
x/y/z – axis: 0 – 5,000 mm/min
c – axis: 1° - 2,000°/min

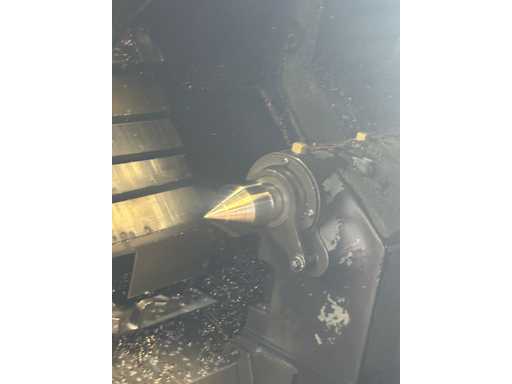

Tailstock:
Quill stroke: 150 mm
Recording: MK 5
Tailstock travel: 400 mm
WITHOUT ACCESSORIES
Max. swing diameter: 525 mm
Max. turning diameter: 300 mm
Max. turning length: 497 mm
Bar work up to a diameter of max. 65 mm
Main spindle:
Speed range: 35 – 4,000 rpm
Main drive power: 18.5 KW
Constant torque: 350 Nm
Spindle nose: A2 – 8 inches
Spindle bore: 76 mm
Spindle positioning c – axis: 0° - 360°/0.001°
Tool turret:
Number of tool positions: 12
(can be equipped with fixed and driven tools as required)
Turret switching time: - 1st station: approx. 0.2 s
Powered tools:
Drive power: 3.7 KW
Max. torque: 35 Nm
Speed range: 25 – 4,500 rpm
Travels:
Turret travel:
x – Axle: 180 mm
z – axis: 575 mm
y – axis: 100 mm (+- 50 mm)
Travel speed:
Rapid traverse:
x – axis: 30 m/min
z – axis: 12 m/min
c – axis: 400 rpm
Feed range:
x/y/z – axis: 0 – 5,000 mm/min
c – axis: 1° - 2,000°/min
Tailstock:
Quill stroke: 150 mm
Recording: MK 5
Tailstock travel: 400 mm
WITHOUT ACCESSORIES
Remarks
Item condition: used and unchecked
!!! Attention: If the specified collection phase is not adhered to, the seller is entitled to move the goods at the buyer's expense. The costs incurred by this are borne by the buyer.
!!! Attention: If the specified collection phase is not adhered to, the seller is entitled to move the goods at the buyer's expense. The costs incurred by this are borne by the buyer.
Additional details
All items are sold as used and uninspected unless otherwise noted.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up possible in the following period:
20.04.2026 – 24.04.2026 from 09:00 to 12:00 and from 13:00 to 16:30
Please note: Pick-up is not possible on public holidays and weekends.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
!!! Attention: "The invoice must be created within 24 hours after the end of the auction; if this is not done, we reserve the right to cancel or credit the invoice."
