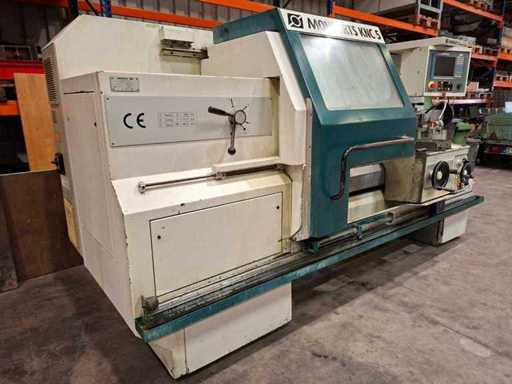

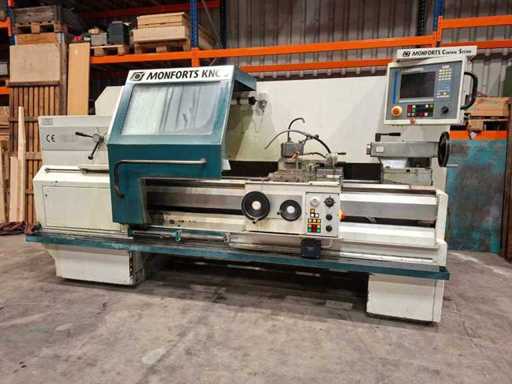

Monforts - KNC 5 1500 - Teach-in lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Monforts
- Type
- KNC 5 1500
- Turning length
- 1500mm
- Turning Ø
- 500mm
- Spindle boring Ø
- 71mm
- Machine weight
- 3000kg
Description

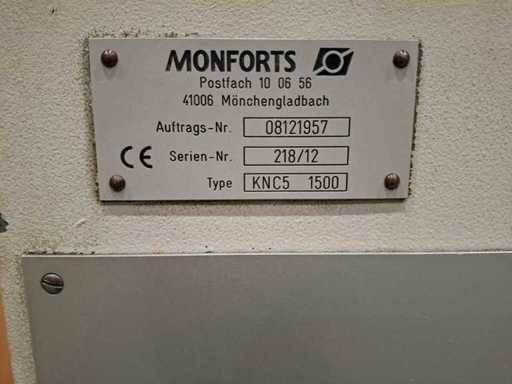

Machine description of the Monforts, model KNC 5 1500
Machine description of the Monforts KNC 5 1500
Working range / Arbeitsbereich
▪ Distance between centers / Spitzenweite : 1500 mm
▪ Turning diameter over cross support / Umlaufdurchm. über Shelf Slits: Ø 290 mm
▪ Turning diameter over bed / Circlaufdurchmesser über Bett : Ø 500 mm
▪ Travel of the transverse carriage / Transporting distance of the Planschlittens : 265 mm
▪ Bed width / Bed width : 360 mm
Spindle head / Spindle stock
▪ Spindle diameter in the front bearing / Spindle diameter. am progressing Bearing : Ø 100 mm

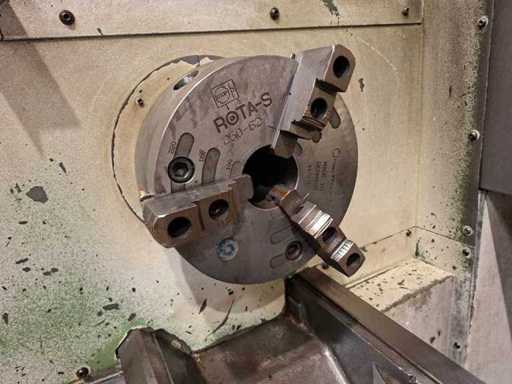

▪ Spindle mount / Spindle depth nach : DIN 55027 Size 8
▪ Spindle drilling 71 mm
▪ Inner cone of the spindle metric 80
Hauptantrieb
▪ Stufenlos adjustable current flow system (100%/40% ED) 11/16.5 kW

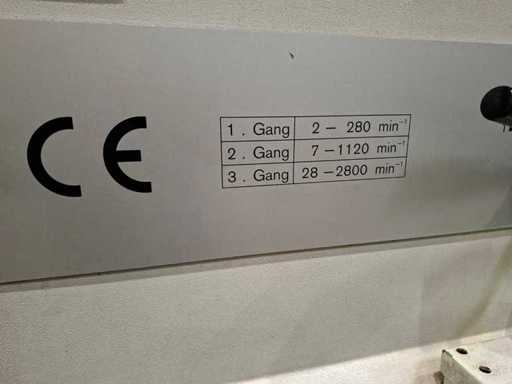

▪ Gesamtdrehzahlbereich 2 – 2,800 min-1
▪ Getriebestufe I 2 - 280 min-1
▪ Getriebestufe II 7 - 1120 min-1
▪ Getriebestufe III 28- 2.800 min-1
▪ Max. torque 1,681 Nm
Vorschubantriebe
▪ Drehstrom-Servoantriebe mit mechanischer Sicherheitskupplung
▪ Vorschubkraft längs/plan 11,3/11,3 kN
▪ Eilganggeschwindigkeit längs/plan 10/5 m/min
Gewindeschneidbereich
▪ Winding and conical, Steigung 0.001 – 500 mm

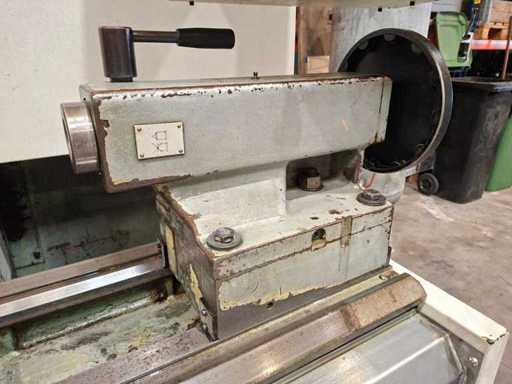

Reitstock
▪ Pinol diameter: 80 mm
▪ Pinole hub 160 mm
▪ Inner cone MK5
Weight
▪ Machine as a transport unit approx. 3,000 kg
Remarks
Machine is loaded free of charge with overhead crane
