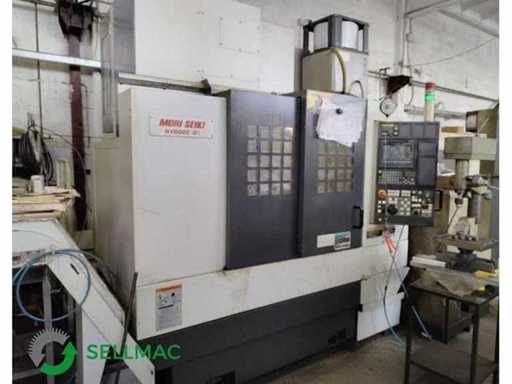

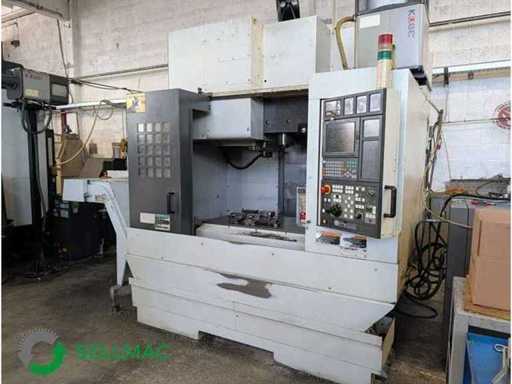

MORI SEIKI NV 5000 A1A/40 MACHINING CENTER YEAR 2006
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MORI SEIKI
- Type
- NV 5000 a1A/40
- Year of build
- 2006
- CNC control, brand, type
- MSX-501
Description
X-axis travel: 800 mm
Y-axis travel: 510 mm
Z-axis travel: 510 mm
Distance between table table top and spindle nose: 150 - 660 mm

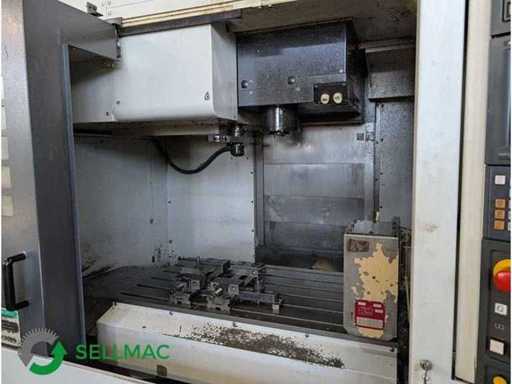

Table dimensions: 1,100 x 600 mm
Maximum load capacity: 1,000 kg
Configuration: 6 x 18 mm T-slots
Rotational speed: 14,000 rpm
Spindle attachment: MAS BT-40 (Taper 7/24 No. 40)
Bearing inner diameter: 65 mm
Motor power (30 min/cont.): 22 / 18.5 kW
Cooling: Refrigerator for spindle cooling included
Fast feeds: 42,000 mm/min
Feed in JOG: 0 - 1,260 mm/min
Positioning accuracy: 0.005 mm (over the entire stroke)
Positioning repeatability: ± 0.001 mm
Magazine capacity: 30 positions
Attachment type: MAS BT-40 (90° tie rod shank)
Maximum tool diameter: 80 mm (125 mm with empty adjacent slots)
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Tool change time (chip-to-chip): 2.6 seconds (1.0 s tool-to-tool)
CNC monitor: 10.4" TFT colour active matrix
Program memory: 320 m (63 adjustable programs)
EQUIPMENT AND ACCESSORIES INCLUDED

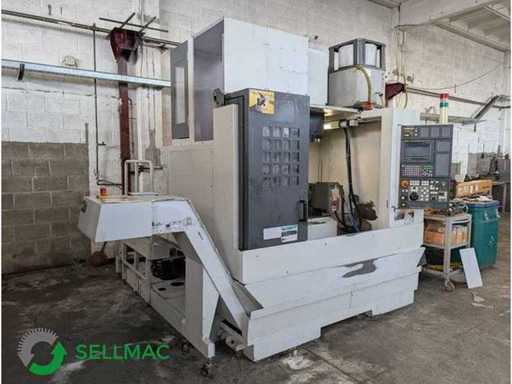

Chip conveyor: Left side belt

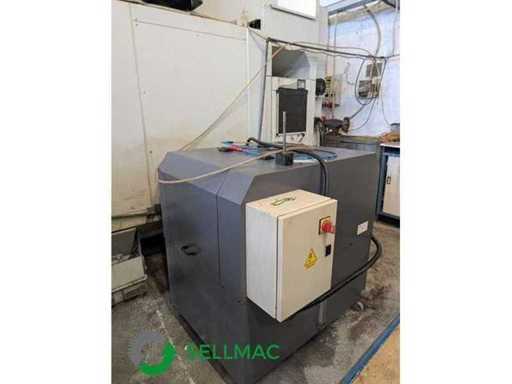

Refrigeration: Refrigerant interface through the spindle (Type-B) with additional high-pressure pump (50 Atm) and double filter
Cleaning system: Pneumatic
Signage: End-of-cycle light and acoustic signal
Transformer: Included (380V/50Hz > 200V/60Hz)
Machine equipped with manuals, test certificates and CE
declarationAll technical data shown are indicative and may be changed without notice and therefore should not be considered binding
