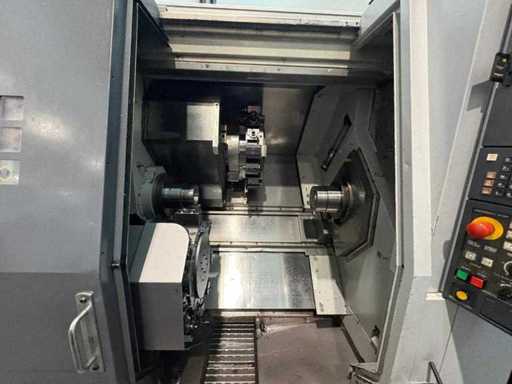

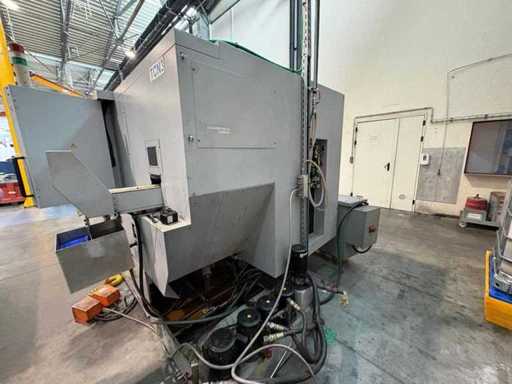

MORI SEIKI - ZT 1500 YB - Twin-spindle twin-turret CNC lathe - 2006
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MORI SEIKI
- Type
- ZT 1500 YB
- Year of build
- 2006
- Machine weight
- 6600kg
- Dimension l
- 3700mm
- Dimension w
- 2100mm
- Dimension h
- 2000mm
- Terms of delivery
- Loaded on truck
Description
Maximum passage diameter: 310 mm
Maximum turning diameter: 190 mm
Standard turning diameter: 170 mm
Maximum turning length: 235 mm
Bar passage: 65 mm
Spindle speed: 50 to 5,000 rpm
Spindle power: 22 kW / 18.5 kW
Spindle nose: JIS A2-6
Spindle Bore: 73 mm
Axis C: Indexation 0.001°
Turrets: 2 independent turrets
Tool capacity: 32 positions (16 per turret)
Motorized tools: 16 positions per turret
Motorized Tool Speed: 6,000 RPM
Power with motorized tools: 5.5 / 2.2 kW
Indexing time: 0.2 s
X-axis: 140 mm
Y-axis: ± 50 mm
Z-axis: 700 / 690 mm
B-axis: 775 mm
Fast Advances: 18 m/min

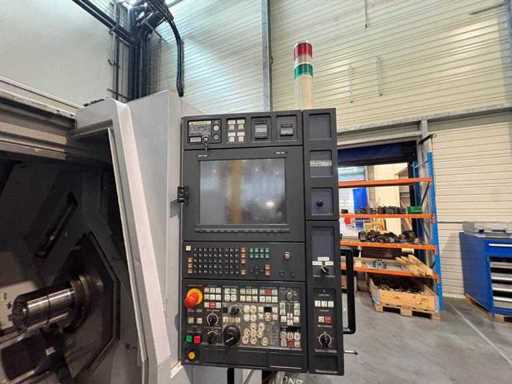

CNC Control: MSX 501 MAPPS II (Fanuc 30i)
Weight: 6,600 kg
Dimensions: 3,700 x 2,100 x 2,000 mm
Equipment: Bar feeder included
Additional details
At the request of interested parties, online auction of metalworking machinery.
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Pick-ups will be made after full payment of the invoice and only by appointment.
