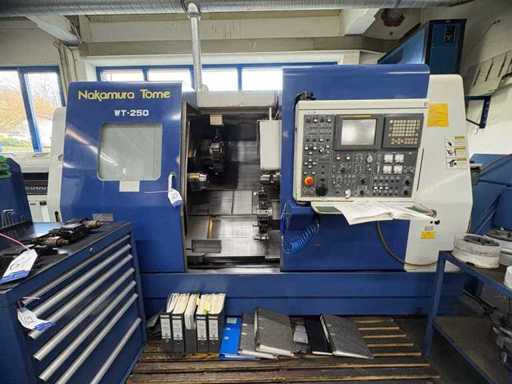

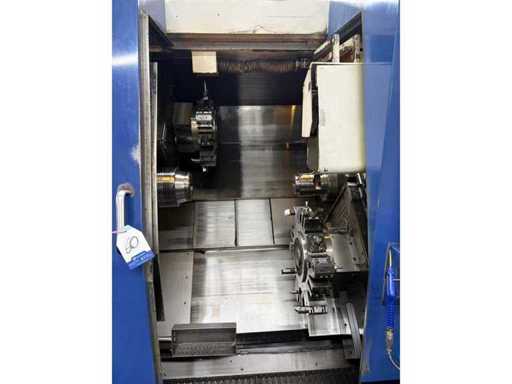

NAKAMURA TOME - WT-250 - CNC lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- NAKAMURA TOME
- Type
- WT-250
- Serial number
- M232302
- Turning Ø
- 250mm
- Turning length
- 435mm
- Spindle boring Ø
- 63mm
- Speed till n=
- 4500rpm
- Chip conveyor
- Yes
- CNC control, brand, type
- FANUC SERIES 18i-T
- Electric connection
- 400V
- Machine weight
- 5000kg
- Dimension l
- 8000mm
- Dimension w
- 2400mm
- Dimension h
- 2200mm
- Terms of delivery
- Loaded on truck
Description
Operating voltage: 400 V
Frequency: 50 Hz
Rated current: 225 A
Connection: 62 kVA
Swing diameter over bed: 250 mm
Swing diameter over slide: 250 mm
Max. turning diameter: 250 mm
Standard Turning diameter: 100 mm
Max. turning length: 435 mm
Max. rod size: 51 mm
Chuck size: 6 inch
Travel X-axis: 195 mm
Travel Z-axis: 480 mm
Spindle speed: 4500 rpm
Infinitely adjustable
Spindle nose: A2-5
Spindle bore: 63 mm
Front spindle bearing diameter: 90 mm
Rod passage: 52 mm
Tailstock Travel: 620 mm
Tailstock Rapid traverse: 24 m/min
Ball screw diameter: 32 mm
Ball screw pitch: Diameter 12 mm
Distance between spindle lugs: min. 250 mm, max. 870 mm
Position accuracy of the feed axes: 0.05 mm
Rapid traverse X-axis: 12 m/min
Rapid traverse Z-axis: 24 m/min

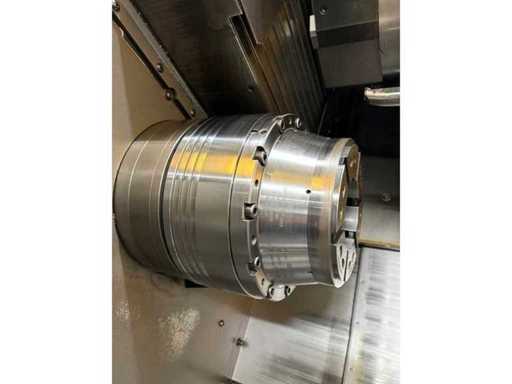

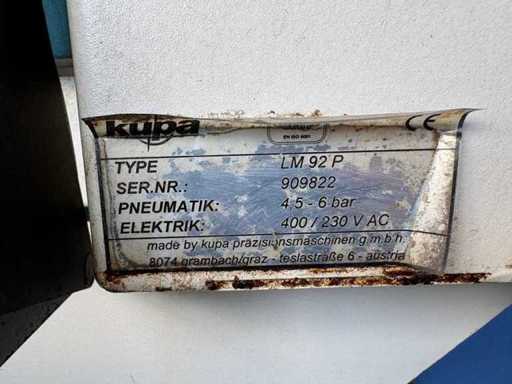

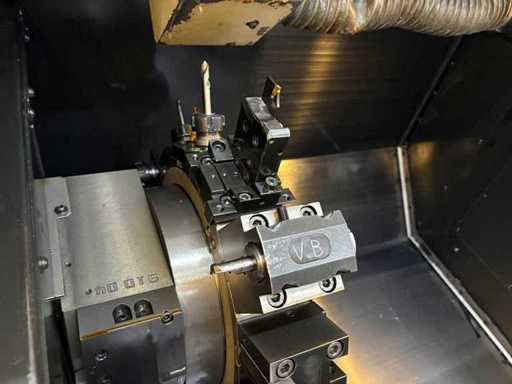

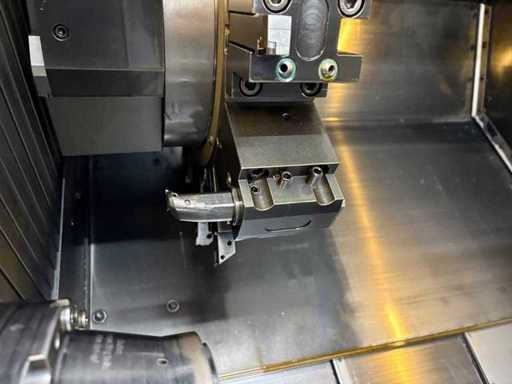

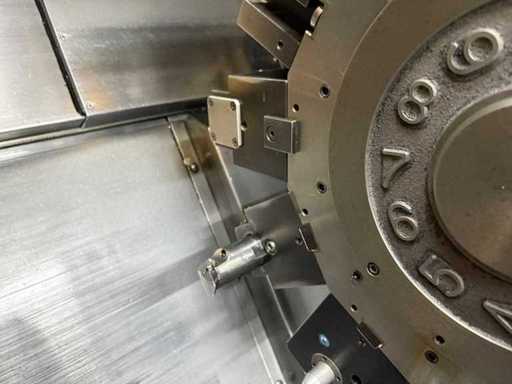

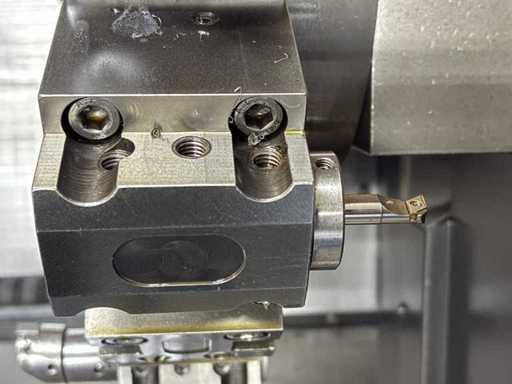

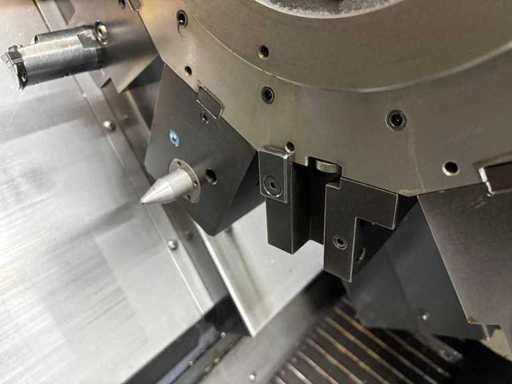

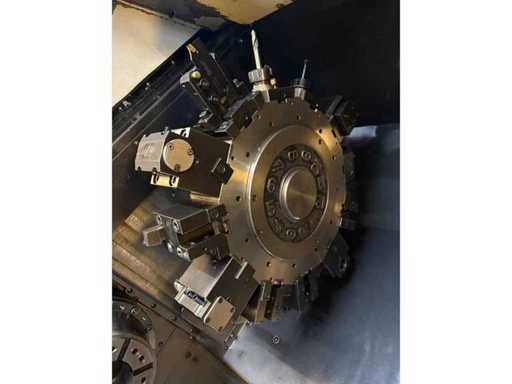

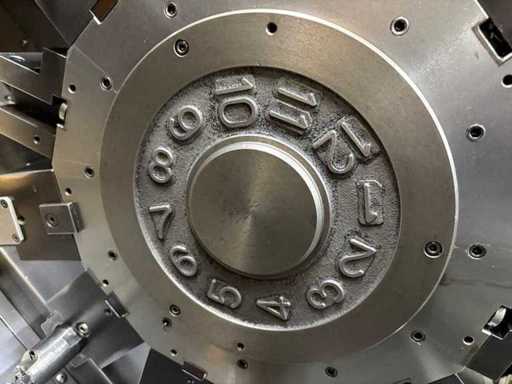

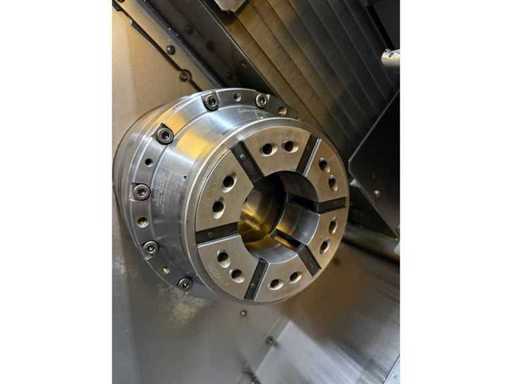

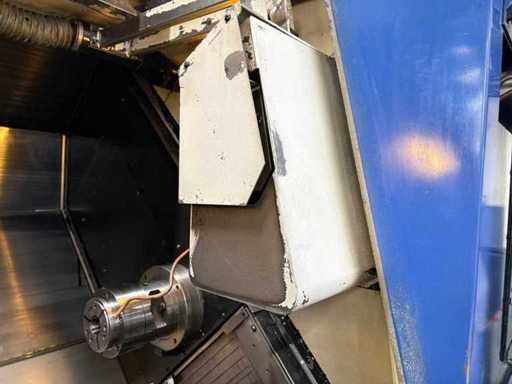

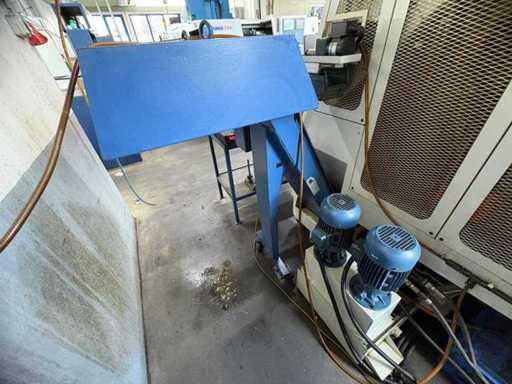

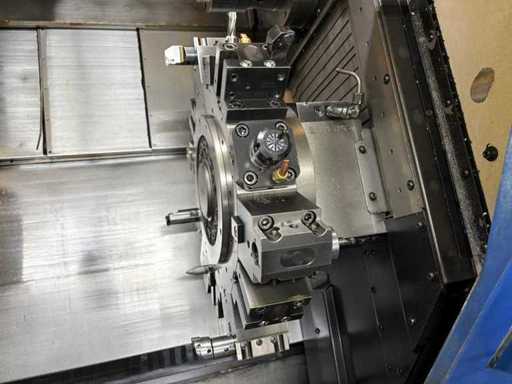

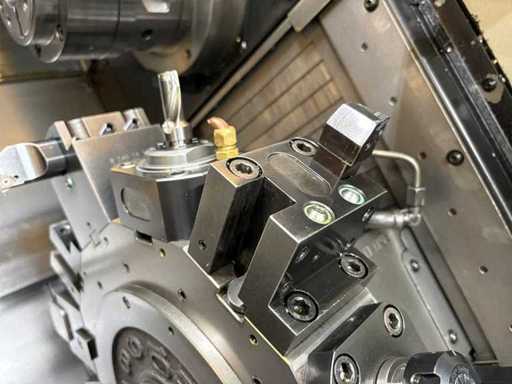

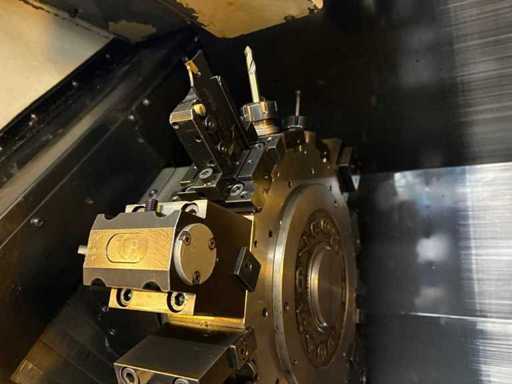

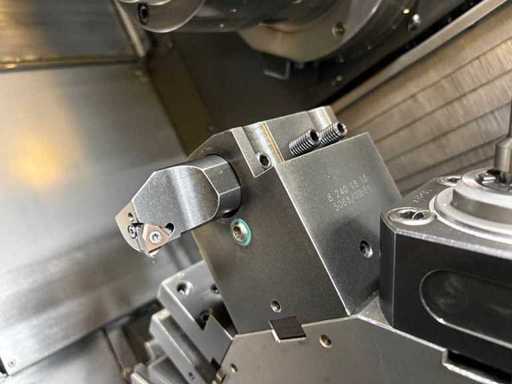

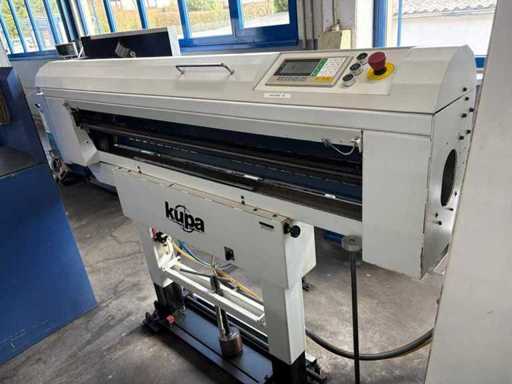

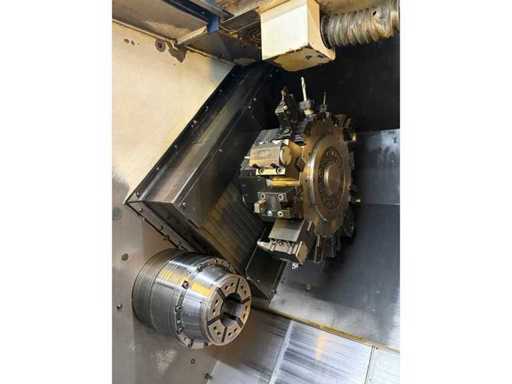

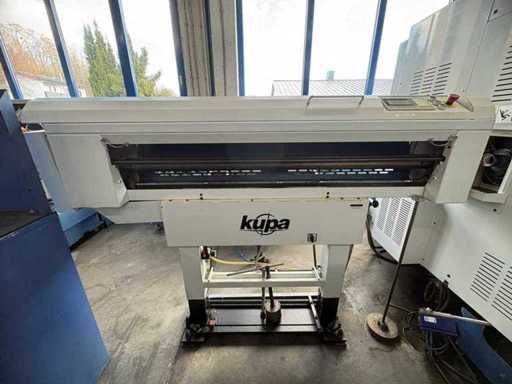

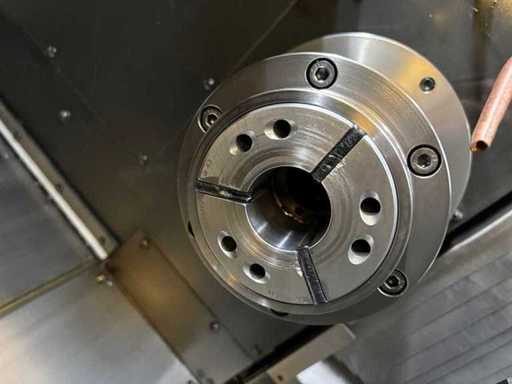

The machine is equipped with a counter spindle, HAINBUCH clamping system, a main spindle with HAINBUCH clamping system, a double turret with the tool holders shown on the turret, as well as a bar feeder from the manufacturer KUPA, type: LM92P, as well as chip conveyor and transformer. Reference: Hercegfi - Lot 60
Frequency: 50 Hz
Rated current: 225 A
Connection: 62 kVA
Swing diameter over bed: 250 mm
Swing diameter over slide: 250 mm
Max. turning diameter: 250 mm
Standard Turning diameter: 100 mm
Max. turning length: 435 mm
Max. rod size: 51 mm
Chuck size: 6 inch
Travel X-axis: 195 mm
Travel Z-axis: 480 mm
Spindle speed: 4500 rpm
Infinitely adjustable
Spindle nose: A2-5
Spindle bore: 63 mm
Front spindle bearing diameter: 90 mm
Rod passage: 52 mm
Tailstock Travel: 620 mm
Tailstock Rapid traverse: 24 m/min
Ball screw diameter: 32 mm
Ball screw pitch: Diameter 12 mm
Distance between spindle lugs: min. 250 mm, max. 870 mm
Position accuracy of the feed axes: 0.05 mm
Rapid traverse X-axis: 12 m/min
Rapid traverse Z-axis: 24 m/min
The machine is equipped with a counter spindle, HAINBUCH clamping system, a main spindle with HAINBUCH clamping system, a double turret with the tool holders shown on the turret, as well as a bar feeder from the manufacturer KUPA, type: LM92P, as well as chip conveyor and transformer. Reference: Hercegfi - Lot 60
Additional details
Pick-up:
20.07.-31.07.2026 (by appointment only)
Please note that all items are sold used and untested unless expressly stated otherwise. The respective article description is decisive.
For detailed information on warranty and guarantee conditions, please refer to the auction conditions.
Note: Late or missed pickup may incur additional storage, handling, or disassembly costs that are the responsibility of the buyer.
