NN - C6246A - Centre lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- NN
- Type
- C6246A
- Turning Ø
- 460mm
- Spindle boring Ø
- 75mm
- Speed from n=
- 27rpm
- Speed till n=
- 1600rpm
- Dimension l
- 3200mm
- Dimension w
- 1200mm
- Dimension h
- 1400mm
- Terms of delivery
- Loaded on truck
Description
Brand NN
Type C6246A
Distance between centers 1.500 mm
Center height 230 mm
Turning diameter above the bed 460 mm ø
Turning diameter above the support 240 mm ø
Turning diameter in the bag 700 mm ø

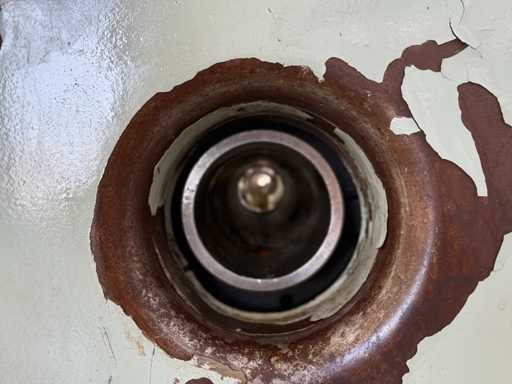

Passage 75 mm ø
pivot center

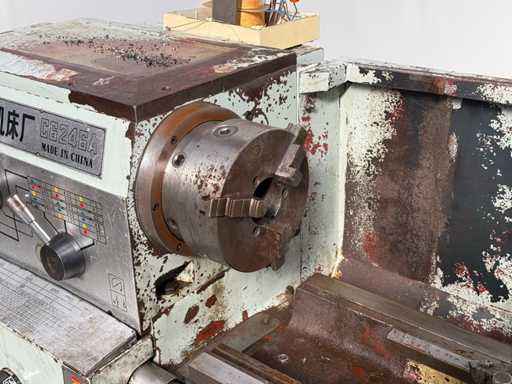

3-Jaw Chuck 250 mm ø
Rapid on the support
Speed 27 - 1,600 RPM
Voltage 380V
Machine size (lxwxh) 3.200 x 1.200 x 1.400 mm
Additional details
There is no right of withdrawal.
The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The lots are loaded by the seller on the transport you organize.
