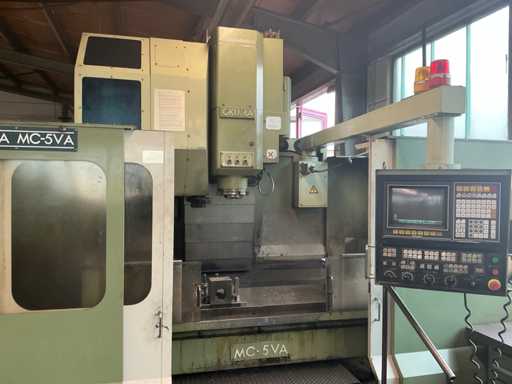

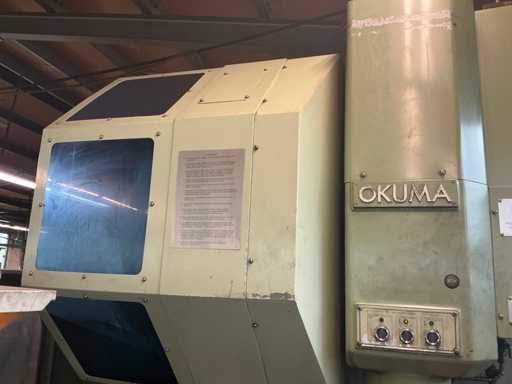

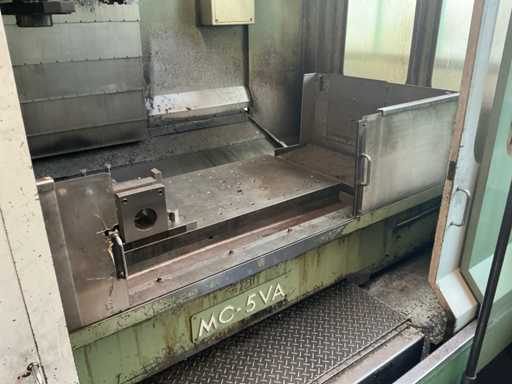

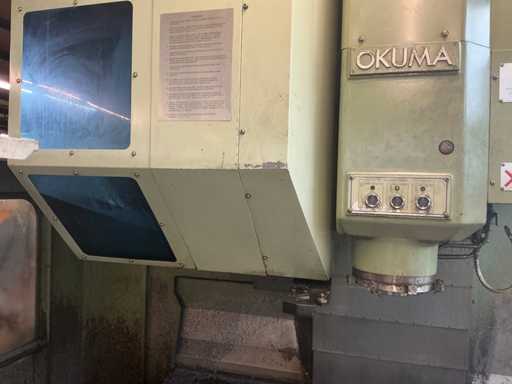

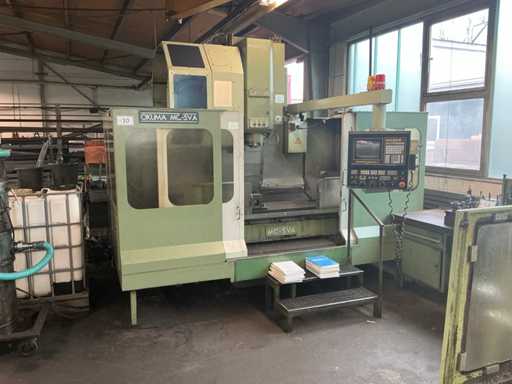

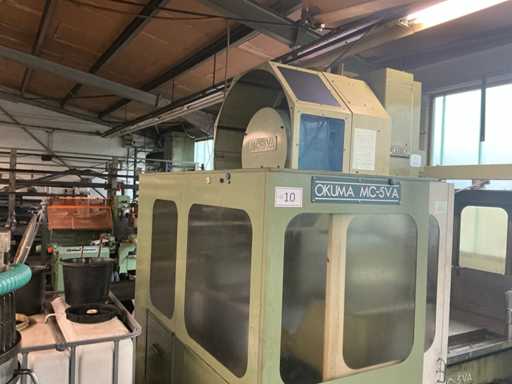

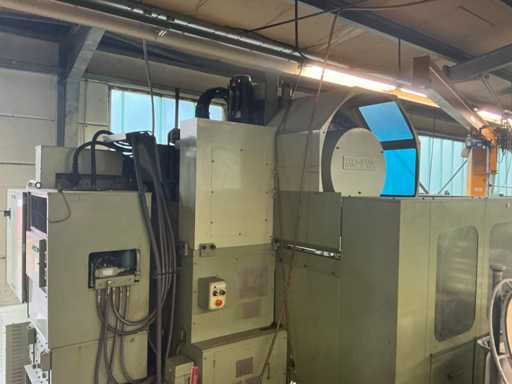

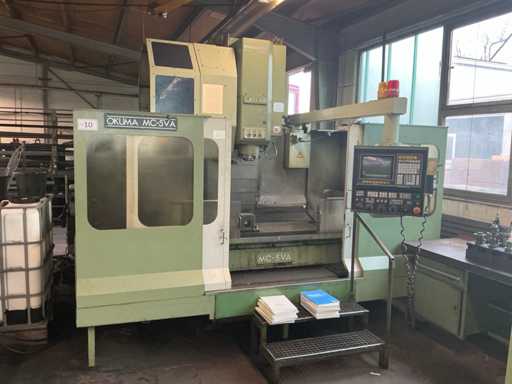

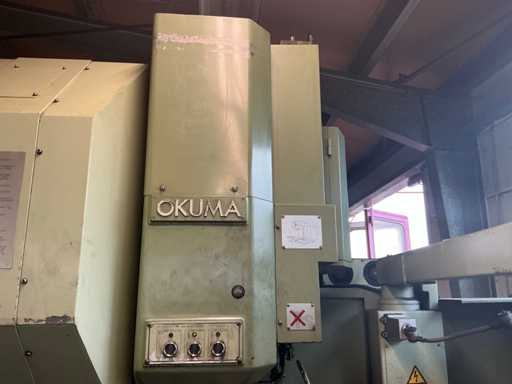

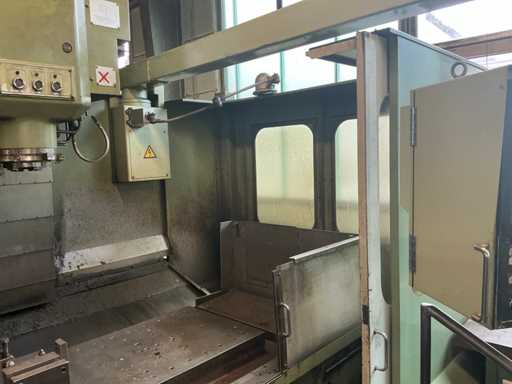

OKUMA - MC-5VA - Vertical CNC Machining Center

Current bid
Status

Activate Auto-bid

Lot specifications
Quantity
1
Margin
No
Brand
OKUMA
Type
MC-5VA
Travel x-axis
1050mm
Travel y-axis
510mm
Travel z-axis
560mm
Speed from n=
30rpm
Speed till n=
4000rpm
Hours on display
25936
CNC control, brand, type
OSP5000M-G
Workpiece weight max.
1000kg
T-slot fixture table size W
1550mm
T-slot fixture table size L
650mm
Machine weight
8200kg
Dimension l
3600mm
Dimension w
4100mm
Dimension h
2900mm
Terms of delivery
Ex foundation-unpackaged
Description

machine


  • Manufacturer: OKUMA
  • Type: MC-5VA (Vertical Machining Center)

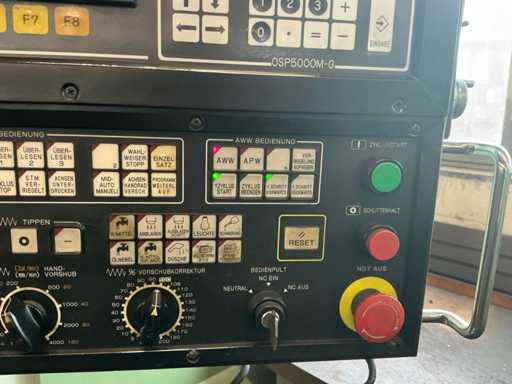

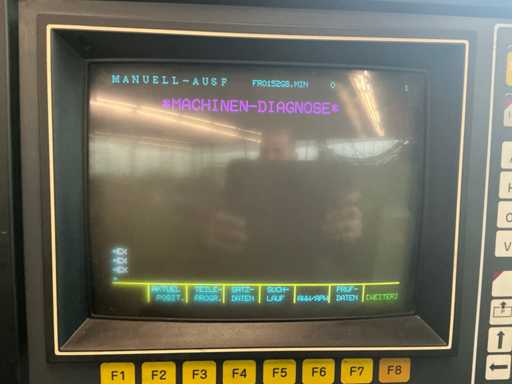

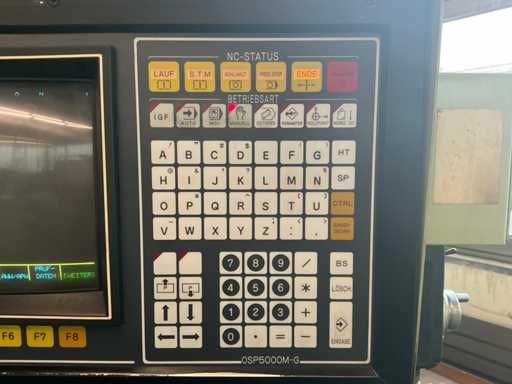

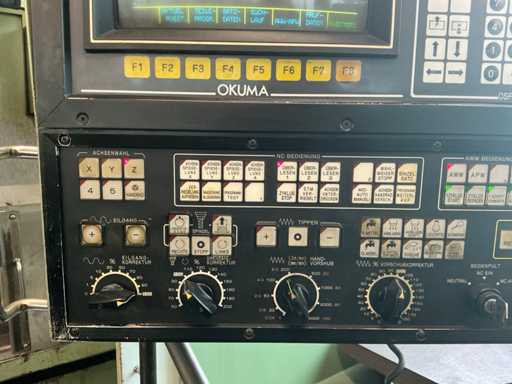

  • Control: OSP5000M-G

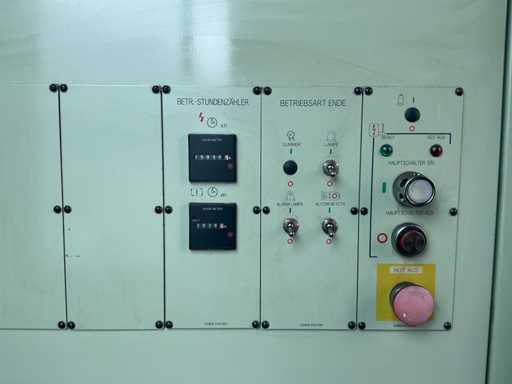

  • Operating hours: 25 936 h


data

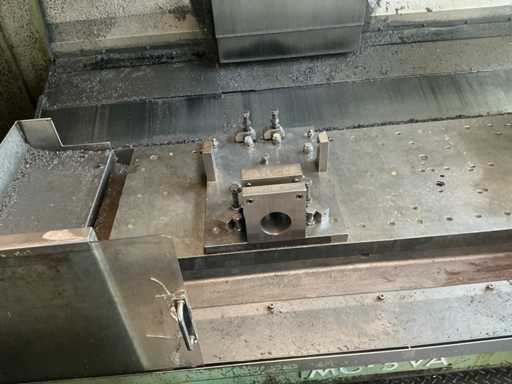

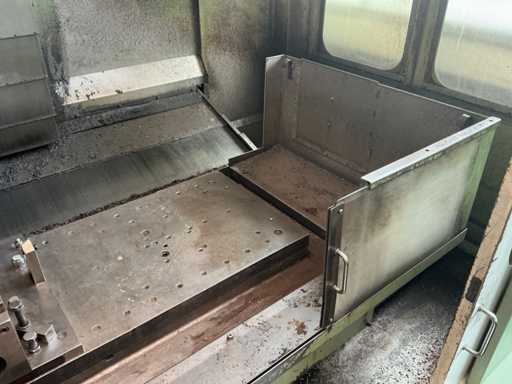

  • Effective table size: 1 300 × 510 mm
  • Total table size: 1 550 × 650 mm
  • Load capacity: 1 000 kg
  • Travel (X/Y/Z): 1 050 / 510 / 560 mm

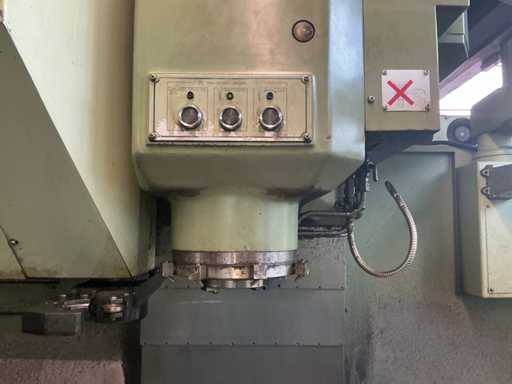

  • Spindle: Taper bore NT 50
  • Speed: 30 – 4 000 rpm (infinitely variable)
  • Feed speed (Cut): 1 – 4 000 mm/min
  • Rush feed (X/Y/Z): 13 000 mm/min
  • Tool locations: 20
  • Max. tool length: 400 mm
  • Max. tool weight: 15 kg
  • Max. tool diameter: 140 mm


Dimensions


  • L×W×H: 3,100 × 3,575 × 2,953 mm
  • Weight: approx. 8 200 kg

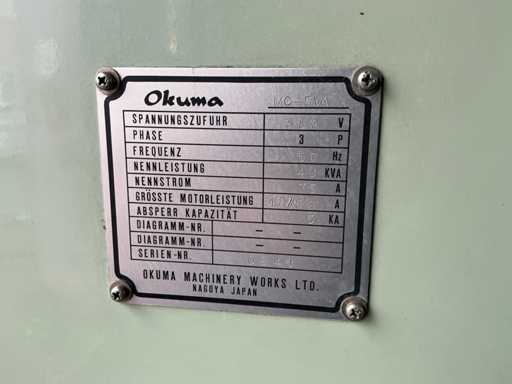

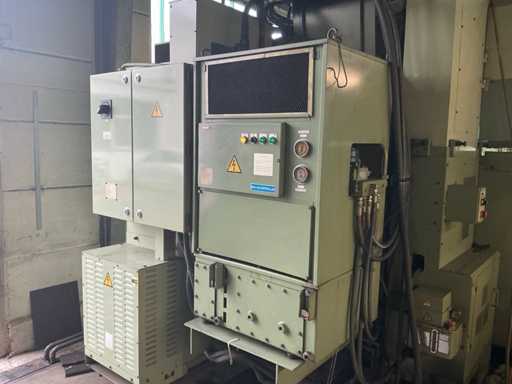

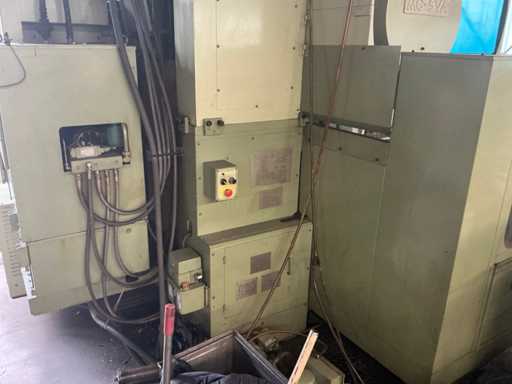

Electrical details


  • Voltage: approx. 400 V
  • Power: approx. 11 kW


Accessories

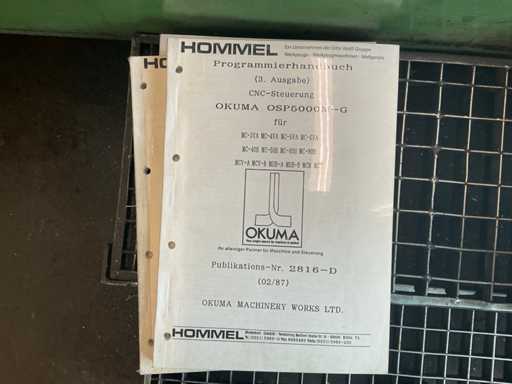

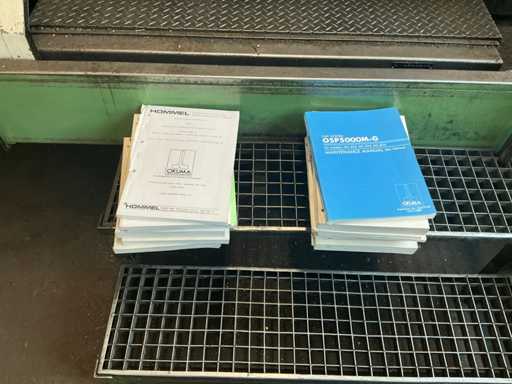

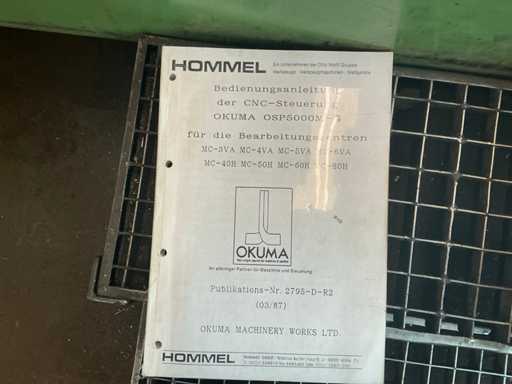

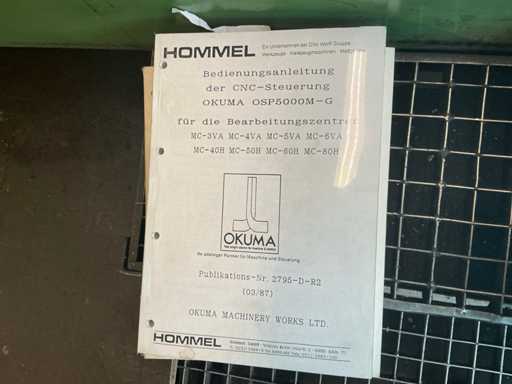

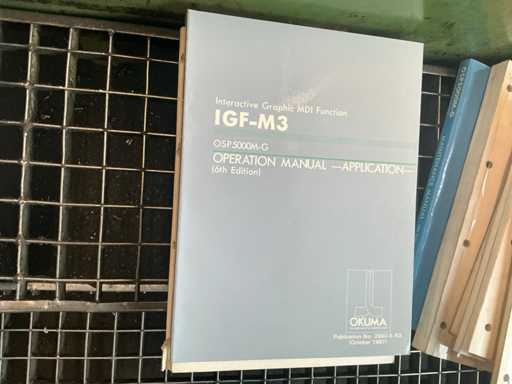

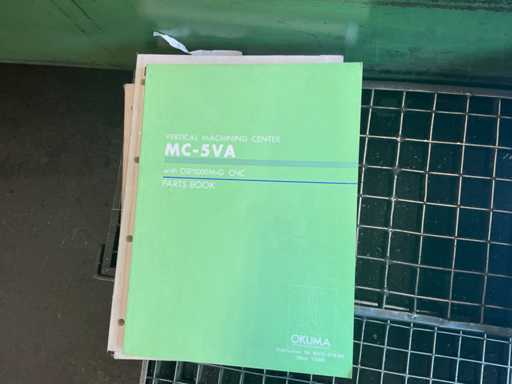

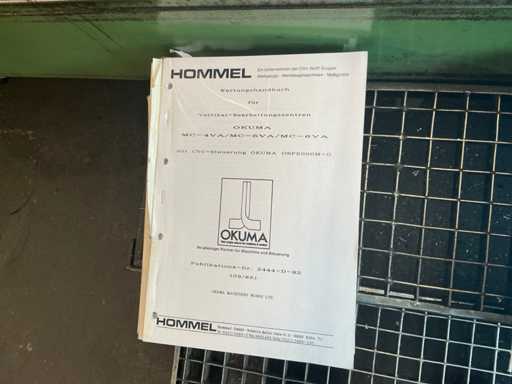

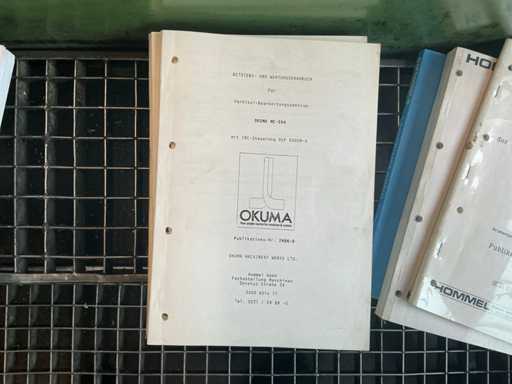

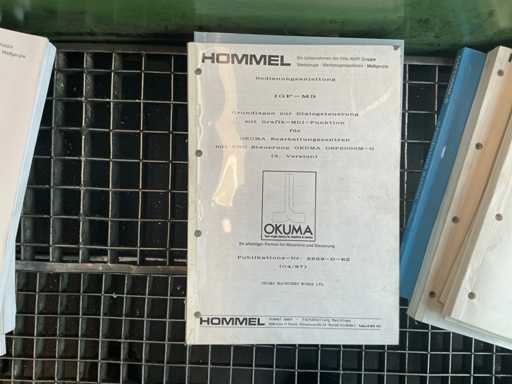

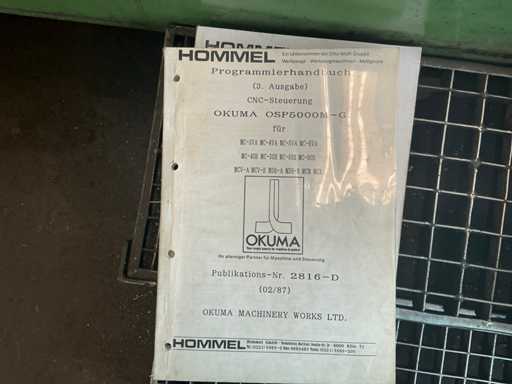

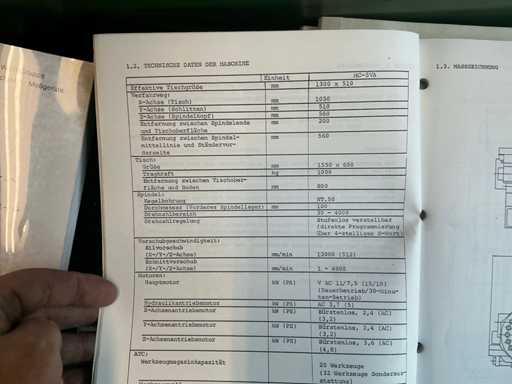

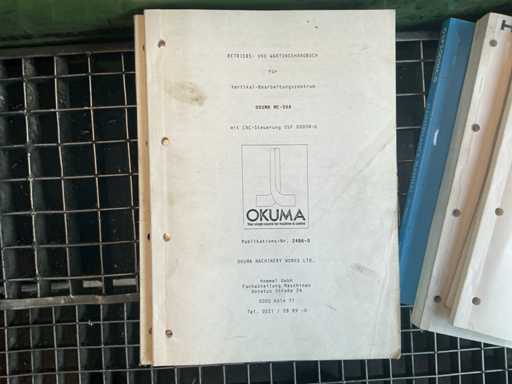

  • Operating and maintenance manuals
  • Technical documentation


If you have any questions, please contact Project Manager Dustin Richter by phone at +49 170 9792229.
Remarks
Unchecked
Additional details
All items are sold as used and uninspected unless otherwise noted. Viewing appointments are possible on 17.11.2025. Please note that a viewing is only possible by appointment at a.decastro@tbauctions.com. Pick-up is possible in the following period: 24.11.2025 to 28.11.2025, from 08:00 to 16:00. Please note that pick-up is not possible on public holidays and weekends. If the collection is not carried out on time, the buyer will have to pay relocation costs. Furthermore, the invoice must be created within 24 hours after the end of the auction. If this is not done, we reserve the right to cancel or credit the invoice. Please refer to the item description. For more detailed information on guarantee and warranty, please refer to the auction conditions. Contact for technical questions: Dustin Richter Project Manager Germany Mobile: +49 170 9792229 E-mail: d.richter@tbauctions.com
Video

See the details and take a closer look at the item in this video.

19d25517-989c-4366-bfb1-0fc8ba032299.mp4
