PEDDINGHAUS DSC 300 Drill CNC Drilling Machines
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Peddinghaus
- Type
- DSC 300 Drill
- Year of build
- 1997
- Drilling capacity
- 27mm
- Coolant pump
- Yes
- Manual present
- Yes
- Machine weight
- 2500kg
- Terms of delivery
- Ex foundation-unpackaged
Description

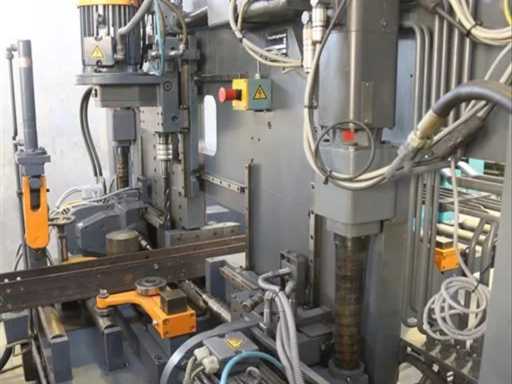

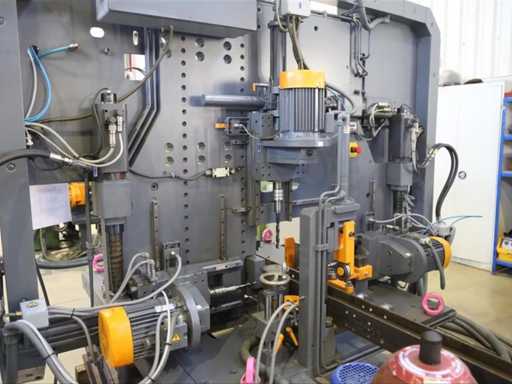

Peddinghaus DSC 300 Drill
Manufacturer: Peddinghaus (Germany)
Model: DSC 300 Drill
Year of Make: 1997
Control: CNC controlled, Siemens control system
Machine Type: CNC Drilling Rig for Profile Steel Machining
Condition: used, fully functional
Specifications
Processing range: Profile heights up to approx. 300 mm
Drilling diameter: 8 – 27 mm (depending on the tool)
Workpiece width: up to approx. 300 mm
Drive power: approx. 20 kW
Machine weight: approx. 2.500Kg
Drill feed: CNC controlled, automatic material feed

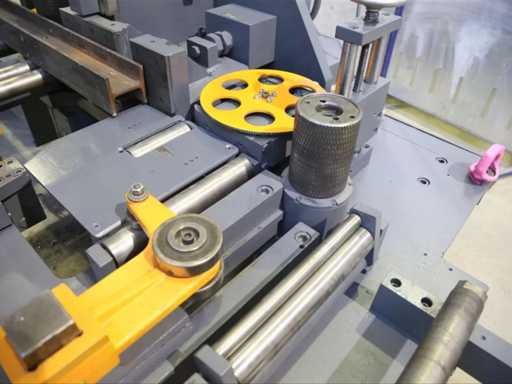

Positioning: Roll measuring system with workpiece length detection

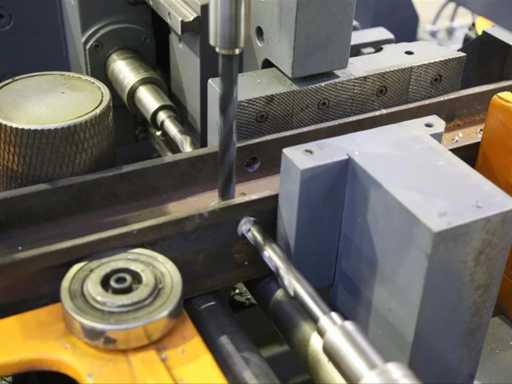

Tool holder: Quick-change system for twist drills / carbide drills
Cooling: integrated coolant supply to the tool tip
Equipment & Features
Robust steel construction, designed for continuous operation in steel construction
Automatic drilling position control via CNC programming

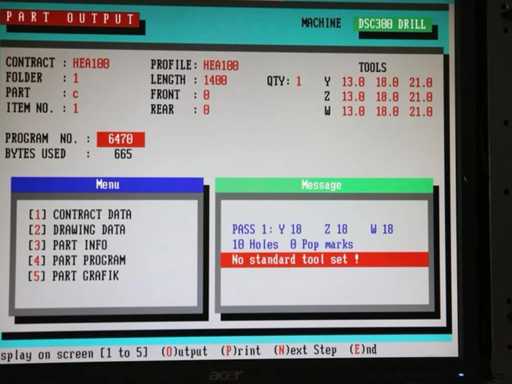

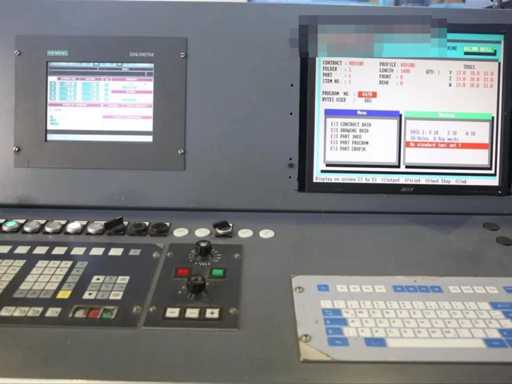

Siemens control panel with digital input of hole patterns and parts lists

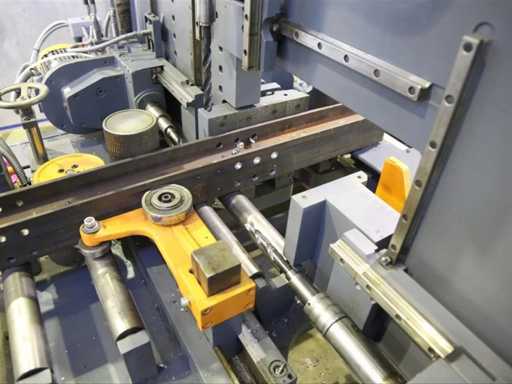

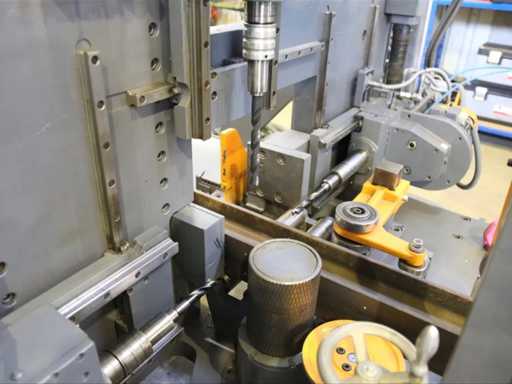

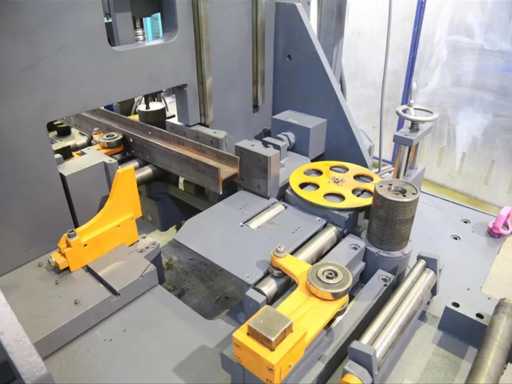

Automatic material feed and clamping device

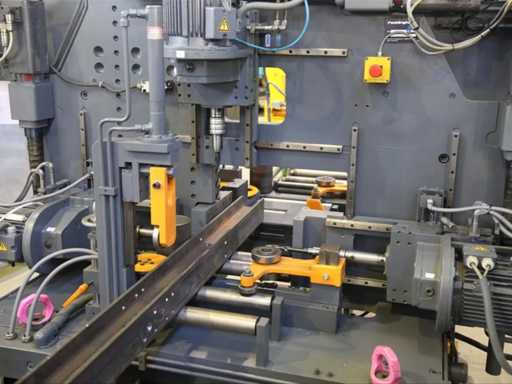

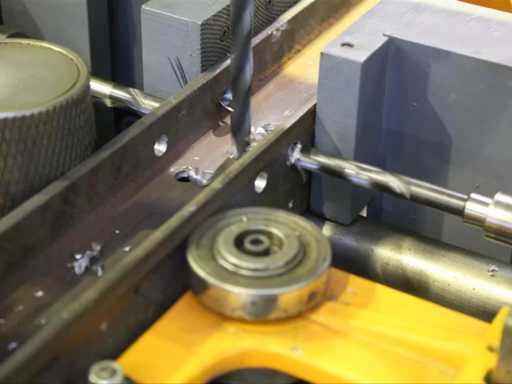

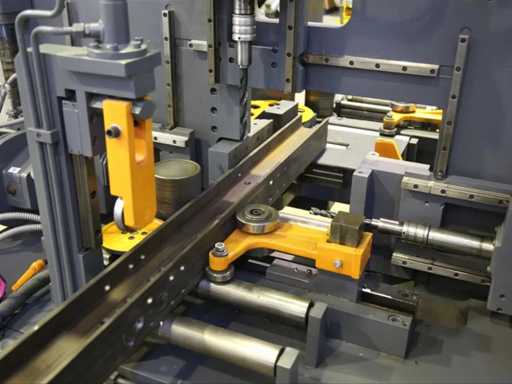

Drilling station for H, I, U, L and flat profiles
Optional extension with saw module or length measuring system possible
Applications
Steel construction, metal construction, hall construction

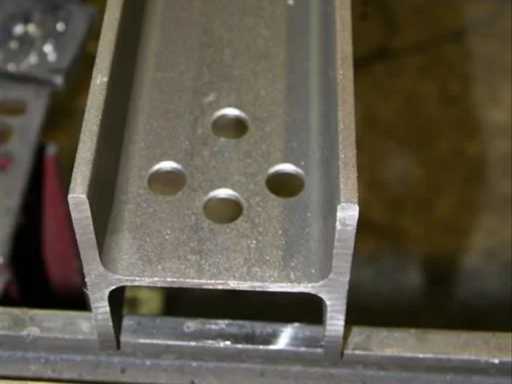

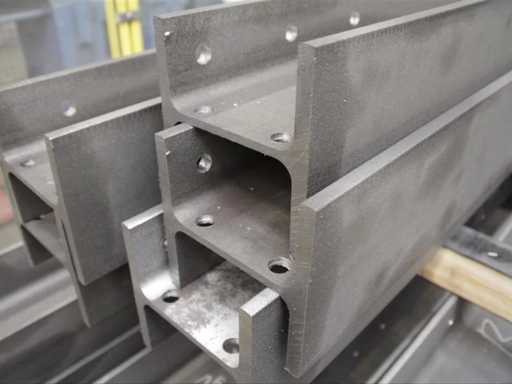

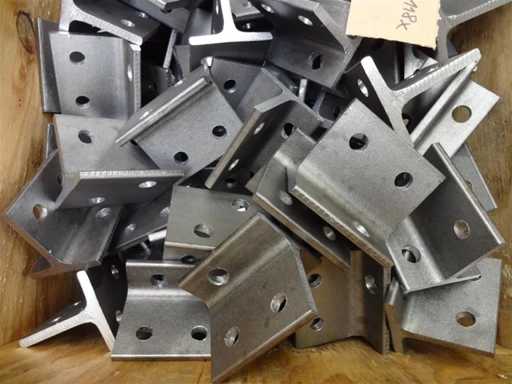

Machining of sectional steel, beams, flat and angle steel
Ideal for precise hole patterns, series production and CNC-controlled steel constructions
Manufacturer: Peddinghaus (Germany)
Model: DSC 300 Drill
Year of Make: 1997
Control: CNC controlled, Siemens control system
Machine Type: CNC Drilling Rig for Profile Steel Machining
Condition: used, fully functional
Specifications
Processing range: Profile heights up to approx. 300 mm
Drilling diameter: 8 – 27 mm (depending on the tool)
Workpiece width: up to approx. 300 mm
Drive power: approx. 20 kW
Machine weight: approx. 2.500Kg
Drill feed: CNC controlled, automatic material feed
Positioning: Roll measuring system with workpiece length detection
Tool holder: Quick-change system for twist drills / carbide drills
Cooling: integrated coolant supply to the tool tip
Equipment & Features
Robust steel construction, designed for continuous operation in steel construction
Automatic drilling position control via CNC programming
Siemens control panel with digital input of hole patterns and parts lists
Automatic material feed and clamping device
Drilling station for H, I, U, L and flat profiles
Optional extension with saw module or length measuring system possible
Applications
Steel construction, metal construction, hall construction
Machining of sectional steel, beams, flat and angle steel
Ideal for precise hole patterns, series production and CNC-controlled steel constructions

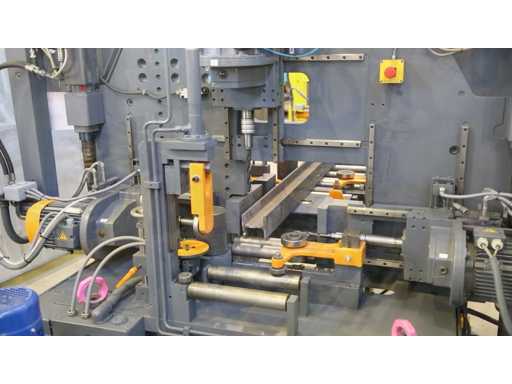

Video
