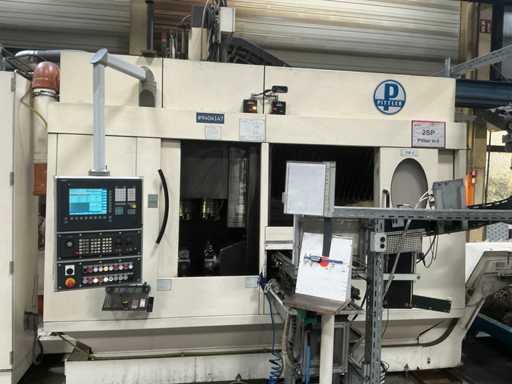

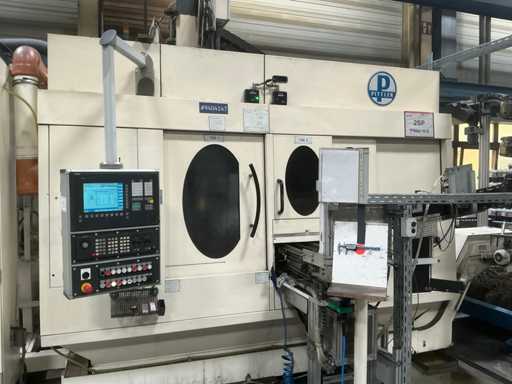

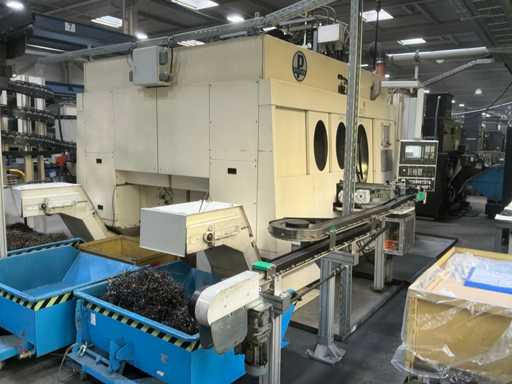

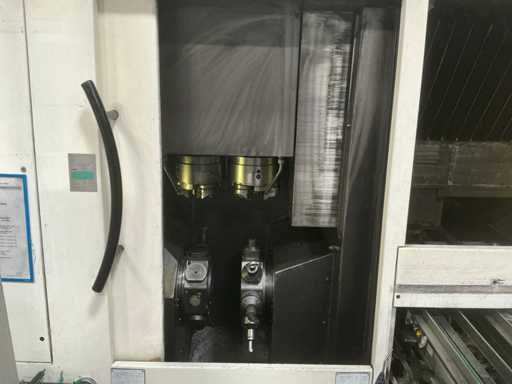

PITTLER - PVSL 2 TWIN/4-2 - CNC Twin Spindle Vertical Lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- PITTLER
- Type
- PVSL 2 TWIN/4-2
- Year of build
- 2003
- Serial number
- 7-42 5160 13
- Speed from n=
- 800rpm
- Speed till n=
- 5000rpm
- Number of tool changer stations
- 32
- Coolant pump
- Yes
- Chip conveyor
- Yes

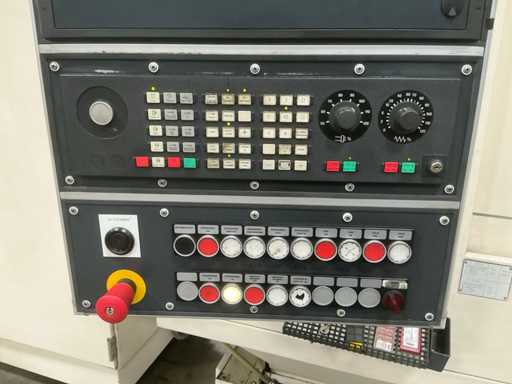

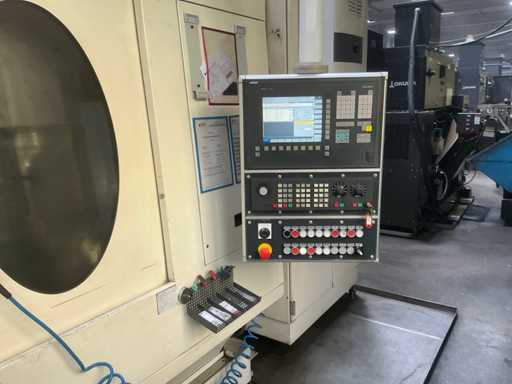

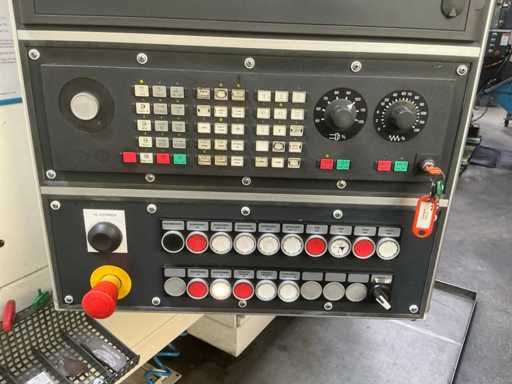

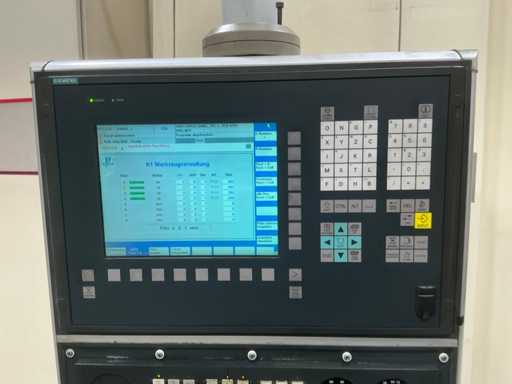

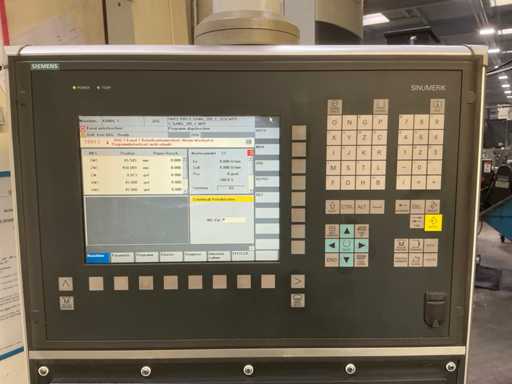

- CNC control, brand, type
- SIEMENS, Sinumerik 840 D

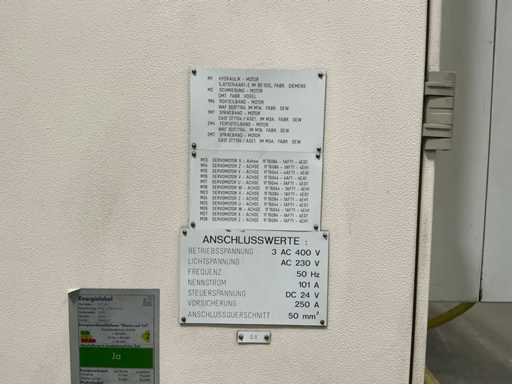

- Electric connection
- 400V

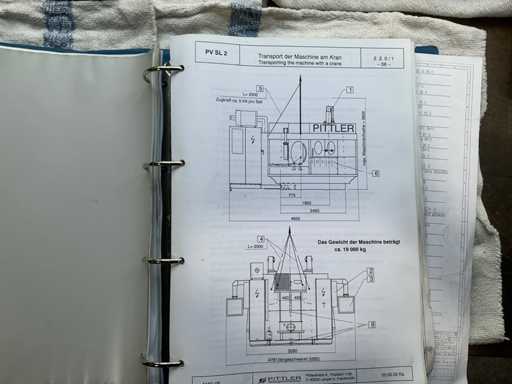

- Manual present
- Yes
- Machine weight
- 21000kg
- Dimension l
- 9000mm
- Dimension w
- 6000mm
- Dimension h
- 3100mm
- HS Code
- 84589180
- Terms of delivery
- Free on truck
Description

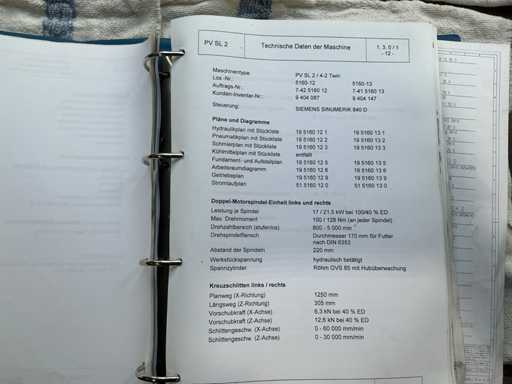

Machine description – Pittler PV SL 2 Twin / 4-2

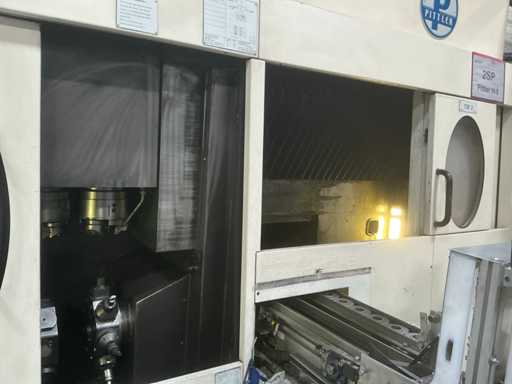

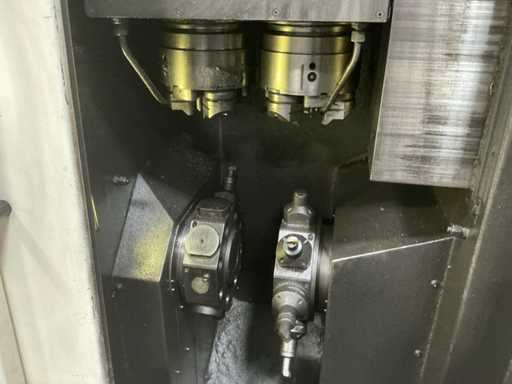

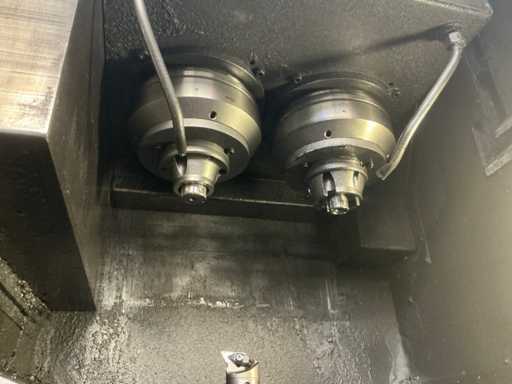

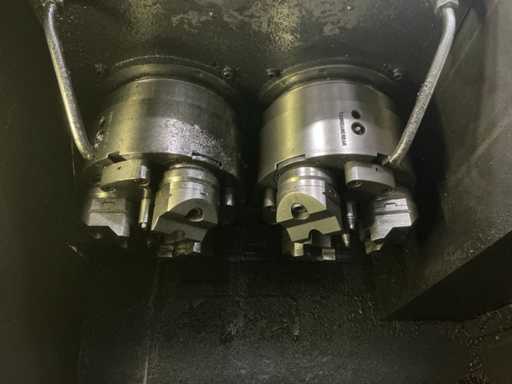

Double motor spindle unit left and right:
Power per spindle: 17 / 21.5 kW at 100 / 40 % ED
Max. torque: 100 / 128 Nm (on each spindle)
Speed range (infinitely variable): 800 – 5,000 rpm⁻¹
Rotary spindle flange: diameter 170 mm for chuck according to DIN 6353
Spindle spacing: 220 mm

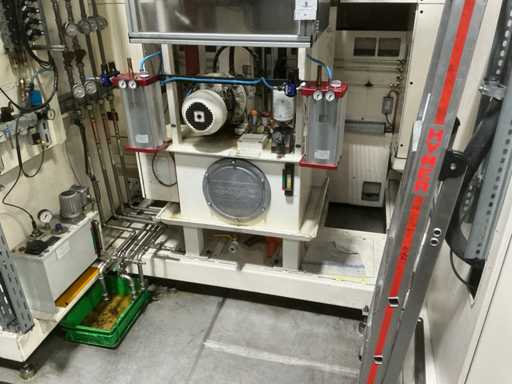

Workpiece clamping: hydraulically operated, Röhm OVS 85 with stroke monitoring

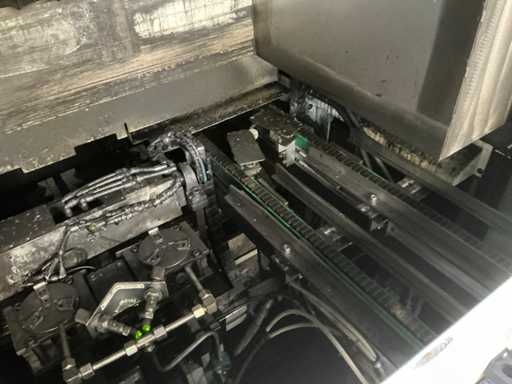

Cross slide left / right:
Flat travel (X-direction): 1,250 mm
Longitudinal travel (Z-direction): 305 mm
Feed force (X-axis): 6.3 kN at 40% ED
Feed force (Z-axis): 12.6 kN at 40% ED
Feed speed (X-axis): 0 – 60 000 mm/min
Feed speed (Z-axis): 0 – 30 000 mm/min

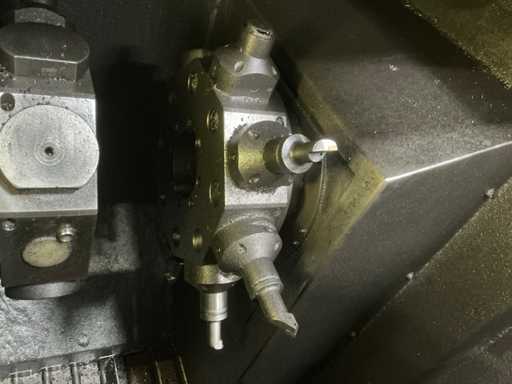

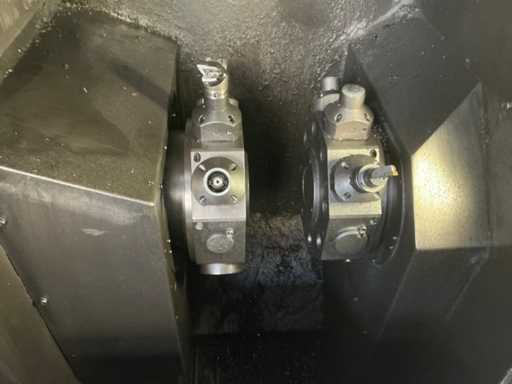

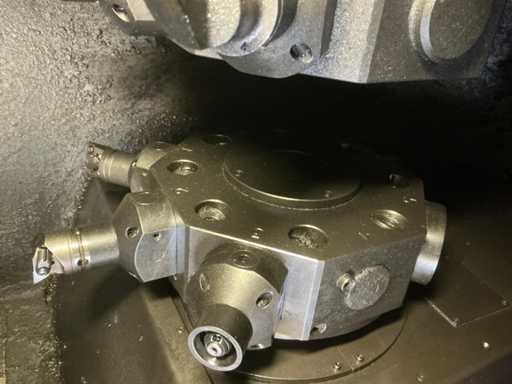

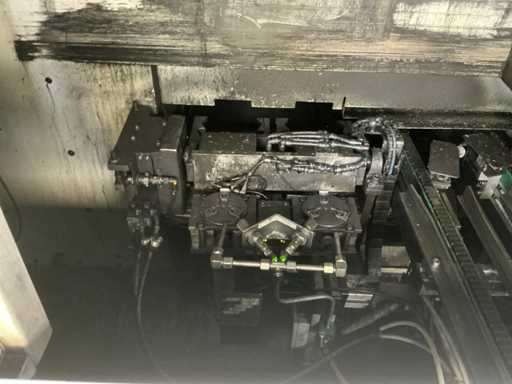

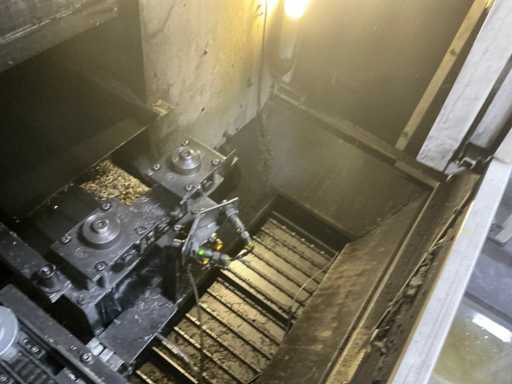

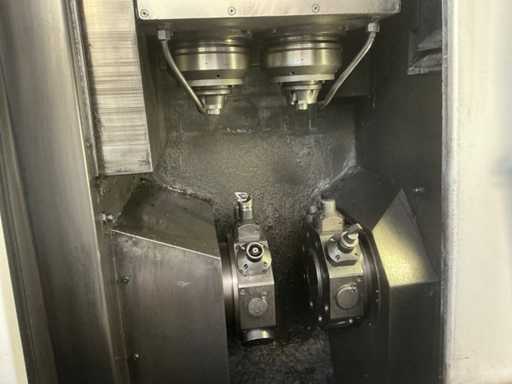

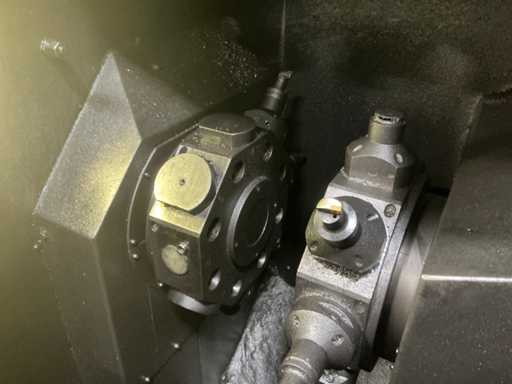

4 tool carriers left / right:
1 tool carrier per spindle
Manufacturer: Sauter

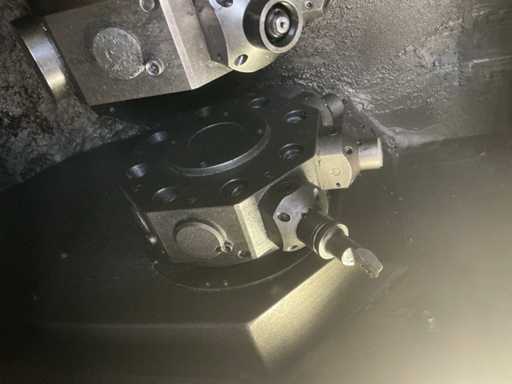

Tool carrier with 8 tool holders Ø 40 mm according to DIN 69880
Travel U-axis: 20 mm
Travel W-axis: 20 mm
U-axis = horizontal, W-axis = vertical
Drives:

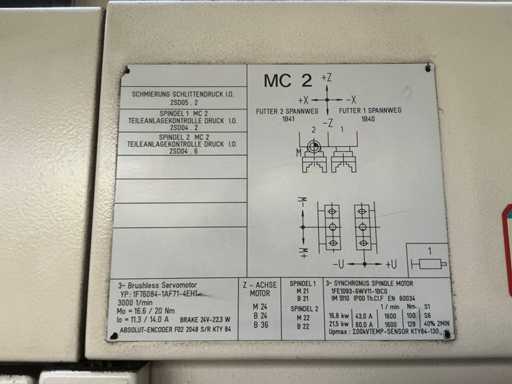

Main spindle motors: Siemens 1FE1093-6WV11-1BC0
16.8 kW / 21.5 kW – 128 Nm – 1,600 / 5,000 rpm⁻¹

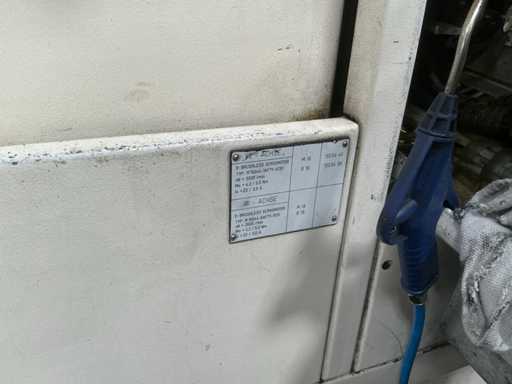

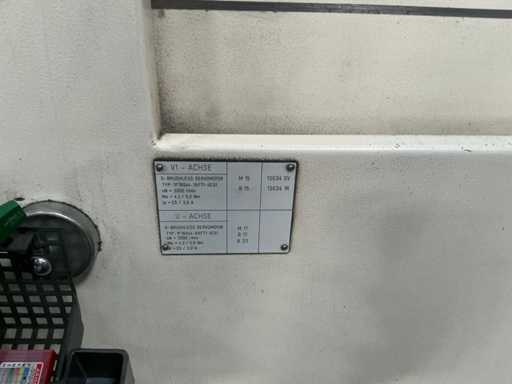

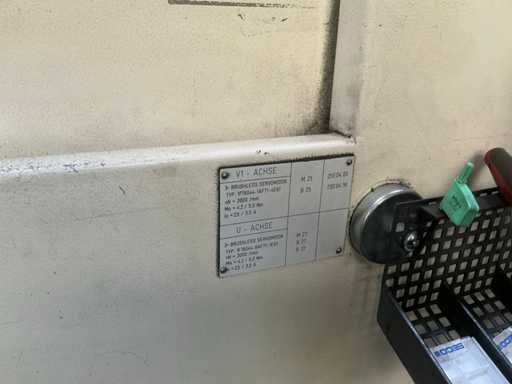

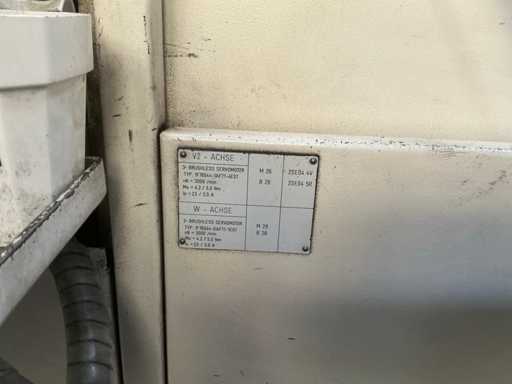

Feed motors (servo drives): Siemens 1FT6084-1AF71-4EH1
3,000 rpm⁻¹ – 16.6 Nm – Absolute encoder 2048 S/R

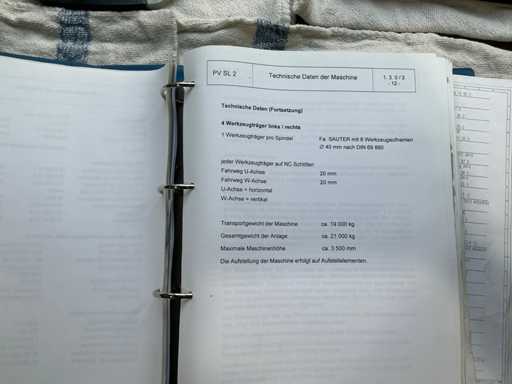

Dimensions and weight:
Transport weight of the machine: approx. 19 000 kg
Total weight of the system: approx. 21,000 kg
Maximum machine height: approx. 3 500 mm
General information:
Installation: on stand-up elements

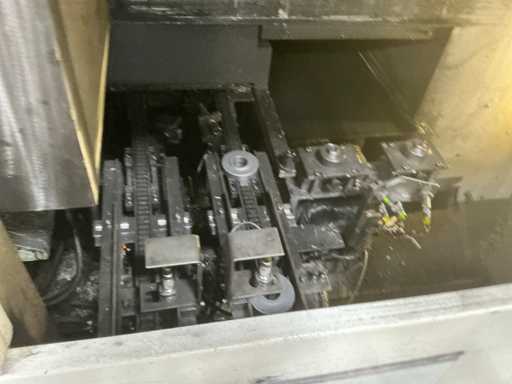

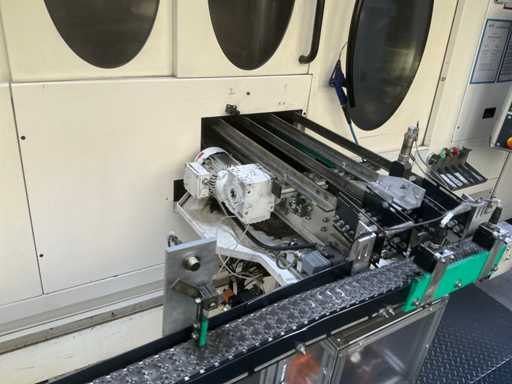

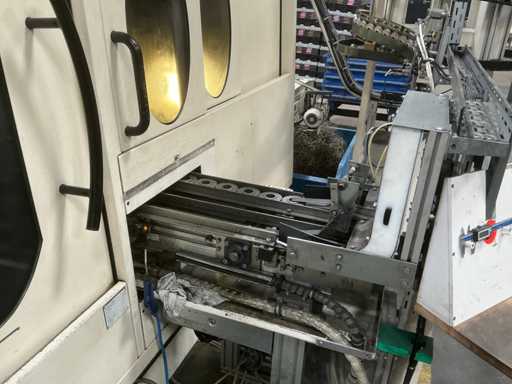

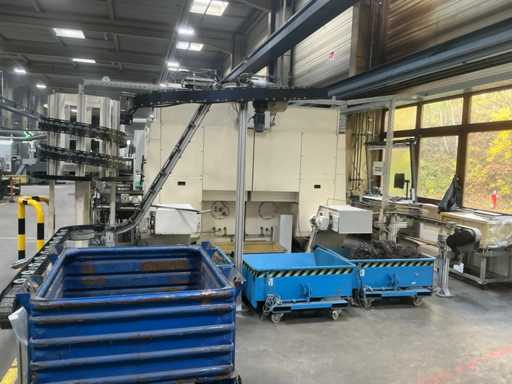

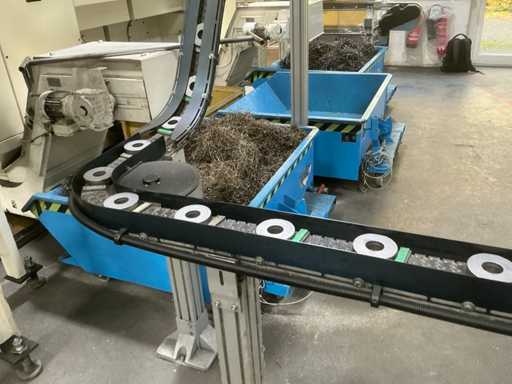

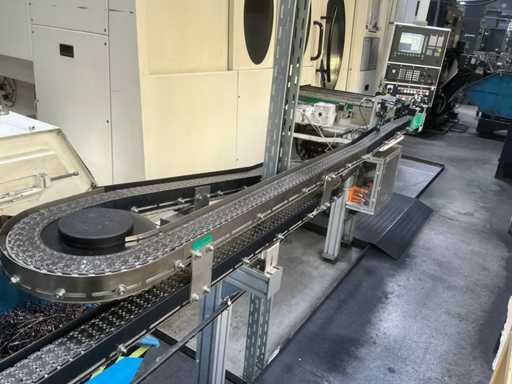

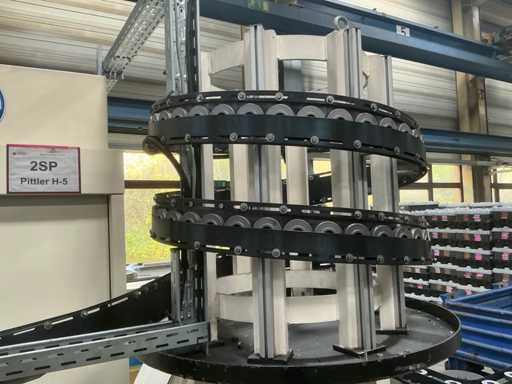

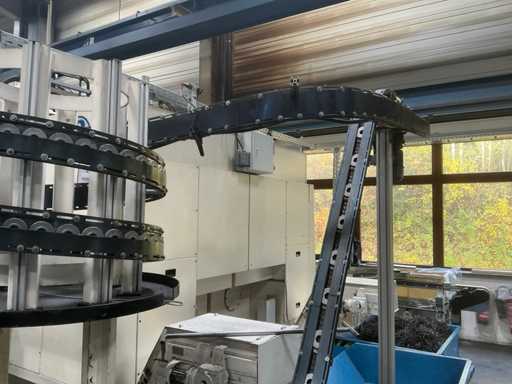

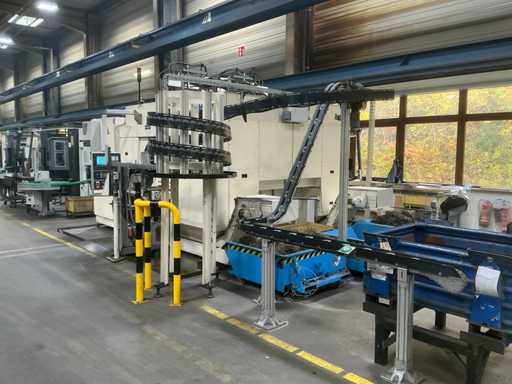

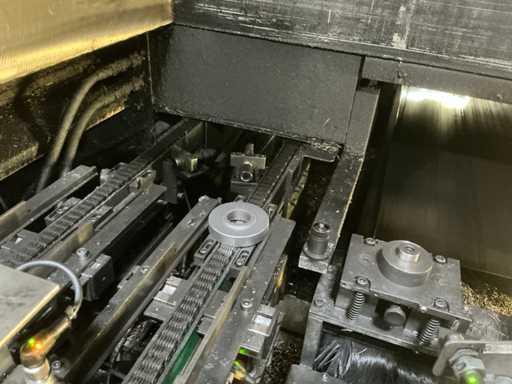

Complete system with automation system
Double motor spindle unit left and right:
Power per spindle: 17 / 21.5 kW at 100 / 40 % ED
Max. torque: 100 / 128 Nm (on each spindle)
Speed range (infinitely variable): 800 – 5,000 rpm⁻¹
Rotary spindle flange: diameter 170 mm for chuck according to DIN 6353
Spindle spacing: 220 mm
Workpiece clamping: hydraulically operated, Röhm OVS 85 with stroke monitoring
Cross slide left / right:
Flat travel (X-direction): 1,250 mm
Longitudinal travel (Z-direction): 305 mm
Feed force (X-axis): 6.3 kN at 40% ED
Feed force (Z-axis): 12.6 kN at 40% ED
Feed speed (X-axis): 0 – 60 000 mm/min
Feed speed (Z-axis): 0 – 30 000 mm/min
4 tool carriers left / right:
1 tool carrier per spindle
Manufacturer: Sauter
Tool carrier with 8 tool holders Ø 40 mm according to DIN 69880
Travel U-axis: 20 mm
Travel W-axis: 20 mm
U-axis = horizontal, W-axis = vertical
Drives:
Main spindle motors: Siemens 1FE1093-6WV11-1BC0
16.8 kW / 21.5 kW – 128 Nm – 1,600 / 5,000 rpm⁻¹
Feed motors (servo drives): Siemens 1FT6084-1AF71-4EH1
3,000 rpm⁻¹ – 16.6 Nm – Absolute encoder 2048 S/R
Dimensions and weight:
Transport weight of the machine: approx. 19 000 kg
Total weight of the system: approx. 21,000 kg
Maximum machine height: approx. 3 500 mm
General information:
Installation: on stand-up elements
Complete system with automation system
Additional details
Abholtage nach Standort:
Lauffen: 19.-23.01.2026 (Abholung nach Terminabsprache)
Alle anderen Standorte nach Terminabsprache
Besichtigung:
Nur unter Voranmeldung an david.polotzek@surplex.com
Alle Artikel werden als gebraucht und ungeprüft verkauft, falls nicht anders angegeben.
Bitte beachten Sie die Artikelbeschreibung.
Genauere Informationen zu Garantie und Gewährleistung entnehmen Sie bitte den Versteigerungsbedingungen.
