Raytek MI3-M - Profinet communication box
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Raytek MI3-M
Description

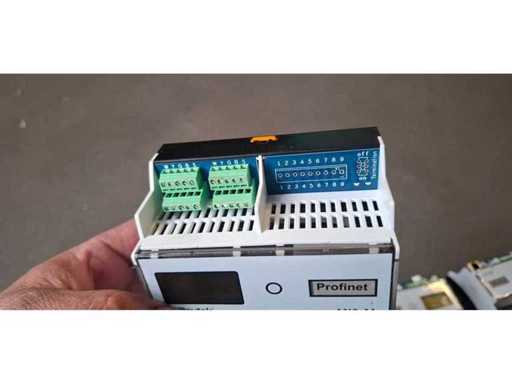

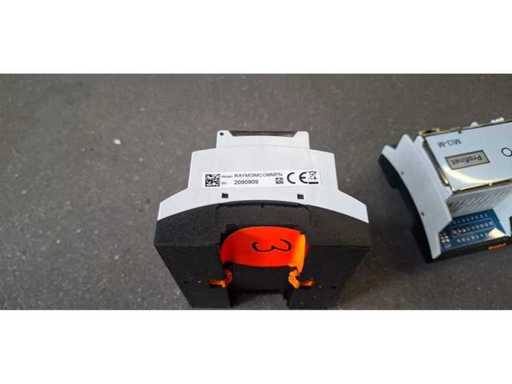

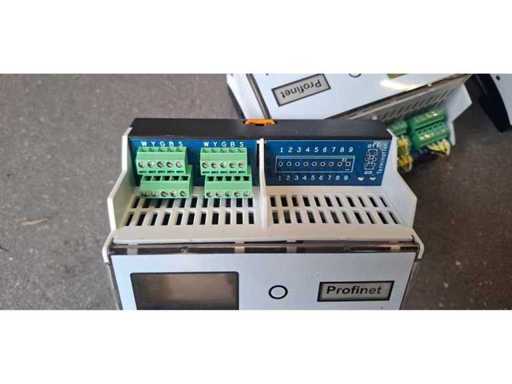

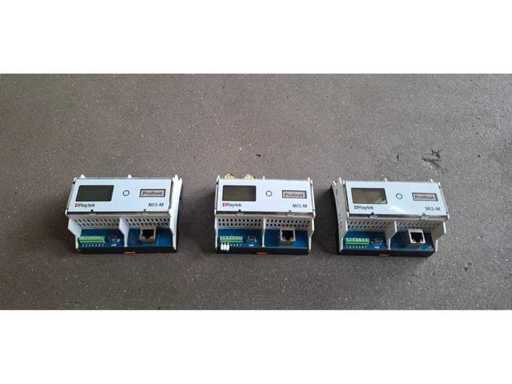

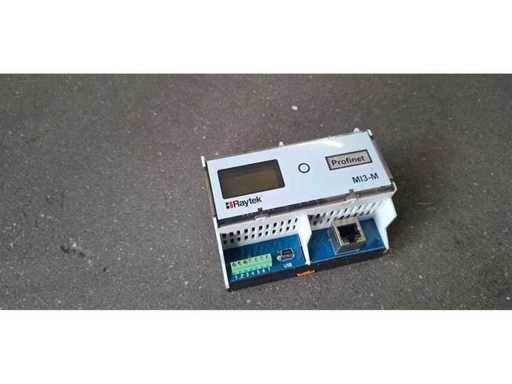

Raytek MI3-M Profinet communication box
Key features:
Interface: Equipped with a Profinet IO digital interface for real-time data communication with PLCs.
Sensor support: Can support up to 8 individual sensor heads (sensing heads) per box.
Housing: A plastic housing suitable for mounting on a DIN rail.
Display: Features a backlit LCD screen for instant reading and configuration of parameters.
Additional Ports: Features a USB 2.0 port for configuration via software (such as DataTemp Multidrop)
Technical Specifications:
Feature Specification
Power supply 8 to 32 V DC, 5 W
Ambient temperature -10°C to 65°C
Degree of protection IP65
Dimensions 89.7 x 107.6 x 60.8 mm (6TE width)
Measurement accuracy ±1°C for analogue outputs
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.
