Schaerer - 1982 - UD632 - Center lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Schaerer
- Type
- UD632
- Year of build
- 1982
- Turning length
- 1145mm
- Turning Ø
- 660mm
- Spindle boring Ø
- 72mm
- Machine weight
- 3460kg
Description
Lathe Schaerer, model UD632
Working shöhe über Flur : 1120 mm
Spitzenhöhe über Flachbahn : 320 mm
Diameter over Bett : Ø 660 mm
Diameter over shelf slits: Ø 450 mm
Diameter over shelf length : Ø 420 mm
Extension via extension: Ø 710 mm
Antriebsleistung : 15 – 22 kW
Max. working support weight between the Spitzen without Setzstock: 1500 kg

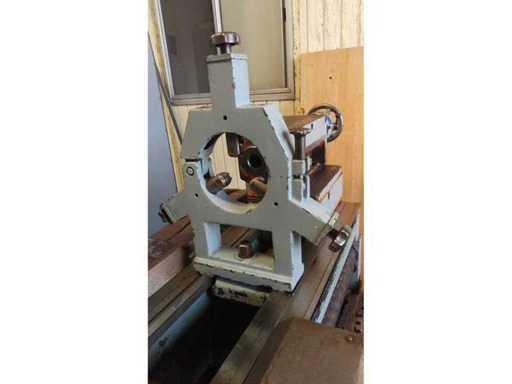

Max. working support weight between the S. with a set stock: 2200 kg
Width : 460 mm
Arbeitsspindle
Spindle head with Zentrier cone: 55022 , gr. 8
Spindle in advance bearing : Ø 120 mm
Spindle bohrung, continuous : Ø 72 mm
Vorn Cone 1:20 : 80 mm
Inner cone : Morse 5

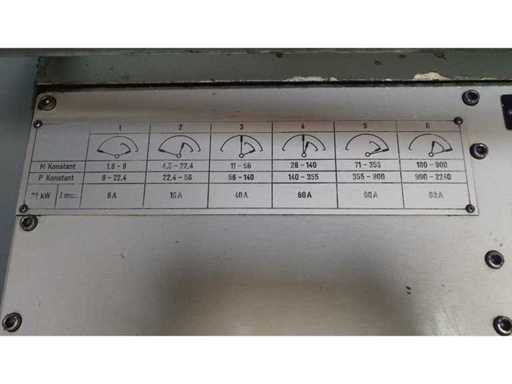

Drehzahlen : 1,8 – 2240 rpm
Details:
Machine is in very neat condition

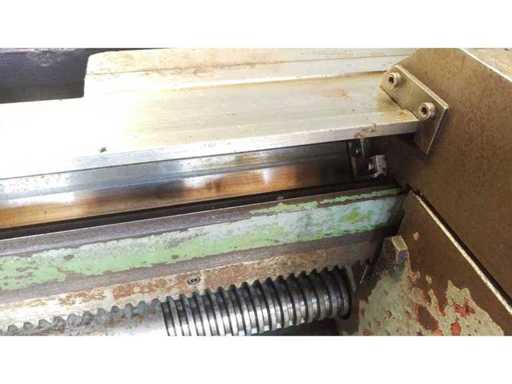

Double prism underlying bed, so very accurate

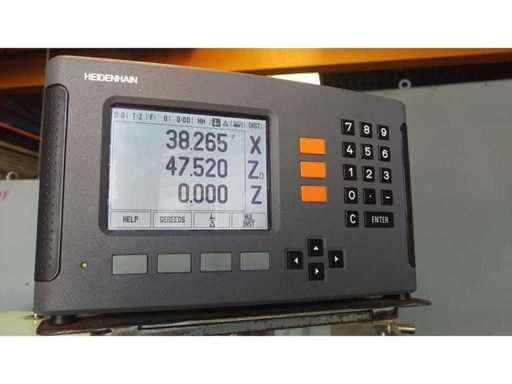

Digital readout HEIDENHAIN , model ND 780
Infinitely adjustable speed!

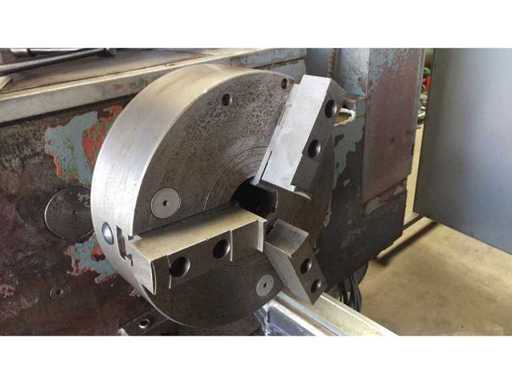

Forkardt chuck Ø 400 mm

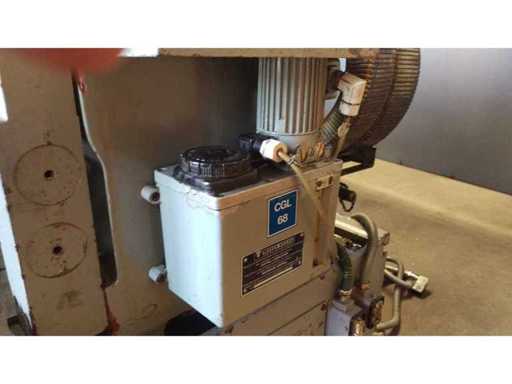

Automatic lubrication system
Automatic chisel support
Rapid traverse on all three axes
Remarks
Machine is loaded free of charge with overhead crane
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.
