STAR Micronics Swiss Lathe SV-32 - Other Lathes
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- STAR Micronics
- Type
- Langdrehmaschine SV-32

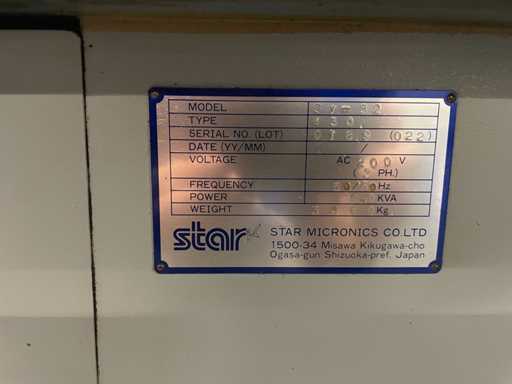

- Serial number
- 0189 (022)
- Turning Ø
- 32mm
- Spindle boring Ø
- 32mm
- Speed from n=
- 50rpm
- Speed till n=
- 8000rpm
- Coolant pump
- Yes
- CNC control, brand, type
- FANUC Series 18i-T
- Engine power (kW)
- 8kW
- Electric connection
- 200V
- Machine weight
- 3800kg
- Dimension l
- 4500mm
- Dimension w
- 1600mm
- Dimension h
- 1800mm
- HS Code
- 84581100
- Terms of delivery
- Ex foundation-unpackaged
Description

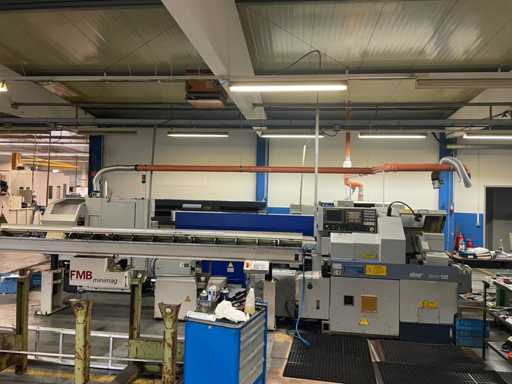

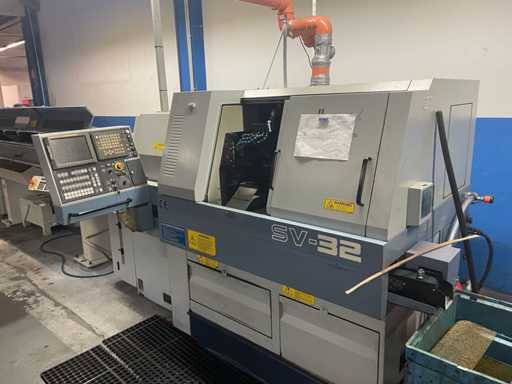

The STAR Micronics SV-32 is a high-performance CNC Swiss lathe for the precise series production of turned parts up to Ø 32 mm. The machine is designed for continuous industrial operation and is often used in the automotive, medical technology and precision engineering industries. Equipped with a FANUC Series 18i-T CNC control, it offers high process reliability, repeatability and flexible programming options.
The machine has a CNC-controlled spindle drive with a speed range of approx. 50 to 8,000 rpm, several tool stations (approx. 12 typical of the model) and an integrated coolant supply. The complete protective cover, extraction connections and the clear control panel ensure safe and efficient production operation.

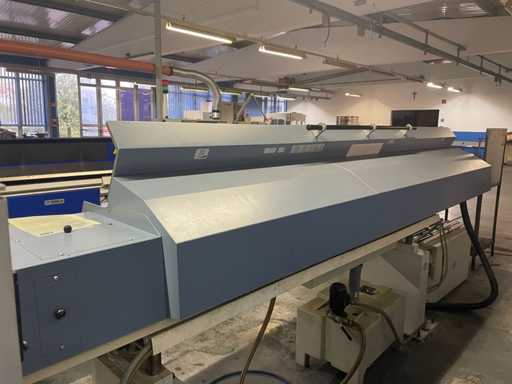

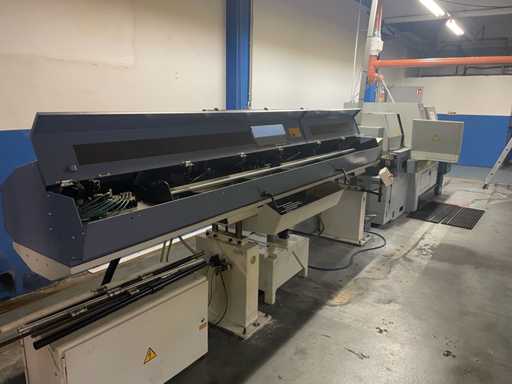

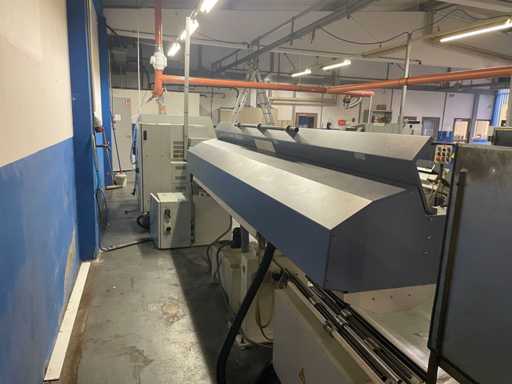

The scope of delivery includes a bar loading magazine (FMB/IEMCA), which enables automated material feeding and makes the machine ideal for low-manned series operation. The system is offered complete including peripherals, coolant pump and electrical equipment.
The SV-32 is in a used but well-maintained overall condition and comes from a professional production environment. All essential assemblies are present, no missing main components are recognizable. The machine was used before dismantling, but a current test run is not documented. Sales are therefore made without a functional guarantee.
Overall, it is a high-quality, robust CNC Swiss lathe that is ideal for companies looking for a reliable solution for precise batch production.
The machine has a CNC-controlled spindle drive with a speed range of approx. 50 to 8,000 rpm, several tool stations (approx. 12 typical of the model) and an integrated coolant supply. The complete protective cover, extraction connections and the clear control panel ensure safe and efficient production operation.
The scope of delivery includes a bar loading magazine (FMB/IEMCA), which enables automated material feeding and makes the machine ideal for low-manned series operation. The system is offered complete including peripherals, coolant pump and electrical equipment.
The SV-32 is in a used but well-maintained overall condition and comes from a professional production environment. All essential assemblies are present, no missing main components are recognizable. The machine was used before dismantling, but a current test run is not documented. Sales are therefore made without a functional guarantee.
Overall, it is a high-quality, robust CNC Swiss lathe that is ideal for companies looking for a reliable solution for precise batch production.
Remarks
The STAR Micronics SV-32 is in pre-owned, well-maintained and complete condition. The machine comes from an ongoing production plant and was used until dismantling. All essential assemblies such as CNC control (FANUC 18i-T), spindle, tool carrier, coolant system, protective covers as well as electrical and hydraulic components are available.
Visually, the machine shows normal signs of industrial use, including light soiling and occasional paint wear. There is no visible structural damage or missing main components. Control panel, displays and controls are complete and undamaged.
All in all, it is a complete CNC Swiss lathe in near-operational condition, suitable for continued operation, commissioning after a change of location or as a solid basis for industrial use.
Visually, the machine shows normal signs of industrial use, including light soiling and occasional paint wear. There is no visible structural damage or missing main components. Control panel, displays and controls are complete and undamaged.
All in all, it is a complete CNC Swiss lathe in near-operational condition, suitable for continued operation, commissioning after a change of location or as a solid basis for industrial use.
