Universal Hydraulik - UKIM 508-T-ON VITON - Heat exchanger
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Universal Hydraulik
- Type
- UKIM 508-T-ON VITON
Description
industrial heat exchanger, produced by Universal Hydraulik.

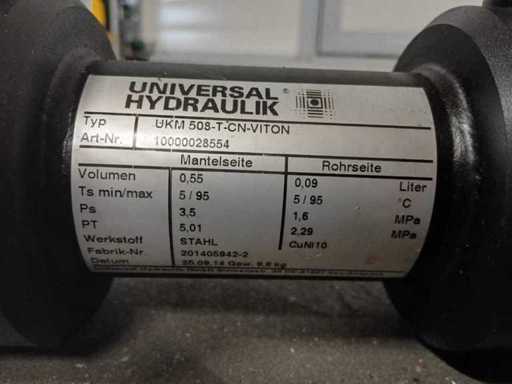

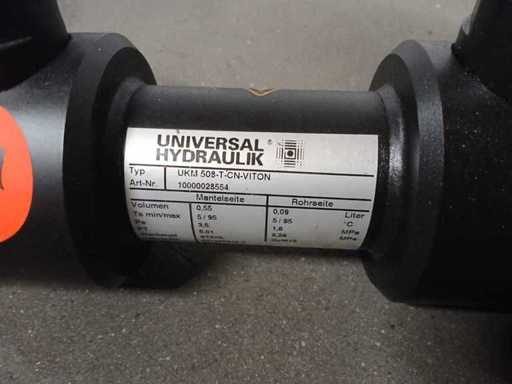

Type: UKIM 508-T-ON VITON
Materials: Steel and CuNi10
Volumes: Sheath side 0.55 litres, tube side 0.08 litres
Pressure: Maximum working pressure (Ps) is 3.5 MPa (sheath side) and 1.6 MPa (tube side)
Temperature range: Minimum 5°C and maximum 95°C

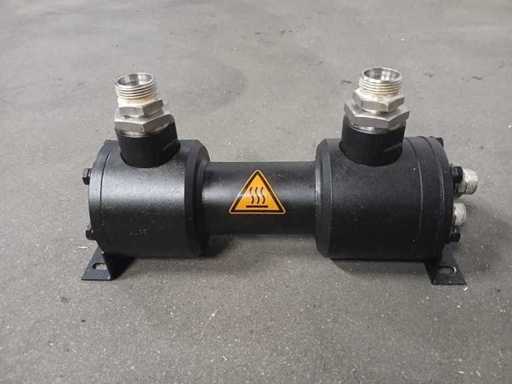

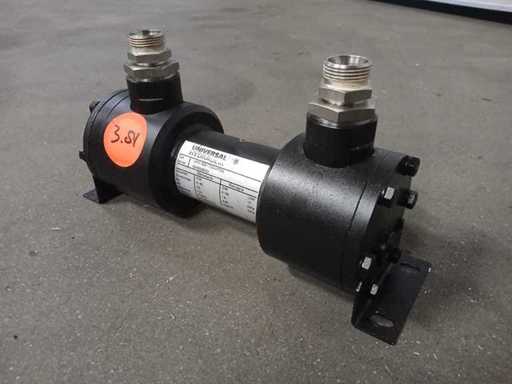

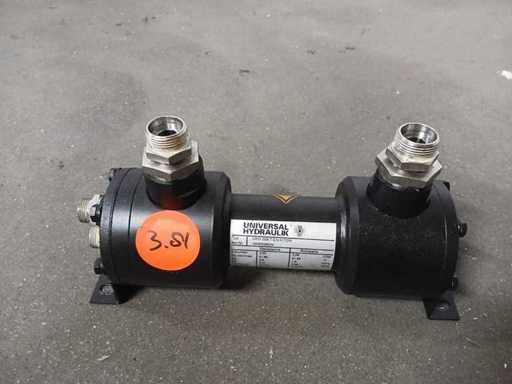

This is a UKIM 508-T-ON VITON hybrid heat exchanger from the manufacturer Universal Hydraulik.
Product Details
Type: Hybrid heat exchanger, which is a combination of a tube beam heat exchanger and aluminum cooling fins for a larger heat exchange area.
Manufacturer: Universal Hydraulik GmbH, based in Neu-Anspach, Germany.
Article number (Art-Nr): 10000028554.
Materials: The sheath is made of steel and the tubes are made of CuNi10 (copper-nickel alloy). The seals are from Viton.
Application: These heat exchangers are used for transferring heat between two media, often in hydraulic systems to cool oil.
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.
