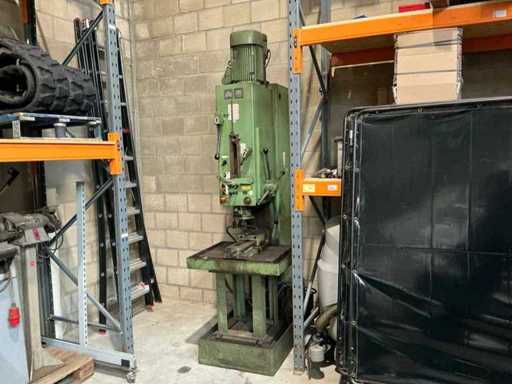

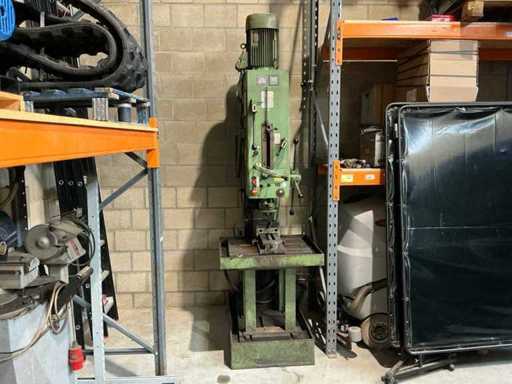

VEB WMK Fritz Hechert BK 50 Pillar Drilling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- VEB WMK Fritz Hechert
- Type
- BK 50
- Serial number
- 28587
- Drilling capacity
- 60mm
- Spindle speed from n=
- 45rpm
- Spindle speed till n=
- 1400rpm
- Table size l
- 750mm
- Table size w
- 650mm
- Coolant pump
- Yes
- Engine power (kW)
- 6.8kW
- Electric connection
- 400V
- Machine weight
- 1700kg
- Dimension l
- 1200mm
- Dimension w
- 800mm
- Dimension h
- 2800mm
Description

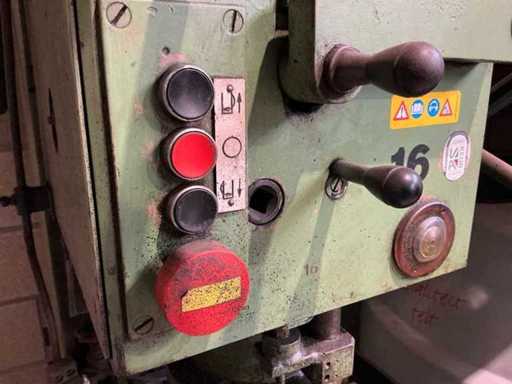

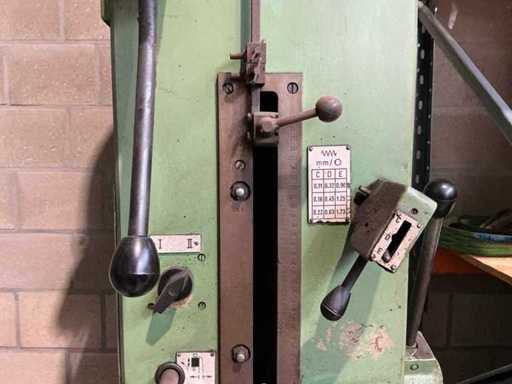

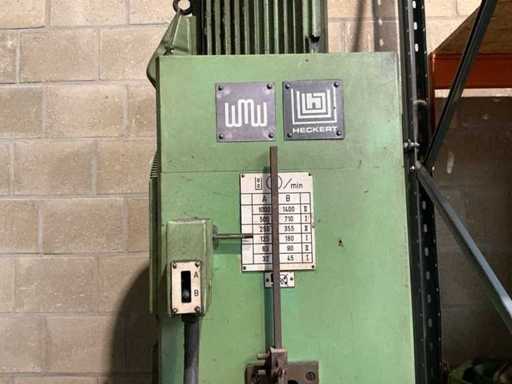

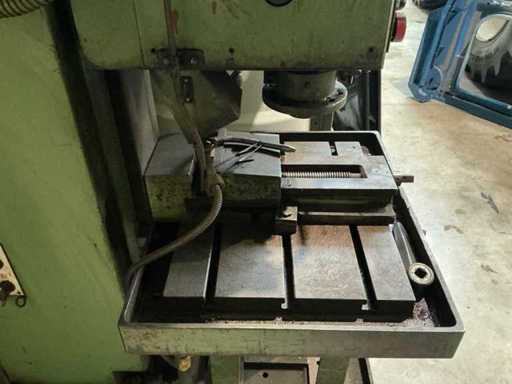

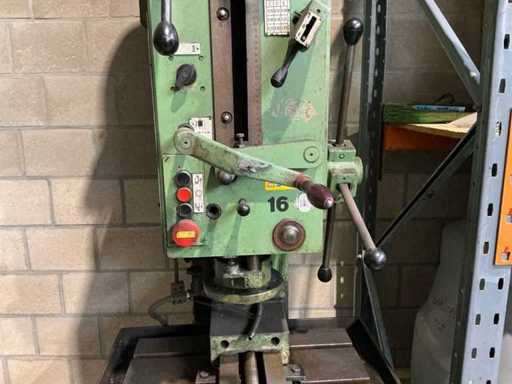

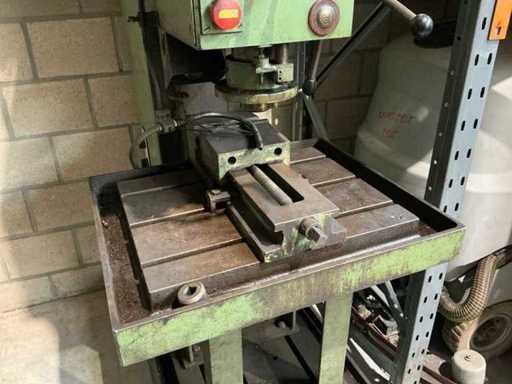

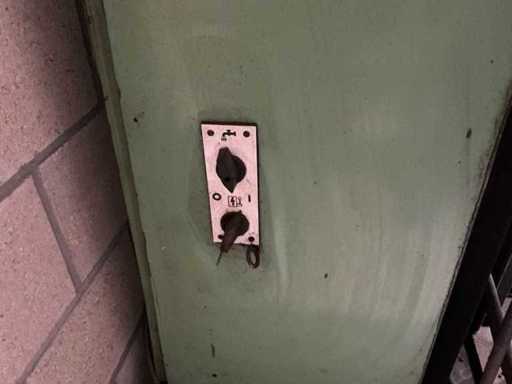

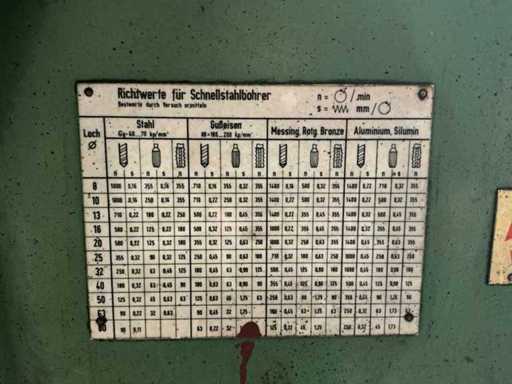

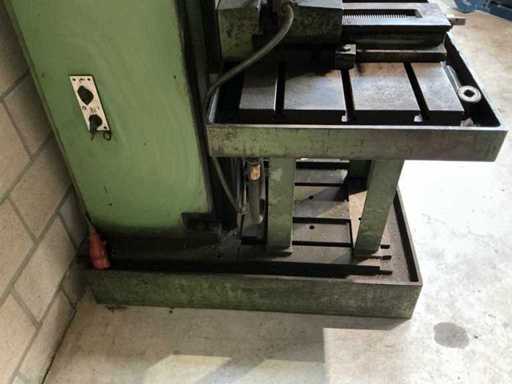

Lot: column drilling machine Heckert BK 50 AI incl. machine clamp and cooling, Heckert (VEB WMK "Fritz Heckert"), type: BK 50 AI, power supply: 380 V (3-phase), frequency: 50 Hz, power: approx. 6.8 kW, weight: approx. 1,680 kg, max. Drilling capacity: approx. 50 mm in steel, Speed range: approx. 45 – 1400 rpm (via gearbox), power supplies: approx. 0.11 – 1.73 mm/rev. (adjustable), gearbox with speed settings (A/B and I/II), manual and automatic feed, depth stop with scale, built-in coolant installation with flexible hose and shut-off valve, control switch for machine and cooling pump available, material and speed tables on the machine, including machine clamp (table mounted)
Remarks
Can be loaded, forklift available.
