VEM Antriebstechnik AG - KPFR 132 M6 - Granulator - 1992
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- VEM Antriebstechnik AG
- Type
- KPFR 132 M6
- Year of build
- 1992
- Serial number
- 68832 / 216 F
- Engine power (kW)
- 4kW
- Machine weight
- 600kg
- Total dimension L
- 1500mm
- Total dimension W
- 900mm
- Total dimension Height
- 2000mm
- Terms of delivery
- Ex foundation-unpackaged
Description

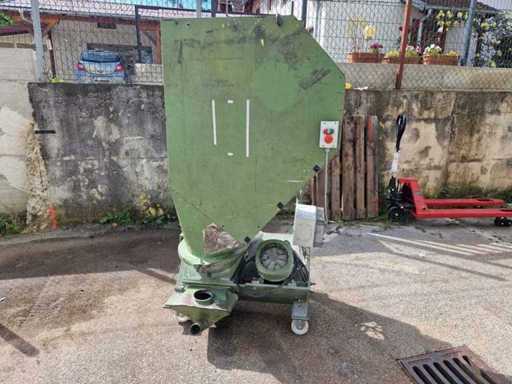

Industrial Granulator / Crusher
VEM KPFR 132 M6
General Specifications:
- Manufacturer: VEM Antriebstechnik AG
- Model: KPFR 132 M6
- Year of Manufacture: 1992
- Serial Number: 68832 / 216 F
- Power: 4.0 kW
- Condition: Used
Description:
- Industrial granulator / crusher unit for processing brittle materials (stone, scrap, mineral waste)

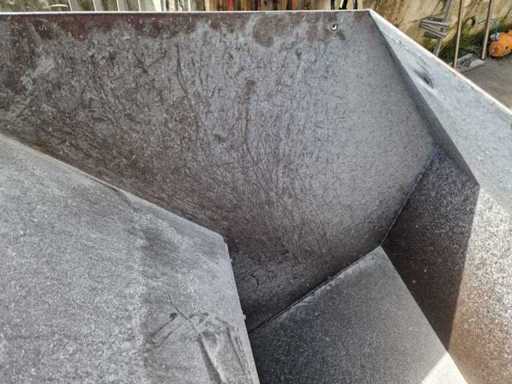

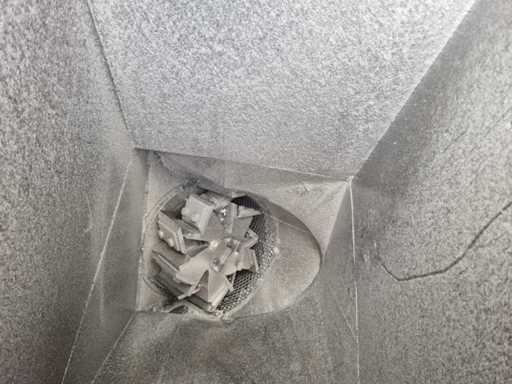

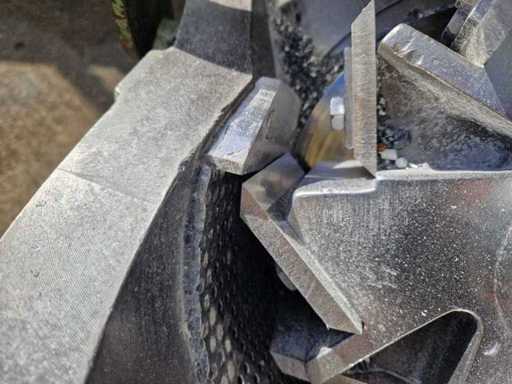

- Equipped with steel hopper and internal rotating cutter assembly
- Driven by VEM 3-phase motor (KPFR 132 M6)
- Rated speed: approx. 940–955 rpm @ 50 Hz; up to 1150 rpm @ 60 Hz

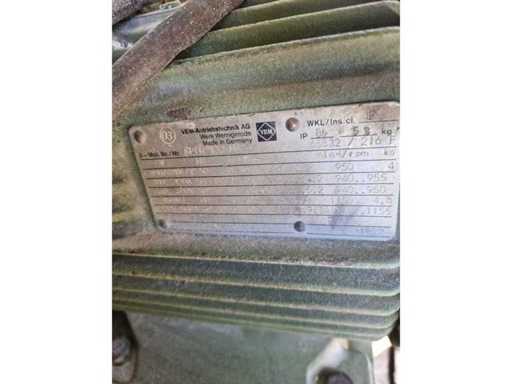

- Motor specs: Insulation class F, protection class IP54
- Voltage range: 380–420 V / 660–690 V (50 Hz)
- Mounted on wheels, with emergency stop and control box
Estimated Dimensions:
- Length: 1,500 mm
- Width: 900 mm
- Height: 2,000 mm
- Weight: 600 kg
Remarks
unchecked
