WEBO BR 40R Radial Drilling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- WEBO
- Type
- BR 40R
- Machine weight
- 4000kg
- Dimension l
- 2500mm
- Dimension w
- 1000mm
- Dimension h
- 2995mm
- Terms of delivery
- Loaded on truck
Description

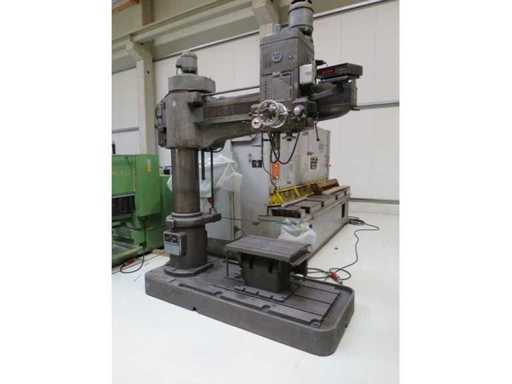

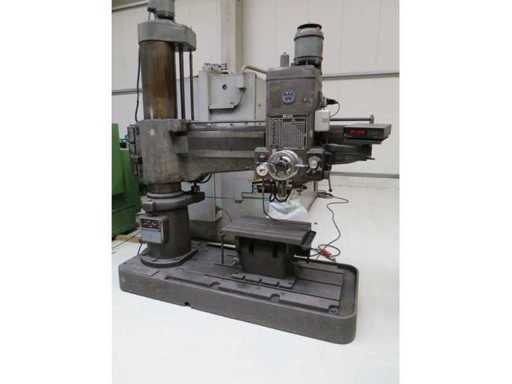

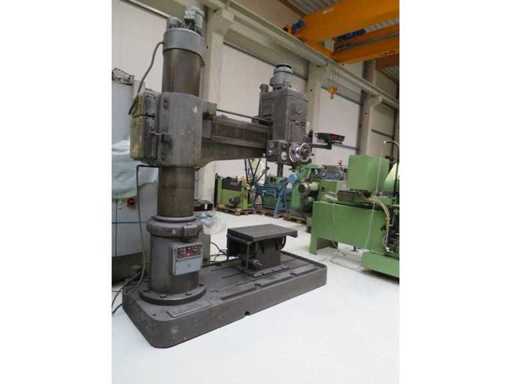

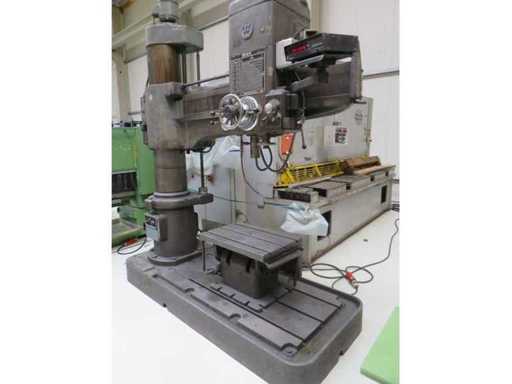

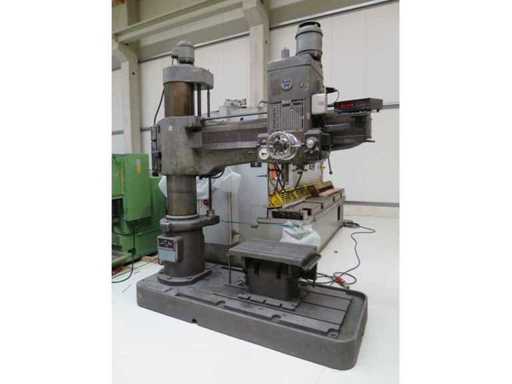

Radial drilling machine

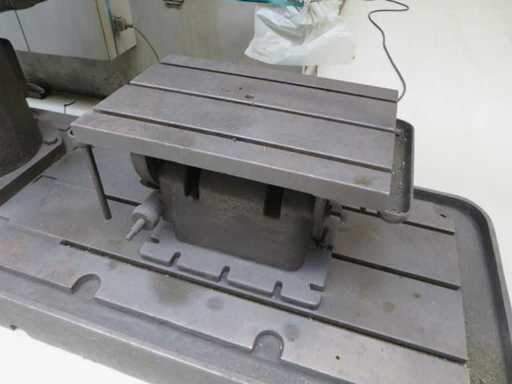

- Clamping cube 750 x 500 x 500mm

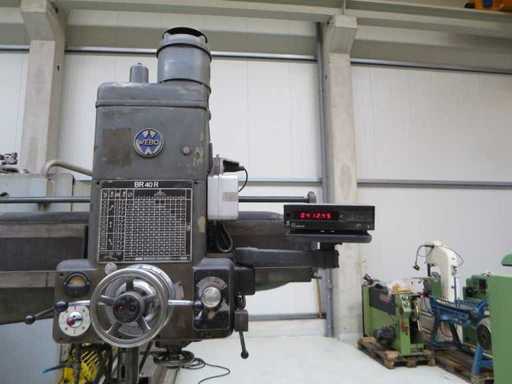

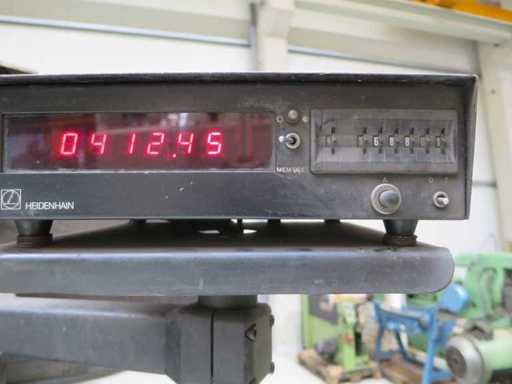

- Digital display for boom travel
- Coolant system
- Good condition
Drilling capacity in steel 40 mm
Projection 1600 mm
Drilling capacity in cast iron 60 mm
Spindle diameter 85 mm
Quill stroke 350 mm
Tool holder MK 5
Speeds 24 - 1050 rpm
Feeds 0.06 - 1.0 mm/rev
Column diameter 345 mm
Threading device yes
Drilling motor 5.5 kw
Total power requirement 7.5 kW
Machine weight approx. 4000 kg
Dimensions approx. 2.5 x 1.0 x 2.99 m
Remarks
Item condition: used and unchecked
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 01.04.2026 to Thursday, 09.04.2026
Please note: Pick-up is not possible on public holidays and weekends.
Loading times:
Mon. – Thurs. from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
The descriptions of the individual positions were given to the best of our knowledge and belief. No liability is assumed for their correctness.
Accessories and tools shown are only part of the object of purchase if expressly named.
For warranty services and returns:
Freight costs are generally at the expense of the buyer.

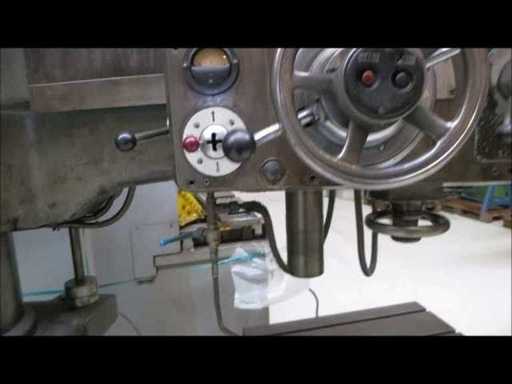

Video
