WEINIG DIMTER OPTICUT S 60 Optimization Saw
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Weinig Dimter
- Model
- OptiCut S 60
- Product type
- Optimisation saw / high-performance cross-cut saw for wood
- Color
- Gray / White
- Length
- 21000
- Weight
- 6000
- Width
- 2500
- Height
- 2000
- Material
- Wood (processing material)
- Voltage
- 400V
- Diameter saw blade
- 450mm
- HS Code
- 84659100
- Terms of delivery
- Ex foundation-unpackaged
Description

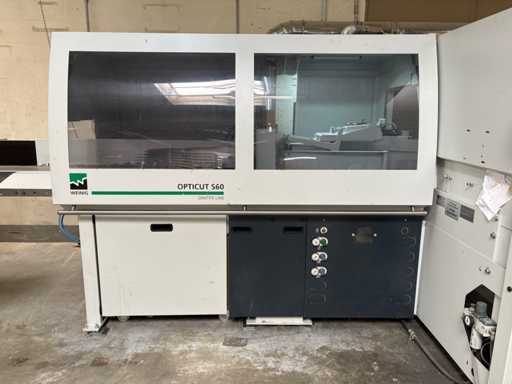

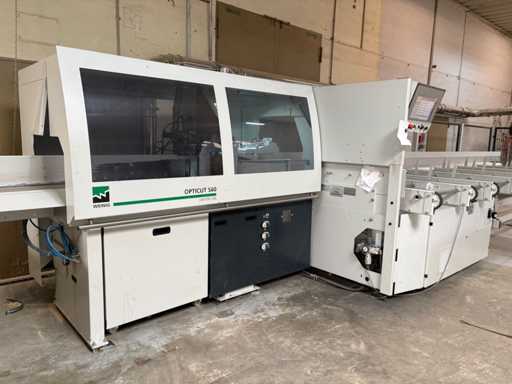

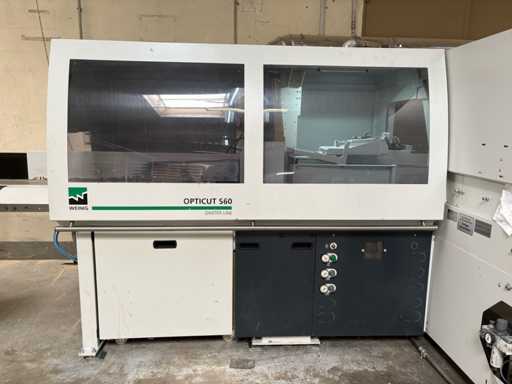

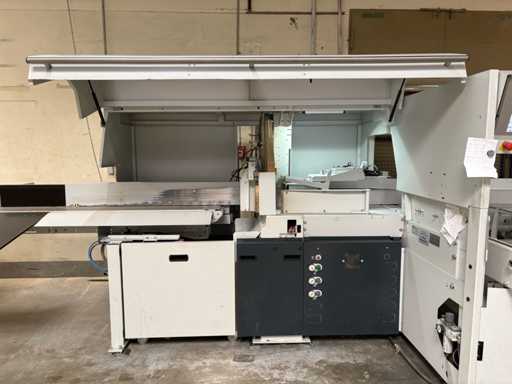

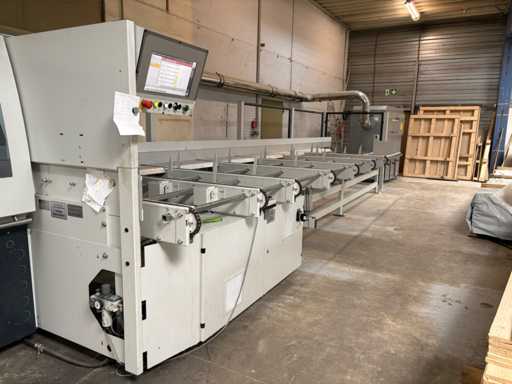

Weinig Dimter OptiCut S 60 Optimizing Cross-Cut Saw (2017)
General information

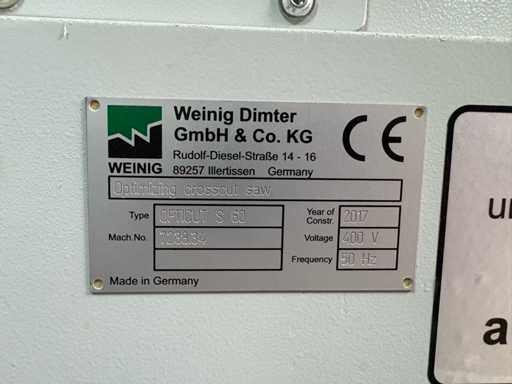

• Manufacturer: Weinig Dimter GmbH
• Model: OptiCut S 60
• Year of construction: 2017
• Factory No.: 7238.34

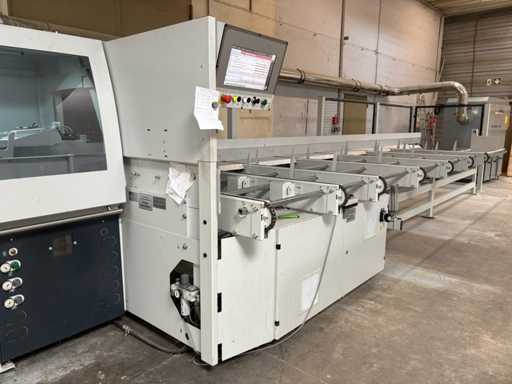

• Control: OptiCom Pro with touch operation, cutting optimization, statistics and list management

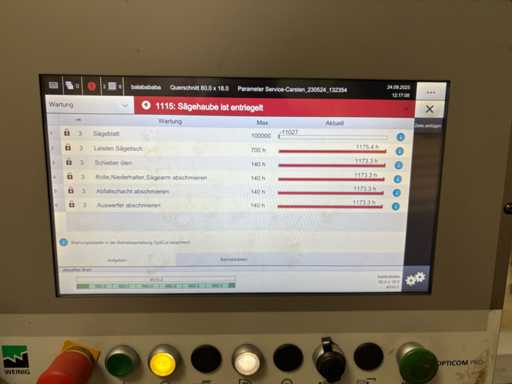

• Operating hours according to the display: approx. 1,173 h (photo status)
Specifications

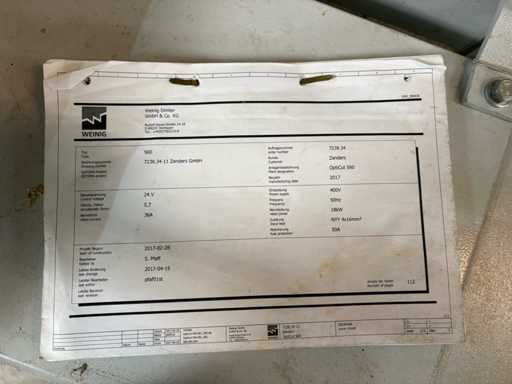

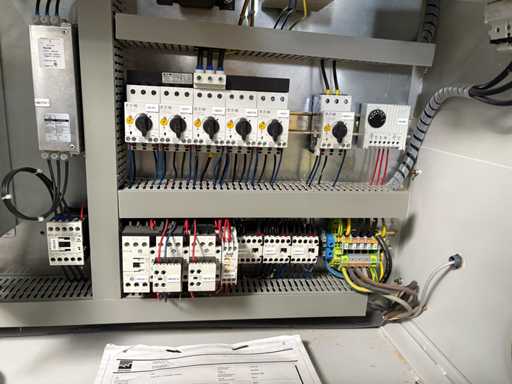

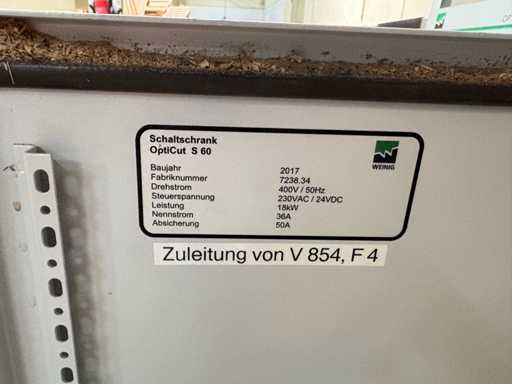

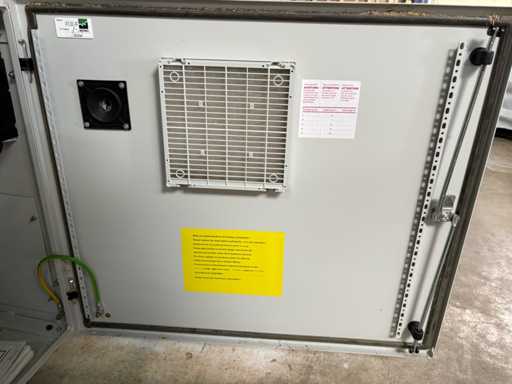

• Cabinet data: 400 V / 50 Hz
• Control voltages: 230 VAC / 24 VDC
• Connected load: 18 kW
• Rated current: 36 A
• Fuse: 50 A
• Saw blade diameter: approx. Ø 450 mm

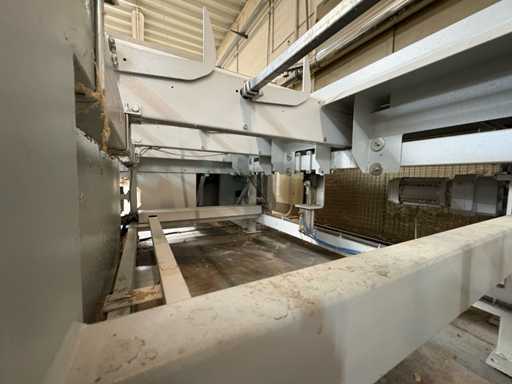

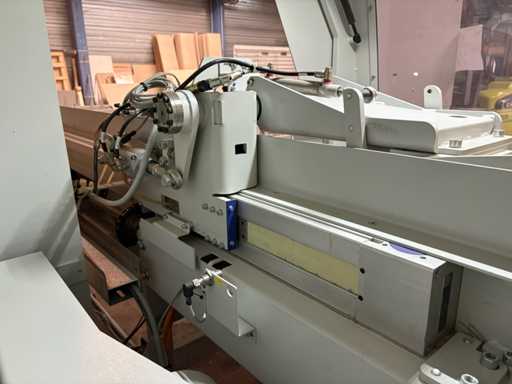

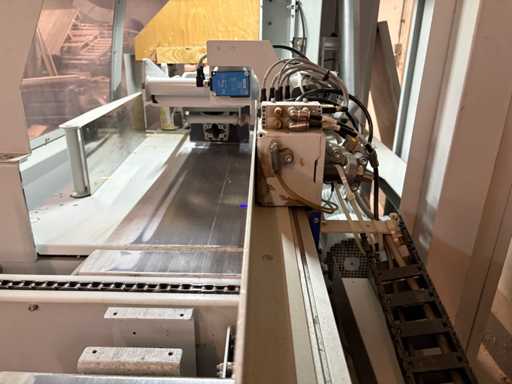

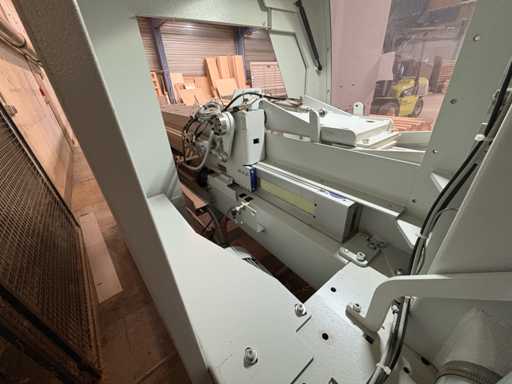

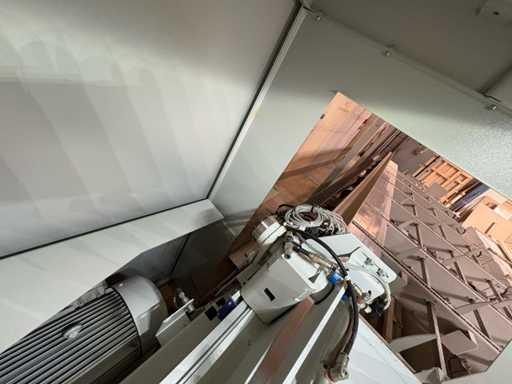

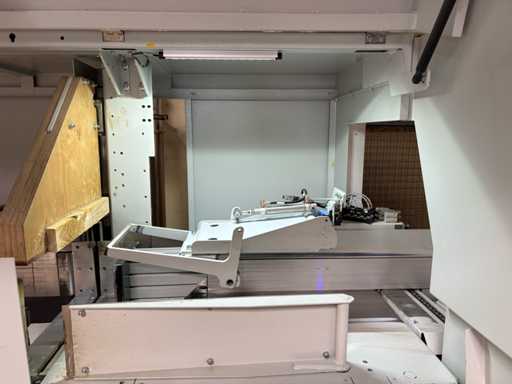

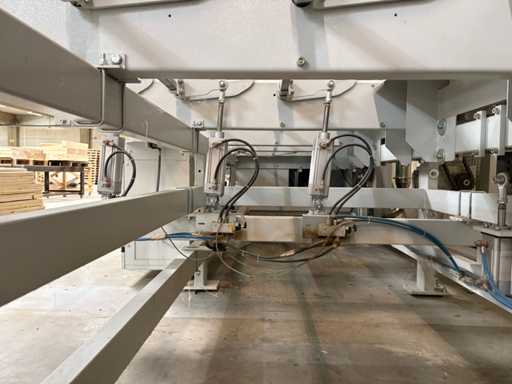

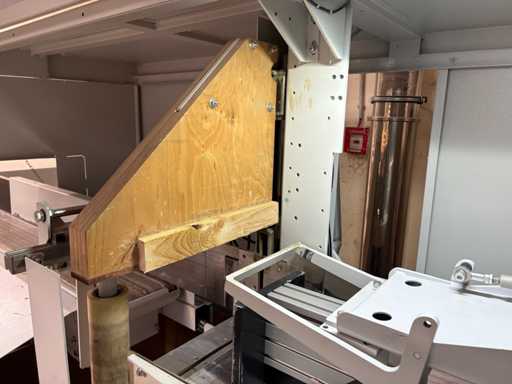

• Sawing unit: high-performance unit with automatic pull-in and clamping technology

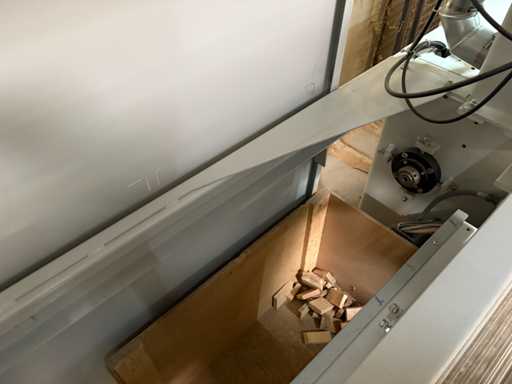

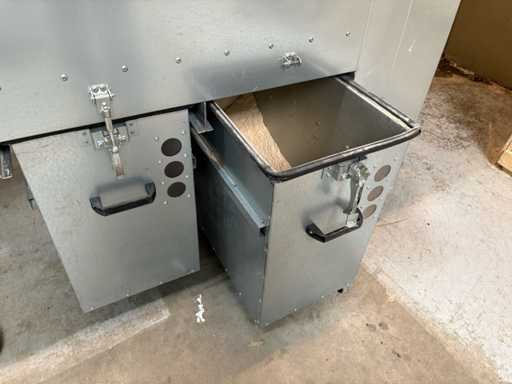

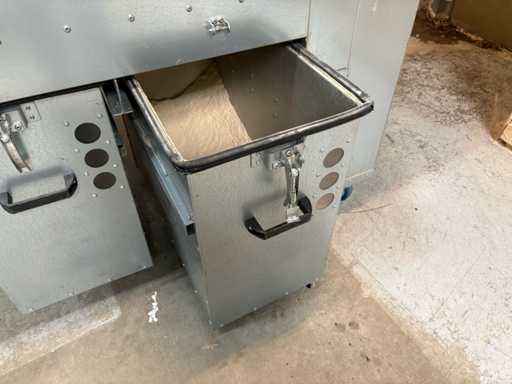

• Residual wood shedding: integrated
• Protective cladding: safe enclosure according to CE directive
Dimensions & Transport

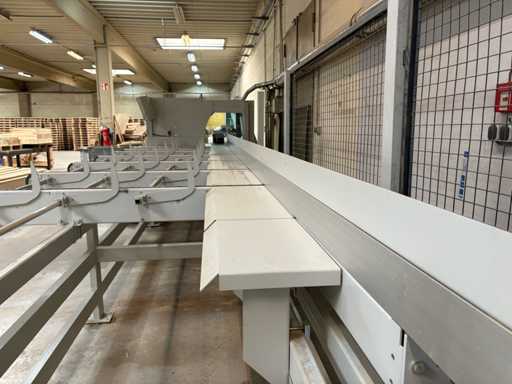

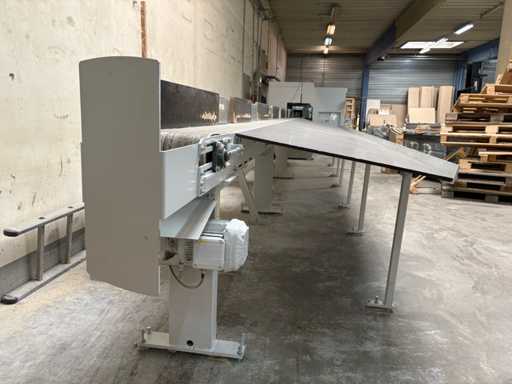

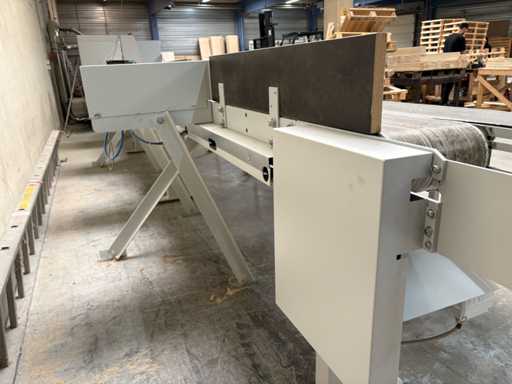

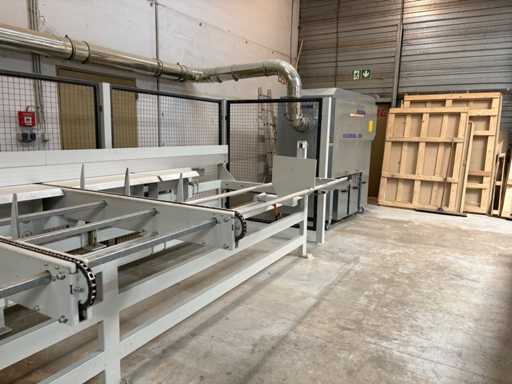

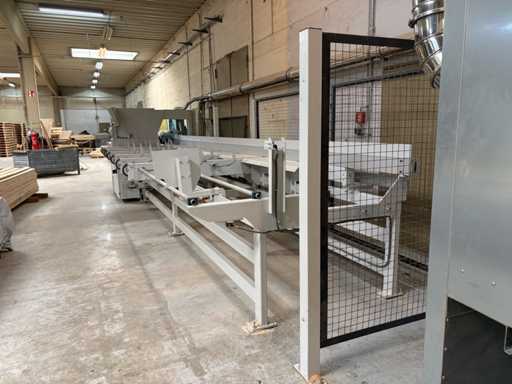

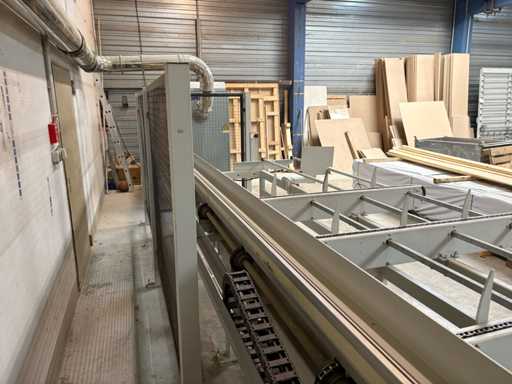

• Total length of the line: approx. 21 m
• Maximum width: approx. 2.50 m
• Can be dismantled into 3 components:
– Right: approx. 8.20 m
– Center: approx. 2.70 m
– Left: approx. 8.50 m
• Lifting equipment required: forklift or crane
• Disassembly: recommended
by qualified personnel for electrical and pneumatic separation
Scope of delivery
• Machine complete with protective hoods and control panel

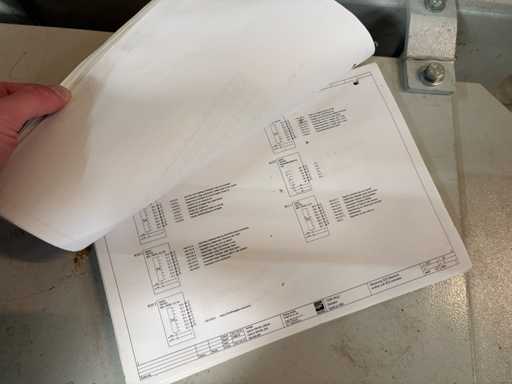

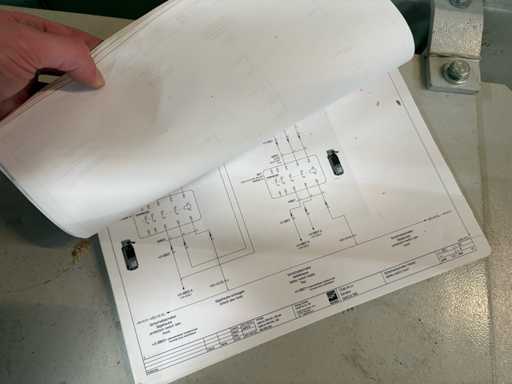

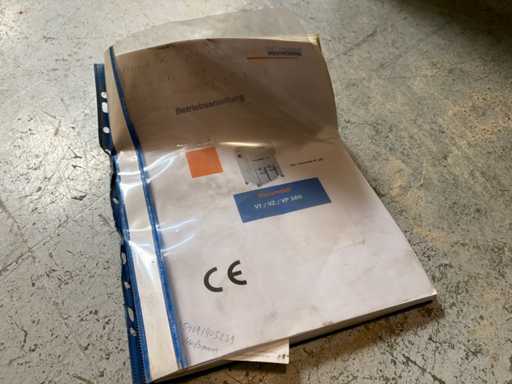

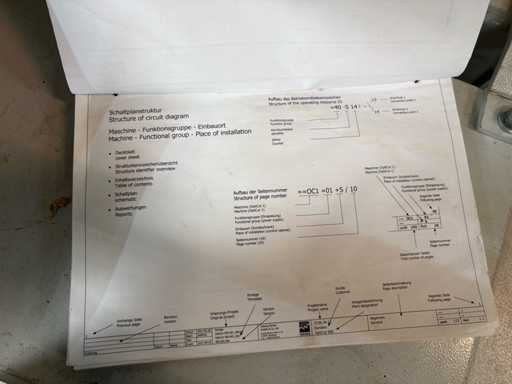

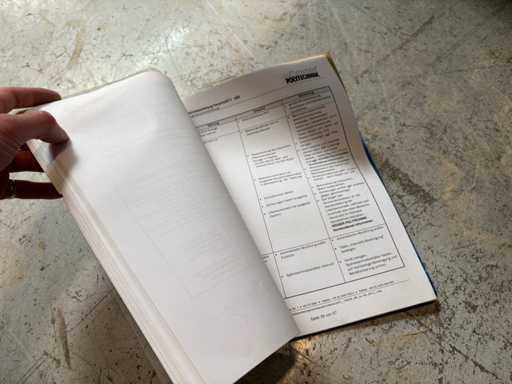

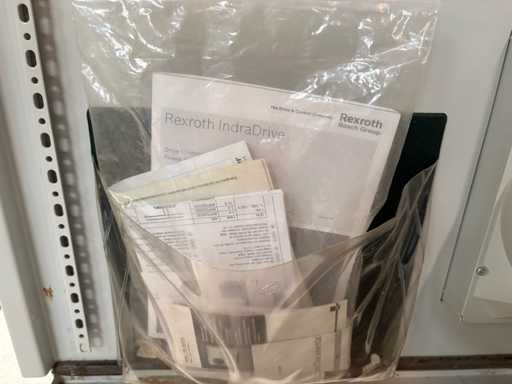

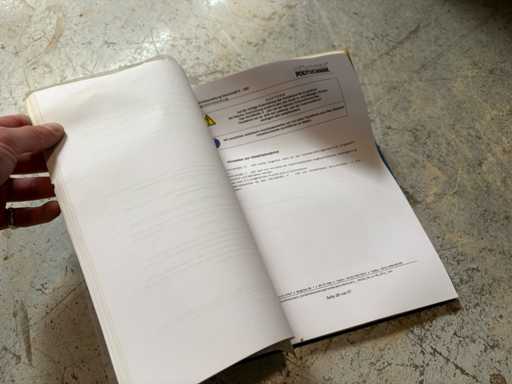

• Documentation: Weinig and Rexroth documents included

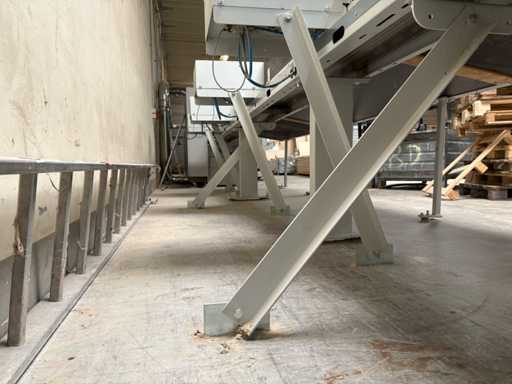

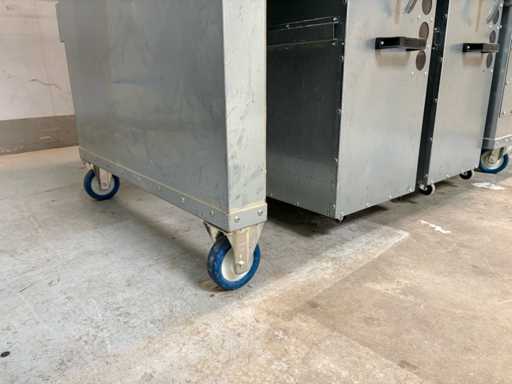

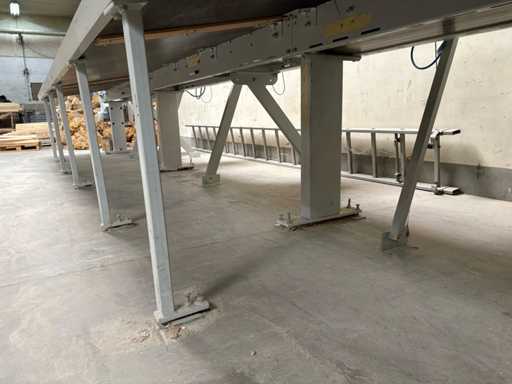

• Anchorage and transport units: according to photo documentation
• Connection: 3~400 V / 50 Hz
• Drop-off: Ex foundation – unpacked at the site
General information
• Manufacturer: Weinig Dimter GmbH
• Model: OptiCut S 60
• Year of construction: 2017
• Factory No.: 7238.34
• Control: OptiCom Pro with touch operation, cutting optimization, statistics and list management
• Operating hours according to the display: approx. 1,173 h (photo status)
Specifications
• Cabinet data: 400 V / 50 Hz
• Control voltages: 230 VAC / 24 VDC
• Connected load: 18 kW
• Rated current: 36 A
• Fuse: 50 A
• Saw blade diameter: approx. Ø 450 mm
• Sawing unit: high-performance unit with automatic pull-in and clamping technology
• Residual wood shedding: integrated
• Protective cladding: safe enclosure according to CE directive
Dimensions & Transport

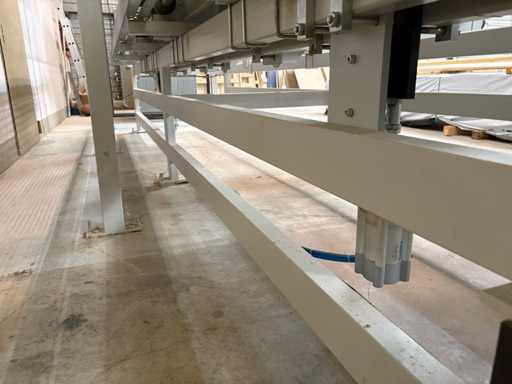

• Total length of the line: approx. 21 m
• Maximum width: approx. 2.50 m
• Can be dismantled into 3 components:
– Right: approx. 8.20 m
– Center: approx. 2.70 m
– Left: approx. 8.50 m
• Lifting equipment required: forklift or crane
• Disassembly: recommended
by qualified personnel for electrical and pneumatic separation
Scope of delivery
• Machine complete with protective hoods and control panel
• Documentation: Weinig and Rexroth documents included
• Anchorage and transport units: according to photo documentation
• Connection: 3~400 V / 50 Hz
• Drop-off: Ex foundation – unpacked at the site
Remarks
Condition & Description
• Well-maintained, functional condition from ongoing production

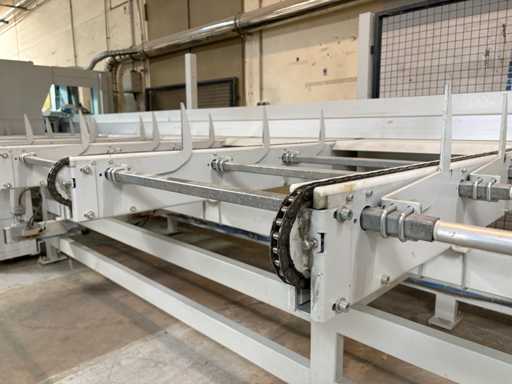

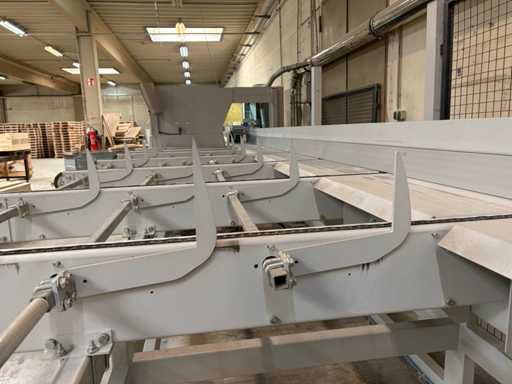

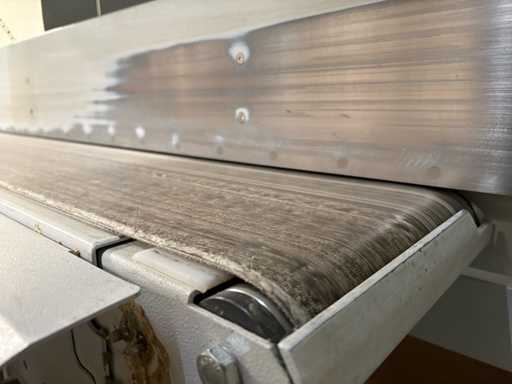

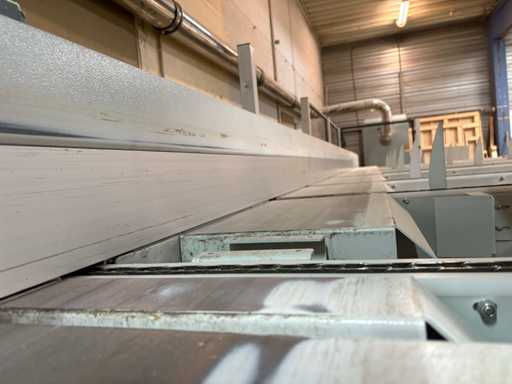

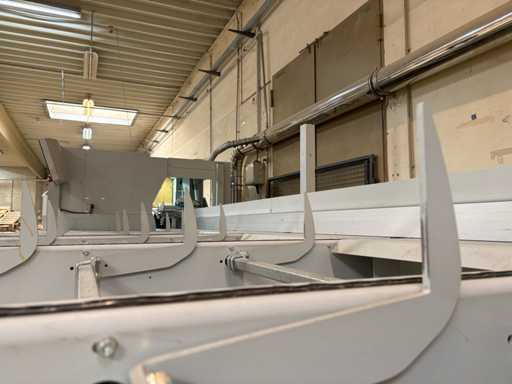

• Usual traces of paint and wear on the housing and transport line, no structural damage

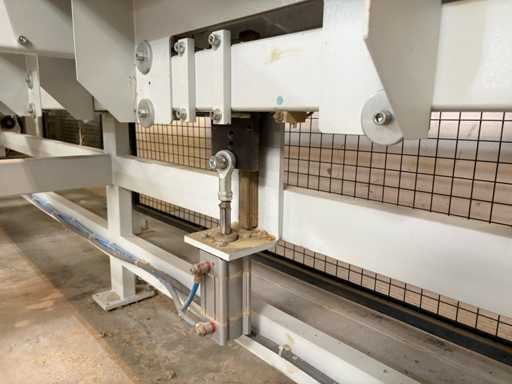

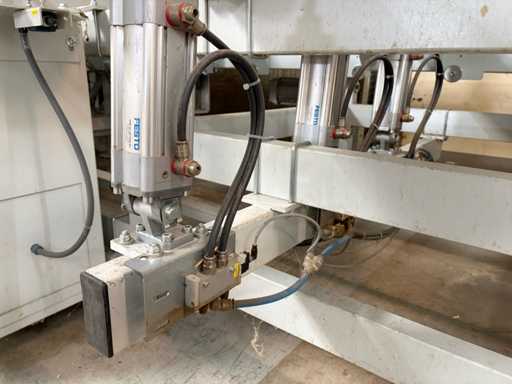

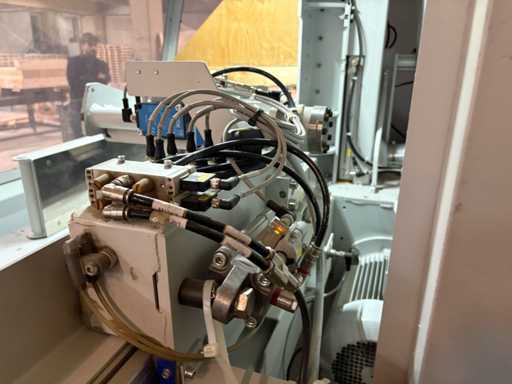

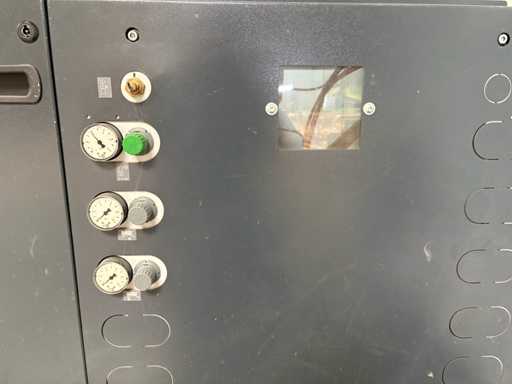

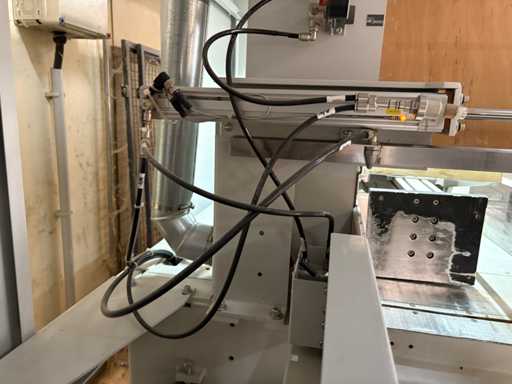

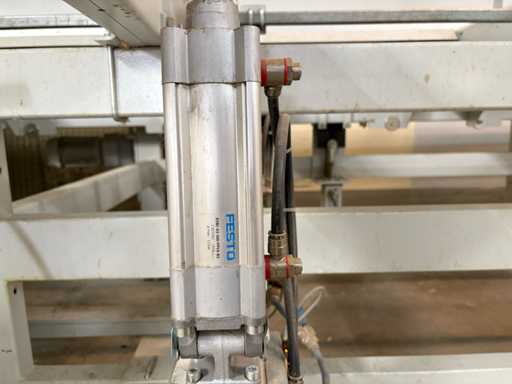

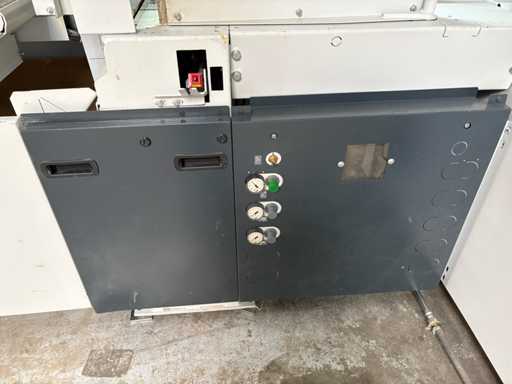

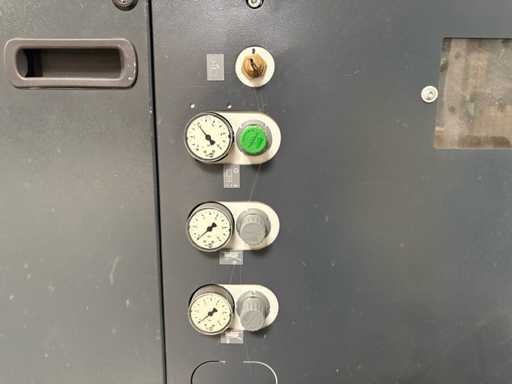

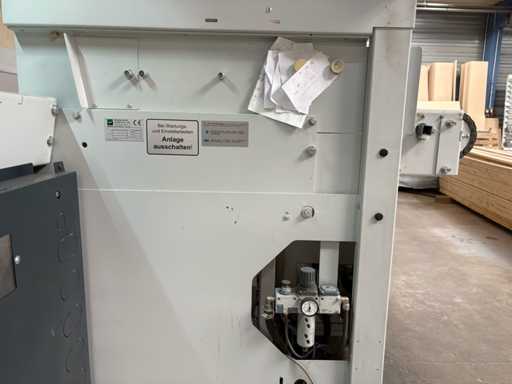

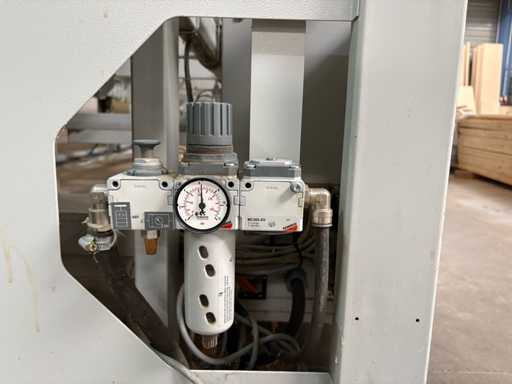

• Pneumatic and hydraulic components tight, pressure control stable

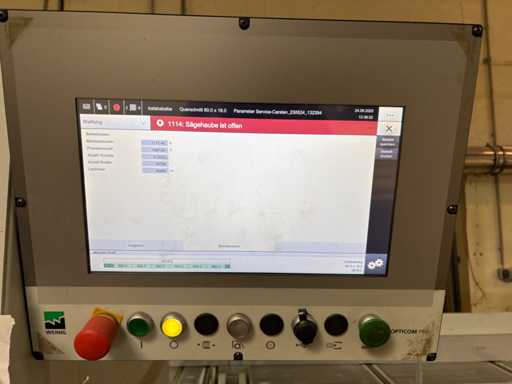

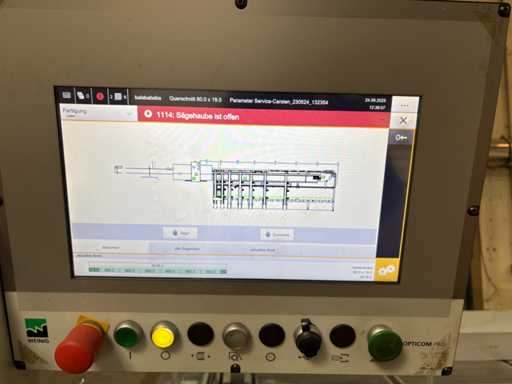

• Touch panel (OptiCom Pro) without pixel errors, software error-free
• Maintenance carried out
regularly according to the manufacturer's specifications (lubrication and oil intervals) • Documentation and manuals (including Rexroth IndraDrive) are included

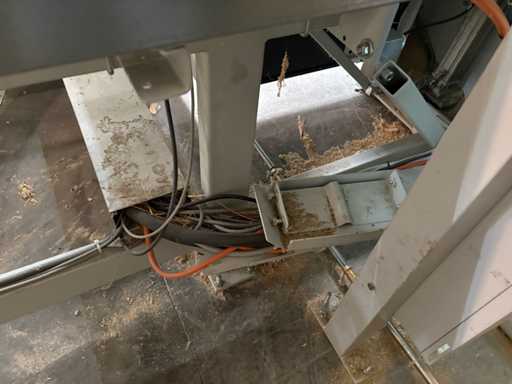

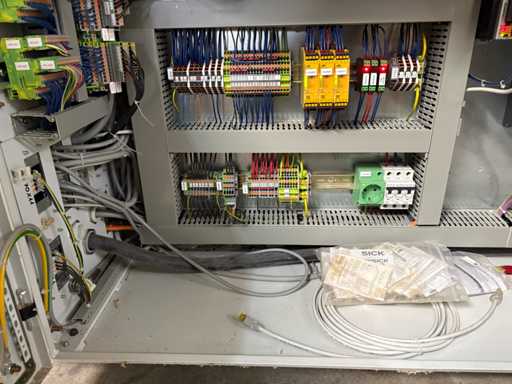

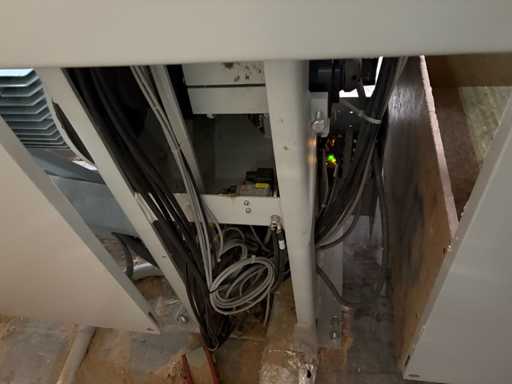

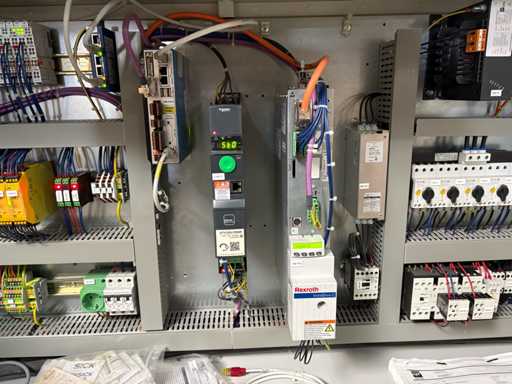

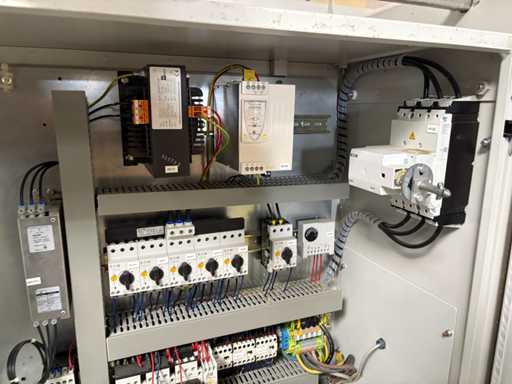

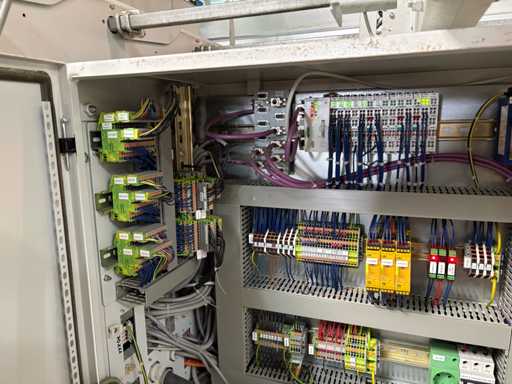

• Electrics clean, no overheating or moisture ingress visible
• Maximum cutting: up to 6.35 m wood length possible
• Trial operation demonstrably demonstrated
on the basis of a video
• Sold as described, without guarantee or warranty
• Dismantling and loading are carried out by the buyer
• Well-maintained, functional condition from ongoing production

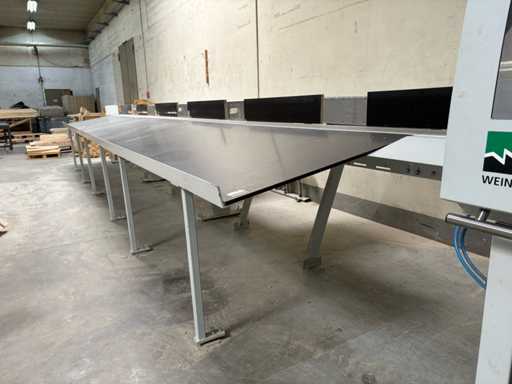

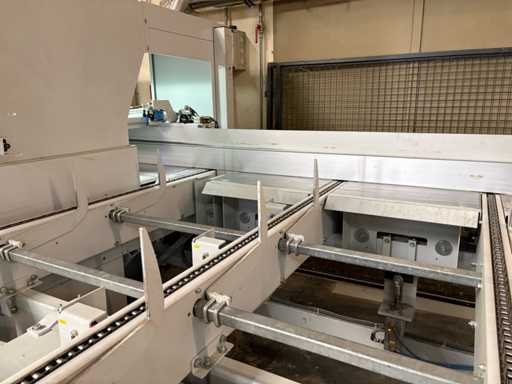

• Usual traces of paint and wear on the housing and transport line, no structural damage
• Pneumatic and hydraulic components tight, pressure control stable
• Touch panel (OptiCom Pro) without pixel errors, software error-free
• Maintenance carried out
regularly according to the manufacturer's specifications (lubrication and oil intervals) • Documentation and manuals (including Rexroth IndraDrive) are included
• Electrics clean, no overheating or moisture ingress visible
• Maximum cutting: up to 6.35 m wood length possible
• Trial operation demonstrably demonstrated
on the basis of a video
• Sold as described, without guarantee or warranty
• Dismantling and loading are carried out by the buyer

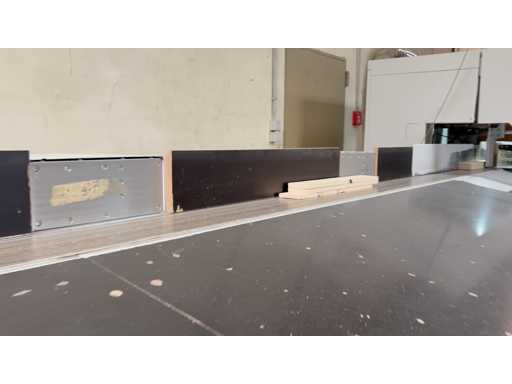

Video
