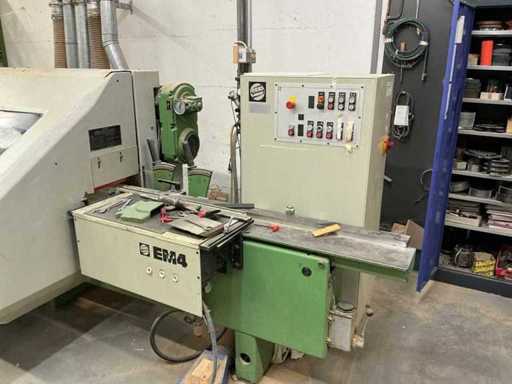

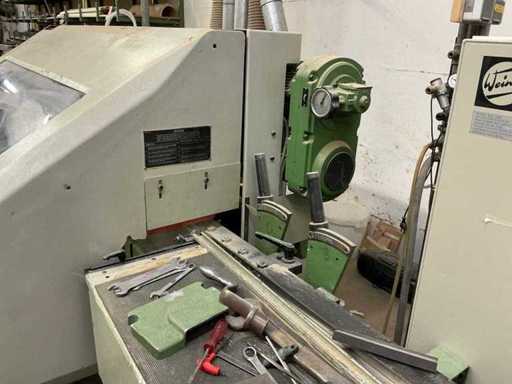

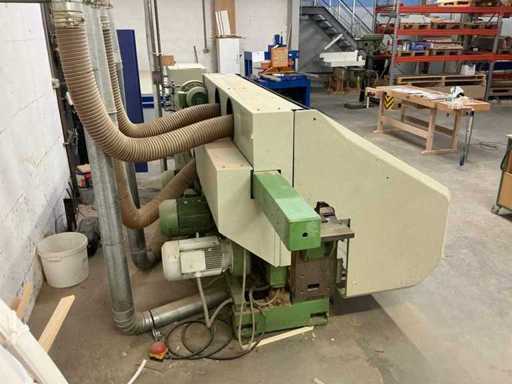

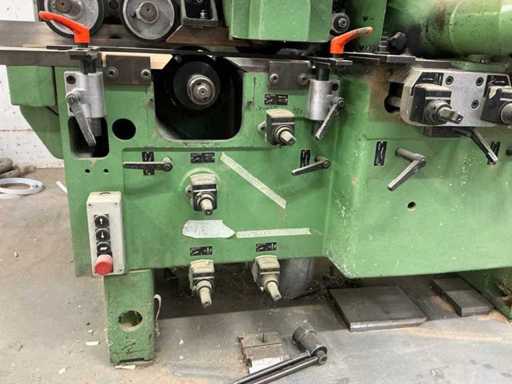

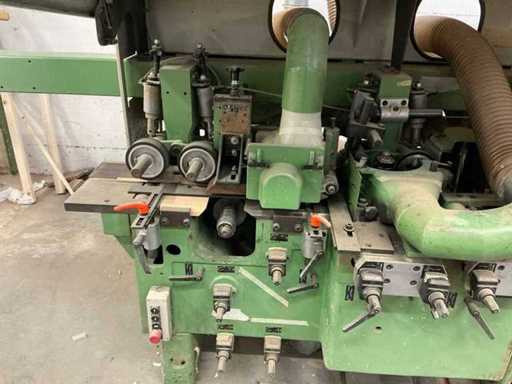

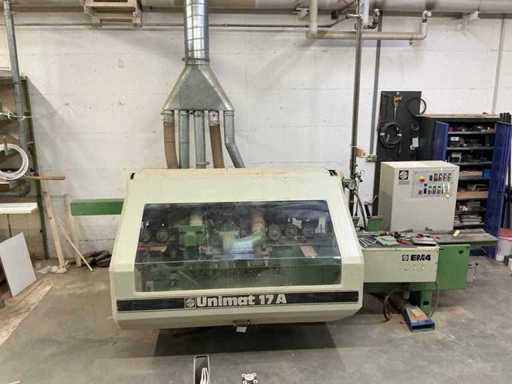

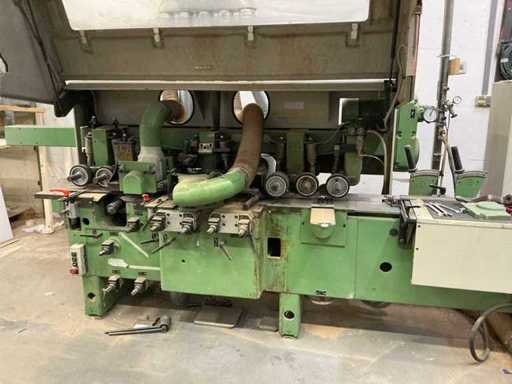

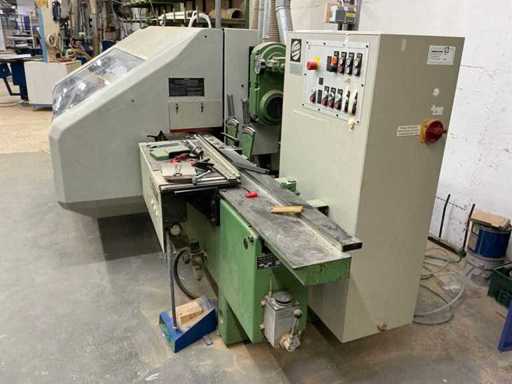

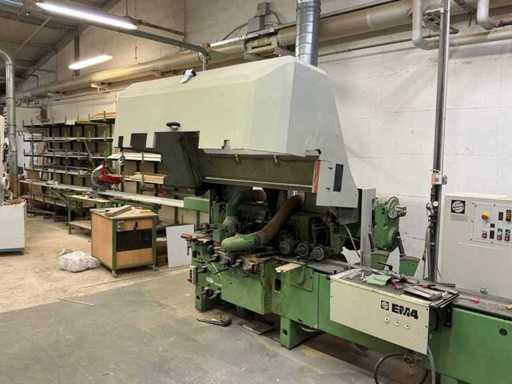

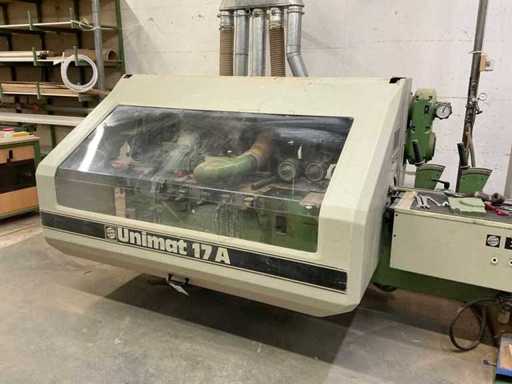

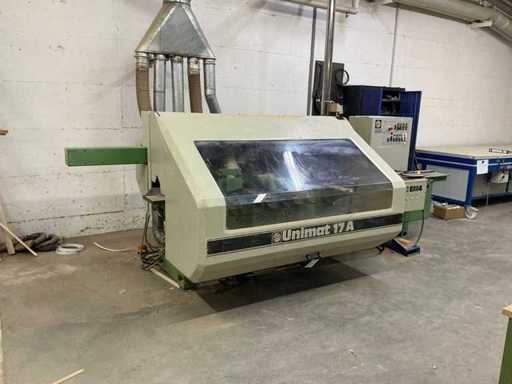

WEINIG Unimat 17A 1989 Moulder (1989)
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- WEINIG
- Type
- Unimat 17A
- Year of build
- 1989
- Serial number
- 143-5563
- Table size l
- 1600mm
- Table size w
- 280mm
- Electric connection
- 380V

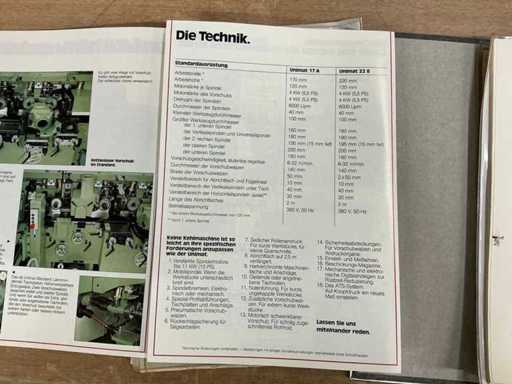

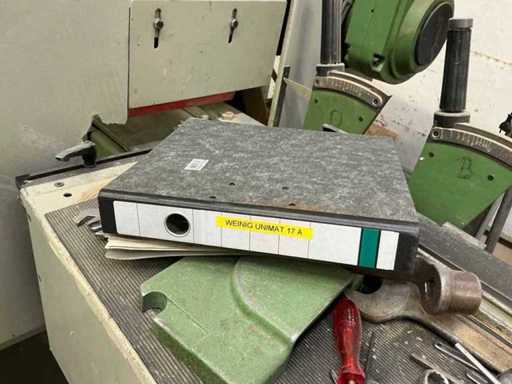

- Manual present
- Yes
- Machine weight
- 2000kg
- Dimension l
- 4400mm
- Dimension w
- 1750mm
- Dimension h
- 1600mm
- Terms of delivery
- Loaded on truck
Description
Possible accessories see lot no. 131
Working height: 120 mm
Motor power spindles: 4 kW (5.5 hp)
Spindle motor speed: 6000 rpm

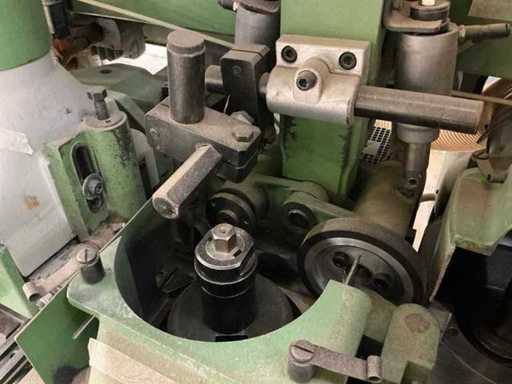

Diameter of the spindles: 40 mm
Smallest tool diameter: 100 mm
Largest tool diameter: 180 mm
Tool diameter 1st upper spindle: 195 mm
Spindle diameter of the 2nd right spindle: 200 mm
Spindle diameter of the upper spindle: 180 mm
Adjustable spindles: 6–32 mm

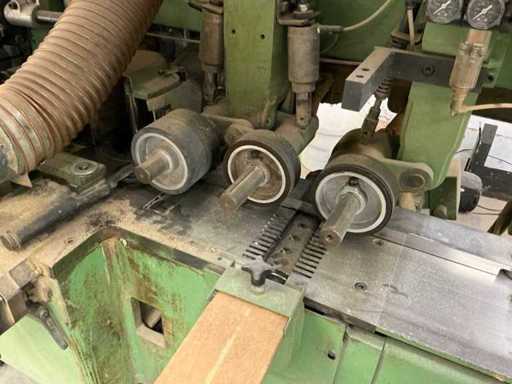

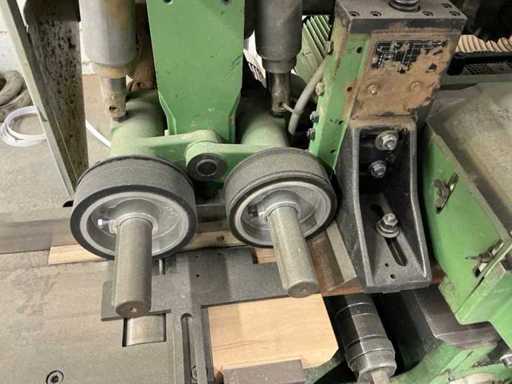

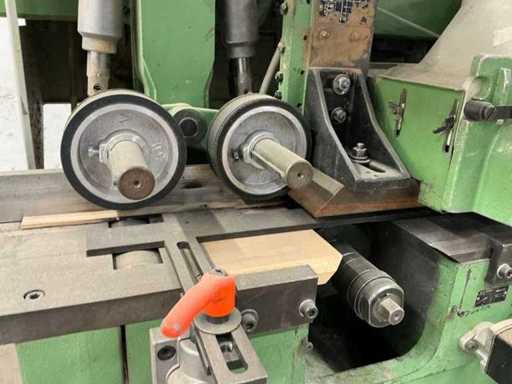

Diameter feed rollers: 140 mm
Width of the feed rollers: 50 mm
Adjustment range for dressing table and joining table linear: 10 mm
Adjustment range for vertical spindles and tables: 30 mm
Axial horizontal spindle adjustment range: 30 mm
Length of dressing table: 2 m
Electrical connection: 380 V, 50 Hz
Number of spindles: 4
Feed speed: infinitely adjustable
Chainless feed: Standard
Technical data
Working width: 170 mmWorking height: 120 mm
Motor power spindles: 4 kW (5.5 hp)
Spindle motor speed: 6000 rpm
Diameter of the spindles: 40 mm
Smallest tool diameter: 100 mm
Largest tool diameter: 180 mm
Tool diameter 1st upper spindle: 195 mm
Spindle diameter of the 2nd right spindle: 200 mm
Spindle diameter of the upper spindle: 180 mm
Adjustable spindles: 6–32 mm
Diameter feed rollers: 140 mm
Width of the feed rollers: 50 mm
Adjustment range for dressing table and joining table linear: 10 mm
Adjustment range for vertical spindles and tables: 30 mm
Axial horizontal spindle adjustment range: 30 mm
Length of dressing table: 2 m
Electrical connection: 380 V, 50 Hz
Configuration
Machine Type: Unimat 17 ANumber of spindles: 4
Feed speed: infinitely adjustable
Chainless feed: Standard
Remarks
Unaudited
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing days: 03.03.2026 between 10:00 a.m. and 3:00 p.m.
A viewing is only possible after prior registration at p.schulze@tbauctions.com.
Pick-up days: 20 - 24.04.2026 08:00 - 16:00 & 27 - 30/04 08:00 am - 04:00 pm
Pick-up is by arrangement.
