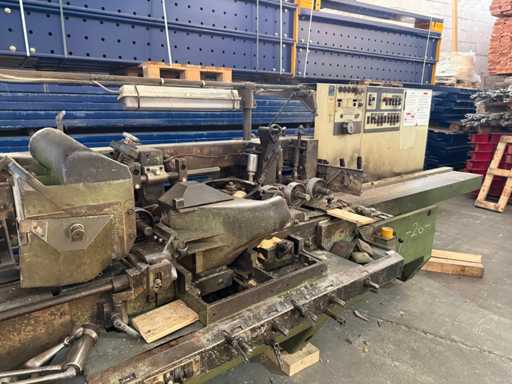

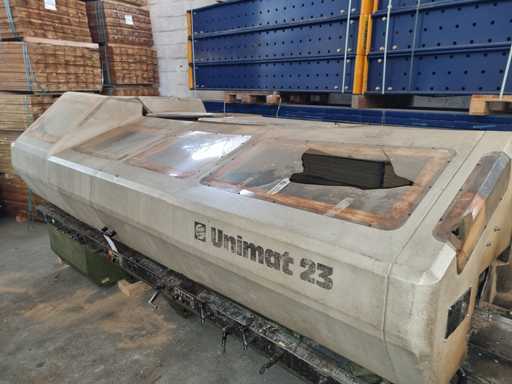

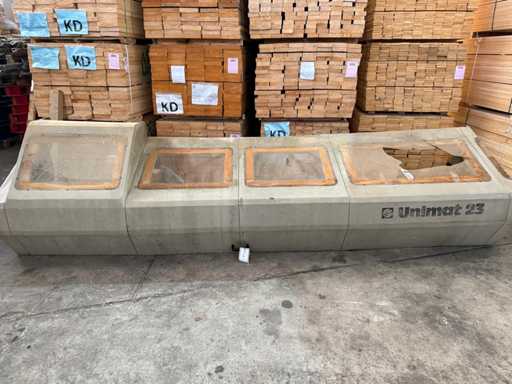

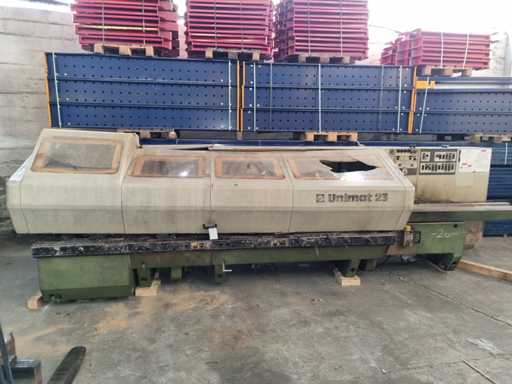

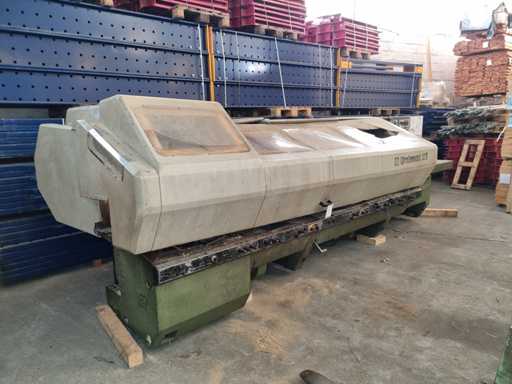

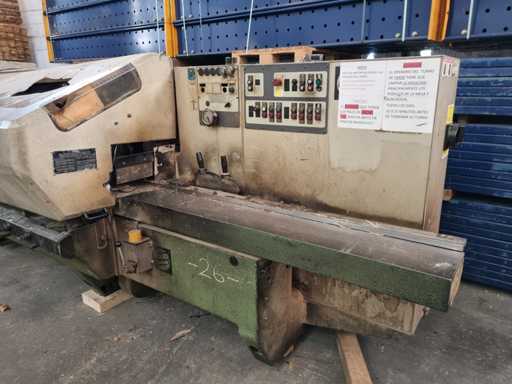

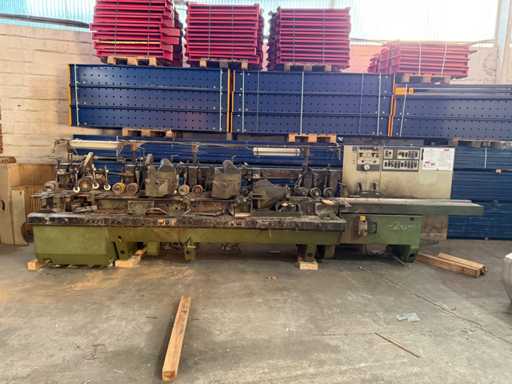

WEINIG UNIMAT 23 Moulder - 1992
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- WEINIG
- Type
- UNIMAT 23
- Year of build
- 1992

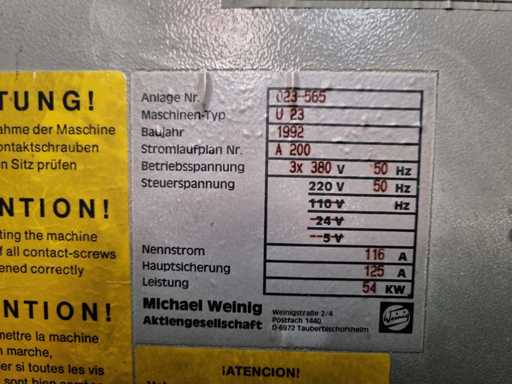

- Serial number
- 023-565

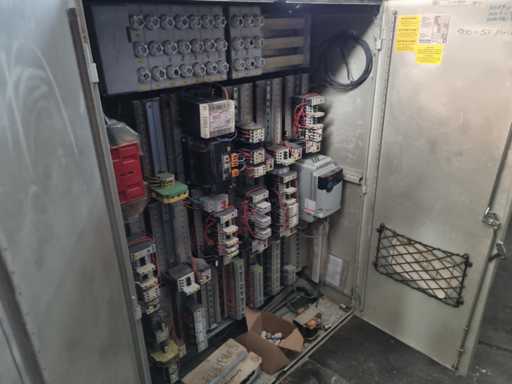

- Electric connection
- 380V
- Machine weight
- 7000kg
- Dimension l
- 5690mm
- Dimension w
- 1700mm
- Dimension h
- 1750mm
- Terms of delivery
- Loaded on truck
Description
- Total installed power 54 KW.
- Working width from 20 mm to 230 mm.
- Working height from 9 mm to 140 mm.
- Total length of the table 5690 mm.

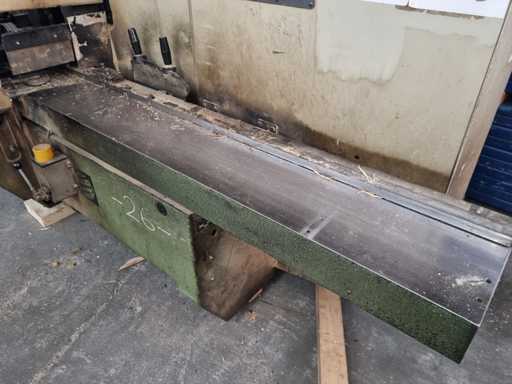

- Length of the entrance table 2000 mm.

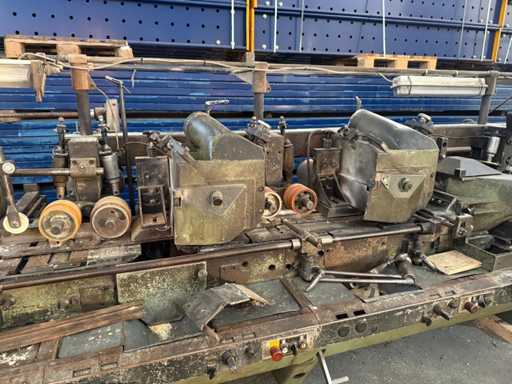

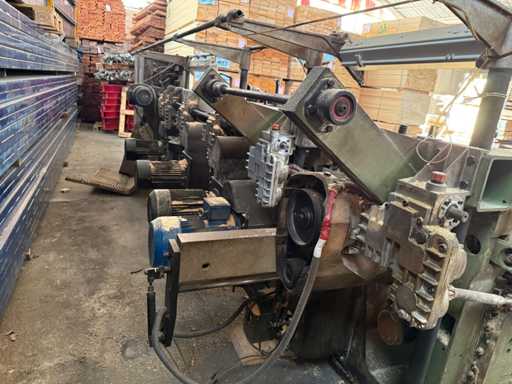

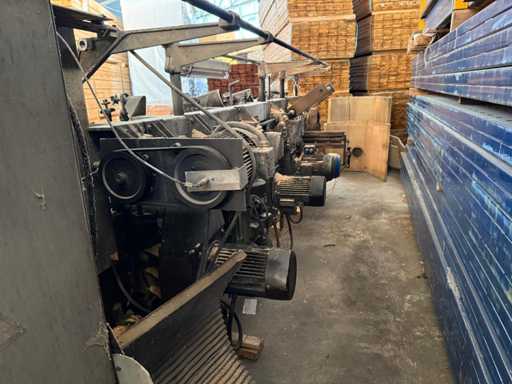

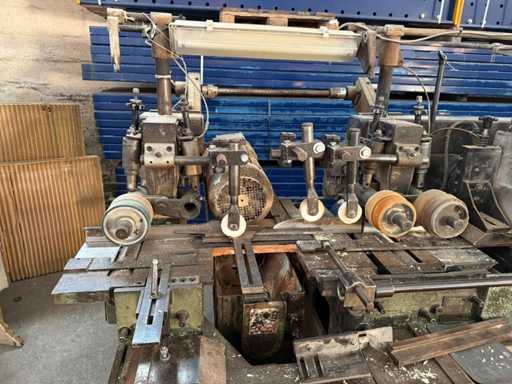

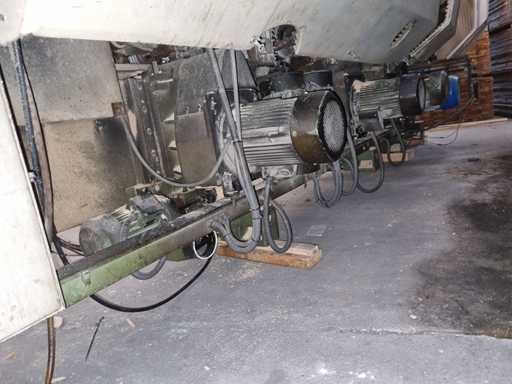

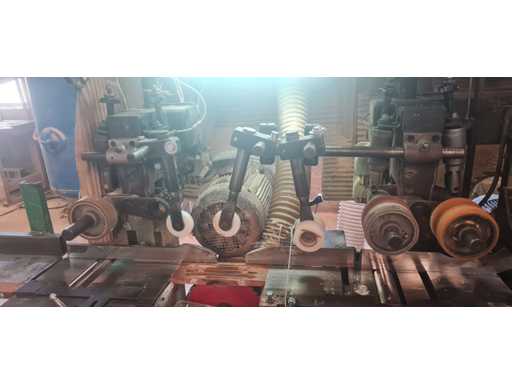

- 7 headers: down 5.50 KW - right 5.50 KW - left 5.50 KW - up 7.50 KW - up 7.50 KW - down 5.50 KW - universal 5.50 KW.
- Axle diameter 40 mm.
- Rotation speed of the axes 6000 / 8000 rpm.
- Variable feed speed from 6 m/min to 36 m/min.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
- Working width from 20 mm to 230 mm.
- Working height from 9 mm to 140 mm.
- Total length of the table 5690 mm.
- Length of the entrance table 2000 mm.
- 7 headers: down 5.50 KW - right 5.50 KW - left 5.50 KW - up 7.50 KW - up 7.50 KW - down 5.50 KW - universal 5.50 KW.
- Axle diameter 40 mm.
- Rotation speed of the axes 6000 / 8000 rpm.
- Variable feed speed from 6 m/min to 36 m/min.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
Additional details
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Emilio Sobrado
Email: e.sobrado@tbauctions.com
Pick-up is only possible on the following dates and by appointment: from 27.10.2025 to 30.10.2025 from 9:00 a.m. to 1:00 p.m. and from 3:30 p.m. to 6:00 p.m. and on 31.10.2025 from 9:00 a.m. to 1:00 p.m.

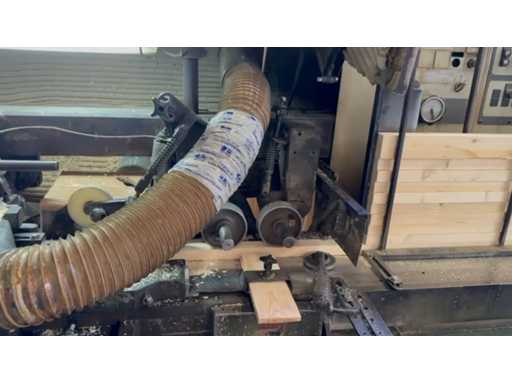

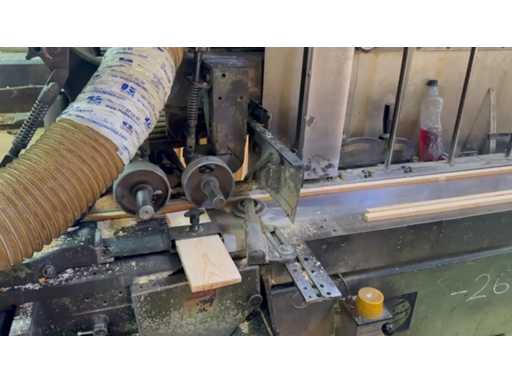

Video
See the details and take a closer look at the item in this video.
