ZIEGELMEYER EN 12285-2/ KL. B tank 10,000 litres
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Ziegelmeyer
- Product type
- EN 12285-2/ Kl.B
- Weight
- 2300kg
- Length
- 531cm
- Width
- 160cm
- Height
- 200cm
- Terms of delivery
- Loaded on truck
Description

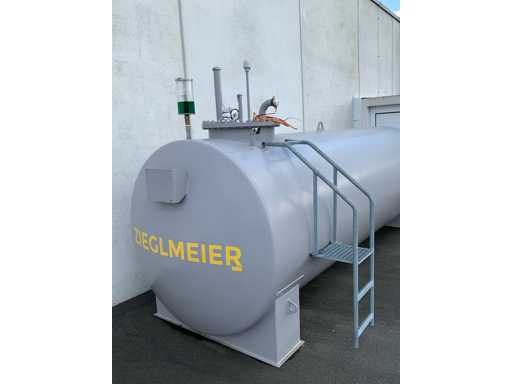

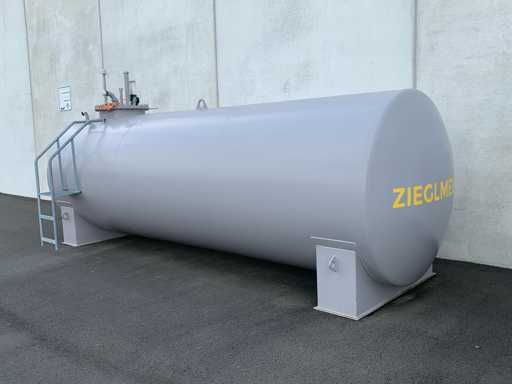

EN 12285-2/ Kl.B
above-ground double-walled steel tank
Container inside raw rolled, outside sandblasted,
primed and painted
in RAL 7036 (Platinum Grey) Equipment:
- 2 welded steel stud feet,
- Leak Indicator SGB 330 DL Pressure Leak Indicator with
Air (230V power connection on site) on the
Container apex with weather protection cover
- Dome fittings, vent, PVC bearing tube with dipstick,
- Suction line in 1" with AG at the
tank apex - 2" filling tube with TW closure, suction line,
- 2 spare sleeves with manufacturer's test certificate.
- With welded pump console at the front
- with lettering Zieglmeier.de on the curved back
- Hot-dip galvanized access ladder
- with a crane eye
- with a nameplate
Limit Sensor 23 RO 400mm
Adjustable for above-ground and underground tanks for the storage of heating oil EL according to DIN 51603-1, diesel fuel according to DIN EN 590 and biodiesel fuel according to DIN EN 14214. For cylindrical, horizontal tanks made of steel in accordance with EN 12285-1, EN 12285-2 and EN 6624-1 as well as of plastic or other recognised materials, the design and dimensions of which comply with the standards listed above and which are approved by design. In addition, also for cylindrical, upright tanks made of steel according to DIN 6619-1, 6623-1. Manufacturer's ref.: 46125 Packaging unit: 1 piece: Manufacturer's name: AFRISO Length: 400 mm Connection: 1" AG approval: EMC Directive (2014/30/EU) Weight: 0.901 kg
above-ground double-walled steel tank
Container inside raw rolled, outside sandblasted,
primed and painted
in RAL 7036 (Platinum Grey) Equipment:
- 2 welded steel stud feet,
- Leak Indicator SGB 330 DL Pressure Leak Indicator with
Air (230V power connection on site) on the
Container apex with weather protection cover
- Dome fittings, vent, PVC bearing tube with dipstick,
- Suction line in 1" with AG at the
tank apex - 2" filling tube with TW closure, suction line,
- 2 spare sleeves with manufacturer's test certificate.
- With welded pump console at the front
- with lettering Zieglmeier.de on the curved back
- Hot-dip galvanized access ladder
- with a crane eye
- with a nameplate
Limit Sensor 23 RO 400mm
Adjustable for above-ground and underground tanks for the storage of heating oil EL according to DIN 51603-1, diesel fuel according to DIN EN 590 and biodiesel fuel according to DIN EN 14214. For cylindrical, horizontal tanks made of steel in accordance with EN 12285-1, EN 12285-2 and EN 6624-1 as well as of plastic or other recognised materials, the design and dimensions of which comply with the standards listed above and which are approved by design. In addition, also for cylindrical, upright tanks made of steel according to DIN 6619-1, 6623-1. Manufacturer's ref.: 46125 Packaging unit: 1 piece: Manufacturer's name: AFRISO Length: 400 mm Connection: 1" AG approval: EMC Directive (2014/30/EU) Weight: 0.901 kg
Remarks
A suitable truck is required for loading.
Additional details
No loading ramp available!
Goods are prepared ready for loading.
