MAZAK HCN-5000 - Horizontal Machining Centre
MAZAK HCN-5000 - Horizontal Machining Centre
Main Technical Data
• Max. workpiece diameter: 800 mm
• Max. workpiece height: 1000 mm
• Max. workpiece weight: 1000 kg
• Travel (X/Y/Z): 730 / 730 / 800 mm
• Spindle speed (standard): 12,000 rpm
• Spindle speed (option): 14,000 / 18,000 rpm
• Tool holder: BT40
• Spindle drive power: 18,5 / 15 kW
• Tool magazine: 80 slots (expandable)
• Pallet size: 500 × 500 mm
• Pallet change time: approx. 8/10 s
• Tool change time: approx. 3.2 s
• Positioning accuracy (X/Y/Z): ±0.012 mm
• Repeatability: ±0.008 mm
Features & Options
• Optional pallets with positioning bores
• High dimensional accuracy at high cutting speeds

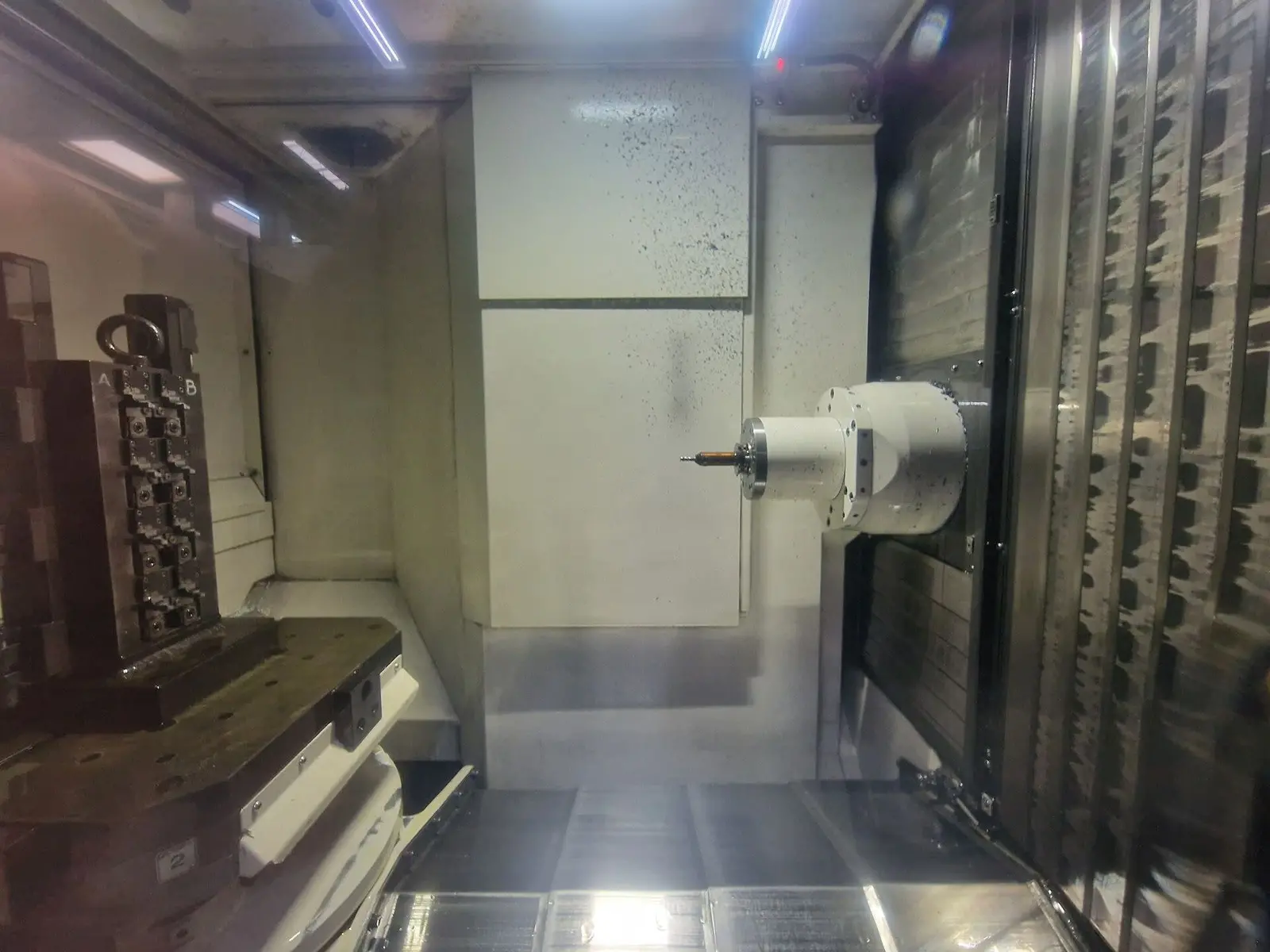

• Powerful spindle system – ideal for heavy-duty cutting

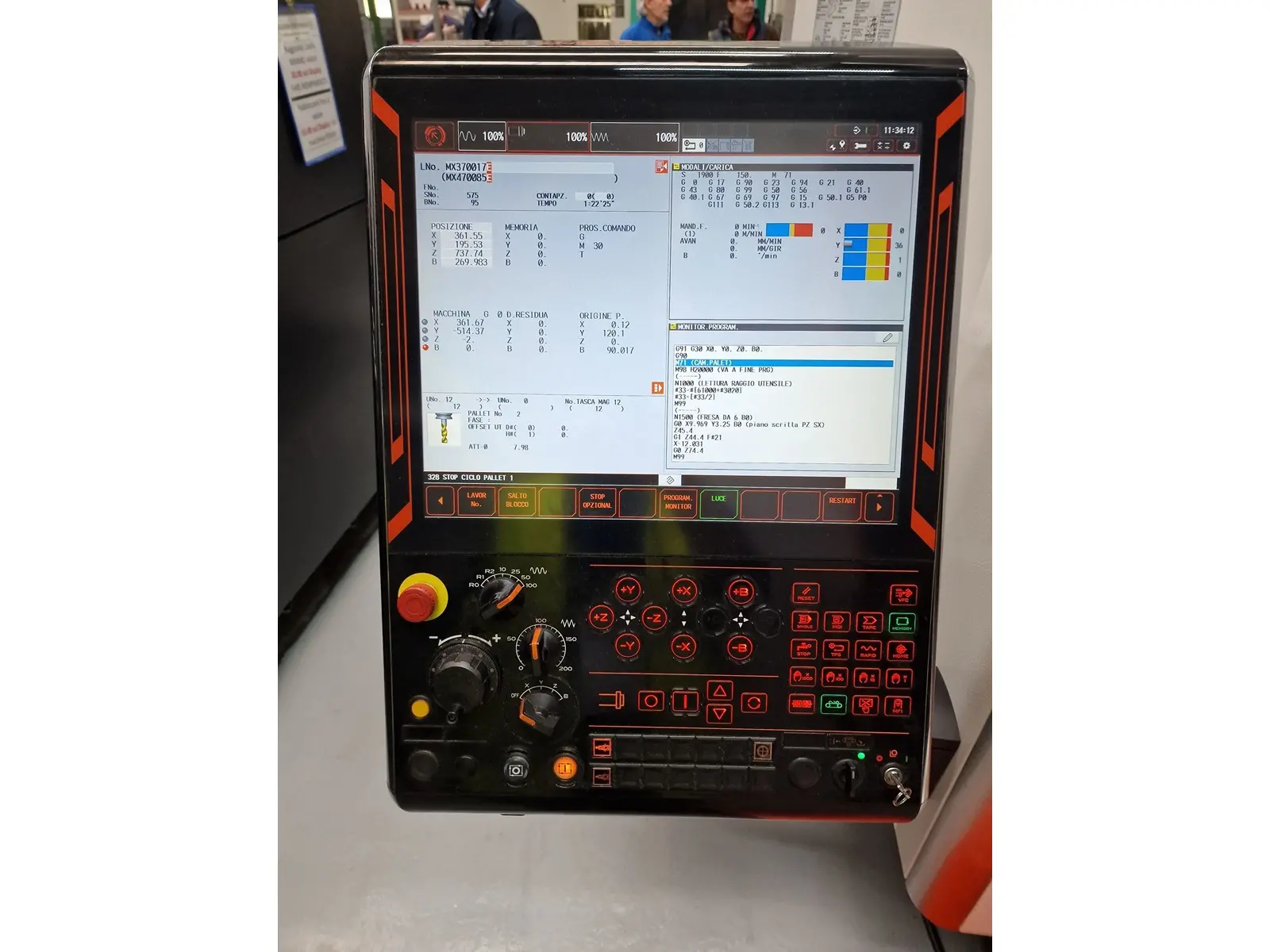

• Extensive diagnostics and alarm functions via control unit

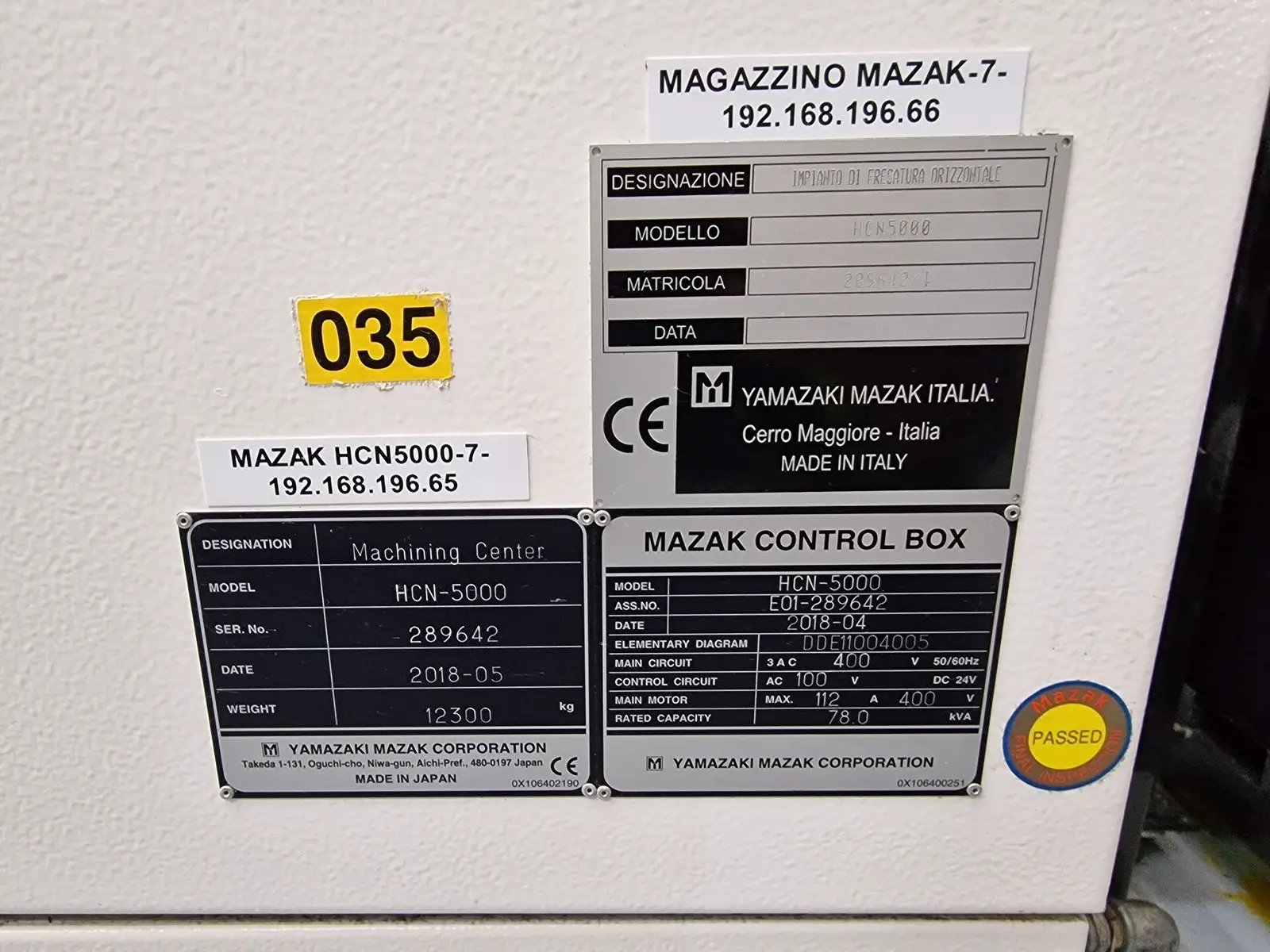

Power Supply & Consumption
• Supply voltage: 380/400/415/440/460/480 V +/- 10%, 50/60 Hz +/-1%
• Connected load: approx. 85 kVA (depending on version)
• Air pressure requirement: approx. 0.5 MPa
Dimensions & Weight
• Machine dimensions: approx. 2813h × 2444 × 4928 mm
• Machine weight: approx. 11.980 kg
Notes
• Machine equipped with extensive documentation (operation, maintenance, safety)
• Maintenance and safety regulations must be strictly observed
• Suitable for automated high-volume production lines
