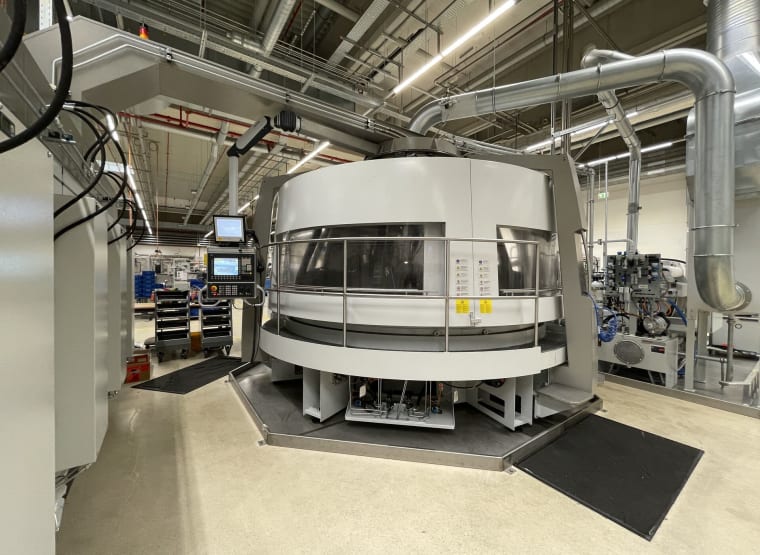

Máquina de ciclo circular IMOBERDORF imo-space
Detalles del artículo
- Denominación
- Máquina de ciclo circular IMOBERDORF imo-space
- Número de artículo
- 807219
- Fabricante
- IMOBERDORF
- Modelo/Tipo
- imo-space
- Documentos
- Doku.pdf
- Videos
-
vídeo 1 - Año de fabricación
- 2019
- Disponibilidad
- immediately
- Estado
- no usado / nuevo, conectado
- Lugar
-
Alemania, 41460 Neuss
- Mostrar en el mapa
- Todos los artículos de esta ubicación
Gastos y beneficios
- Gastos de transporte
- no incluidos
- Condiciones de entrega
- EXW Neuss, desde el basamento, sin embalar
- Condiciones de pago
- 100% previo cobro
Detalles técnicos
- Número de Estaciones
- 8 (extended to 16)
- Número de Husillos
- 5
- Dimensiones (L x anch. x alt.)
- 9.500 x 6.500 x 3.400 mm
- Peso aprox.
- 25.000 kg
Descripción
The high-precision Rotary Transfer Machine "imo-space" makes it possible to process workpieces simultaneously on 8 processing stations.
The workpieces are measured 100% at the same time to ensure continuous component quality.
The very flexible Rotary Transfer Machine can be extended to 16 stations at any time.
The machine has never been in production and therefore has 0 process hours.
Control
Additional equipment
Please have a look at the further technical data in PDF and our machine video in our attachment!
The workpieces are measured 100% at the same time to ensure continuous component quality.
The very flexible Rotary Transfer Machine can be extended to 16 stations at any time.
The machine has never been in production and therefore has 0 process hours.
Control
- SIEMENS Sinumerik 840D sl
- All stations can be controlled at the same time and simultaneously
- SANDVIK Coromant tool monitoring
- Automatic loading and unloading
- Measurement to determine component position and height
- Station 3, 9 and11 have a glass scale for high repeat accuracy
- Tool holder: HSK 32
- High-performance spindle: 40,000 rpm
- Due to the high speeds, grinding operations are possible
- Performance diagram see PDF attachment
- Air measuring unit Manufacturer PRETEC
- Measurement of finished holes
- X-axis travel: 100 mm
- X-axis travel: 130 mm
- Z-axis travel: 120 mm
- Indexing is guaranteed very precisely by a "zero-point clamping system" (± 1 µm according to the manufacturer).
- Indexing time approx.: 2.5 sec.
Additional equipment
- Coolant system: Ruez trough belt filter 5µm filter system 30bar
- Donaldson extraction system
- CO2 fire protection system
- Collecting tray
- Additional zero point clamping systems
- Spare parts: Drilling spindle, grinding spindle, various wear parts
Please have a look at the further technical data in PDF and our machine video in our attachment!
