DECKEL MAHO DMU 50 CNC Universal Machining Centers
- Aktualna oferta
- Status
€
Całkowita kwota oferty
Zobacz całkowite podsumowanie
Całkowita kwota oferty
Zobacz całkowite podsumowanie
€
Maksymalna kwota oferty
Zobacz całkowite podsumowanie
Maksymalna kwota oferty
Zobacz całkowite podsumowanie
Specyfikacja przedmiotu
- Ilość
- 1
- Marża
- Nie
- Marka
- Deckel Maho
- Typ
- DMU 50
- Rok budowy
- 2010

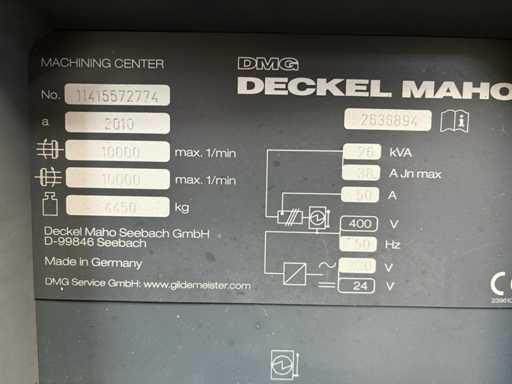

- Numer seryjny
- 11415572774
- Taper iso
- SK40
- Podróz w osi x
- 500mm
- Podróz w osi y
- 450mm
- Podróz w osi z
- 400mm
- Predkosc od n=
- 20rpm
- Predkosc do n=
- 10000rpm
- Godziny wyswietlania
- 13216
- Sterowanie CNC, marka, typ
- Heidenhein iTNC 530, 5 Achs simultan
- Ciezar przedmiotu obrabianego maks.
- 300kg
- Rozmiar stolu mocujacego z rowkiem teowym W
- 400mm
- Rozmiar stolu mocujacego z rowkiem teowym L
- 600mm
- -axis
- 5
- Moc silnika (kW)
- 10kW
- Podrecznik obecny
- Tak
- Polaczenie elektryczne
- 400V
- Wymiar calkowity H
- 2500mm
- Wymiar calkowity W
- 1800mm
- Wymiar calkowity L
- 2400mm
- Waga maszyny
- 4450kg
- pozycją HS
- 84571090
- Warunki dostawy
- Ex fundacja bez opakowania
Opis

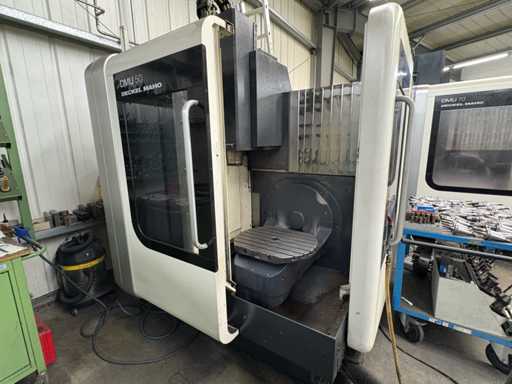

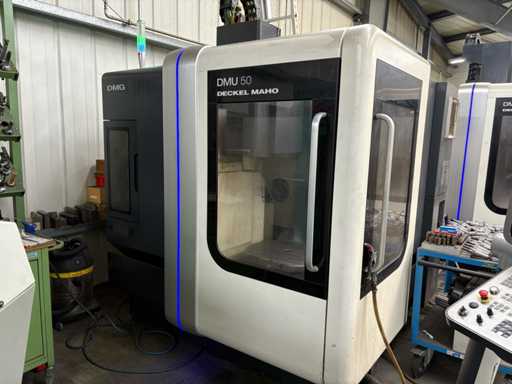

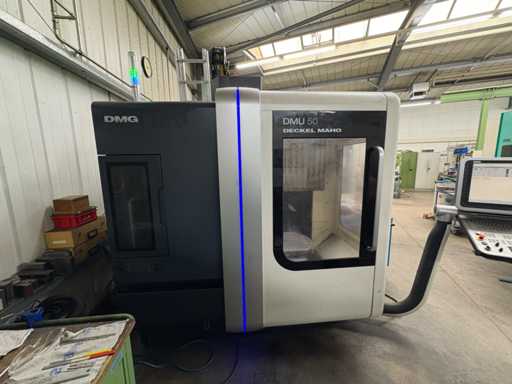

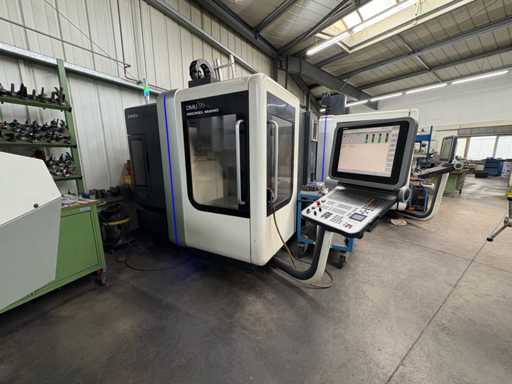

DMG Deckel Maho DMU 50 – 5-axis machining centre
For sale is a used 5-axis milling machine DMG Deckel Maho DMU 50, built in 2010, equipped with the powerful Heidenhain iTNC 530 control system. The machine is ideal for complex 3D milling operations and simultaneous machining in single part and small batch production.
Specifications:
• Control: Heidenhain iTNC 530
• Year of manufacture: 2010
• 5-axis simultaneous machining
• Max. spindle speed: 10,000 1/min

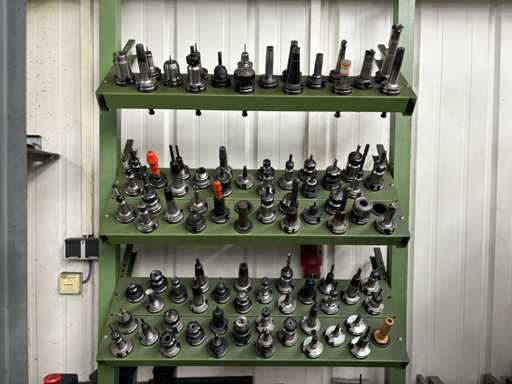

• Tool holder: HSK (various tools available, see pictures)
• Machine weight: approx. 4450 kg
• Power connection: 400 V / 50 Hz, 26 kVA
• Installation dimensions: Compact and easily accessible
• Condition: Used, fully functional

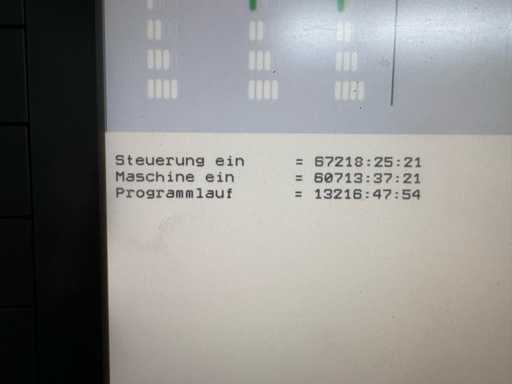

Operating hours (according to controls):
• Control on: 67,218 h
• Machine on: 60,713 h
• Program run: 13,216 h
Equipment:
• Large tool magazine with extensive equipment
• Fully encased work area with automatic door

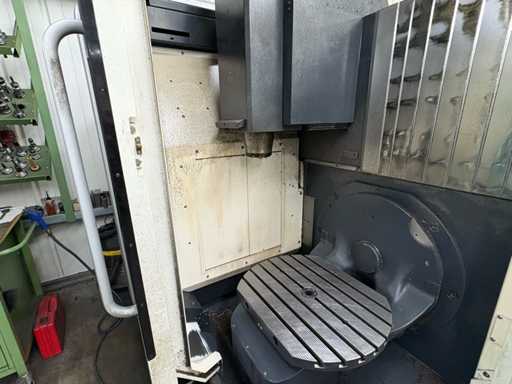

• Swivel and rotary table for 5-axis machining

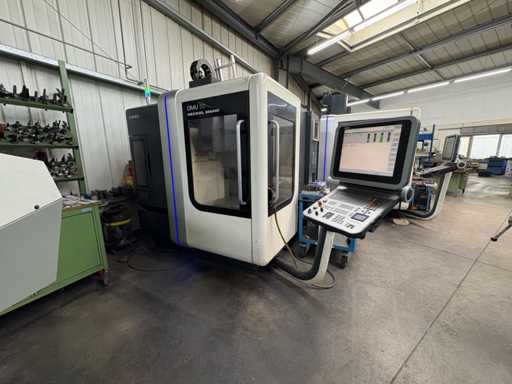

• Intuitive control panel with color display
Other:
The machine has been regularly serviced and is in neat condition. The spindle condition is good, all axes drive cleanly and without noticeable noises. Ideal for toolmaking, mold making, medical technology or contract manufacturing. Accessories as available in the pictures and are included.
For sale is a used 5-axis milling machine DMG Deckel Maho DMU 50, built in 2010, equipped with the powerful Heidenhain iTNC 530 control system. The machine is ideal for complex 3D milling operations and simultaneous machining in single part and small batch production.
Specifications:
• Control: Heidenhain iTNC 530
• Year of manufacture: 2010
• 5-axis simultaneous machining
• Max. spindle speed: 10,000 1/min
• Tool holder: HSK (various tools available, see pictures)
• Machine weight: approx. 4450 kg
• Power connection: 400 V / 50 Hz, 26 kVA
• Installation dimensions: Compact and easily accessible
• Condition: Used, fully functional
Operating hours (according to controls):
• Control on: 67,218 h
• Machine on: 60,713 h
• Program run: 13,216 h
Equipment:
• Large tool magazine with extensive equipment
• Fully encased work area with automatic door
• Swivel and rotary table for 5-axis machining
• Intuitive control panel with color display
Other:
The machine has been regularly serviced and is in neat condition. The spindle condition is good, all axes drive cleanly and without noticeable noises. Ideal for toolmaking, mold making, medical technology or contract manufacturing. Accessories as available in the pictures and are included.
Uwagi
The machine is in a well-maintained and fully functional condition. All axes move smoothly and precisely, without unusual noises or noticeable play. The spindle runs smoothly and without increased vibrations. The interior of the machine shows normal signs of use, which indicate regular production operation, but do not represent any functional impairment.
