1998 AEG Elotherm P1 die-sinking EDM machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No

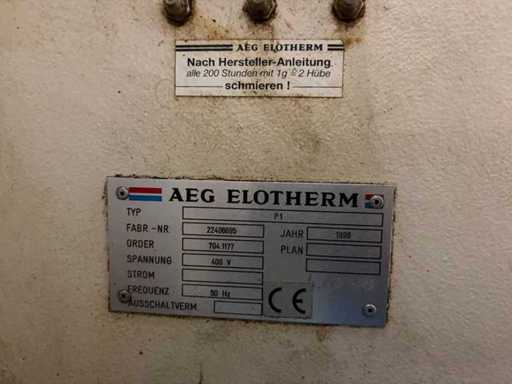

- Brand
- AEG Elotherm
- Type
- P1
- Year of build
- 1998
- Serial number
- 22406695
- Die-sink type
- Yes
- Travel x-axis
- 992mm
- Travel y-axis
- 807mm
- Travel z-axis
- 561mm
- Digital display
- Yes
- Electric connection
- 400V
- Machine weight
- 10000kg
- Dimension l
- 3500mm
- Dimension w
- 3000mm
- Dimension h
- 3000mm
- HS Code
- 84563000
- Terms of delivery
- Ex foundation-unpackaged
Description

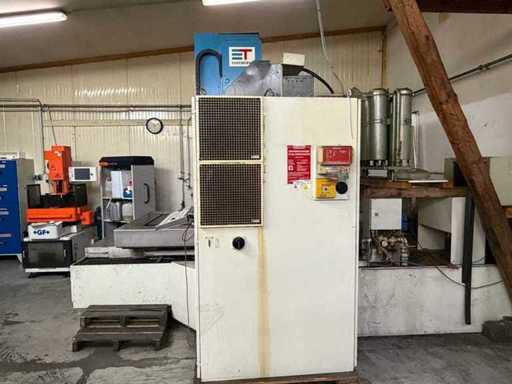

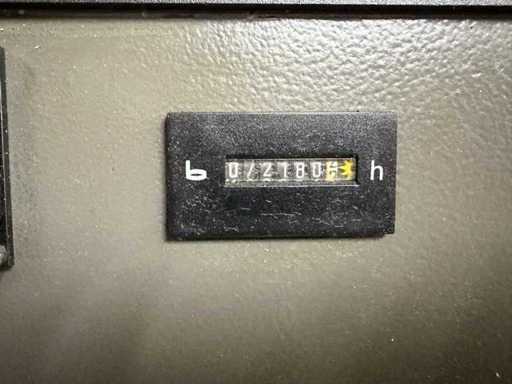

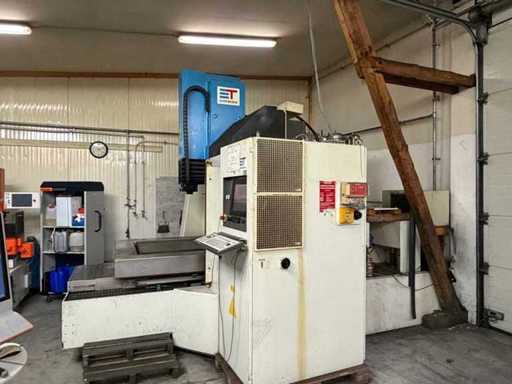

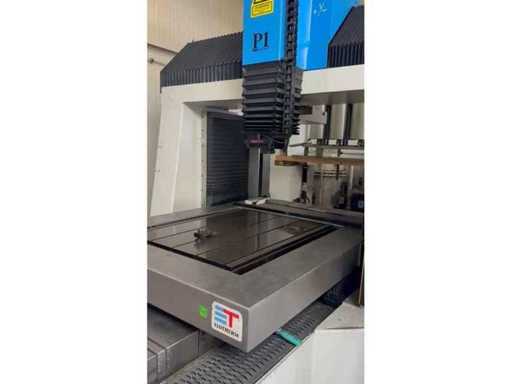

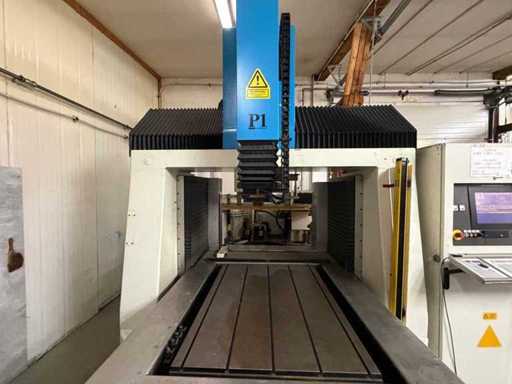

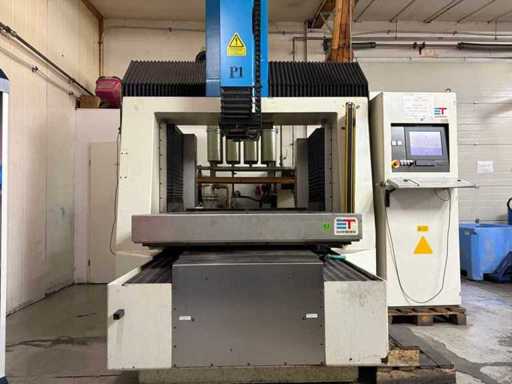

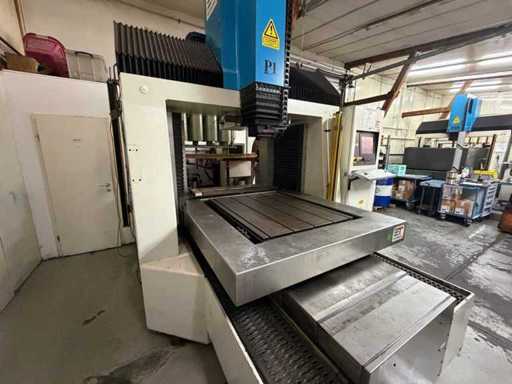

Large-format CNC die-sinking EDM machine AEG ELOTHERM P1 in heavy-duty industrial design with solid casting machine bed and gantry design. The machine is particularly suitable for tool and mould making as well as for machining large workpieces and dies. Travel distances X 992 mm, Y 807 mm and Z 561 mm. Pool dimensions approx. 1260 × 1060 × 550 mm. Operating hours according to the display approx. 72,180 h.
Equipment:

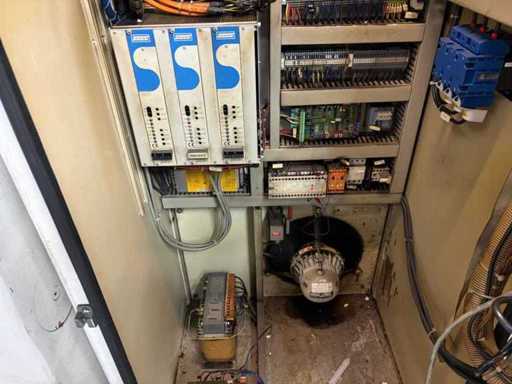

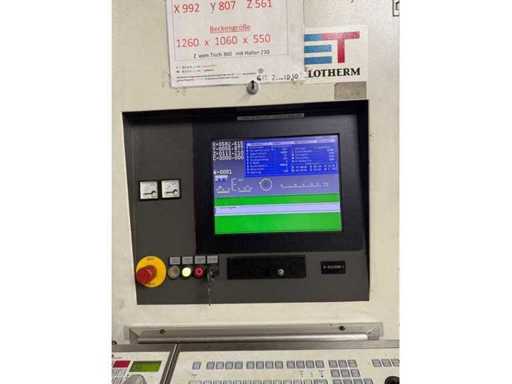

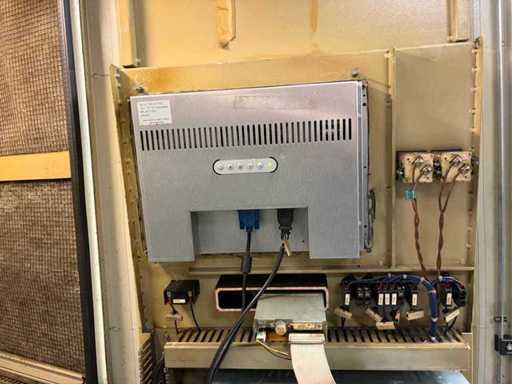

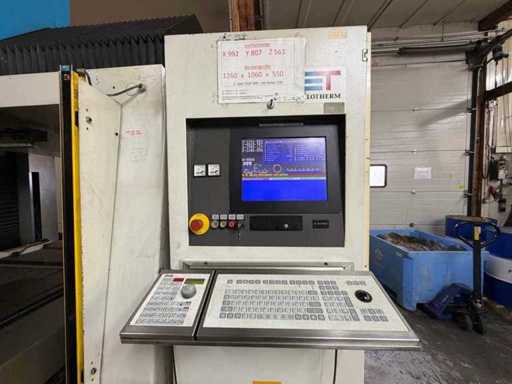

· Original ELO/AEG CNC control with digital display

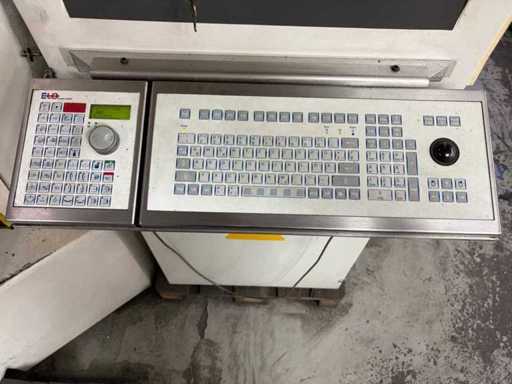

· Separate control panel with keypad and control console

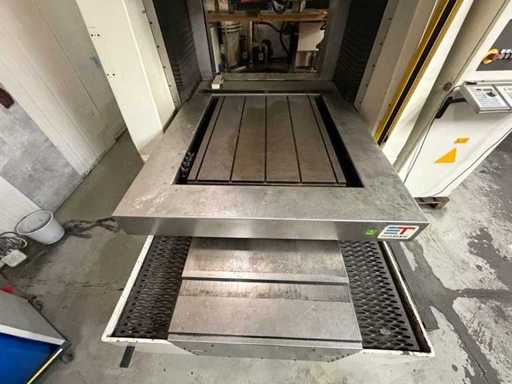

· Heavy work table with T-slots

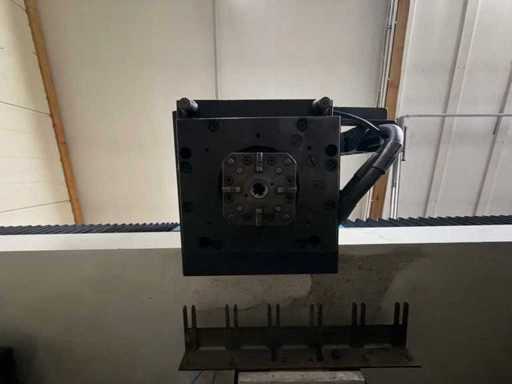

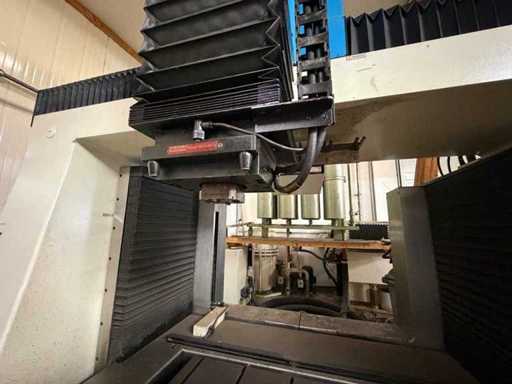

· Electrode holder on the Z-axis

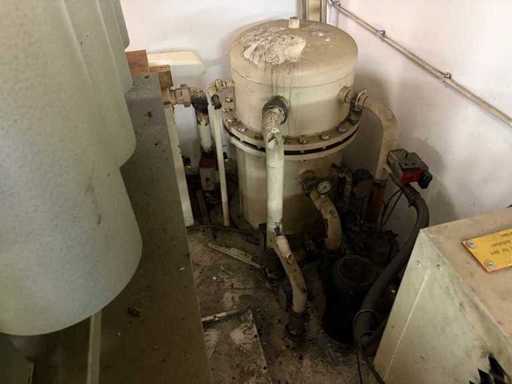

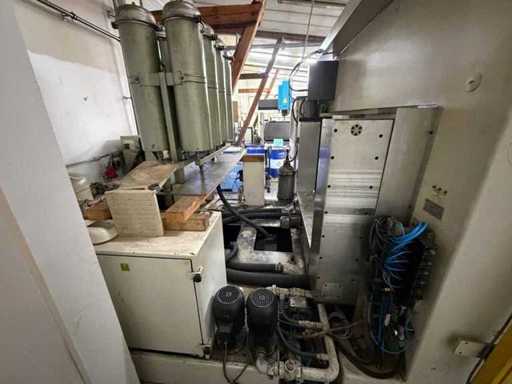

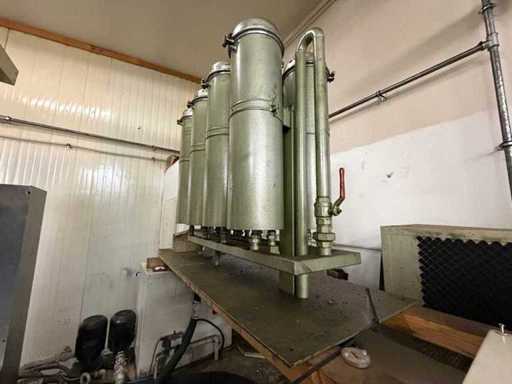

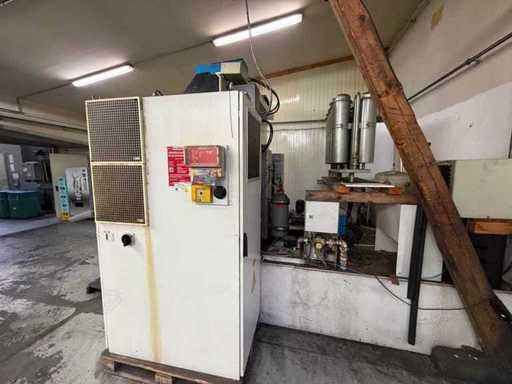

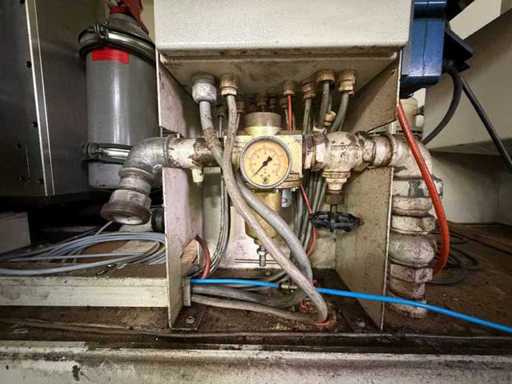

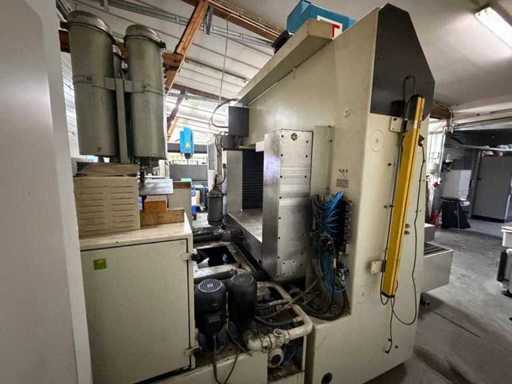

· Multiple filter system with several filter containers

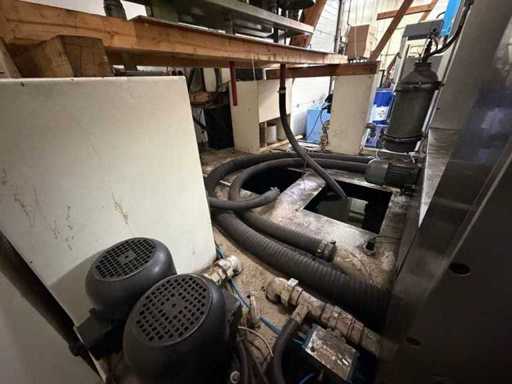

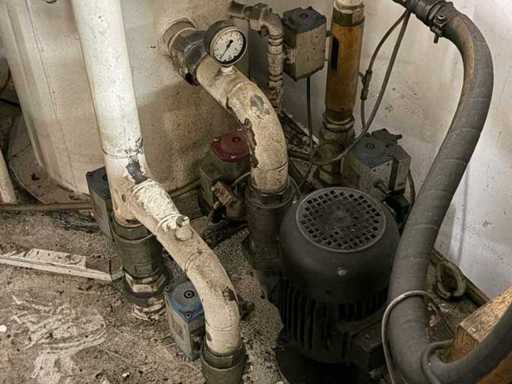

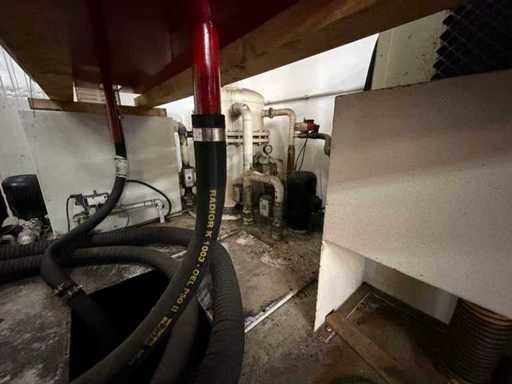

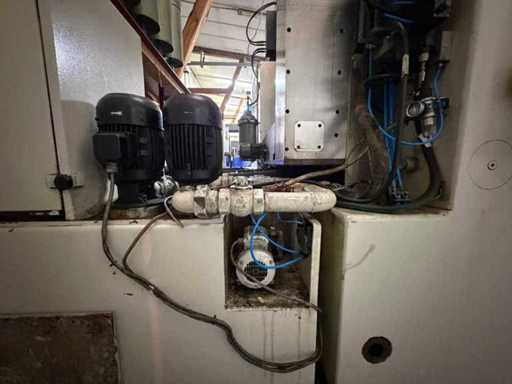

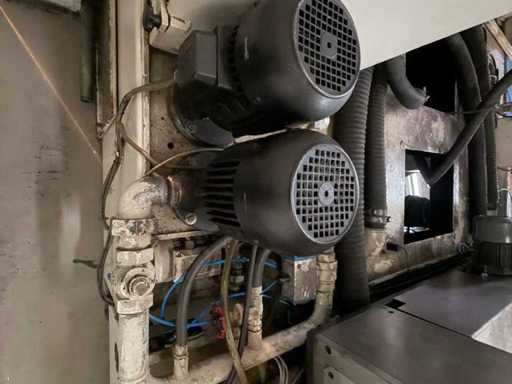

· Dielectric system with pump units

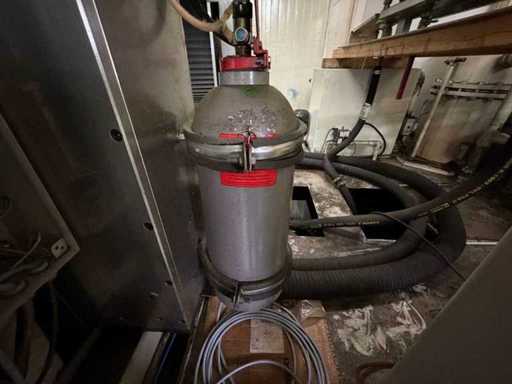

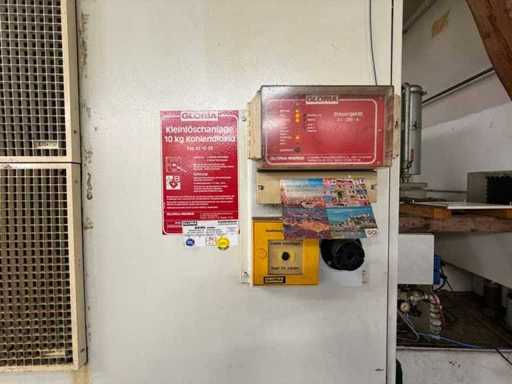

· Integrated CO₂ extinguishing system

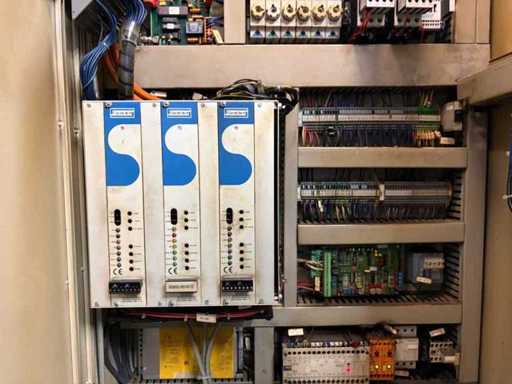

· Servo Driven Axes
· Large work basin for large-format workpieces
Notes:
· Age-related signs of wear present
· Visible contamination in the area of the auxiliary units and filter units
· No automatic electrode changer available
· Control technology from the 1990s
Robustly constructed large-format die-sinking EDM machine with solid mechanical substance and large working range for industrial applications in tool and mould making.
Contact:
Dennis Blos
d.blos@tbauctions.com 0173 6040 381
Equipment:
· Original ELO/AEG CNC control with digital display
· Separate control panel with keypad and control console
· Heavy work table with T-slots
· Electrode holder on the Z-axis
· Multiple filter system with several filter containers
· Dielectric system with pump units
· Integrated CO₂ extinguishing system
· Servo Driven Axes
· Large work basin for large-format workpieces
Notes:
· Age-related signs of wear present
· Visible contamination in the area of the auxiliary units and filter units
· No automatic electrode changer available
· Control technology from the 1990s
Robustly constructed large-format die-sinking EDM machine with solid mechanical substance and large working range for industrial applications in tool and mould making.
Contact:
Dennis Blos
d.blos@tbauctions.com 0173 6040 381
Remarks
Note on the article description
The article description is for general orientation and was partly created automatically. The images provided are decisive for condition, design and technical data. Deviations from information in individual details are possible. If you have any questions, please contact us before submitting your bid.
The article description is for general orientation and was partly created automatically. The images provided are decisive for condition, design and technical data. Deviations from information in individual details are possible. If you have any questions, please contact us before submitting your bid.
Additional details
Pick-up: by arrangement
You will find pick-up information on your invoice after the auction
Please note that all items are sold used and untested unless expressly stated otherwise. The respective article description is decisive.
For detailed information on warranty and guarantee conditions, please refer to the auction conditions.
Note: Late or missed pickup may incur additional storage, handling, or disassembly costs that are the responsibility of the buyer.
