AIR LIQUIDE ROTAMATIC ST 15 Welding rotator equipment - 2015
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand

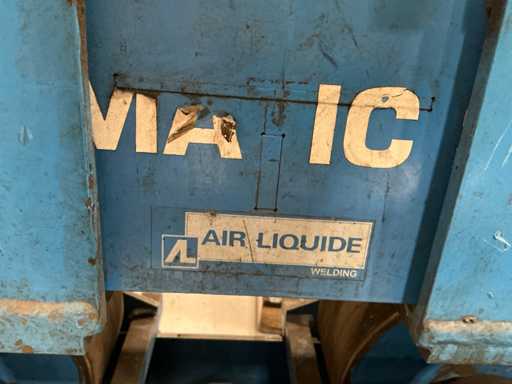

- AIR LIQUIDE
- Type
- ROTAMATIC ST 15
- Year of build
- 2015
- Serial number
- 00361503140
- Electric connection
- 400V
- Machine weight
- 600kg
- Dimension l
- 2200mm
- Dimension w
- 680mm
- Dimension h
- 1350mm
- Terms of delivery
- Ex foundation-unpackaged
Description

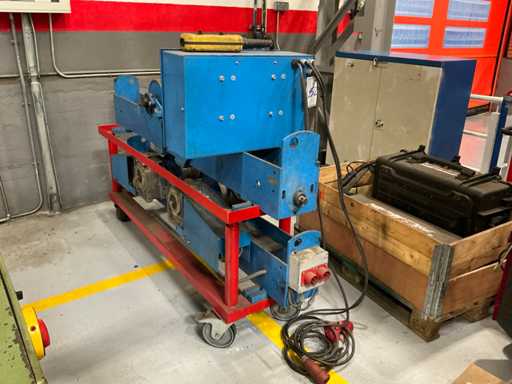

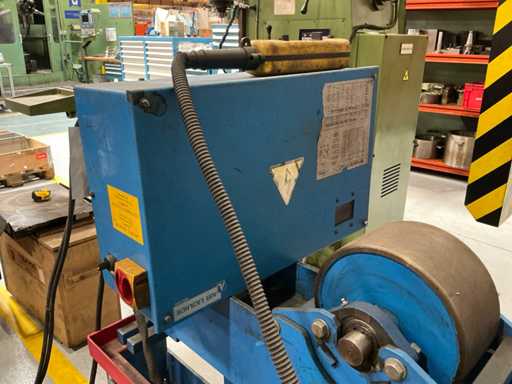

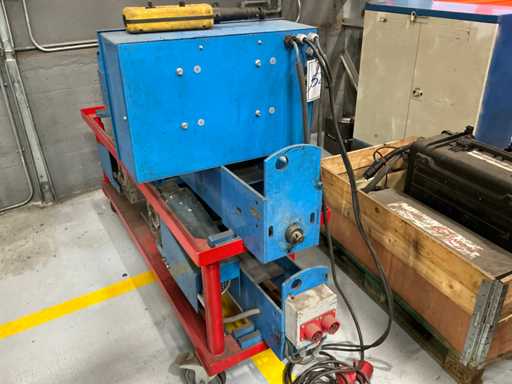

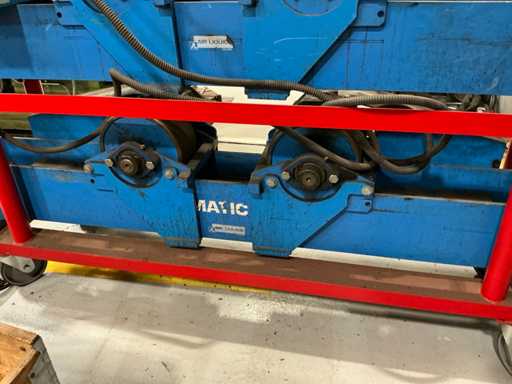

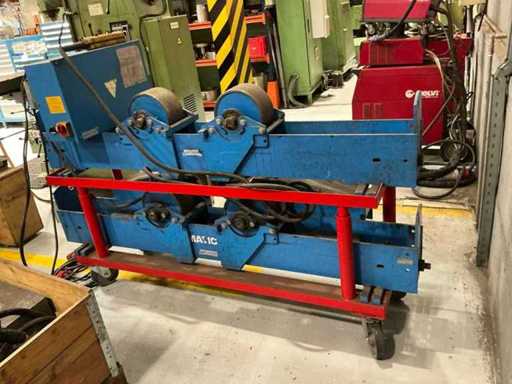

- A set consisting of a motorised ROTAMATIC ST 15 W unit and a free support unit for the rotation and positioning of ROTAMATIC ST 15 F cylindrical workpieces.
- Maximum load capacity of the set: 15000 kg.
- Permissible part diameter: 300 - 4000 mm.

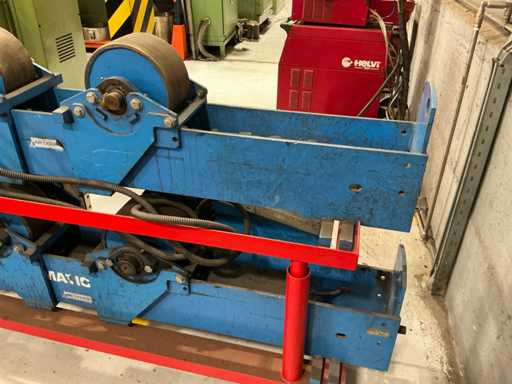

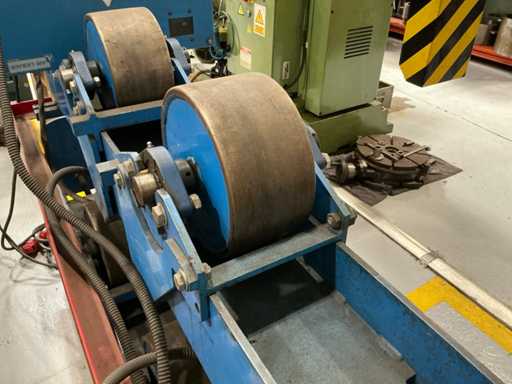

- Polyurethane rollers of Ø 250 x 110 mm in both units.
- Adjustable distance between rollers: 340 - 1540 mm.

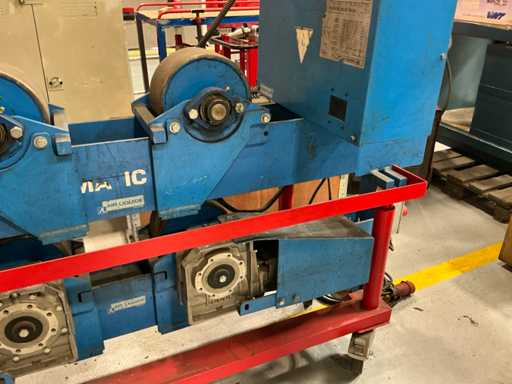

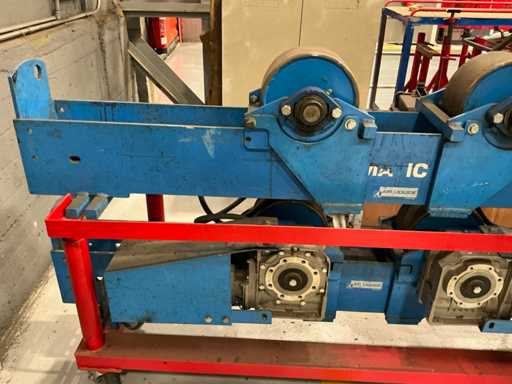

- Drive by geared motor with infinitely variable speed regulation.
- Adjustable peripheral rotation speed: 120 - 1200 mm/min.

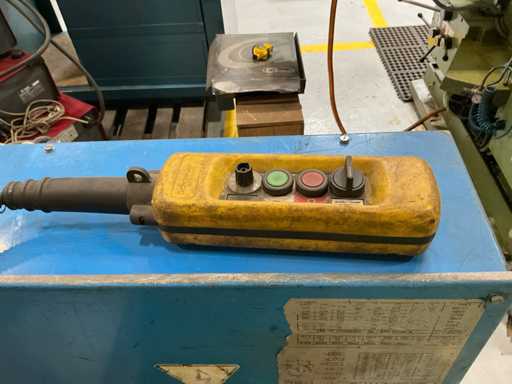

- Includes pendant control for control of gear, stop, speed and direction of rotation.
- Designed for the controlled positioning and rotation of cylindrical parts during welding operations.
- Allows you to maintain a constant rotational speed to facilitate consistent, high-quality weld seams.
- Operating conditions of this item without checking.
- Maximum load capacity of the set: 15000 kg.
- Permissible part diameter: 300 - 4000 mm.
- Polyurethane rollers of Ø 250 x 110 mm in both units.
- Adjustable distance between rollers: 340 - 1540 mm.
- Drive by geared motor with infinitely variable speed regulation.
- Adjustable peripheral rotation speed: 120 - 1200 mm/min.
- Includes pendant control for control of gear, stop, speed and direction of rotation.
- Designed for the controlled positioning and rotation of cylindrical parts during welding operations.
- Allows you to maintain a constant rotational speed to facilitate consistent, high-quality weld seams.
- Operating conditions of this item without checking.
Remarks
- Operating conditions of this item without checking.
Additional details
Dismantling and loading will be carried out exclusively by the dismantler appointed by the seller and contracted directly by the buyer. The dismantling and loading prices for each lot will be published before the start of bidding.
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
