BROWN & SHARPE - Derby 454 - Coordinate measuring machines

Current bid
Status

Total bid amount

See total breakdown

Max bid amount

See total breakdown
Lot specifications
Quantity
1
Margin
No
Brand
BROWN & SHARPE
Type
Derby 454
Year of build
1999

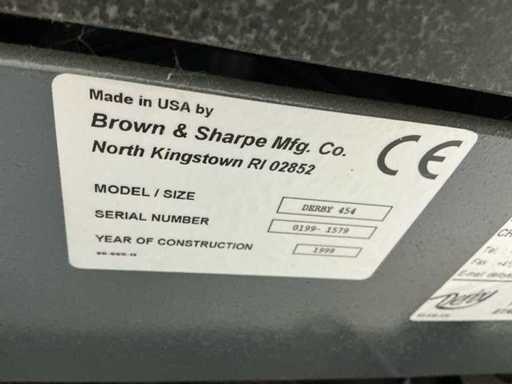

Serial number
0199-1579
Electric connection
240V
Own weight
220kg
Dimension l
895mm
Dimension w
885mm
Dimension h
1575mm
Terms of delivery
Loaded on truck
Description

Technical data

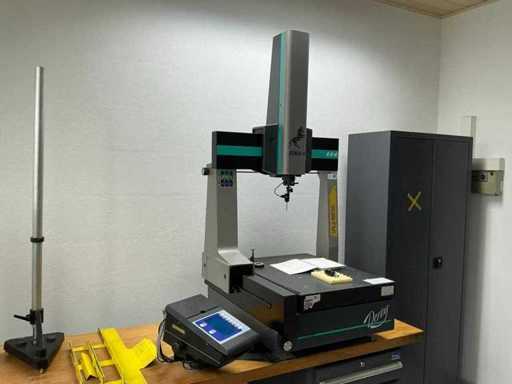

Brown & Sharpe Derby 454 Coordinate Measuring Machine
Year of Make: 1999
Measuring range: 457 x 508 x 406 mm
Max. workpiece dimensions: 559 x 750 x 483 mm
Max. workpiece weight: 227 kg
Machine dimensions: 895 x 885 x 1575 mm
Machine weight: 180 kg
Repeatability: 0.004 mm
Spatial measurement accuracy: 0.010 mm
Measuring speed max.: 760 mm/s
Compressed air: 4.8 - 8.3 bar
Power supply: 100-240 VAC / 50-60 Hz

Configuration

ETALON Measurement Portal

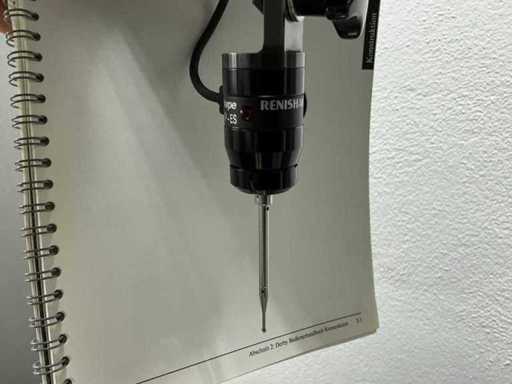

Renishaw TP20 probing system

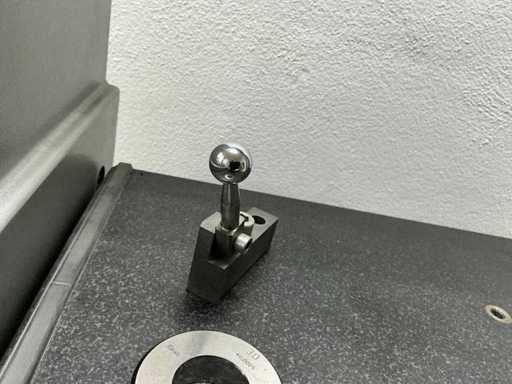

Probes and accessories available
Granite measuring plate
Manual X/Y/Z control
Control panel / controller

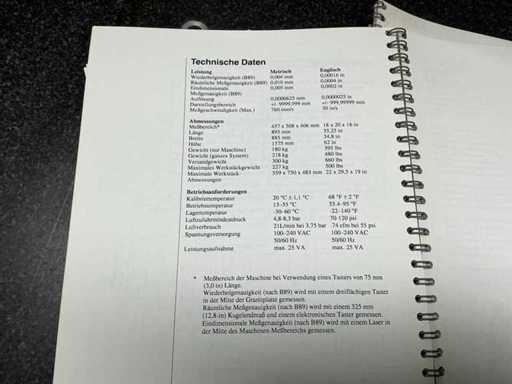

Operating manual available
CE marking
Condition according to photo documentation
Additional details
Viewing: 16.06.2026 Please only by appointment at project.de@surplex.com Pick-up period: 29.06. – 03.07.2026 (by appointment only) (Pallet goods and light items can be picked up as early as 23.06.2026) Please note that all items are sold used and untested unless expressly stated otherwise. The respective article description is decisive. For detailed information on warranty and guarantee conditions, please refer to the auction conditions. Note: Late or missed pickup may incur additional storage, handling, or disassembly costs that are the responsibility of the buyer. All dismantling and loading costs shown in the auction are valid exclusively on the condition that the collection takes place within the specified collection period and that the dismantling can be carried out according to the dismantling method specified by the commissioned dismantler. Deviations from this caused or required by the buyer, in particular special dates, delays or special dismantling requirements, are not part of the stated costs and will be calculated separately according to effort or individually agreed.
