COOPMES S.C.A.R.L. TAIA BS5 CNC Glass Cutting Table - Triplex
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
Max bid amount
See total breakdown
Max bid amount
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Coopmes S.C.A.R.L.
- Year of build
- 1989
- Own weight
- 3500kg
- Total dimension Height
- 1200mm
- Terms of delivery
- Ex foundation-unpackaged
Description
General Description
CNC glass cutting table manufactured by COOPMES S.C.A.R.L., model TAIA BS5. Designed for automatic scoring and cutting of flat glass sheets for insulating glass and architectural glass production. The machine features a CNC-controlled bridge and air flotation table for accurate and efficient glass processing.
Technical Details
Manufacturer: COOPMES S.C.A.R.L.
Model: TAIA BS5
Machine type: CNC glass cutting table
Year: 1989

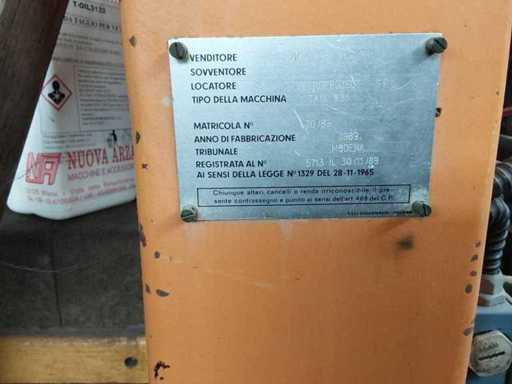

Serial number: 70/89 (to be confirmed)
CNC bridge cutting system

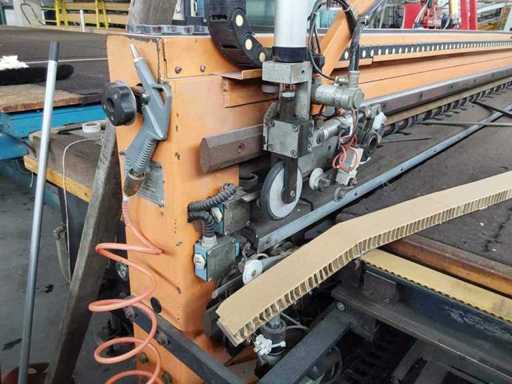

Automatic cutting head
Pneumatic cutting pressure regulation
Air flotation table

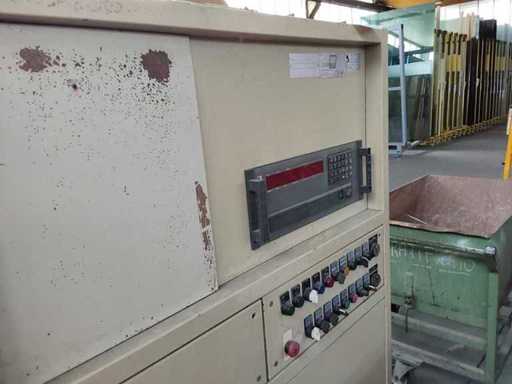

Digital operator control console

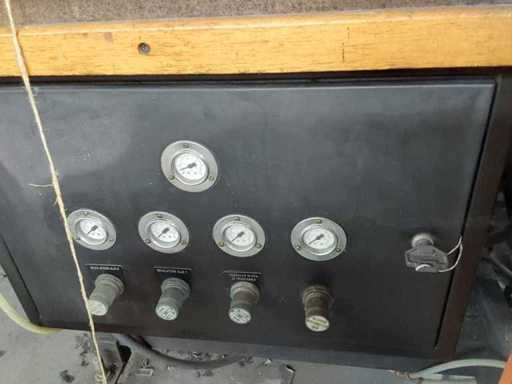

Pressure gauges and pneumatic control system
Condition

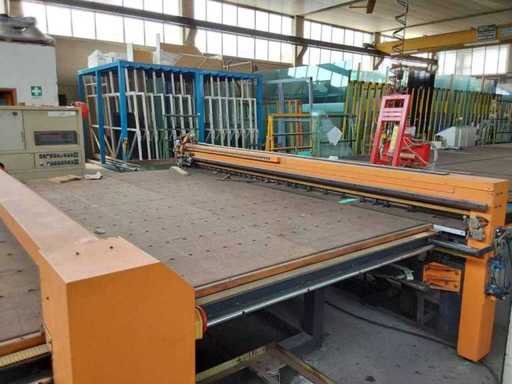

Used industrial condition. The machine appears complete with bridge, cutting head, cable carrier, air flotation table and operator console installed. The bridge rails appear straight and no obvious structural damage is visible. Cosmetic paint wear, dust accumulation and ageing of the control system are consistent with long-term industrial use. Operational status and cutting accuracy have not been independently verified.
Dimensions
Length: Approx. 7,000 mm
Width: Approx. 4,200 mm
Height: Approx. 1,200 mm
Weight: Approx. 3,500 kg
